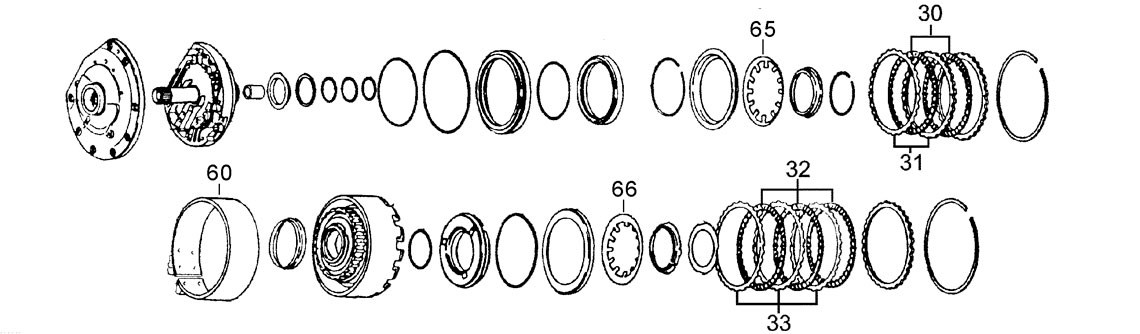

A

Pump, C & B Clutches

32
31
60
66
65
30
33

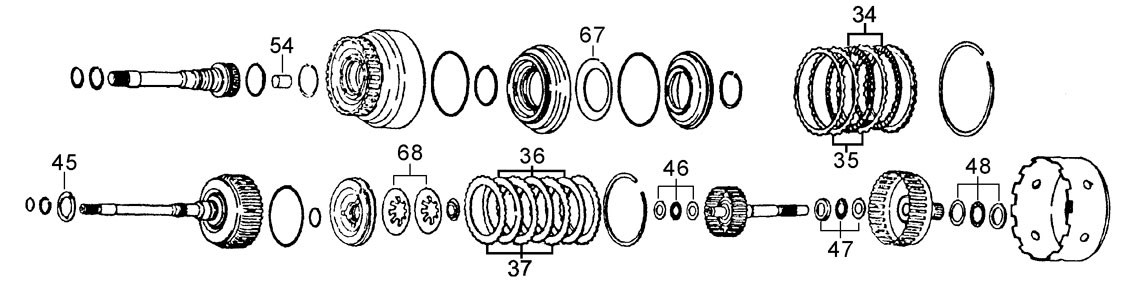

B

A & E Clutches

46
34
37
67
45
54
68
36
47
48
35

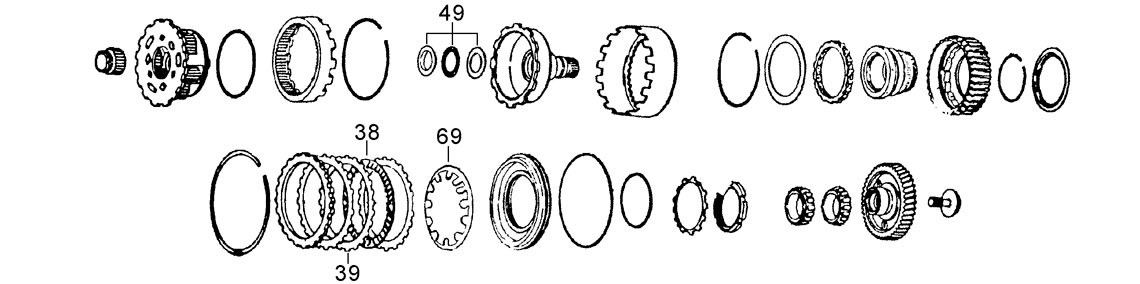

C

Planet Sets & D Brake

49
69
38
39

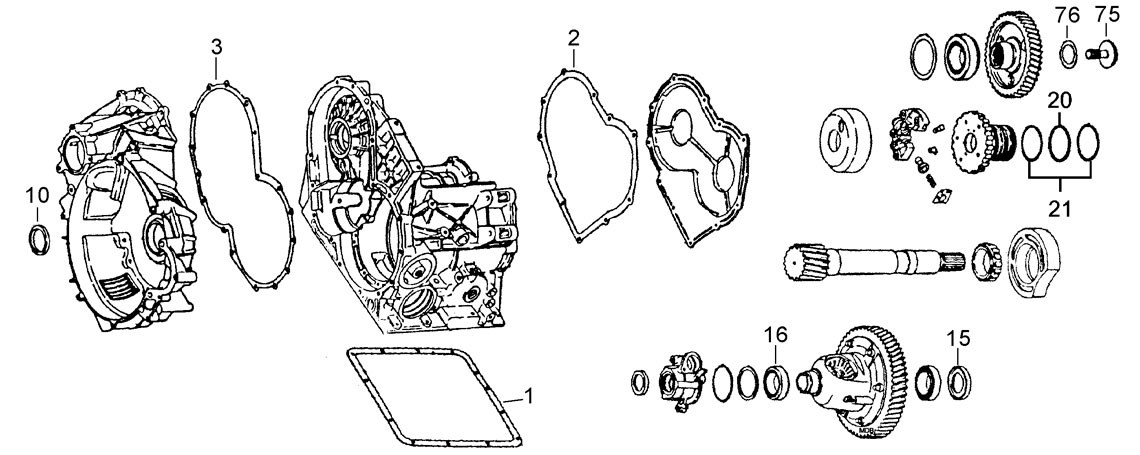

D

Case & Final Drive

21
2
20
3
16
1
15
10
76
75

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 91000K Overhaul Kit 83-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1D 91100 Pan Gasket Except Volvo & MG 83-ON 1
1D 91102 Pan Gasket Volvo & MG 83-ON 1
2D 91112 Spur Gear Cover Gasket 83-ON 1
NI 91108 Filter Cover Gasket 83-ON 1
NI 91116 Cooler to Case Washer 83-ON 1
NI 91118 Cooler to Case Washer 83-ON 1
NI 91120 Cooler Bolts Sealing Washer 83-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10D 93200 Converter Seal 39 ID x 52.3 OD x 6.80mm 83-ON 1
15D 91210 Axle Seal Lefthand All 40 ID x 58 OD x 10.00mm 83-ON 1
16D 91210 Axle Seal Righthand Rover & Volvo 40 ID x 58 OD x 10.00mm 83-ON 1
16D 91211 Axle Seal Righthand Citroen & Peugeot 29.85 ID x 47 OD x 9.90mm 83-ON 1
NI 91214 Selector Shaft 12 ID x 22 OD x 7.00mm 83-ON 1
NI 92210 Differential Lefthand Seal, Saab 35 ID x 47.3 OD x 7.90mm 83-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 91250K Sealing Ring Kit 83-ON 1
20D 91260 Governor Flange Steel 83-ON 1
21D 91262 Governor Flange Rubber 83-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A 95332 C Clutch (Cintered Lining) 134.9 OD x 1.55mm x 30T 83-ON 2
30A 95334 C Clutch (Cintered Lining) 134.9 OD x 1.55mm x 30T 83-ON Alt
32A 91312 B Clutch (Hole in one tooth) 135 OD x 1.95mm x 30T 83-ON 3
34B 95332 A Clutch (Cintered Lining) 134.9 OD x 1.55mm x 30T 83-ON 3-5
34B 95334 A Clutch (Cintered Lining) 134.9 OD x 1.55mm x 30T 83-ON Alt
36B 91316 E Clutch 98 OD x 1.55mm x 36T 83-ON 4-5
38C 91314 D Clutch (Plain Lining) 135 OD x 1.55mm x 30T 83-ON 4-6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A 91360 C Clutch 120 ID x 1.80mm x 24T 83-ON 2
33A 91360 B Clutch 120 ID x 1.80mm x 24T 83-ON 4-5
35B 91360 A Clutch 120 ID x 1.80mm x 24T 83-ON 3-5
35B 91361 A Clutch Waved 120 ID x 1.10mm x 21T 83-ON 1
37B 91366 E Clutch 76 ID x 1,75mm x 30T 83-ON 4-5
39C 91364 D Clutch 120 ID x 1.20mm x 24T 83-ON 4-6
39C 91365 D Clutch Waved 120 ID x 1.00mm x 21T 83-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
54B 92416 Turbine Shaft (Bronze) 83-ON 1
NI 91412 Stator Shaft Front 83-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
45B 91470 A to E Clutch Plastic Washer 83-ON 1
46B 92464 Intermediate Shaft to E Clutch Bearing Kit 83-ON 1
47B 91472 Intermediate Shaft to Sungear Shaft Bearing Kit 83-ON 1
48B 91474 Sungear Shaft to Shell Bearing Kit (Code Required) 83-ON 1
48B 91475 Sungear Shaft to Shell Bearing Kit (Code Required) 83-ON 1
49C 91476 Planetary to Output Shaft Bearing Kit 83-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60A 91500 Band 83-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
NI 91550 Filter 83-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
65A 91650 C Clutch Diaphragm Spring 105.5mm O.D. 105.5 OD 83-ON 1
65A 91651 C Clutch Diaphragm Spring 163.5mm O.D. 163.5 OD 83-ON 1
66A 91652 B Clutch Diaphragm Spring 83-ON 1
67B 91654 A Clutch Diaphragm Spring 83-ON 1
68B 91656 E Clutch Diaphragm Spring 83-ON 2
69C 91658 D Clutch Diaphram Spring 83-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
75D 91760 Transfer Gear Retaining Bolt 83-ON 2
76D 91762 Transfer Gear Retaining Bolt Shim 83-ON 2
NI 49202K Cable Repair Kit 83-ON 1
NI 49202K Cable Repair Kit 83-ON 1
NI 91750 Pan and Side Cover Bolts 83-ON AR
NI 91764 Governor Spring Retainer 10.4mm Spring Recess 83-ON 1
NI 91766 Governor Spring Retainer 13.5mm Spring Recess 83-ON 1
NI 93784 Valve Body Ball 4.5mm 83-ON AR
