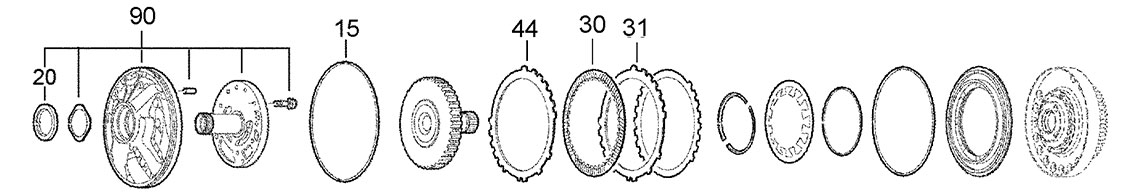

A

Pump & F Clutch

44
90
20
15
30
31

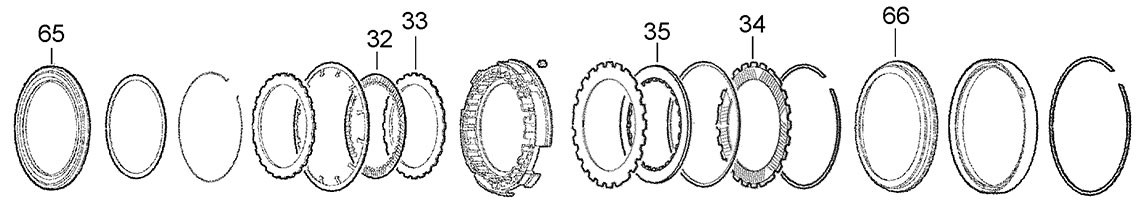

B

D & C Brakes

66
65
32
33
35
34

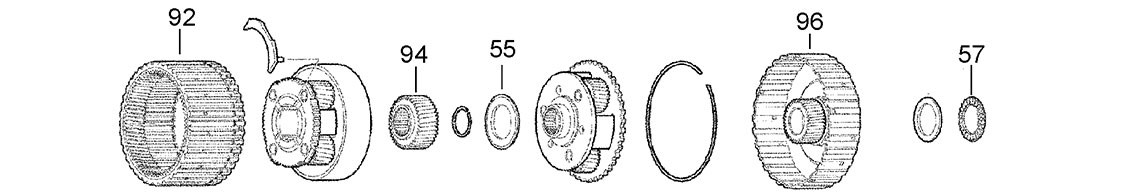

C

Planetary Assemblies

94
96
92
55
57

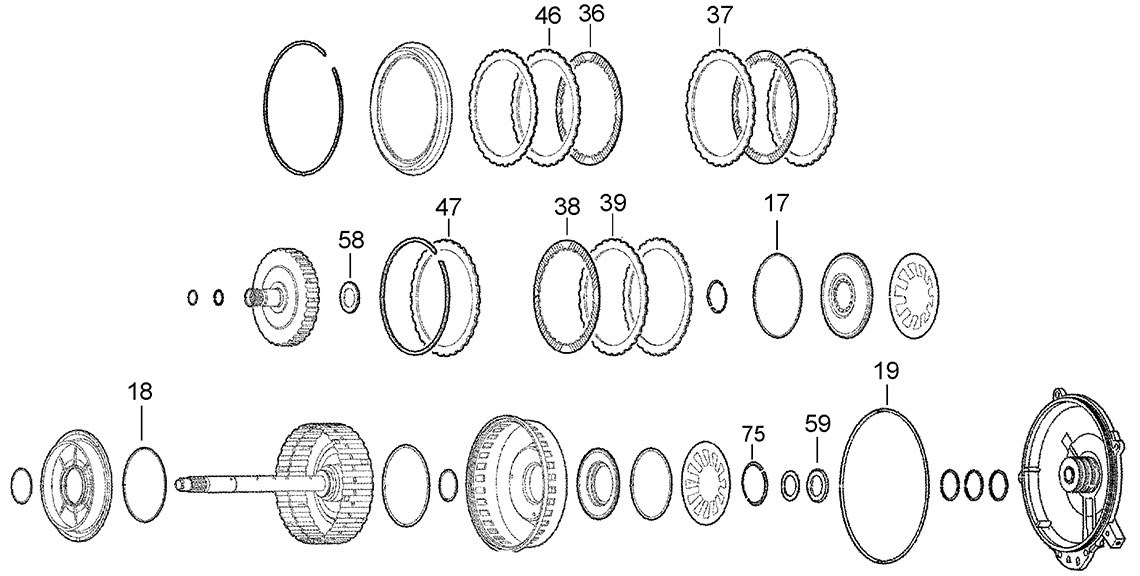

D

B & E Clutches, Input Shaft & Drum & End Cover

46
47
75
19
18
17
36
37
58
38
39
59

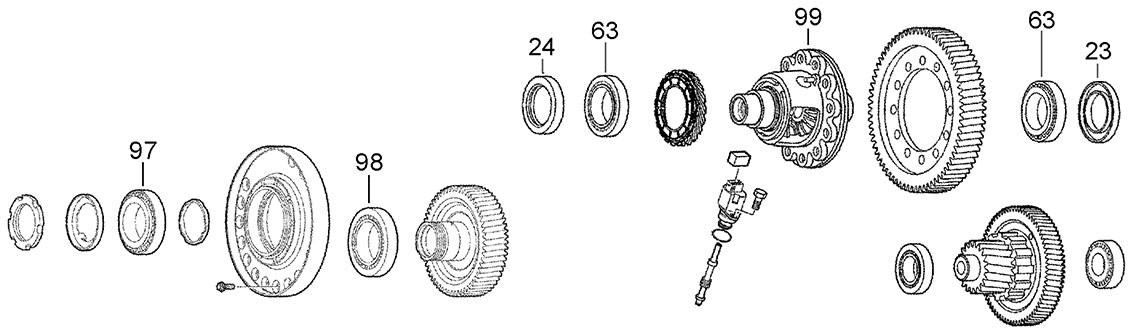

E

Output Gear & Differential Assembly

98
97
63
99
24
63
23

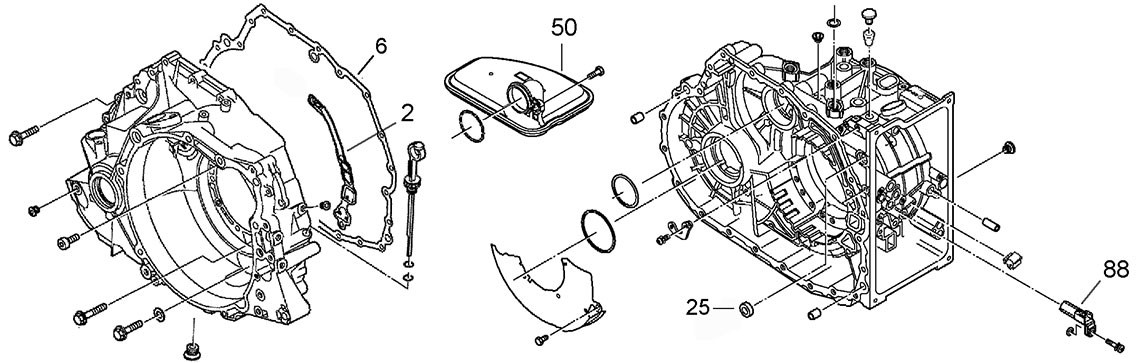

F

Case & Filter

88
6
25
2
50

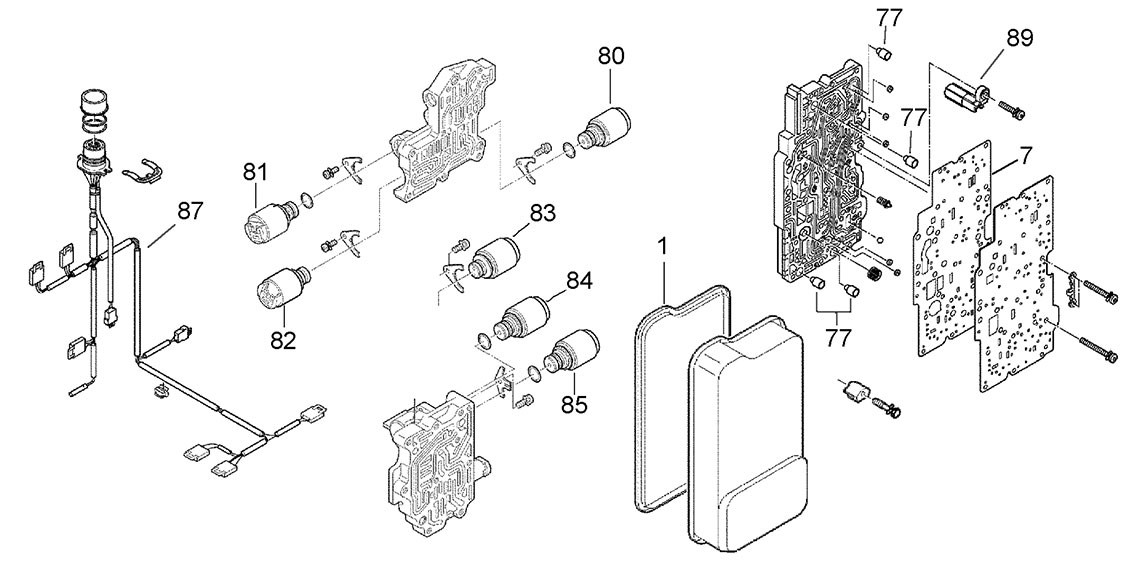

G

Valve Body

7
77
77
82
77
84
83
87
89
81
1
80
85

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 92010K Overhaul Kit Citroen, Peugeot & Renault 95-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1G 92110 Pan Gasket 95-ON 1
2F 92112 Pump Gasket 95-ON 1
6F 92134 Main Case Gasket Citroen, Peugeot & Renault 95-ON 1
7G 92124 Valve Body Gasket 95-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
15A 92170 Pump Outer O Ring 95-ON 1
17D 92172 B Clutch Outer O Ring 95-ON 1
18D 92172 E Clutch Outer O Ring 95-ON 1
19D 94160 End Cover to Case O Ring 208 ID x 2.50mm thick 95-ON 1
NI 94190 Wiring Loom O Ring 95-ON 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 92200 Pump Seal 45 ID x 58.4 OD x 7.00mm 95-ON 1
20A 92201 Pump Seal, OEM 42.8 ID x 58.3 OD x 7mm 95-ON 1
23E 92220 Axle Seal Lefthand All Except Mercedes 40 ID x 64 OD x 8.00mm 95-ON 1
23E 92228 Axle Seal Lefthand Mercedes Only 45 ID x 62 OD x 7.00mm 95-ON 1
24E 92222 Axle Seal Righthand All Except Mercedes 40 ID x 58 OD x 10.00mm 95-ON 1
24E 92226 Axle Seal Righthand Mercedes Only 40 ID x 58 OD x 10.00mm 95-ON 1
25F 91214 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 95-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A 95310 F Clutch 168.5 OD x 1.55mm x 40T 95-ON 3
32B 95310 D Brake 168.5 OD x 1.55mm x 40T 95-ON 4
34B 92324 C Brake Internal Teeth 197 OD x 1.60mm x 30T 95-ON 1
34B 92328 C Brake External Teeth 154.8 ID x 2.20mm x 24T 95-ON 2
36D 92320 E Clutch 178.4 OD x 1.60mm x 30T 95-ON 5
38D 92320 B Clutch 178.4 OD x 1.60mm x 30T 95-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A 92378 F Clutch 168.5 OD x 2.70mm x 17T 95-ON 3
33B 95360 D Brake 145.8 ID x 1.80mm x 24T 95-ON 4
33B 96360A D Brake 154.9 ID x 3.00mm x 30T 95-ON Alt
35B 92374 C Brake Internal Teeth 197 OD x 3.60mm x 30T 95-ON 1
37D 92370 E Clutch 154.9 ID x 2.10mm x 30T 95-ON 4-5
37D 96360A E Clutch 154.9 ID x 3.00mm x 30T 95-ON Alt
37D 96360B E Clutch 154.9 ID x 3.90mm x 30T 95-ON 4-5
39D 92372 B Clutch 154.9 ID x 2.40mm x 30T 95-ON 1-2
44A 92396 D Brake Pressure Plate 145.8 ID x 2.40mm x 24T 95-ON 1
46D 96360A E Clutch Pressure Plate 154.9 ID x 3.00mm x 30T 95-ON Alt
46D 96360B E Clutch Pressure Plate 154.9 ID x 3.90mm x 30T 95-ON 1
47D 96360 B Clutch Pressure Plate 154.9 ID x 3.00mm x 30T 95-ON 1
47D 96360A B Clutch Pressure Plate 154.9 ID x 3.00mm x 30T 95-ON Alt

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
NI 95410 Pump Body Bush Oversize Machining of Pump Body is required 95-ON Alt
NI 95412 Pump Body Bush Oversize Finish in Place 95-ON Alt

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 92450K Bearing Kit Contains Bearings Marked * 95-ON 1
55C 92482 Sungear to Planet Bearing* 95-ON 1
57C 92486 Rear Sungear to E Carrier Bearing * 95-ON 1
58D 92480 Input Shaft to E Clutch Hub Bearing * 95-ON 1
59D 92480 End Cover to Input Shaft Bearing * 95-ON 1
63E 92930 Differential Bearing Fiat 95-ON 2
63E 92932 Differential Bearing Mercedes, Citroen, Peugeot, Renault 95-ON 2
97E 92934 Output Gear Bearing 95-ON AR
98E 92936 Output Gear Bearing 95-ON AR
NI 92484 Thrust Race D Clutch 95-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
50F 92560 Filter Mercedes & Fiat 95-ON 1
50F 92561 Filter Mercedes & Fiat, OEM 95-ON 1
50F 92562 Filter Citroen, Peugeot & Renault 95-ON 1
50F 92563 Filter Citroen, Peugeot & Renault, OEM 95-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 92586K C Brake Piston & Cylinder Assembly All Except Codes Above 95-ON 1
65B 92580 D Brake Piston 95-ON 1
66B 92582 C Brake Piston Codes 005, 007, 008, 010 & 018 95-ON 1
66B 92584 C Brake Piston All Except Codes Above 95-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
80G 92700 PWM Solenoid (Pressure Control) EDS4, Regulator 4 95-ON 1
81G 92704 PWM Solenoid EDS6, Regulator 6 95-ON 1
82G 92712 Shift Solenoid MV1 95-ON 1
83G 92712 Shift Solenoid EDS5, Regulator 5 95-ON 1
84G 92704 PWM Solenoid (Lock Up Control) EDS3, Regulator 3 95-ON 1
85G 92704 PWM Solenoid MV2 95-ON 1
87G 92720 Wiring Harness Codes 1019 000 005, 007 to 010, 013, 015 to 020 032, 044 to 050, 060, 062 & 071 95-ON 1
87G 92722 Wiring Harness Codes 1019 000 037, 041, 042, 052 to 056, 058, 063 to 068 & 073 95-ON 1
88F 92730 Input Speed Sensor 95-ON 1-2
89G 92730 Output Speed Sensor All except Peugeot 95-ON 1-2

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 92755K Remote Adapter Cooler 95-ON 1
75D 92784 B Clutch Retainer 95-ON 1
77G 95770 Valve Body Pistons Early Design (Rubber) 95-ON 1-4
77G 95772 Valve Body Pistons 95-ON 1-4
NI 96782 Breather Cap 95-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 92900 Oil Pump Assembly 95-ON 1
92C 92910 Annulus 95-ON 1
94C 92914 Front Sungear 95-ON 1
96C 92918 Rear Sungear 95-ON 1
99E 92940 Differential Carrier (Fiat Ducato) 95-ON 1

Please provide Transmission Code when ordering to ensure correct parts are supplied

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 95999-05 Lifeguard 5, 5 Litre Pack 95-ON AR
NI 95999-20 Lifeguard 5, 20 Litre Pack 95-ON AR
