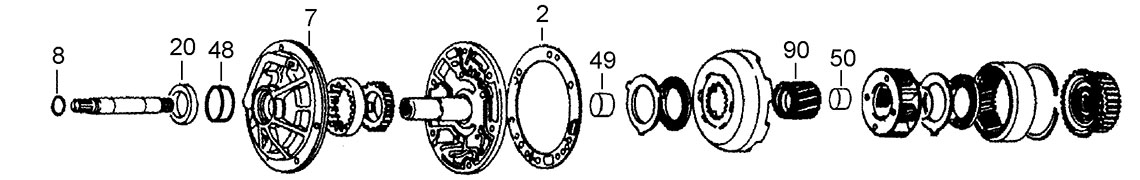

A

Pump & Overdrive Planet

48
49
2
20
90
8
7
50

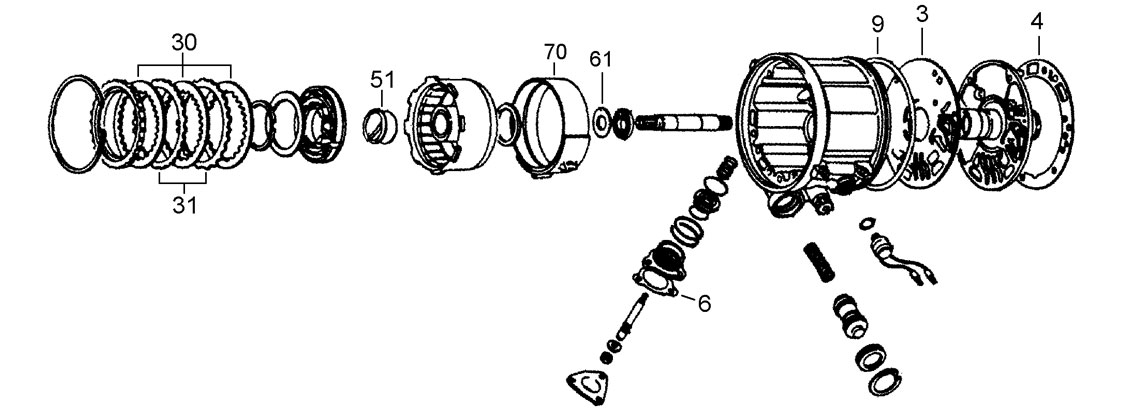

B

Overdrive Clutch & Case

6
4
30
70
61
31
51
9
3

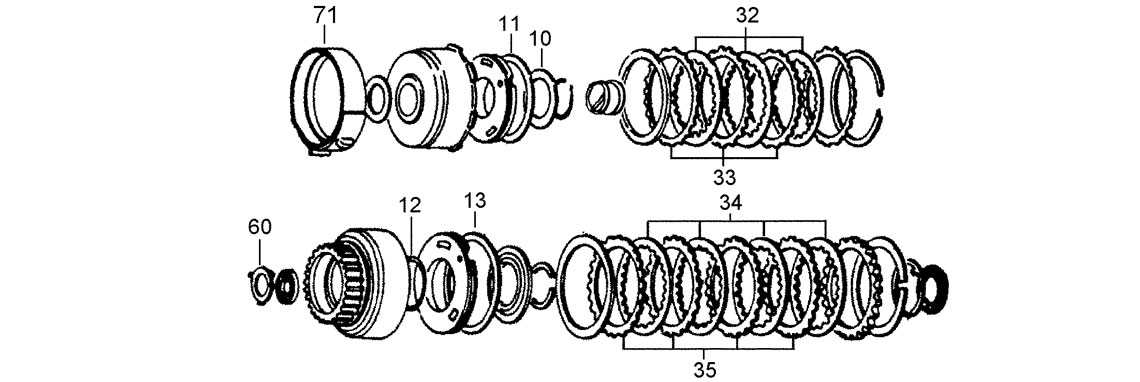

C

Direct & Forward Clutches

71
33
34
35
32
13
12
10
11
60

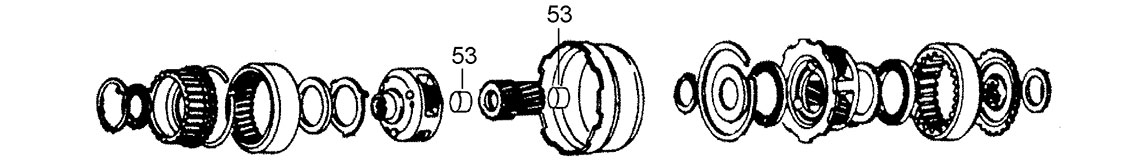

D

Planet Sets

53
53

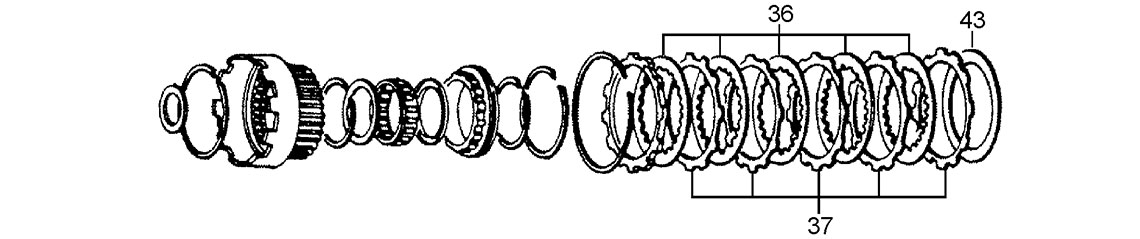

E

Low & Reverse Brake

37
36
43

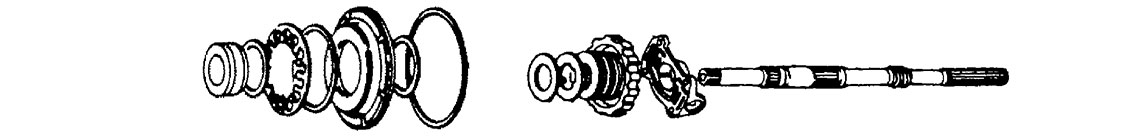

F

Governor & Output Shaft

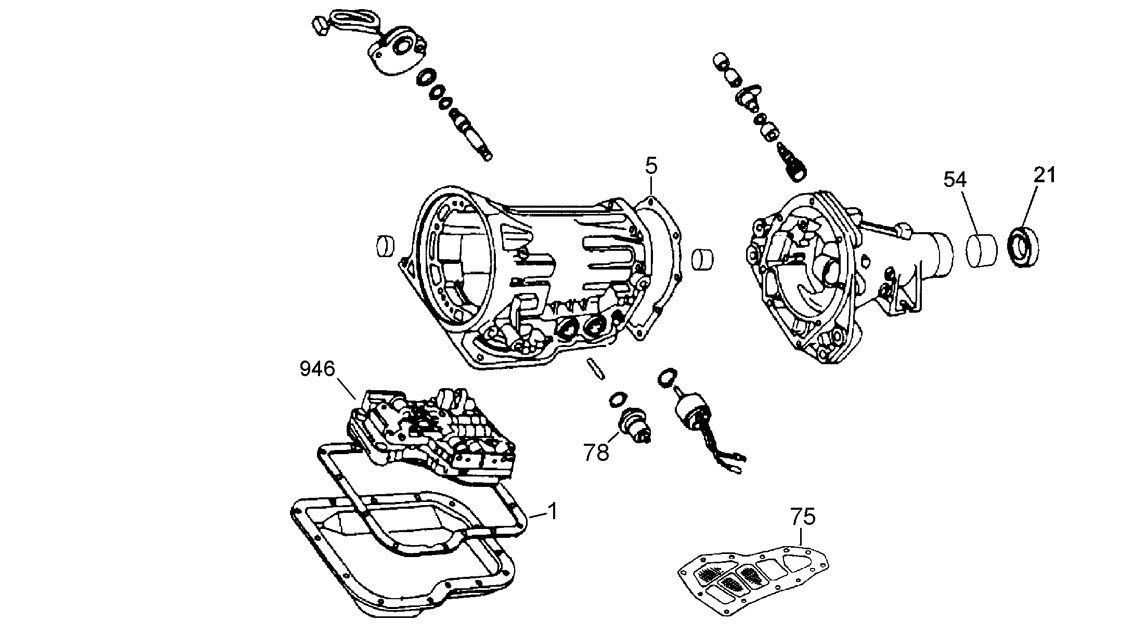

G

Case, Fl Lter & Pan

78
21
54
1
5
946
75

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60000K Overhaul Kit 3N71B (3 Speed) with Inside Servo Transtec 71-ON 1
Kit 60002K Overhaul Kit 3N71B (3 Speed) with Outside Servo 74-ON 1
Kit 60004K Overhaul Kit 4N71B (4 Speed) Transtec 82-ON 1
Kit 60006K Overhaul Kit N4A-EL (4 Speed) Transtec 88-ON 1
  • 3 Speed Inside Servo - 14 Bolt Holes in Pan
  • 3 Speed Outside Servo - 17 Bolt Holes in Pan

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60122K Valve Body Gasket Kit N4A-EL 88-92 1
1G 60100 Pan Gasket 14 Bolt Holes 71-ON 1
1G 60100 Pan Gasket 4N71B & N4A-EL 82-ON 1
1G 60100F Oil Pan Gasket 82-ON Alt
1G 60102 Pan Gasket 17 Bolt Holes 74-ON 1
2A 60104 Front Pump to Case 3 Speed Non Lock Up 71-ON 1
2A 60110 Front Pump to Overdrive 4 Speed 82-ON 1
3B 60112 Overdrive Case to Drum Support 4 Speed 82-ON 1
5G 60108 Extension Housing Gasket All 71-ON 1
6B 60106 Band Adjusting Nut Cover 4 Speed & Outside Servo 74-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
7A 60160 Front Pump to Case D Ring All 71-ON 1
8A 56162 Input Shaft to Converter O Ring 22.5 x 19.5 x 1.80mm 71-ON 1
9B 60160 Overdrive to Case D Ring 4 Speed 82-ON 1
10C 65170 Direct Clutch Inner O Ring 71-ON 1
11C 65172 Direct Clutch Outer O Ring 71-ON 1
12C 65170 Forward Clutch Inner O Ring 71-ON 1
13C 65172 Forward Clutch Outer O Ring 71-ON 1
NI 60166 Low & Reverse Inner O Ring 4N71B 82-ON 1
NI 60168 Low & Reverse Outer O Ring 4N71B 82-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 60200 Front Pump Seal All 42 ID x 60 OD x 9.00mm 71-ON 1
21G 60230 Extension Housing Nissan 35 ID x 50 OD x 11.00mm 71-ON 1
21G 60232 Extension Housing Mazda 35 ID x 48 OD x 15.00mm 71-ON 1
21G 60234 Extension Housing 4N71B Except RX7 38 ID x 51 OD x 9.00mm 82-ON 1
21G 60236 Extension Housing RX7 & N4A-EL 39 ID x 51.3 OD x 13.00mm 82-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60250K Sealing Ring Kit 3 Speed 71-ON 1
Kit 60252K Sealing Ring Kit 4 Speed 82-ON 1
NI 60260 Governor Support (Metal) All 71-ON 3

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60310KD Friction Kit 4N71B, Dynax Dynax 82-ON 1
30B 60310 Overdrive 4 Speed Only 116 OD x 1.50mm x 44T 82-ON 2-3
30B 60310R Overdrive Raybestos 4 Speed Only 116 OD x 1.57mm x 44T 82-ON AR
32C 60310 Direct 116 OD x 1.50mm x 44T 71-ON 3-5
32C 60310R Direct Raybestos 116 OD x 1.57mm x 44T 71-ON AR
34C 60310 Forward 116 OD x 1.50mm x 44T 71-ON 3-5
34C 60310R FRICTION FORWARD/DIRECT/OVERDRIVE (RAY) 116 OD x 1.57mm x 44T 71-ON AR
36E 60318 Low & Reverse 131 OD x 2.00mm x 51T 71-ON 4-7
36E 60318R Low & Reverse Raybestos 131 OD x 2.00mm x 51T 71-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 60360 Overdrive Flat 4 Speed Only 92 ID x 2.00mm x 28T 82-ON 3
31B 65360 Overdrive Selective 92 ID x 1.50mm x 28T 71-ON AR
33C 60360 Direct Flat 92 ID x 2.00mm x 28T 71-ON 3-5
33C 65360 Direct Selective 92 ID x 1.50mm x 28T 71-ON AR
35C 60360 Forward Flat 92 ID x 2.00mm x 28T 71-ON 3-5
35C 65360 Forward Selective 92 ID x 1.50mm x 28T 71-ON AR
37E 60366 Low & Reverse Flat 106 ID x 1.98mm x 13T 71-ON 4-7
43E 60368 Low & Reverse Cushion 106 ID x 132 OD x 1.70mm 71-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
48A 60410 Front Pump Bush All 71-ON 1
49A 60412 Stator Rear 3 Speed 71-ON 1
50A 60420 Overdrive Sungear 4 Speed 33 Teeth 82-ON 1
51B 60424 Overdrive Drum 4 Speed 82-ON 1
53D 60418 Sungear All 71-ON 2
54G 56440 Extension Housing 4 Speed 42 ID x 47.1 OD x 50.00mm 82-ON 1
54G 56440A Extension Housing 4 Speed 38 ID x 43 OD x 40.00mm 82-ON Alt
54G 60446 Extension Housing (Nissan) 3 Speed 35 ID x 40.20 OD x 40.10mm 71-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60450K Plastic Selective Kit All 71-ON 1
61B 60460A Overdrive Selective 1.2mm 1.20mm 82-ON AR
61B 60460B Overdrive Selective 1.4mm 1.40mm 82-ON AR
61B 60460C Overdrive Selective 1.6mm 1.60mm 82-ON AR
61B 60460D Overdrive Selective 1.8mm 1.80mm 82-ON AR
61B 60460E Overdrive Selective 2.0mm 2.00mm 82-ON AR
61B 60460F Overdrive Selective 2.2mm 2.20mm 82-ON AR

bands

NO PART # DESCRIPTION SIZE YEARS QTY
70B 60500 BAND JATCO (3/4N71B/F3A) OEM 82-ON 1
71C 60500 Intermediate Band All 71-ON 1

Flex Band Replaces Solid Must Modify Strut

filters

NO PART # DESCRIPTION SIZE YEARS QTY
75G 60550 Filter 3 Speed With Inside Servo 71-ON 1
75G 60552 Filter 3 Speed With Outside Servo 74-ON 1
75G 60554 Filter 4 Speed (Except N4A) 82-ON 1
75G 60556 Filter N4A-EL 88-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60550K Filter Kit 3 Speed With Inside Servo 71-ON 1
Kit 60552K Filter Kit 3 Speed With Outside Servo 74-ON 1
Kit 60554K Filter Kit 4 Speed (Except N4A) 82-ON 1
Kit 60556K Filter Kit N4A-EL 88-ON 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
78G 60600 Modulator 3 Speed 71-ON 1
78G 60602 Modulator 4 Speed O.E. 82-ON 1
78G 60606 Modulator N4A-EL Non Turbo 88-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
NI 60690 Lock Up Modification Spring 4 Speed 82-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 60940 Overdrive Sungear 82-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
946G 60946 Valve Body Complete N4A-EL 88-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49910 Lubegard Red (10oz) 71-ON 1
NI 49999-04 ATF DX III 4 Litre 71-ON AR
