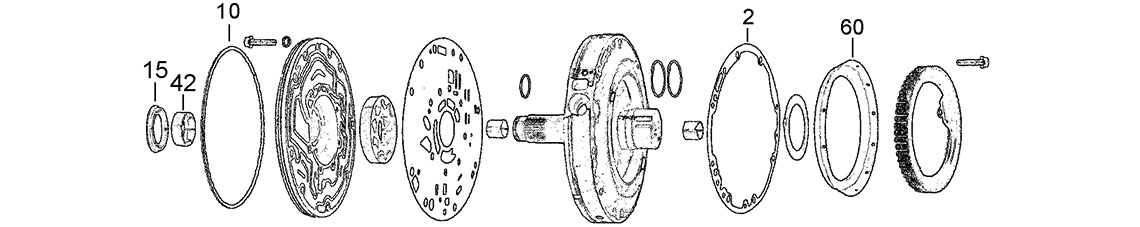

A
Pump
42
2
60
10
15
B
Overdrive Brake & Coast Clutch
61
33
32
30
31
380
C
Overdrive Planet & Centre Support
D
Intermediate Brake & Direct Clutch
63
37
35
62
36
34
64
E
Forward Clutch
39
65
66
38

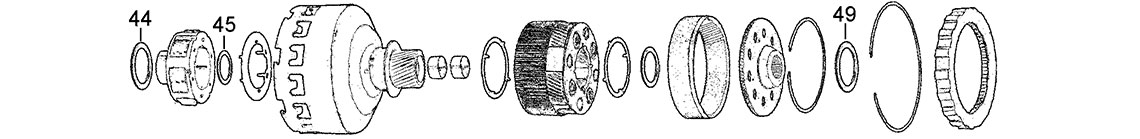

F
Front & Rear Planetary Assemblies
44
45
49
G
Low & Reverse Brake, Case, Valve Body, Filter And Pan
41
76
70
74
71
40
73
75
72
66
1
19
55

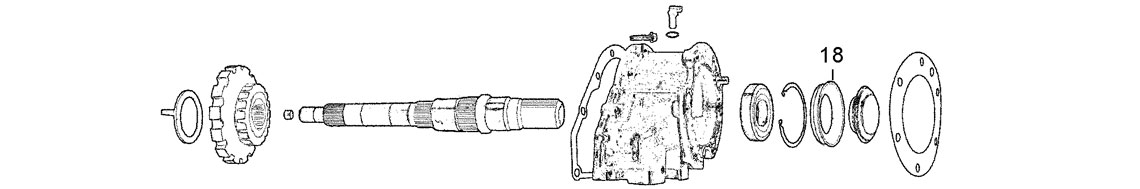

H
Output Shaft & Extension Housing
18
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45000K | Overhaul Kit With Bonded Pistons Does not Contain 4WD Rear Seal | Transtec | 03-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1G | 46142 | Pan Gasket | 03-ON | 1 | |
| 2A | 45110 | Pump to Case Gasket | 03-ON | 1 | |
| NI | 45120 | Valve Body Gasket | 03-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | 46154 | Pump to Case Lathe Cut Seal | 03-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 15A | 45200 | Front Pump Seal | 50 ID x 70 OD x 8.80mm | 03-ON | 1 |
| 18H | 45230 | Rear Seal 4WD (Bolt on Yoke) | 61 ID x 90.7 OD x 14.00mm | 03-ON | 1 |
| 19G | 44210 | Manual Shaft Seal | 18.5 ID x 27.2 OD x 5.30mm | 03-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45300K | Friction Kit | 03-04 | 1 | |
| Kit | 45302K | Friction Kit | 05-ON | 1 | |
| 30B | 46336 | Overdrive Brake | 220 OD x 2.00mm x 32T | 03-ON | 3 |
| 32B | 45312 | Coast Clutch | 167 OD x 2.00mm x 59T | 03-ON | 3 |
| 34D | 45316 | Intermediate Brake | 198 OD x 2.00mm x 96T | 05-ON | 3 |
| 36D | 45318 | Direct Clutch | 159 OD x 2.00mm x 48T | 03-ON | 4 |
| 38E | 45326 | Forward Clutch | 161 OD x 2.00mm x 76T | 05-ON | 4 |
| 40G | 46320 | Low & Reverse Brake | 174 OD x 2.00mm x 72T | 03-ON | 6 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45350K | Steel Kit | 03-04 | 1 | |
| Kit | 45352K | Steel Kit | 05-ON | 1 | |
| 31B | 45360 | Overdrive Brake | 190 ID x 2.00mm x 6T | 03-ON | 3 |
| 33B | 45362 | Coast Clutch | 149 ID x 2.00mm x 32T | 03-ON | 3 |
| 35D | 45364 | Intermediate Brake | 165 ID x 3.17mm x 26T | 03-04 | 3 |
| 35D | 45366 | Intermediate Brake | 165 ID x 2.95mm x 26T | 05-ON | 3 |
| 37D | 45368 | Direct Clutch | 130 ID x 2.03mm x 25T | 03-ON | 4 |
| 39E | 45368 | Forward Clutch | 130 ID x 2.03mm x 25T | 03-04 | 4 |
| 39E | 45376 | Forward Clutch | 136.6 ID x 2.00mm x 28T | 05-ON | 4 |
| 41G | 46370 | Low & Reverse Brake | 147 ID x 1.67mm x 18T | 03-ON | 6 |
| 41G | 46370K | Low & Reverse Brake, Kolene | 147 ID x 1.75mm x 18T | 03-ON | AR |
| 380B | 45380 | Stepped Overdrive Pressure Plate, Used | 190 ID x 8.13mm x 7T | 03-ON | 1 |
bushes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45400K | Bush Kit | 03-ON | 1 | |
| 42A | 42410 | Front Pump Bush | 50.5ID x 54OD x 17.70mm | 03-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45454K | Thrust Washer Kit | 03-ON | 1 | |
| 44F | 45472 | Forward Planet to Hub Bearing | 05-ON | 1 | |
| 45F | 45476 | Front Planet to Rear Planet Bearing | 03-ON | 2 | |
| 49F | 45480 | Rear Ringear Hub to Case Bearing | 03-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55G | 45550 | Filter | 03-07 | 1 | |
| 55G | 45552 | Filter | 08-ON | 1 | |
| NI | 45560 | In Line Filter | 03-07 | 1 | |
| NI | 45562 | In Line Filter | 08-ON | 1 |
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45550K | Filter Kit* | 03-07 | 1 | |
| Kit | 45552K | Filter Kit* | 08-ON | 1 |
Filter Kits do not Contain In Line Filter
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 60A | 45570 | Overdrive Brake | 03-ON | 1 | |
| 61B | 45574 | Coast Clutch | 03-ON | 1 | |
| 62D | 45576 | Intermediate Brake | 03-ON | 1 | |
| 63D | 45580 | Direct Clutch Moulded Piston | 03-ON | 1 | |
| 64D | 45582 | Direct Clutch Balance Piston | 03-ON | 1 | |
| 65E | 45586 | Forward Clutch Moulded Piston | 03-ON | 1 | |
| 66E | 45588 | Forward Clutch Balance Piston | 03-ON | 1 | |
| 66G | 45590 | Low & Reverse Brake` | 03-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 45720KR | Solenoid Set - 7 Solenoids | 03-ON | 1 | |
| 70G | 45700 | Line Pressure Solenoid (PC-A) | 03-ON | 1 | |
| 71G | 45702 | Lock Up Solenoid (TCC) | 03-ON | 1 | |
| 72G | 45706 | Shift Solenoid A Coast Clutch (SSPC-A) | 03-ON | 1 | |
| 73G | 45702 | Shift Solenoid B O/D Clutch (SSPC-B) | 03-ON | 1 | |
| 74G | 45702 | Shift Solenoid C Intermediate Brake (SSPC-C) | 03-ON | 1 | |
| 75G | 45706 | Shift Solenoid D Direct Clutch (SSPC-D | 03-ON | 1 | |
| 76G | 45702 | Shift Solenoid E Low & Reverse Brake (SSPC-E) | 03-ON | 1 | |
| NI | 45724 | Fluid Temperature Sensor | 03-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
