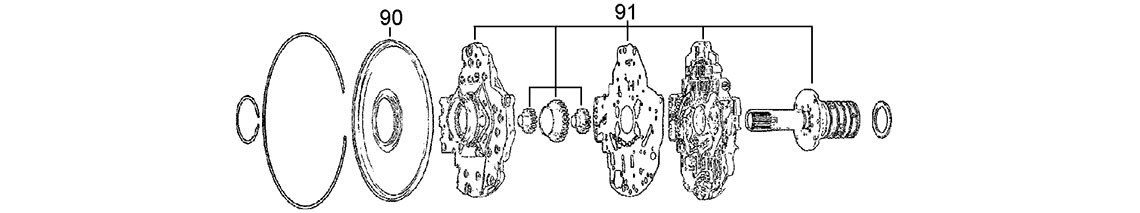

A

Pump

91
90

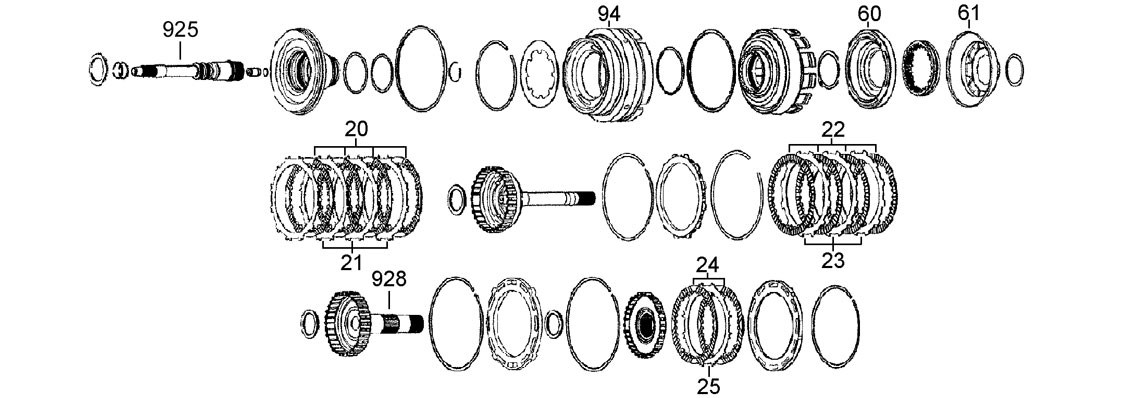

B

Underdrive, Overdrive & Reverse Clutches

25
22
61
60
21
23
94
20
24
925

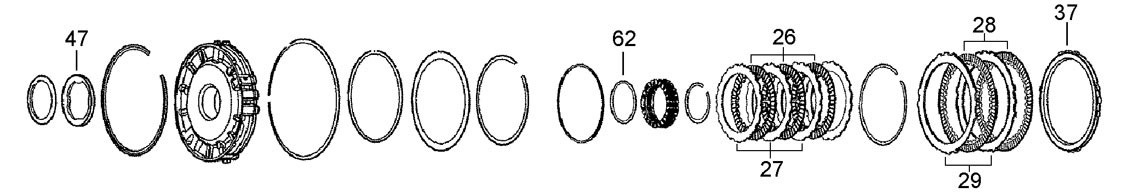

C

4th & 2nd Clutches

29
27
26
28
47
62
37

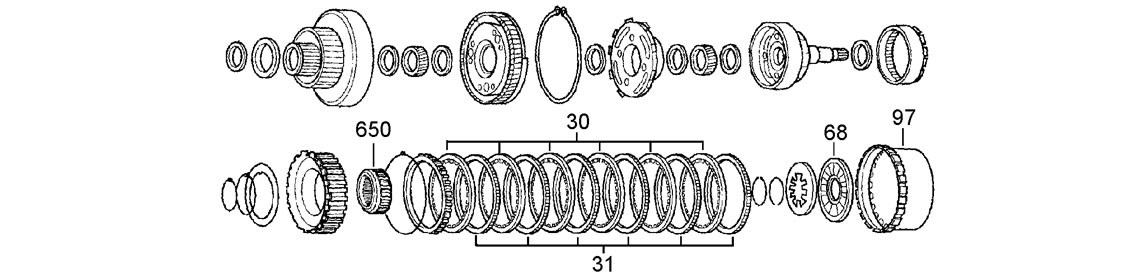

D

Planets & Low & Reverse Clutch

68
97
31
30
650

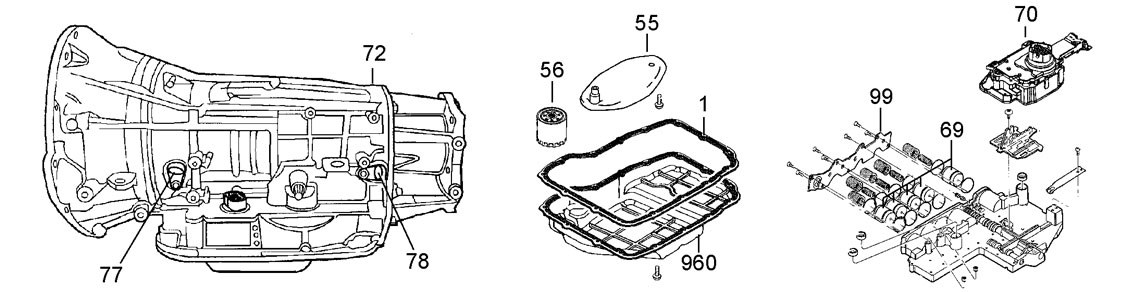

E

Case, Pan, Filter & Valve Body

70
78
69
72
77
55
99
56
1
960

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26008K Overhaul Kit 68RFE Without Pistons Transtec 07-ON 1
Kit 26010K Overhaul Kit 68RFE With Bonded Pistons Transtec 07-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26010KM Master Kit 07-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26120K Updated Valve Body Gasket Kit 07-ON 1
1E 26100 Pan Gasket Cork 07-ON 1
1E 26101 Pan Gasket Duraprene 07-ON 1
NI 26174 Solenoid to valve Body Gasket 07-18 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 25172 Filler Tube Seal 07-ON 1
NI 26160 Pump Cover to Case Inner H Seal 07-ON 1
NI 26162 Pump Cover to Case Outer O Ring 07-ON 1
NI 26165 O Ring Converter Hub 07-ON 1
NI 26210 Filter to Pump Seal 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
NI 26200 Front Pump Seal 48 ID x 66.8 OD x 11.50mm 07-ON 1
NI 26230 Adaptor Housing Seal 4WD 47.60 ID x 68.50 OD x 10.00mm 07-ON 1
NI 41206B Extension Housing Seal 42 x 63.80 x 11.60 x 38.20mm 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26308K Friction Kit 07-ON 1
Kit 26308KGPZ Friction Module GPZ Plates 07-ON 1
Kit 26323K 2nd Clutch Power Pack 07-ON 1
Kit 26327K 4th Clutch Power Pack 07-ON 1
20B 26312 Underdrive Internal Teeth 161.46 OD x 1.45mm x 32T 07-ON 5
21B 26313 Underdrive External Teeth 137.16 ID x 1.45mm x 12T 07-ON 5
22B 26316 Overdrive Internal Teeth 161.46 OD x 1.32mm x 32T 07-ON 6
23B 26317 Overdrive External Teeth 137.16 ID x 1.32mm x 12T 07-ON 6
24B 26318 Reverse 162 OD x 2.00mm x 32T 07-ON 2
26C 26326 4th Clutch 135 OD x 2.30mm x 24T 07-ON 3
28C 26322 2nd Clutch 206 OD x 2.30mm x 40T 07-ON 2
30D 26332 Low & Reverse Internal Teeth 173 OD x 1.57mm x 48T 07-ON 7
31D 26333 Low & Reverse External Teeth 149 ID x 1.57mm x 45T 07-ON 7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
25B 26360 Reverse 137 ID x 1.75mm x 12T 07-ON 2
27C 26376 4th Clutch 107 ID x 2.50mm x 20T 07-ON 3
29C 26372 2nd Clutch 172 ID x 3.20mm x 10T 07-ON 2
37C 26398U PRESSURE PLATE 2ND CLUTCH (45RFE/68RFE) 07-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26402K Bush Kit 07-ON 1
NI 26442 Extension Housing Bush, Ram 2500,3500 (Dura-Bond) 07-18 1
NI 41430 Extension Housing Bush 07-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26450K Thrust Washer Kit 07-ON 1
Kit 26454K Bearing Kit 07-11 1
47C 26466 Reverse Clutch Hub to 2-4 Clutch Brg 75 ID x 100 OD x 5.80mm 07-ON 1
NI 26480 Output Shaft Roller Bearing 35 ID x 72 OD x 17.00mm 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 26550 Filter 4WD 07-ON 1
55E 26551 Filter With Valve 07-ON 1
55E 26552 Filter 2WD 07-09 1
56E 26560 Cooler Return Filter (Spin On) 07-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26550K Filter Kit 4WD 99-ON 1
Kit 26552K Filter Kit 2WD 99-09 1

Filter Kits do not Contain Cooler Return Filter

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
60B 26570 Underdrive Piston 07-ON 1
61B 26572 Underdrive Balance Piston 07-ON 1
62C 26580 4th Clutch Bonded Piston 07-ON 1
68D 26582 Low & reverse Bonded Piston 07-ON 1
69E 26588K Accumulator Piston Kit (Pack of 5) 07-ON 5
69E 26589 Accumulator Piston Kit 07-ON 1
69E 26590 Accumulator Piston Kit (Pack of 5) 07-ON 1
NI 26581 2-4 Apply Bonded Piston 07-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
NI 26640U Input Drum to Overdrive Pressure Plate Circlip 07-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
650D 26650 Heavy Duty Sprag Assembly 07-ON

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70E 26702K Solenoid Assembly 07-18 1
70E 26704RK Solenoid Assembly - Reman 09-18 1
70E 26706K Solenoid Assembly 19-ON 1
72E 26720 Line Pressure Sensor 07-ON 1
77E 26730 Input Speed Sensor 07-ON 1
78E 26730 Output Speed Sensor 07-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 121775K Thermal Bypass Eliminator Kit 07-ON 1
Kit 26681K TCC Accum Piston & Sleeve Kit 07-ON 1
Kit 26762 Thermal Bypass Eliminator Kit 07-ON 1
Kit 26764 4C Retaining Ring & Shim Kit 07-ON 1
Kit 26772K Oversize TCC Reg Valve 45RFE To 68RFE 07-ON 1
Kit 26775K Oversize Pressure Regulator Valve Kit 07-ON 1
Kit 26782K 0.420" Switch Valve Repair Kit with Tool 07-ON 1
Kit 26784K 0.420" Switch Valve Repair Kit (Refill Kit) 07-ON 1
Kit 26786K 0.453" Switch Valve Repair Kit with Tool 07-ON 1
Kit 26788K 0.453" Switch Valve Repair Kit (Refill Kit) 07-ON 1
Kit 26793K Solenoid Switch Valve Plug Kit .453" 07-ON 1
Kit 26794K Solenoid Switch Valve Plug Kit See Notes .420" 07-ON 1
Kit 26795K Oversize Solenoid Switch Valve Plug* Reamer Required 07-ON 1
Kit 26797K Oversize Solenoid Switch Valve Plug Kit 07-ON 1
NI 26680 TCC Accumulator Spring 07-ON 1
NI 26680-5 TCC Accumulator Spring, Pack of 5 07-ON 1
NI 26690 TCC Limit Spring 07-ON 1
NI 26760 Cooler Return Filter Adapter Steel 07-ON AR
NI 26770 Line Pressure Booster 07-ON 1
NI 26796 Oversize Solenoid Switch Valve 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 26810K Reprogramme Kit 07-ON 1
Kit 26812K Reprogramme Kit 07-10 1
Kit 26814K Reprogramme Kit 11-18 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 26912 Pump Cover Plate Steel Type 07-ON 1
91A 26920U Complete Pump 68RFE Used 07-ON 1
94B 26922 Input Clutch Drum 07-ON 1
97D 26970KU Low & Reverse Drum 24 Lugs Loaded 07-ON 1
97D 26970U Low & Reverse Drum 24 Slots/Lugs 7 Plate Uses Bonded Piston 07-ON 1
99E 26980 Accumulator Cover Plate Kit 07-ON 1
99E 26988 Valve Body Accumulator Plate 07-ON 1
925B 26925 Input Shaft Billet 27 Splines 07-17 1
960E 26960AC Deep Alloy Pan 07-ON 1
960E 26960B Deep Alloy Pan, Black 07-ON 1
NI 26928 H/Duty O/D Clutch Hub & Shaft (68RFE) 07-ON 1
NI 26932 Overdrive Clutch Housing 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T-26980 Reamer for 26980 07-ON 1
NI T-RFE-TCCREG-TK Reamer for 26772K 07-ON 1
