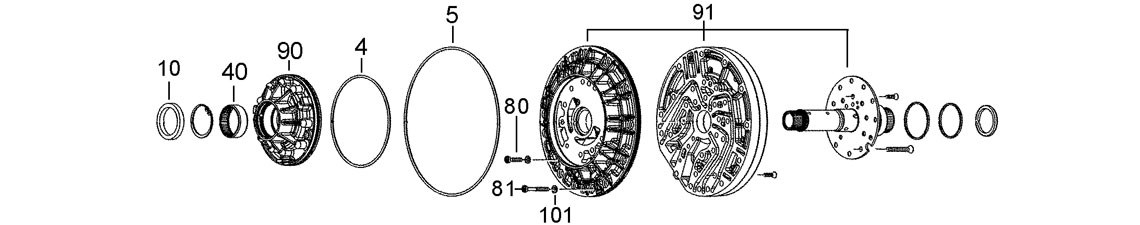

A

Pump Assembly

4
40
90
80
91
81
10
5
101

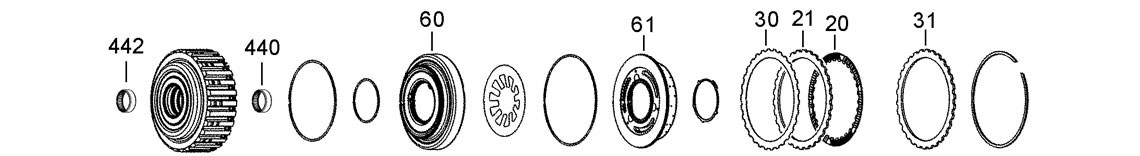

B

A Clutch

20
61
21
60
31
30

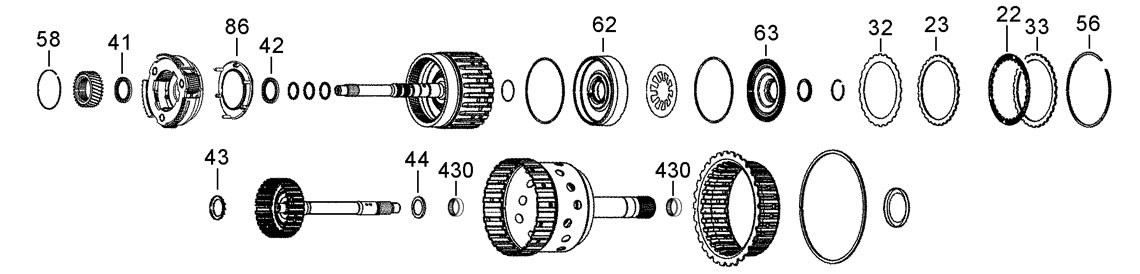

C

E Clutch

43
23
22
44
32
58
42
41
63
62
33
86
56
430
430

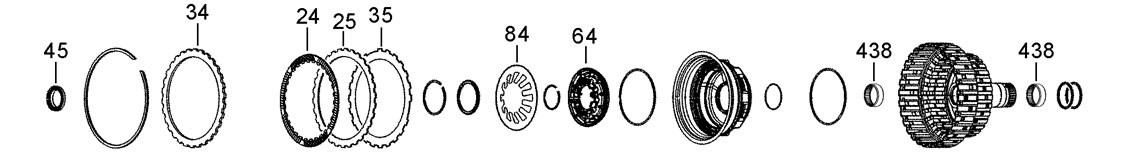

D

B Clutch

45
35
25
24
64
84
34
438
438

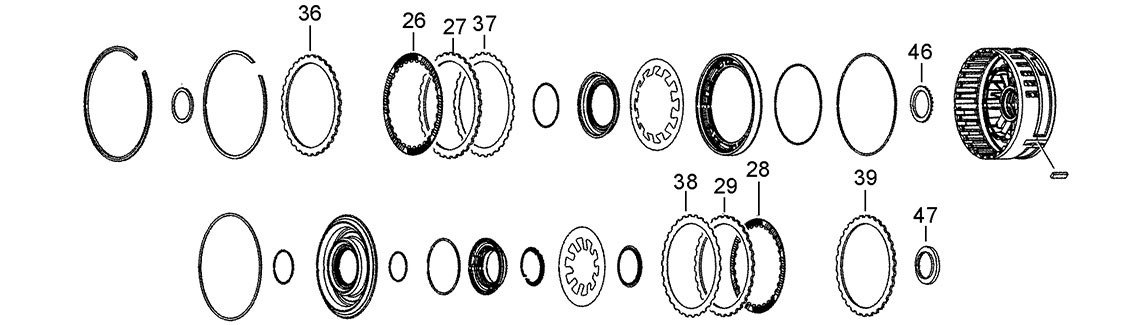

E

C & D Brakes

26
46
27
29
28
39
47
36
37
38

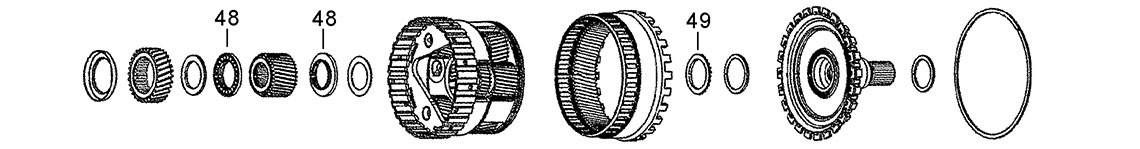

F

Rear Planet & Output

49
48
48

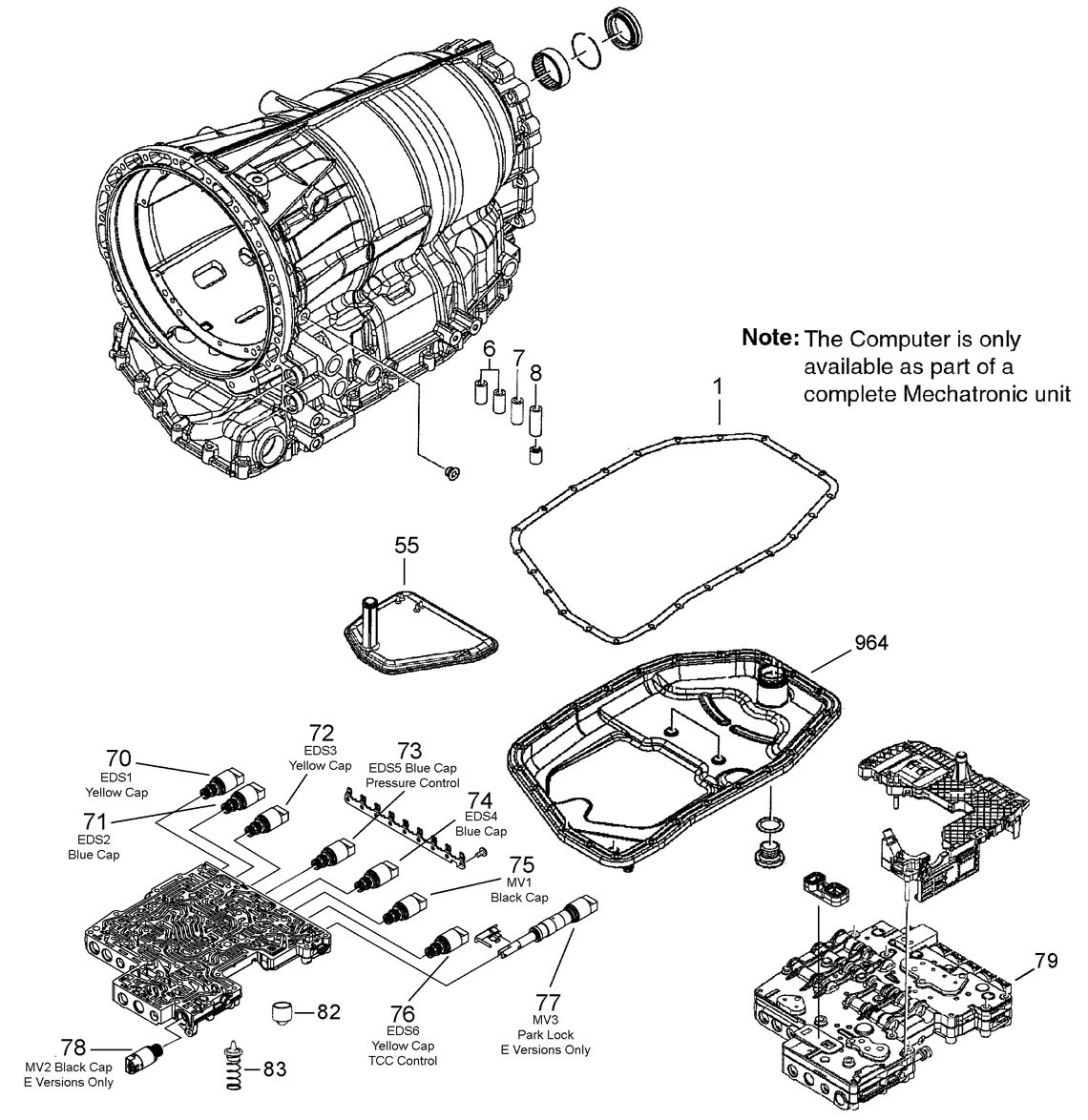

G

Case, Pan , Filter, Valve Body & Mechatronic

6
77
70
7
72
78
76
8
79
83
82
1
71
73
74
75
55
964

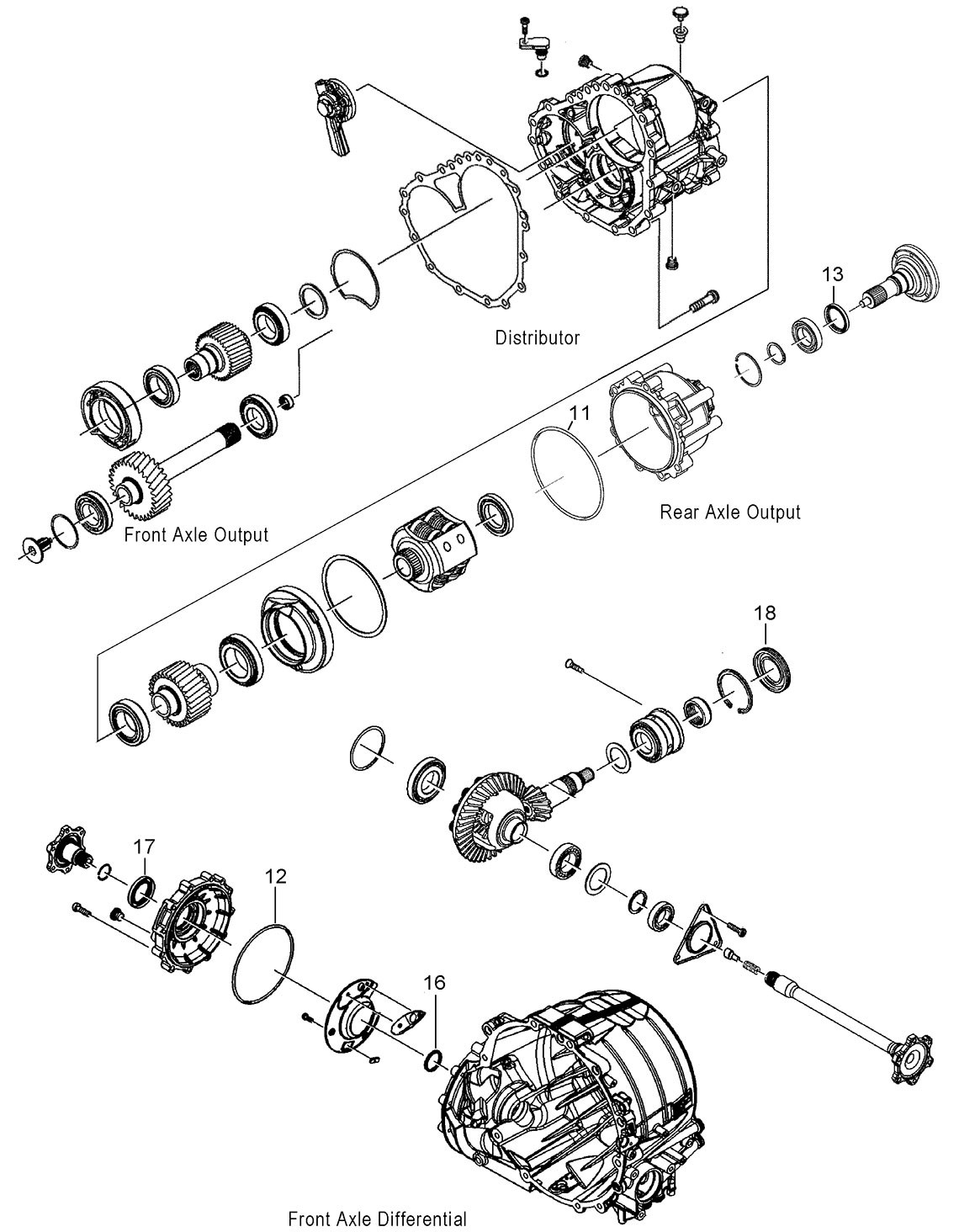

K

17
11
16
18
12
13

L


gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1G 99104 Pan Gasket Paper 02-ON 1
1G 99105 Pan Gasket Metal & Rubber 02-ON 1
101A 95101 Pump Bolt Washers 02-ON 9
101A 95101-13 Pump Bolt Washers, Pack of 13 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99174K B Clutch O Ring Kit 02-ON 1
Kit 99183K Valve Body to Case Seal Kit 02-ON 1
Kit 99199K Valve Body Component Kit 02-ON 1
4A 94185 Pump to Stator O Ring 02-ON 1
5A 94160 Stator to Case O Ring 208 ID x 2.50mm thick 02-ON 1
6G 99180 Mechatronic to Case Seal 26mm 02-ON 2
7G 99182 Mechatronic to Case Seal 31.5mm 02-ON 1
8G 99184 Mechatronic to Case Seal 40.7mm 02-ON 1
11K 97160 Rear Housing to Intermediate Housing O Ring 02-ON 1
12K 95190 Differential Cover O Ring 02-ON 1
NI 94190 Case Connector O Ring 02-ON 2
NI 98189 Adaptor Bridge 03-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 99200 Front Pump Seal 45 ID x 58 OD x 7.00mm 02-ON 1
13K 98214 Rear Output Flange Seal 40 ID x 52 OD x 7.00mm 02-ON 1
16K 98220 Axle Seal Lefthand 35 ID x 47 OD x 8.00mm 02-ON 1
17K 98222 Axle Seal Righthand 38 ID x 60 OD x 8.00mm 02-ON 1
18K 99224 Pinion Shaft Seal 37 ID x 88 OD x 12.00mm 02-ON 1
NI 93202 Manual Shaft Seal 10 ID x 18 OD x 5.00mm 02-ON 1
NI 99228 Intermediate Housing Seal 44 ID x 66 OD x 14.00mm 02-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 99310A A Clutch Friction Plate 187 OD x 1.60mm x 30T 02-ON 5
20B 99310HP A Clutch Friction Plate, Stage 2 187 OD x 1.60mm x 30T 06-ON AR
20B 99311 A Clutch Friction Plate 187 OD x 1.60mm x 30T 02-ON 5
22C 99314A E Clutch Friction Plate, BW 131 OD x 1.60mm x 30T 02-ON 7
22C 99314GPZ E Clutch Friction GPZ 131 OD x 1.60mm x 30T 02-ON 7
22C 99314HP E Clutch Friction Plate, HP 131 OD x 1.60mm x 30T 02-ON Alt
22C 99315AD E Clutch Friction Plate, Exedy 131 OD x 2.00mm x 30T 02-ON Alt
22C 99315D E Clutch Friction Plate 131 OD x 2.00mm x 30T 02-ON Alt
24D 99310HP B Clutch Friction Plate, Stage 2 187 OD x 1.60mm x 30T 06-ON Alt
24D 99318 B Clutch 187 OD x 2.20mm x 30T 02-ON 5
24D 99318D B Clutch Friction Plate 187 OD x 2.12mm x 30T 02-ON Alt
24D 99318GPZ B Clutch GPZ 187 OD x 2.20mm x 30T 02-ON 5
26E 99310HP C Brake Friction Plate, Stage 2 187 OD x 1.60mm x 30T 06-ON Alt
26E 99318 C Brake 187 OD x 2.20mm x 30T 02-ON 5
26E 99318D C Brake Friction Plate 187 OD x 2.12mm x 30T 02-ON Alt
26E 99318GPZ C Brake Friction GPZ 187 OD x 2.20mm x 30T 02-ON 5
28E 99310A D Brake Friction Plate 187 OD x 1.60mm x 30T 02-ON 5
28E 99310HP D Brake Friction Plate, Stage 2 187 OD x 1.60mm x 30T 06-ON Alt

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 99360 A Clutch 163.8 ID x 3.00mm x 30T 02-ON 6
21B 99360A A Clutch 163.8 ID x 3.00mm x 30T 02-ON Alt
21B 99360S A Clutch Friction Plate 163.8 ID x 1.75mm x 30T 06-ON Alt
23C 99364 E Clutch 106.7 ID x 3.00mm x 24T 02-ON 6
23C 99364S E Clutch 02-ON Alt
23C 99365 E Clutch 106.7 ID x 2.40mm x 24T 02-ON 7
25D 99360S B Clutch Steel Plate 163.8 ID x 1.75mm x 30T 06-ON Alt
25D 99368 B Clutch 163.8 ID x 2.10mm x 30T 02-ON 5
27E 99360 C Brake 163.8 ID x 3.00mm x 30T 02-ON 5
27E 99360A C Brake 163.8 ID x 3.00mm x 30T 02-ON Alt
27E 99360S C Brake Steel Plate 163.8 ID x 1.75mm x 30T 06-ON Alt
29E 99360S D Brake Steel Plate 163.8 ID x 1.75mm x 30T 06-ON Alt
29E 99368 D Brake 163.8 ID x 2.10mm x 30T 02-ON 7
30B 99670 A Clutch Waved Plate 02-ON 1
31B 99360 A Clutch Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
31B 99360A A Clutch Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON Alt
31B 99360S A Clutch Pressure Plate 163.8 ID x 1.75mm x 30T 06-ON Alt
32C 99671 E Clutch Waved Plate 02-ON 1
33C 99392 E Clutch Pressure Plate 106.7 ID x 3.00mm x 24T 02-ON 1
34D 99394 B Clutch Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1
35D 99672 B Clutch Waved Plate 02-ON 1
36E 99396D C Brake Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
36E 99396F C Brake Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1
37E 99672 C Brake Waved Plate 02-ON 1
38E 99673 D Brake Waved Plate 02-ON 1
39E 99396D D Brake Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
39E 99396F D Brake Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99400K 12 Piece Split Bush Kit 07-ON 1
Kit 99401K Bush Kit Sonnax 02-ON 1
40A 99410 Pump Needle Bearing 02-ON 1
430C 99430 Bush Sungear Front & Rear 24.17mm Shaft 02-ON 1-2
430C 99432 Bush Sungear Front & Rear 25.17mm Shaft 02-ON 1-2
438D 99438 B Clutch 33.97mm Shaft Bush 02-ON 1-2
NI 99415 Stator Rear 26 ID x 29 OD x 15.00mm 02-ON 1
NI 99420-01 Input & Output Shaft Bush 02-ON AR
NI 99420-06 Input & Output Shaft Bush, Bag of 6 02-ON AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
41C 99460 Sungear to Front Planet Bearing 02-ON 1
42C 99460 Front Planet to E Drum Bearing 02-ON 1
43C 99462 E Drum to Intermediate Shaft Bearing 02-ON 1
44C 99460 Intermediate Shaft to Sungear Shaft Bearing 02-ON 1
45D 99466 B Clutch to Sungear Shaft Bearing 02-ON 1
46E 99468 Sungear Shaft to D Brake Bearing 02-ON 1
47E 99470 D Brake to Reverse Sungear Bearing 02-ON 1
48F 99476 Rear Sungear Bearing Front & Rear of Sungear 02-ON 2
49F 99478 Rear Planet to Output Shaft Bearing 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55G 99554 Filter 02-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99590K Accumulator Piston Kit 02-ON 1
60B 99570 A Clutch Piston 6HP26A* 02-ON 1
60B 99571 A Clutch Piston 6HP26A* 02-ON 1
61B 99572 A Clutch Damper Piston 6HP26A 61* 02-ON 1
61B 99573 A Clutch Damper Piston 6HP26A 61* 02-ON 1
62C 99575 E Clutch Piston* 02-ON 1
63C 99576 E Clutch Damper Piston 02-ON 1
64D 99580 B Clutch Damper Piston 02-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
56C 96630A E Clutch Retaining Circlip 1.60mm 02-ON 1
56C 96630B E Clutch Retaining Circlip 1.80mm 02-ON 1
56C 96630C E Clutch Retaining Circlip 2.00mm 02-ON 1
56C 96630D E Clutch Retaining Circlip 3.00mm 02-ON 1
58C 99632 Sungear to Front Planet Circlip 02-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
84D 99656 B Clutch Diaphragm Spring 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99720K Solenoid Set 02-ON 1
Kit 99722K Solenoid Set 02-ON 1
70G 99700 EDS1 Solenoid (PWM) Yellow Cap 02-ON 1
71G 99702 EDS2 Solenoid (PWM) Blue Cap 02-ON 1
72G 99700 EDS3 Solenoid (PWM) Yellow Cap 02-ON 1
73G 99702 EDS5 Solenoid (PWM) Pressure Control (Blue Cap) 02-ON 1
74G 99702 EDS4 Solenoid (PWM) Blue Cap 02-ON 1
75G 99704 MV1 Solenoid (On/Off) Black Cap 02-ON 1
76G 99700 EDS6 Solenoid (PWM) TCC Control (Yellow Cap) 02-ON 1
77G 99706 MV3 Solenoid (On/Off) Park Lock E Versions only 02-ON 1
78G 99704 MV2 Solenoid (On/Off) Black Cap E Versons Only 02-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99796K A Clutch Control Boost Valve & Sleeve 02-ON 1
80A 99762 Pump Bolt 26mm 02-ON 1
81A 99764 Pump Bolt 56mm 02-ON 13
82G 95772 Valve Body Piston 02-ON 6
83G 95773 Valve Body Check Valve and Spring White 02-ON AR
86C 99761 Front Planet Oil Slinger 02-ON 1
NI 99752 Case to Bell Housing Breather Tube 02-ON 1
NI 99770 Torx Screw Metal Pan 02-ON 21
NI 99786 Pressure Regulator Sleeve 02-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99814K Valve Body Kit, RatioTek 02-ON 1
Kit 99816K Valve Body Kit (HD) RatioTek 02-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 99900 Pump Body & Gears* 02-ON 1
91A 99906 Intermediate Plate & Stator Assembly* 02-ON 1
964G 99964 Transmission Pan 02-ON 1
NI 99992 Separator Plate 035 Code* 02-ON 1
NI 99993 Separator Plate 047 Code* 02-ON 1
NI 99993A Separator Plate 047 Code* Aftermarket 02-ON 1
NI 99994 Separator Plate (036/046/049/051 Codes) 02-ON 1
NI 99994A Separator Plate 036, 046 & 051 Code* Aftermarket 02-ON 1
NI 99995 Separator Plate 052 Code* 02-ON 1
NI 99995A Separator Plate 052 Code* Aftermarket 02-ON 1
NI 99996 Separator Plate 053 Code* 02-ON 1
NI 99996A Separator Plate 053 Code* Aftermarket 02-ON 1
NI 99997 Separator Plate 063 Code* 02-ON 1
NI 99998 Separator Plate 065 Code* 02-ON 1

* Transmission Code required when ordering any of the above Hard Parts

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
79G 99998VBM Valve Body & Mechatronic Unit 02-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121999-01 ZFLifeguard 8 1 Litre Pack 02-ON AR
NI 121999-05 ZFLifeguard 8 5 Litre Pack 02-ON AR
NI 121999-20 ZFLifeguard 8 20 Litre Pack 02-ON AR

Other Parts for this Transmission are available

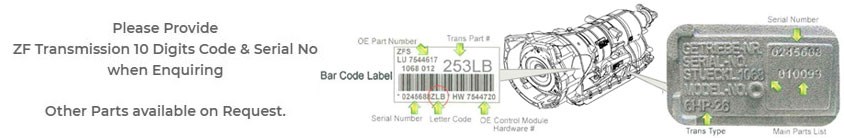

Transmission Code Required when Ordering

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-99700 Solenoid Test Manifold Kit 02-ON 1
