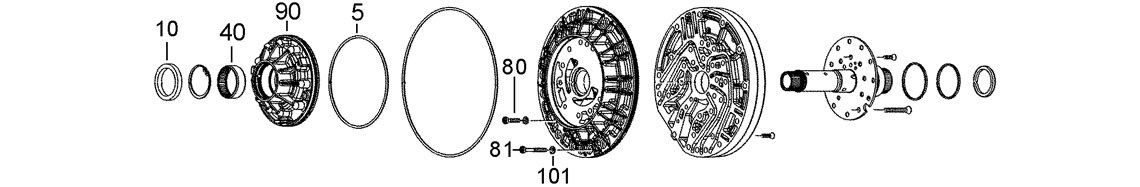

A

Pump

90
80
81
10
40
5
101

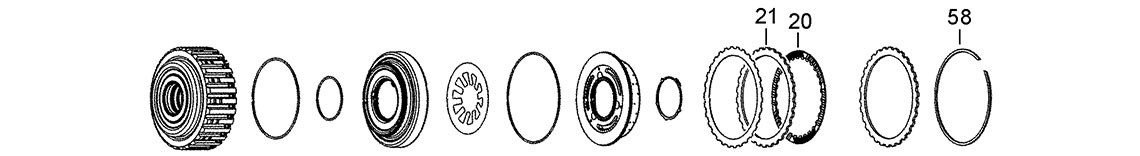

B

A Clutch

20
21
58

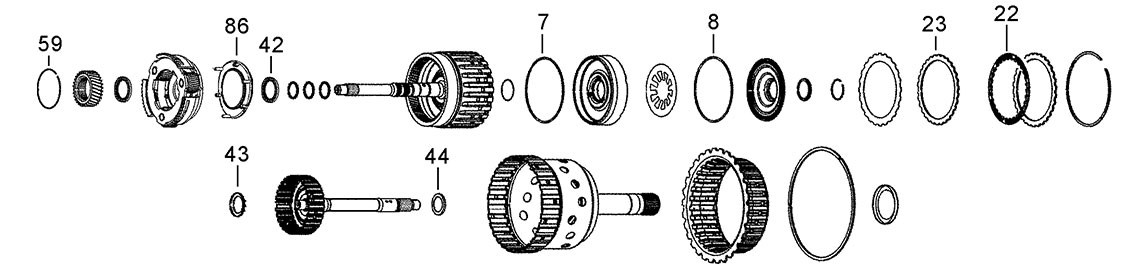

C

E Clutch

42
59
86
22
23
43
44
7
8

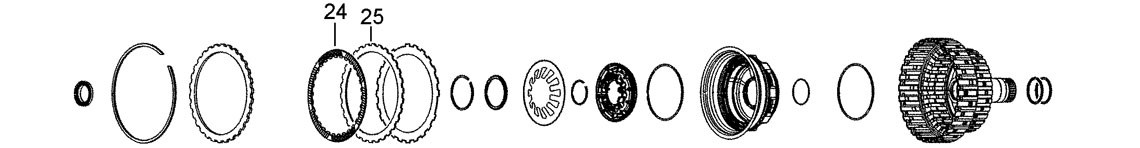

D

B Clutch

25
24

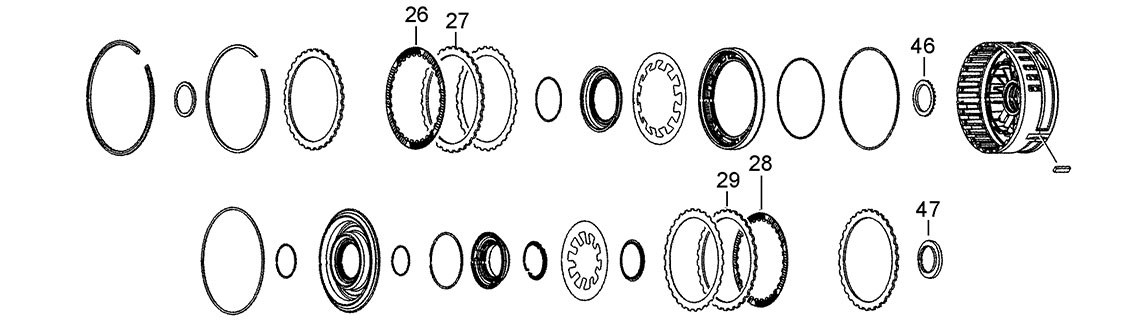

E

C & D Brakes

46
47
29
27
26
28

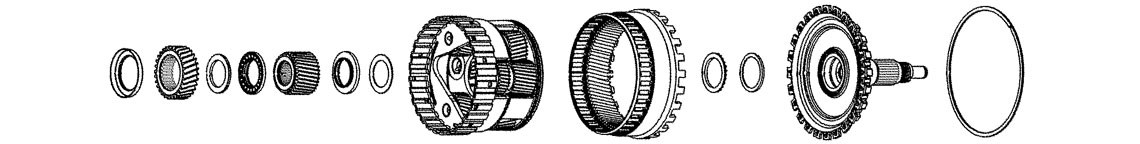

F

Rear Planetary Assembly

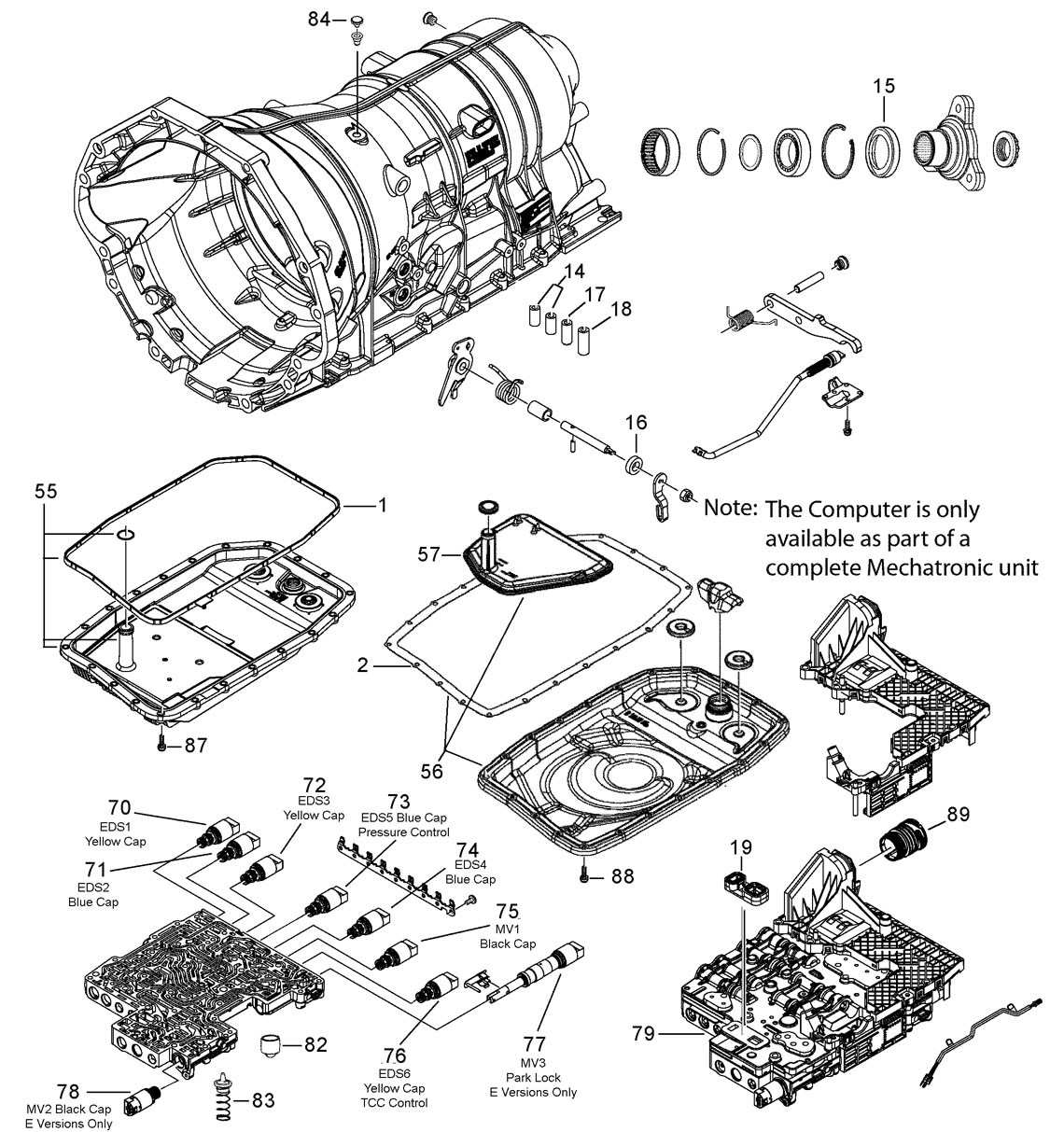

G

Case, Pan, Filter, Valve Body & Mechatronic

71
2
79
84
76
73
70
74
78
87
55
57
88
83
75
89
72
56
82
16
17
19
15
14
1
18
77

H


gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99145K Pump Leak Kit 2-02-ON 1
1G 99100 Oil Pan Seal For use with Plastic Pan 02-ON 1
1G 99100 Oil Pan Seal 02-ON 1
2G 99102 Pan Gasket OEM For use with Steel Pan 02-ON 1
2G 99103 Pan Gasket Cork For use with Steel Pan 02-ON Alt
2G 99109 Pan Gasket 02-ON 1
101A 95101 Pump Bolt Washers 02-ON 14
101A 95101-13 Pump Bolt Washers, Pack of 13 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99199K Valve Body Component Kit 02-ON 1
5A 94185 Pump to Stator O Ring 02-ON 1
7C 95175 E Clutch Outer O Ring 02-ON 1
8C 95175 E Clutch Damper Outer O Ring 02-ON 1
14G 99180 Mechatronic to Case Seal 26mm 02-ON 2
17G 99182 Mechatronic to Case Seal 31.5mm 02-ON 1
18G 99184 Mechatronic to Case Seal 40.7mm 02-ON 1
19G 99186 Adaptor Bridge Seal 02-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 92200 Front Pump Seal 45 ID x 58 OD x 7.00mm 02-ON 1
15G 99220 Extension Housing Seal 6HP32 44 ID x 72 OD x 8.00mm 02-ON 1
15G 99230 Adaptor Seal 6HP32X 44 ID x 75 OD x 8.00mm 02-ON 1
16G 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 02-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 99330 A Clutch 6HP32 Grooved Lining Codes 1070 010 004, 006, 007, 008, 010 & 011 203.9 OD x 1.60mm x 30T 02-ON 5
20B 99331 A Clutch 6HP32 Cross Hatch Lining Codes 1070 010 013, 014, 015, 016, 017, 019 & 020 203.9 ODx 1.60mm x 30T 02-ON 5
20B 99331 A Clutch 6HP32X Code 1070 030 005 203.9 ODx 1.60mm x 30T 02-ON 5
22C 99334 E Clutch 6HP32 Codes 1070 010 004, 006, 007, 008, 010, 011, 013, 014 & 015 142.8 OD x 1.55mm x 30T 02-ON 6
22C 99335 E Clutch 6HP32 Codes 1070 010 016, 017, 019 & 020 142.8 OD x 1.60mm x 30T 02-ON 7
22C 99335 E Clutch 6HP32X Code 1070 030 005 142.8 OD x 1.60mm x 30T 02-ON 7
24D 99338 B Clutch 203.9 OD x 2.10mm x 30T 02-ON 5
26E 99338 C Brake 203.9 OD x 2.10mm x 30T 02-ON 5
28E 99330 D Brake 6HP32 Grooved Lining Codes 1070 010 004, 006, 007, 008, 010 & 011 203.9 OD x 1.60mm x 30T 02-ON 7
28E 99331 D Brake 6HP32 Cross Hatch Lining Codes 1070 010 013, 014, 015, 016, 017, 019 & 020 203.9 ODx 1.60mm x 30T 02-ON 7
28E 99331 D Brake 6HP32X Code 1070 030 005 203.9 ODx 1.60mm x 30T 02-ON 7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 99380 A Clutch 182 ID x 3.00mm x 32T 02-ON 6
23C 99384 E Clutch 6HP32 119 ID x 3.00mm x 24T 02-ON 5
23C 99384 E Clutch 6HP32X Code 1070 030 005 119 ID x 3.00mm x 24T 02-ON 6
25D 99388 B Clutch 182 ID x 2.10mm x 32T 02-ON 5
27E 99388 C Brake 182 ID x 2.10mm x 32T 02-ON 6
29E 99380 D Brake 3.00mm 182 ID x 3.00mm x 32T 02-ON 7

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99400K Bush Kit 02-ON 1
Kit 99401K Bush Kit Sonnax 02-ON 1
40A 99410 Pump Needle Bearing 02-ON 1
NI 99420-01 Input & Output Shaft Bush 02-ON AR
NI 99420-06 Input & Output Shaft Bush, Bag of 6 02-ON AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
42C 99460 Front Planet to E Drum Bearing 02-ON 1
43C 99462 E Drum to Intermediate Shaft Bearing 02-ON 1
44C 99460 Intermediate Shaft Sungear Shaft Bearing 02-ON 1
46E 99469 Sungear Shaft to D Brake Bearing 02-ON 1
47E 98470 D Brake to Reverse Sungear Bearing 67.8 OD x 51.5 ID x 7.00mm 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
57G 99552 Filter 6HP32 For use with Steel Pan 02-ON 1
57G 99552OE Filter For use with Steel Pan, OE 02-ON 1
57G 99553 Filter (6HP32) Audi Q7, 55mm Pickup 02-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
55G 99550K Filter Kit Plastic Pan Includes Oil Pan, Rubber Seal and Filter 02-ON 1
55G 99551K Filter Kit Plastic Pan Includes Oil Pan, Rubber Seal and Filter 02-ON 1
56G 99960K Transmission Pan Upgrade Kit OEM Includes Metal Pan, Filter, OEM Gasket and Bolts 02-ON 1
56G 99962K Transmission Pan Upgrade Kit Aftermarket Includes Metal Pan, Filter, Cork Gasket and Bolts 02-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99590K Sonnax Accumulator Piston Kit 02-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
58B 97630A A Clutch Retaining Circlip 3.00mm 3.00mm 02-ON 1
58B 97630B A Clutch Retaining Circlip 3.20mm 3.20mm 02-ON 1
59C 99632 Sungear to Front Planet Circlip 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99720K Solenoid Set 02-ON 1
Kit 99721K Solenoid Set 02-ON 1
Kit 99722K Solenoid Set 6HP32X 02-ON 1
70G 99700 EDS1 Solenoid (PWM) Yellow Cap 02-ON 1
71G 99702 EDS2 Solenoid (PWM) Blue Cap 02-ON 1
72G 99700 EDS3 Solenoid (PWM) Yellow Cap 02-ON 1
73G 99702 EDS5 Solenoid (PWM) Pressure Control (Blue Cap) 02-ON 1
74G 99702 EDS4 Solenoid (PWM) Blue Cap 02-ON 1
75G 99704 MV1 Solenoid (On/Off) Black Cap 02-ON 1
76G 99700 EDS6 Solenoid (PWM) TCC Control (Yellow Cap) 02-ON 1
77G 99706 MV3 Solenoid (On/Off) Park Lock E Versions only 02-ON 1
78G 99704 MV2 Solenoid (On/Off) Black Cap E Versions Only 02-ON 1
89G 99718 Mechatronic Case Connector 02-ON 1
89G 99718-5 Case Connectors - 5 Pack 02-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99787K Oversized Pressure Regulator Valve Kit, Gen1 Only 02-ON 1
Kit 99790K Oversize Solenoid Pressure Regulator Valve Kit* Reamer Required 03-ON 1
Kit 99796K A Clutch Control Boost Valve & Sleeve 02-ON 1
80A 99762 Pump Bolt 26mm 02-ON 1
81A 99764 Pump Bolt 56mm 02-ON 13
82G 95772 Valve Body Piston 02-ON 6
83G 95773 Valve Body Check Valve and Spring White 02-ON AR
84G 96782 Breather Cap 02-ON 1
86C 99761 A Planet Oil Slinger 02-ON 1
87G 99768 Torx Screw Plastic Pan M6 x 28.5mm 02-ON 21
88G 99770 Torx Screw Metal Pan 02-ON 21
NI 99752 Case to Bell Housing Breather Tube 02-ON 1
NI 99786 Pressure Regulator Sleeve 02-ON 1
NI 99793K Oversized Clutch C Regulator Valve 02-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99800K Shift Kit 02-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 99900 Pump Body & Gears* 6HP32 Codes 1070 010 004 & 006 02-ON 1
90A 99901 Pump Body & Gears* 02-ON 1
NI 99992 Separator Plate 035 Code* 02-ON 1
NI 99993 Separator Plate 047 Code* 02-ON 1
NI 99994 Separator Plate 036, 046, 049, 051 Codes* 02-ON 1
NI 99995 Separator Plate 052 Code* 02-ON 1
NI 99996 Separator Plate 053 Code* 02-ON 1
NI 99997 Separator Plate 063 Code* 02-ON 1
NI 99998 Separator Plate 065 Code* 02-ON 1

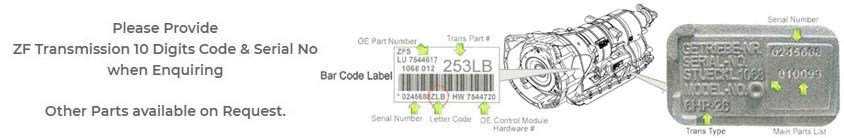

*Transmission Code required when ordering any of the above Hard Parts

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
79G 99998VBM Valve Body & Mechatronic Unit 02-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 99999-01 ZF Lifeguard 6, 1 Litre Pack 02-ON AR
NI 99999-05 ZF Lifeguard 6 5 Litre Pack 02-ON AR
NI 99999-20 ZF Lifeguard 6 20 Litre Pack 02-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-99700 Solenoid Test Manifold Kit 02-ON 1
NI TF-95740-TL17 Reamer Tool for 99790K Valve Kit 02-ON 1
