6HP32A, 09F, 6HP32AV

(VW & Audi) Transmission Codes: 1070 020 xxx & 1070 014 xxx

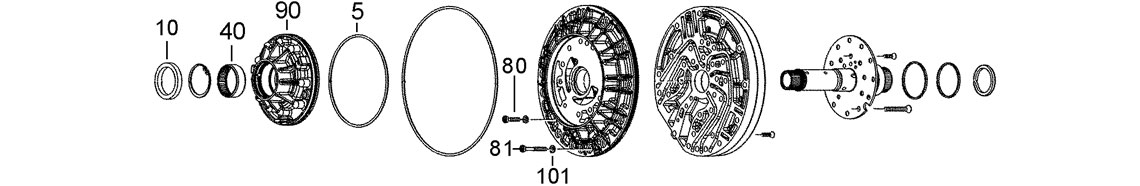

A

Pump

90

80

81

10

40

5

101

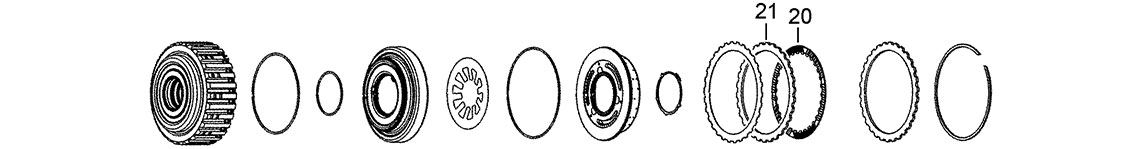

B

A Clutch

20

21

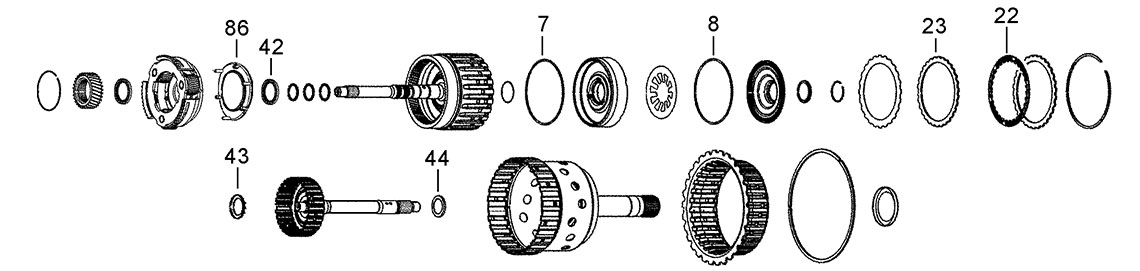

C

E Clutch

42

7

23

8

44

22

43

86

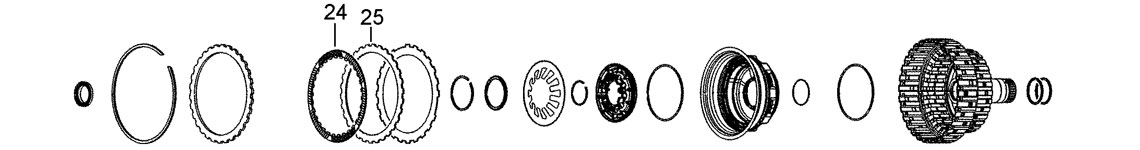

D

B Clutch

24

25

E

C & D Brakes

46

28

47

29

27

26

F

Rear Planetary Assembly

G

Case, Pan, Filter, Valve Body & Mechatronic

55

72

74

71

76

88

73

83

50

70

75

82

19

14

13

18

11

16

15

12

17

78

77

1

964

H

gaskets

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99145K	Pump Leak Kit		02-ON	1
1G	99100	Oil Pan Seal		02-ON	1
1G	99108	Pan Gasket		02-ON	1
1G	99109	Pan Gasket		02-ON	1
101A	95101	Pump Bolt Washers		02-ON	14
101A	95101-13	Pump Bolt Washers, Pack of 13		02-ON	1

rubber components

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99199K	Valve Body Component Kit		02-ON	1
5A	94185	Pump to Stator O Ring		02-ON	1
7C	95175	E Clutch Outer O Ring		02-ON	1
8C	95175	E Clutch Damper Outer O Ring		02-ON	1
11G	99180	Mechatronic to Case Seal 26mm		02-ON	2
12G	99182	Mechatronic to Case Seal 31.5mm		02-ON	1
13G	99184	Mechatronic to Case Seal 40.7mm		02-ON	1
14G	99186	Adaptor Bridge Seal		02-ON	1
15G	94190	Case Connector O Ring		02-ON	2
16G	95190	Differential Cover O Ring		02-ON	1

seals

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
10A	92200	Front Pump Seal	45 ID x 58 OD x 7.00mm	02-ON	1
17G	98220	Axle Seal Lefthand	35 ID x 47 OD x 8.00mm	02-ON	1
18G	98222	Axle Seal Righthand	38 ID x 60 OD x 8.00mm	02-ON	1
19G	93202	Selector Shaft Seal	10 ID x 18 OD x 5.00mm	02-ON	1

friction plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
20B	99330	A Clutch	203.9 OD x 1.60mm x 30T	02-ON	5
22C	99334	E Clutch	142.8 OD x 1.55mm x 30T	02-ON	6
24D	99338	B Clutch	203.9 OD x 2.10mm x 30T	02-ON	5
26E	99338	C Brake	203.9 OD x 2.10mm x 30T	02-ON	5
28E	99330	D Brake	203.9 OD x 1.60mm x 30T	02-ON	7

steel & pressure plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
21B	99380	A Clutch	182 ID x 3.00mm x 32T	02-ON	6
23C	99384	E Clutch	119 ID x 3.00mm x 24T	02-ON	5
25D	99388	B Clutch	182 ID x 2.10mm x 32T	02-ON	5
27E	99388	C Brake	182 ID x 2.10mm x 32T	02-ON	6
29E	99380	D Brake	182 ID x 3.00mm x 32T	02-ON	7

bushes

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
40A	99410	Pump Needle Bearing		02-ON	1

thrust washers & bearings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
42C	99460	Front Planet to E Drum Bearing		02-ON	1
43C	99462	E Drum to Intermediate Shaft Bearing		02-ON	1
44C	99460	Intermediate Shaft to Sungear Shaft Bearing		02-ON	1
46E	99469	Sungear Shaft to D Brake Bearing		02-ON	1
47E	98470	D Brake to Reverse Sungear Bearing	67.8 OD x 51.5 ID x 7.00mm	02-ON	1
50G	99480	Output Shaft Bearing	54.73 ID x 63 OD x 19.90mm	02-ON	1

filters

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
55G	99554	Filter		02-ON	1

filter kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99553K	Filter Kit		02-ON	1

electrical components

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99720K	Solenoid Set 6HP32A		02-ON	1
70G	99700	EDS1 Solenoid (PWM) Yellow Cap		02-ON	1
71G	99702	EDS2 Solenoid (PWM) Blue Cap		02-ON	1
72G	99700	EDS3 Solenoid (PWM) Yellow Cap		02-ON	1
73G	99702	EDS5 Solenoid (PWM) Pressure Control (Blue Cap)		02-ON	1
74G	99702	EDS4 Solenoid (PWM) Blue Cap		02-ON	1
75G	99704	MV1 Solenoid (On/Off) Black Cap		02-ON	1
76G	99700	EDS6 Solenoid (PWM) TCC Control (Yellow Cap)		02-ON	1
77G	99706	MV3 Solenoid (On/Off) Park Lock E Versions only		02-ON	1
78G	99704	MV2 Solenoid (On/Off) Black Cap E Versions Only		02-ON	1

sundry parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99796K	A Clutch Control Boost Valve & Sleeve		02-ON	1
80A	99762	Pump Bolt 26mm		02-ON	1
81A	99764	Pump Bolt 56mm		02-ON	13
82G	95772	Valve Body Piston		02-ON	6
83G	95773	Valve Body Check Valve and Spring White		02-ON	AR
86C	99761	A Planet Oil Slinger		02-ON	1
88G	99770	Torx Screw Metal Pan		02-ON	21
NI	96782	Breather Cap		02-ON	1
NI	99786	Pressure Regulator Sleeve		02-ON	1

hard parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
90A	99901	Pump Body & Gears		02-ON	1
964G	99964	Transmission Pan		02-ON	1
NI	99992	Separator Plate 035 Code*		02-ON	1
NI	99993	Separator Plate 047 Code*		02-ON	1
NI	99994	Separator Plate 036, 046, 049, 051 Codes*		02-ON	1
NI	99995	Separator Plate 052 Code*		02-ON	1
NI	99996	Separator Plate 053 Code*		02-ON	1
NI	99997	Separator Plate 063 Code*		02-ON	1
NI	99998	Separator Plate 065 Code*		02-ON	1

*Transmission Code required when ordering any of the above Hard Parts

valve bodies

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	99998VBM	Valve Body & Mechatronic Unit		02-ON	1

fluids

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
NI	121999-01	ZF Lifeguard 8 1L Pack		08-ON	AR
NI	121999-05	ZF Lifeguard 8 5L Pack		08-ON	AR
NI	121999-20	ZF Lifeguard 8 20L Pack		09-ON	AR

tools

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	T-99700	Solenoid Test Manifold Kit		02-ON	1

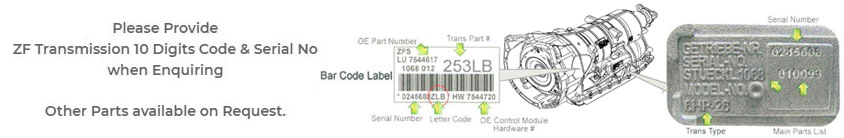

Other Parts for this Transmission are available

Transmission Code Required when Ordering
