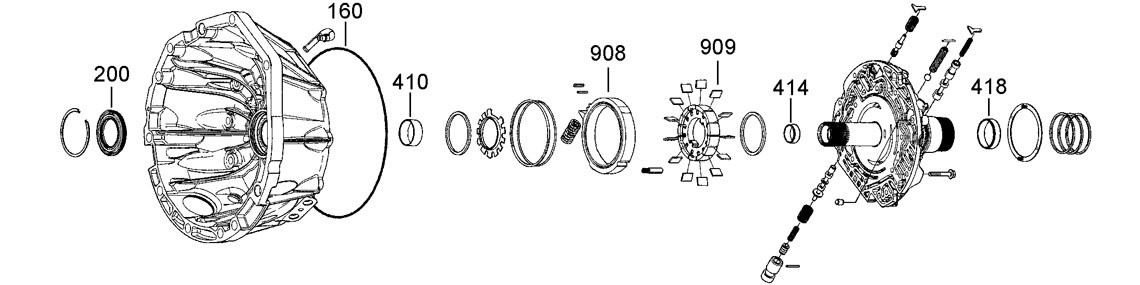

A

Bell Housing & Pump

200
160
410
909
414
418
908

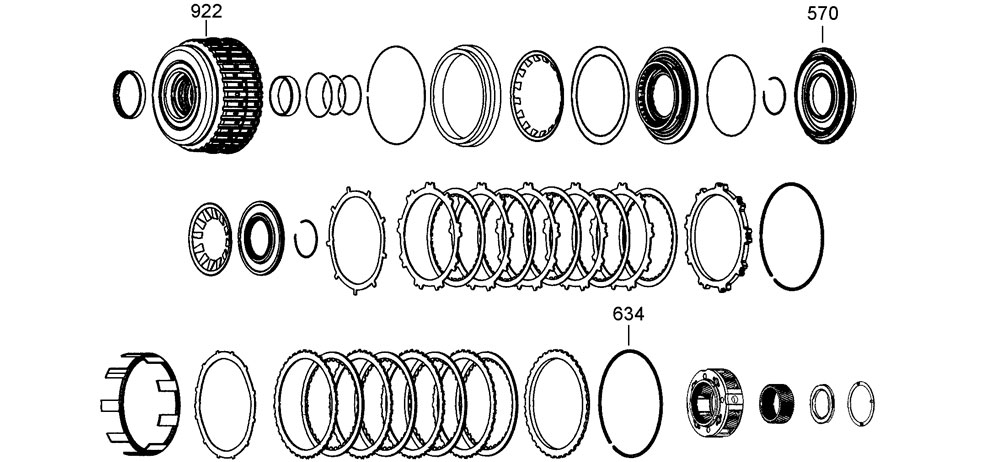

B

1-2-3-4 & 3-5-Reverse Clutch & Input Carrier Assembly

922
634
570

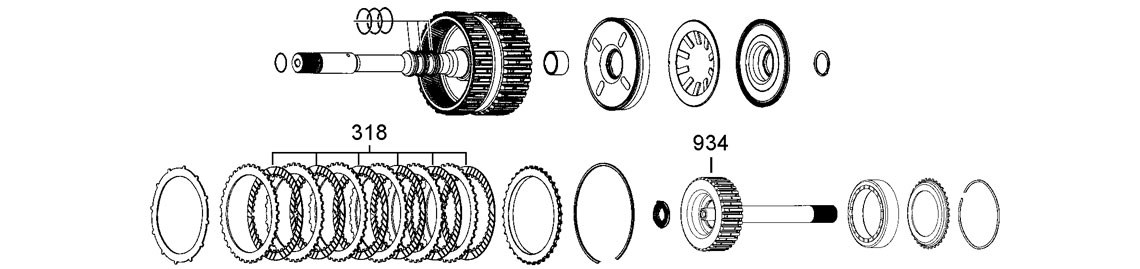

C

4-5-6 Clutch

934
318

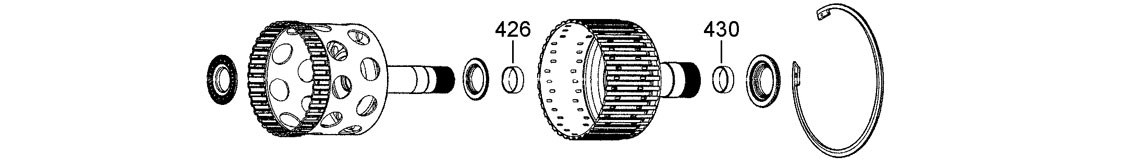

D

1-2-3-4 Clutch Hub, 2-6 & 3-5-Reverse Clutch Hub

426
430

E

2-6 Clutch, Low & Reverse Clutch And Output Carrier Assembly

434
438
326
376
951

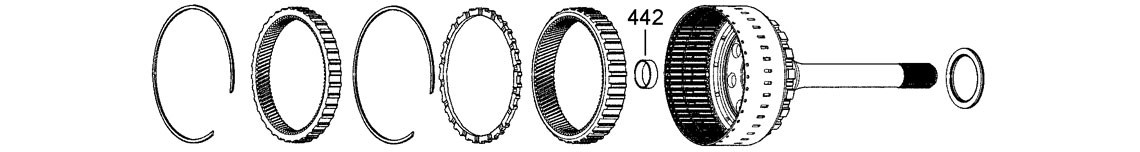

F

Output Shaft Assembly

442

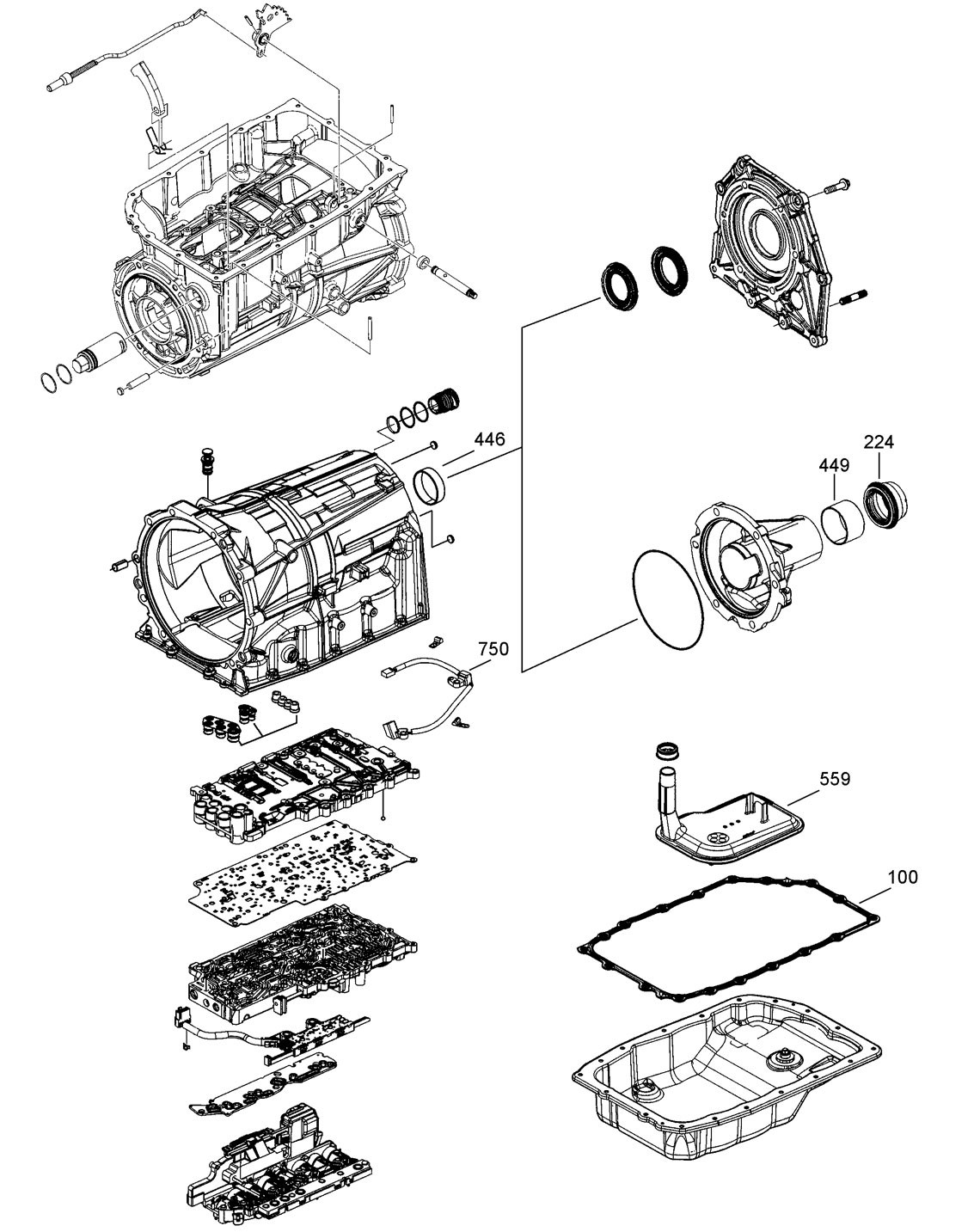

G

Case, Valve Body, Filter & Pan

100
559
750
446
449
224

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32007K Overhaul Kit Transtec 07-ON 1
Kit 32008K Overhaul Kit without Pistons Transtec 07-ON 1
Kit 32008KP Overhaul Kit without Pistons Precision 07-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32007KM Master Kit with Pistons 10-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32124K Valve Body Gasket Kit 07-ON 1
100G 32100 Pan Gasket 07-ON 1
100G 32101 Pan Gasket 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32190K Valve Body to Case Seal Kit 07-ON 1
160A 32160 Pump to Case O Ring 07-ON 1
NI 32162 Pump Stator to Pump O Ring 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 32200 Converter Seal 46.6 ID x 73 OD x 7.20mm 07-ON 1
224G 32220 Extension Housing Seal, Booted 49 x 68.80 x 10.30 x 36.80mm 07-ON 1
224G 32224 Extension Housing Seal 48 ID x 68.8 OD x 10.30mm 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32302K Friction Module 07-ON 1
Kit 32303KGPZ 3-5 Reverse & 4-5-6 Clutch Friction Kit with Z Paks 07-ON 1
Kit 32358KZP 4-5-6 Clutch Z Pak 07-ON 1
318C 32318HE High Energy 4-5-6 Clutch Friction Plate 128.55 OD x 1.52mm x 43T 07-ON 6
326E 32326 Low & Reverse Clutch - Waffle 177.8 OD x 1.60mm x 54T 07-ON 6
326E 32330 Low & Reverse Clutch - Segmented 177.8 OD x 1.60mm x 54T 07-ON 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
376E 32376 Low & Reverse Clutch Steel Plate 152.7 ID x 1.70mm x 36T 07-ON 5

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
410A 32410 Converter Housing Bush, Teflon 07-ON 1
410A 32410A Converter Housing Bush 07-ON Alt
414A 32414 Front Stator Bush 07-ON 1
418A 32418 Rear Stator Bush 07-ON 1
430D 32430 Rear 2-6/3-5 Hub Bush 07-ON 1
434E 32434 Front Centre Support Bush 07-ON 1
438E 32438 Rear Centre Support Bush 07-ON 1
442F 32442 Output Shaft Bush 07-ON 1
446G 32446 Case Bush, Teflon Coated 07-ON 1
449G 32449 Extension Housing Bush 07-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32452K Bearing Kit 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
559G 32550 Filter Total Height of Filter 146.30mm 07-ON 1
559G 32556 Filter 07-ON 1
559G 32559 Filter 12-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32550K Filter Kit - Commodore 07-ON 1
Kit 32556K Filter Kit, Does Not Fit Silverado 07-ON 1
Kit 32559K Filter Kit 12-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32583K 4-5-6 Piston Kit, Modified 07-ON 1
570B 32570 1-2-3-4 Clutch Alloy Piston 07-ON 1
570B 32570B 1-2-3-4 Clutch Billet Piston 06-ON Alt

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
634B 32634B 3-5 Reverse Clutch Circlip 1.93mm 07-ON AR
634B 32634C 3-5 Reverse Clutch Circlip 2.20mm 07-ON AR
634B 32634D 3-5 Reverse Clutch Circlip 2.47mm 07-ON AR

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
750G 32750 Input & Output Speed Sensor, up to chassis CL708502 07-10/12 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32775K Clutch Select Valve and TCC Regulator Valve Kit 16-ON 1
Kit 32776K Pressure Switch Plastic Piston (10 per bag) 07-ON 1
Kit 32777K Pump Slide Pivot Pin & Spring Kit Pack of 3 07-ON 1
Kit 32781K Actuator Feed Limit Valve Kit 07-ON 1
Kit 32782K TCC Regulator Valve Kit 07-ON 1
Kit 32782KA Oversized TCC Regulator Valve Kit 07-ON 1
Kit 32783K Press Regulator Boost Valve Kit 07-ON 1
Kit 32791K Pressure Regulator Valve Repair Kit 06-ON 1
Kit 32792K Cooler Flow Bypass Delete Kit 14-ON 1
Kit 32796K Output Planet Saver Kit 07-ON 1
Kit 32799K End Play Shim Kit 07-ON 1
NI 32781KA Oversized Actuator Feed Limit Valve 07-ON 1
NI 32785K Oversized Converter Feed Limit Valve 07-ON 1
NI 32793K Pump Ring Kit Hi Performance 07-ON 1
NI 32795K VB Upgrade 07-ON 1
NI 32798 Output Planetary Lube Dam 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32800K Shift Kit 07-12 1
Kit 32810K Zip Kit 07-ON 1
Kit 32812K Reprogramming Kit, TransGo 07-20 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 32907K Pump Rotor Vane & Ring Kit, no Slide 07-ON 1
908A 32908 PUMP SLDE 13 VANE 17.95mm 6L45/50/80/90 07-ON 1
909A 32909 Pump Vane 07-ON 13
922B 32922 1-2-3-4/3-5-R Clutch Drum, OEM 07-ON 1
934C 32934AHP Heavy Duty 4-5-6 Clutch Hub & Intermediate Shaft 07-ON 1
951E 32951U 2-6 Clutch Drum 135mm Height 07-ON 1
NI 32918K Pump Ring Kit Hi Performance 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI TF-104520-TL11C Reamer Tool for 32785K 07-ON 1
NI TF-104740-TL12 Reamer Tool for 32781KA 07-ON 1
NI TF-104740-TL7 Reamer Tool for 32782KA 07-ON 1
