A

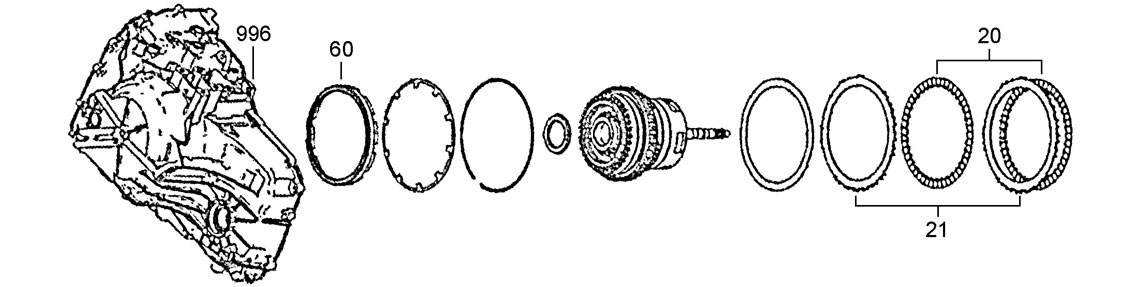

2-6 Clutch

21
20
60
996

B

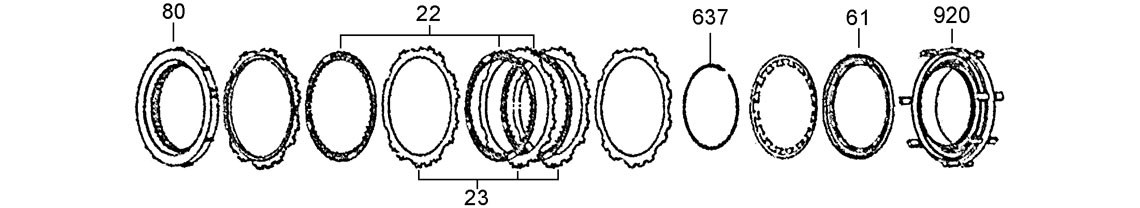

Low & Reverse Clutch

23
61
22
80
920
637

C

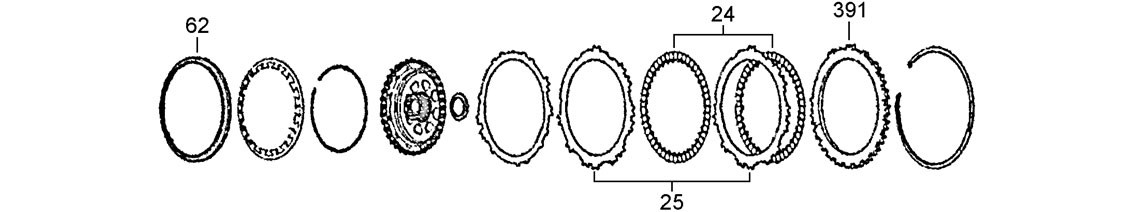

1-2-3-4 Clutch

25
24
62
391

D

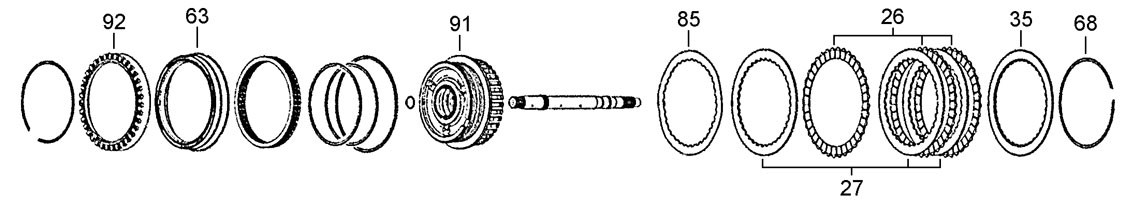

3-5-Reverse Clutch

26
68
27
91
35
85
92
63

E

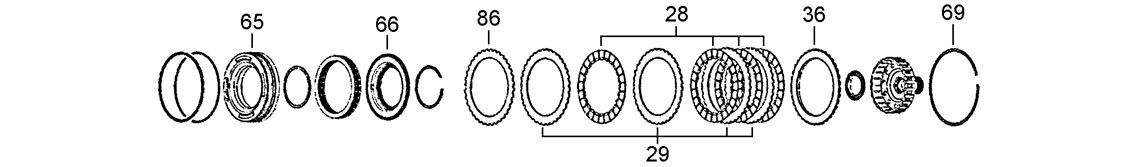

4-5-6 Clutch

29
66
65
86
28
36
69

F

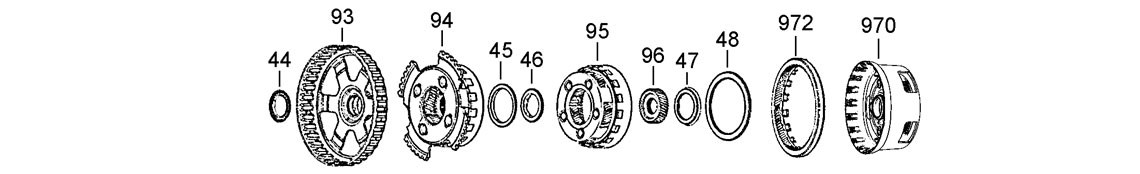

Planetary Sets

44
48
46
47
45
95
96
93
94
972
970

G

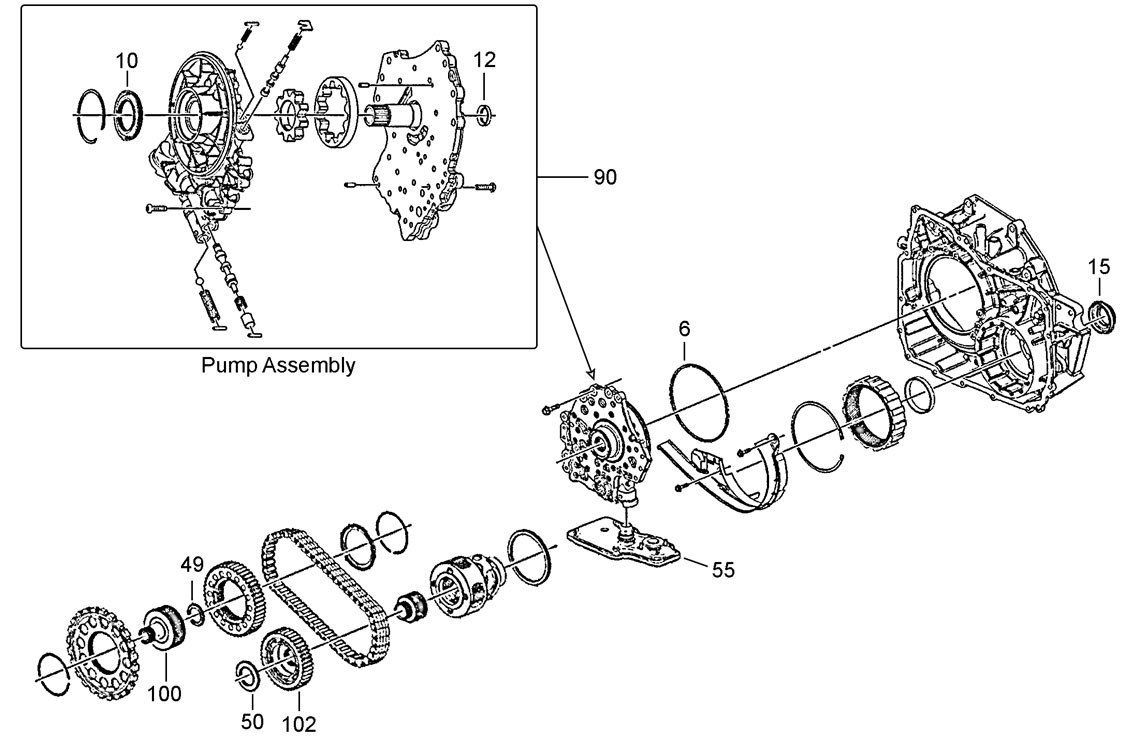

Pump, Filter, Differential & Output

6
55
49
90
102
15
10
100
12

H

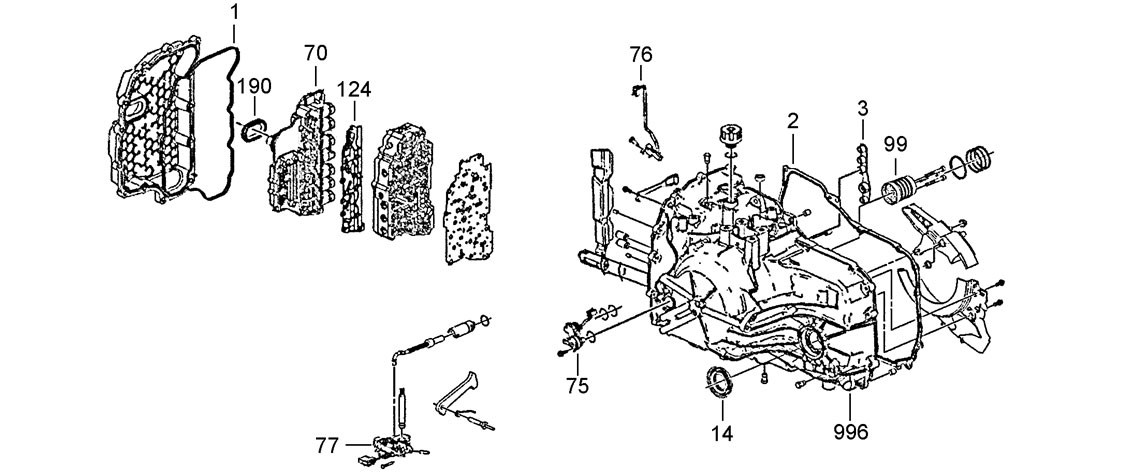

Valve Body, Sensors & Main Case

76
70
3
2
77
99
124
190
1
14
75
996

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135000K Overhaul Kit Gen I With Bonded Pistons Transtec 08-12 1
Kit 135002K Overhaul Kit Gen I Without Bonded Pistons Transtec 08-12 1
Kit 135002KA Overhaul Kit Without Bonded Pistons Precision 08-12 Alt
Kit 135008K Overhaul Kit Gen II With Bonded Pistons Transtec 12-ON 1
Kit 135009K Overhaul Kit Gen II Without Bonded Pistons Transtec 12-ON 1
Kit 135009KP Overhaul Kit Gen II Without Bonded Pistons Precision 12-ON Alt
Kit 135012K Overhaul Kit Gen III With Bonded Pistons (Vehicles w/Start/Stop) Transtec 14-ON 1
Kit 135013K Overhaul Kit Gen III Without Bonded Pistons (Vehicles w/Start/Stop) Transtec 14-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135000KM Master Kit 6T40, 6T45 Gen I 08-12 1
Kit 135008KM Master Kit 6T40, 6T45 Gen II 12-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135120K Valve Body Gasket Kit Gen I 08-12 1
Kit 135122K Valve Body Gasket Kit Gen II 12-ON 1
Kit 135123K Valve Body Gasket Kit Gen III 14-ON 1
1H 135100 Valve Body Cover Gasket 08-ON 1
2H 135110 Main Case Gasket 08-ON 1
2H 135112 Main Case Gasket Gen III 14-ON 1
124H 135124 Gasket with Filters Tehcm to Valve Body, Gen I 08-12 1
124H 135125 Gasket to Valve Body Late Partial Screen 12-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135165K 3-5-Reverse Clutch Seal Kit 08-ON 1
Kit 135168K 4-5-6 Clutch Seal Kit Gen I 08-12 1
Kit 135170K 4-5-6 Clutch Seal Kit Gen II 12-ON 1
Kit 135178K Valve Body to Case Seal Kit 12-ON 1
3H 135180K Case to Bellhousing Seal Kit 08-ON 1
6G 135160 Pump O Ring Gen I & II 08-ON 1
6G 135162 Pump O Ring Gen III 14-ON 1
190H 135190 Seal Valve Body to Case Connector 08-ON 1
NI 135176 Tube Seal 08-ON 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10G 135200 Converter Seal 40.5 ID x 64.5 OD x 7.50mm 08-12 1
10G 135202 Converter Seal Gen III 46.5 ID x 73.7 OD x 11.05mm 14-ON 1
10G 135208 SEAL CONVERTER (6F35) GEN II 2013-ON 37.5 ID x 67.5 OD x 10.50mm 12-ON 1
12G 135209 Rear Stator Seal (6T45) 19 ID x 28 OD x 7.00mm 11-ON 1
14H 135210 SEAL-6F35/6F15-6T30/40/45 AXLE 60 X 35 35 ID x 61 OD x 10.30mm 08-ON 1
15G 135212 Axle Seal Righthand 35 ID x 66.3 OD x 24.50mm 08-ON 1
NI 135206 Pump Shaft Seal Gen III, Small 14-ON 1
NI 135207 Pump Shaft Seal Gen III, Large 14-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135250K Sealing Ring Kit, Gen I 08-12 1
Kit 135252K Sealing Ring Kit, Gen II 12-ON 1
Kit 135254K Sealing Ring Kit, Gen III 14-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135300K Friction Kit 08-ON 1
Kit 135301K Friction Kit, Gen I 08-12 1
Kit 135308K Friction Kit, Gen II Exedy 12-ON 1
20A 135310 2-6 Clutch 218 OD x 1.47mm x 36T 08-ON 2
20A 135310A 2-6 Clutch Friction Plate 218.3 OD x 1.45mm x 36T 08-ON Alt
22B 135316 Low & Reverse Clutch 217 OD x 1.60mm x 48T 08-ON 3
22B 135317 Low & Reverse Clutch 214 OD x 1.60mm x 48T 08-ON 3
24C 135310 1-2-3-4 Clutch 218 OD x 1.47mm x 36T 08-ON 2
24C 135310A 1-2-3-4 Clutch Friction Plate 218.3 OD x 1.45mm x 36T 08-ON Alt
24C 135312 1-2-3-4 Clutch Friction Plate 218 OD x 1.83mm x 36T 09-ON 2
26D 135320 3-5-Reverse Clutch External Teeth 145 ID x 1.60mm x 36T 08-ON 3
28E 135324 4-5-6 Clutch 122 OD x 1.58mm x 24T 08-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135369K 3-5-Reverse Clutch Drum Saver Kit 08-ON 1
Kit 135369KS 3-5-Reverse Clutch Drum Saver Kit, Sonnax 08-ON Alt
21A 135360 2-6 Clutch 189 ID x 2.90mm x 15T 08-ON 2
23B 135366 Low & Reverse Clutch Steel Plate 194 ID x 1.75mm x 12T 08-ON 3
25C 135362 1-2-3-4 Clutch 189 ID x 3.40mm x 15/24T 08-ON AR
25C 135364 1-2-3-4 Clutch Steel Plate 189 ID x 1.70mm x 12T 08-ON 2
27D 135370 3-5-Reverse Clutch Internal Teeth 173 OD x 2.90mm x 36T 08-ON 3
29E 135374 4-5-6 Clutch 96 ID x 1.73mm x 36T 08-ON 3
35D 135395 3-5-Reverse Pressure Plate with Internal Teeth 173 OD x 3.00mm x 36T Stepped 08-ON 1
36E 135396 4-5-6 Clutch Pressure Plate with External Teeth 96 ID x 3.00mm x 36T 08-ON 1
391C 135391U Pressure Plate 1-2-3-4 Clutch 189 ID x 8mm x 18T (Double) 08-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135400K Bush Kit 08-ON 1
Kit 135780K Axle Bushing & Seal Kit 08-ON 1
NI 135410 Pump Bush 08-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
44F 135470 Reaction Carrier Hub Bearing 08-ON 1
45F 135472 Input Carrier Thrust Bearing 08-ON 1
46F 135474 Input Sungear Bearing Front 08-ON 1
47F 135476 Input Sungear Bearing Rear 08-ON 1
48F 135480 Output Carrier Thrust Bearing 08-ON 1
49G 135486 Output Hub Bearing 08-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55G 135550 Filter 08-ON 1
55G 135560 Filter Gen III 14-ON 1

Transmission must be disassembled to replace Filter

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135570K Piston Kit Gen I 08-12 1
Kit 135571K Piston Kit Gen II 12-ON 1
Kit 135572K Piston Kit Gen III 14-ON 1
60A 135570 2-6 Clutch Piston 08-ON 1
61B 135574 Low & Reverse Clutch Piston 08-ON 1
62C 135576 1-2-3-4 Clutch Piston 08-ON 1
63D 135580 3-5-Reverse Clutch Piston 08-ON 1
65E 135583 4-5-6 Clutch Piston Alloy Gen I 08-12 1
65E 135583A 4-5-6 Clutch Piston Alloy Gen II 12-ON 1
66E 135584 4-5-6 Clutch Balance Piston Gen I 08-12 1
66E 135584A 4-5-6 Clutch Balance Piston Gen II 12-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
68D 135635 CIRCLIP 3-5-REVERSE CLUTCH (6T40) 08-ON 1
69E 135636 4-5-6 Clutch Circlip 08-ON 1
637B 135637 Low & Reverse Clutch Circlip OD 162mm 08-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
80B 135650U Low/Reverse Sprag 6T40 (Used) 08-ON 1
85D 135675 3-5-Reverse Clutch Cushion Plate 08-ON 1
86E 135676 4-5-6 Clutch Cushion Plate 08-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135700KFN Solenoid Set Gen I (From New) with Black Bases 08-12 1
Kit 135702KFN Solenoid Set Gen II (From New) with Multicolour Bases 12-ON 1
Kit 135702KU Solenoid Set Gen II (Used) with Multicolour Bases 12-ON 1
70H 135720 Solenoid & TCM Assembly * 08-ON 1
70H 135721 Solenoid & TCM Assembly * 08-ON 1
70H 135722 Solenoid & TCM Assembly * 08-ON 1
70H 135724 Solenoid & TCM Assembly * 08-ON 1
70H 135725 Solenoid & TCM Assembly Captiva 08-ON 1
70H 135726 Solenoid & TCM Assembly * 08-ON 1
70H 135727 Solenoid & TCM Assembly * 08-ON 1
70H 135728 Solenoid & TCM Assembly * 08-ON 1
70H 135729 Solenoid & TCM Assembly * 08-ON 1
75H 135730 Input Speed Sensor (ISS) 6T40, 6T45 08-ON 1
76H 135732 Output Speed Sensor (OSS) 6T40, 6T45 08-ON 1
77H 135740 Internal Mode Switch (IMS) 6T40, 6T45 08-ON 1

Vehicle Details Must be Supplied.
Vehicle will require programming after Fitting

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135778K Pressure Switch Rebuild Kit Gen I Only 08-12 1
Kit 135790K Actuator Feed Limit drop-in Valve & Sleeve Kit 08-ON 1
Kit 135792K Oversize Actuator Feed Limit Valve* Gen I only, Reamer Required 08-12 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135800K Shift Kit Gen I 08-12 1
Kit 135809K Shift Kit, Gen II 12-ON 1
Kit 135820K Sonnax ZIP Kit Gen I 08-12 1
Kit 135822K Zip Kit Gen II & Gen III 12-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135910K Oil Baffle Kit (6T40) 08-ON 1
Kit 135912K Oil Baffle Kit 6T45/6T50 08-ON 1
Kit 135930K 3-5-Reverse & 4-5-6 Clutches Drum (Upgraded) 08-ON 1
Kit 135937U 3-5-Reverse / 4-5-6 Drum 6T40 4 Ring Hub (Used) 08-ON 1
Kit 135938U 3-5-Reverse / 4-5-6 Drum 6T40 3 Ring Hub (Used) 08-ON 1
Kit 135948KU Planet Kit 6F35 Used 08-ON 1
Kit 135950KU Planet Kit 4/3 Pinion 08-ON 1
Kit 135986U Hub & Bearing 6T50 Captiva (Used) 08-ON 1
90G 135900 Pump Assembly 6T40 only 08-ON 1
90G 135902 Pump Assembly 6T45 only 08-ON 1
91D 135930 3-5-Reverse/4-5-6 Kit Gen I Drum Only 08-12 1
91D 135932 3-5-Reverse/4-5-6 Kit Gen II Drum Only 12-ON 1
92D 135922 3-5 Reverse Sensor Wheel 08-ON 1
93F 135952 Reaction Sungear & Shell 08-ON 1
94F 135956 Reaction Planet Carrier 08-ON 1
95F 135962 Input Planet Carrier 3 Pin 08-ON 1
95F 135963 Input Planet Carrier 4 Pin 4 Pin will replace 3 Pin 08-ON 1
96F 135966 Input Sungear 08-ON 1
99H 135923 Case Sealing Sleeve 4 Ring Gen I 08-12 1
99H 135924 Case Sealing Sleeve 3 Ring Gen II 12-ON 1
100G 135982 Output Carrier Hub 6T40 only 08-ON 1
100G 135982 Output Carrier Hub 6T45 only 08-ON 1
102G 135988 Driven Sprocket (6T40) 08-ON 1
920B 135920 Low & Reverse & 1-2-3-4 Housing 08-ON 1
970F 135970 Output Planet Carrier 08-ON 1
972F 135972 Rear Output Ring Gear 08-ON 1
996A 135996 Main Housing, 6T50, AWD Diesel Captiva 08-ON 1
996A 135997 Main Housing, 6T50, AWD Petrol Captiva 08-ON 1
996H 135996 Main Housing, 6T50, AWD Diesel Captiva 08-ON 1
996H 135997 Main Housing, 6T50, AWD Petrol Captiva 08-ON 1
NI 135938 3-5-R/4-5-6 DRUM (6T40/45) COMPLETE
NI 135958 Front Reaction Ring Gear 08-ON 1
NI 135964 Ring Gear Centre Intermediate 08-ON 1

Gen I Valve Body has Pressure Switches on Upper Side of TECHM
8th Digit on TECHM ID plate will be 1, 2 or 3 (Gen II will be B. C or D)

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T-135812K Reamer for Shift Kit # 135809K 08-ON 1
