A
End Cover & 2-6 Clutch Piston

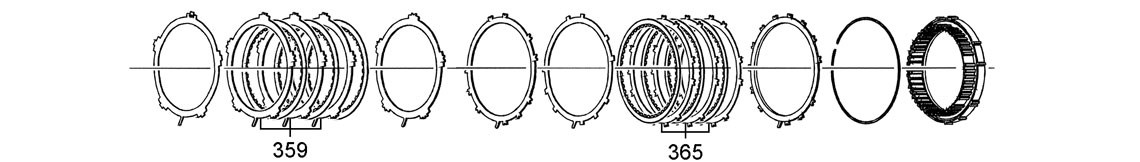

B
2-6 Clutch & Low-Reverse Clutch Assembly
359
365

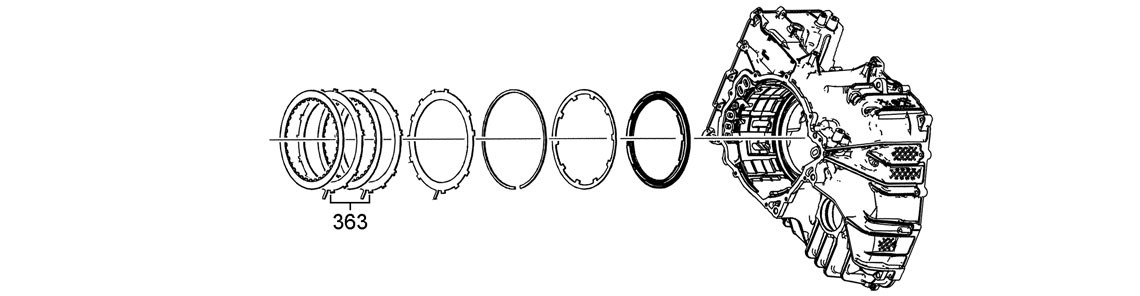

C
1-2-3-4 Clutch Assembly
363

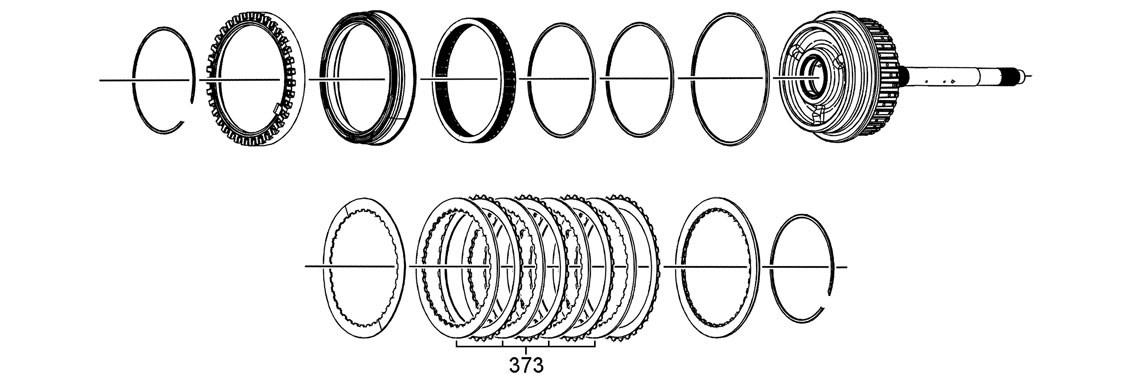

D
3-5-Reverse Clutch
373

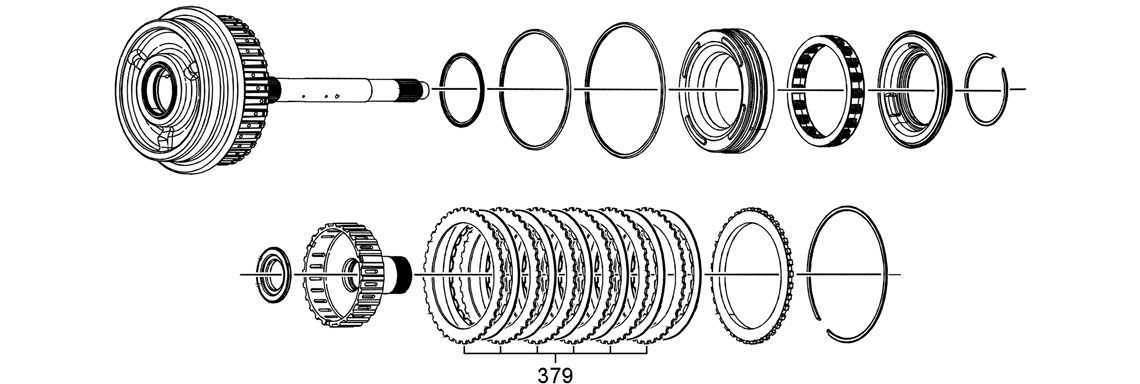

E
4-5-6 Clutch
379
F
Planetary Assembly

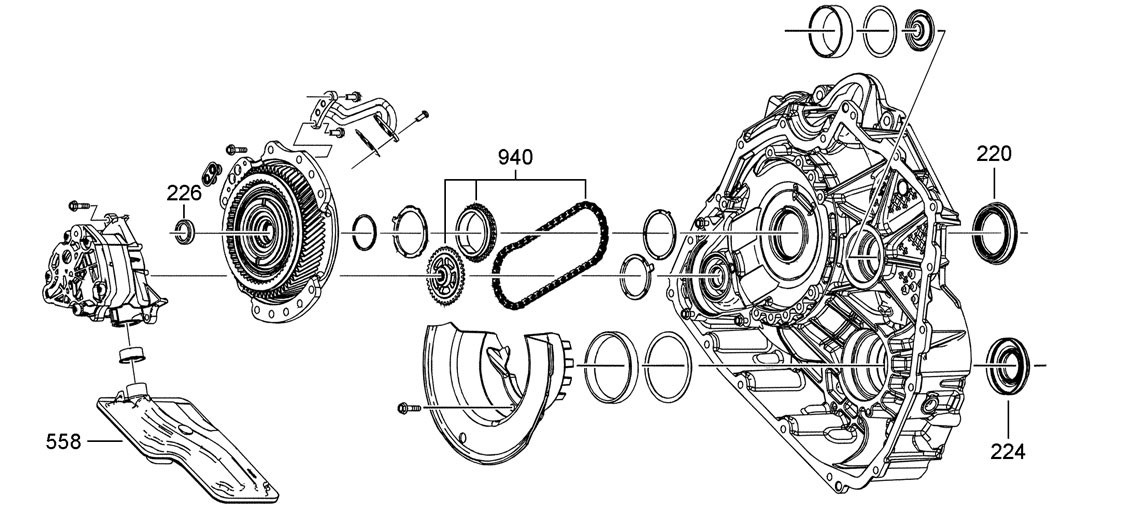

G
Filter & Oil Pump
558
220
224
226
940

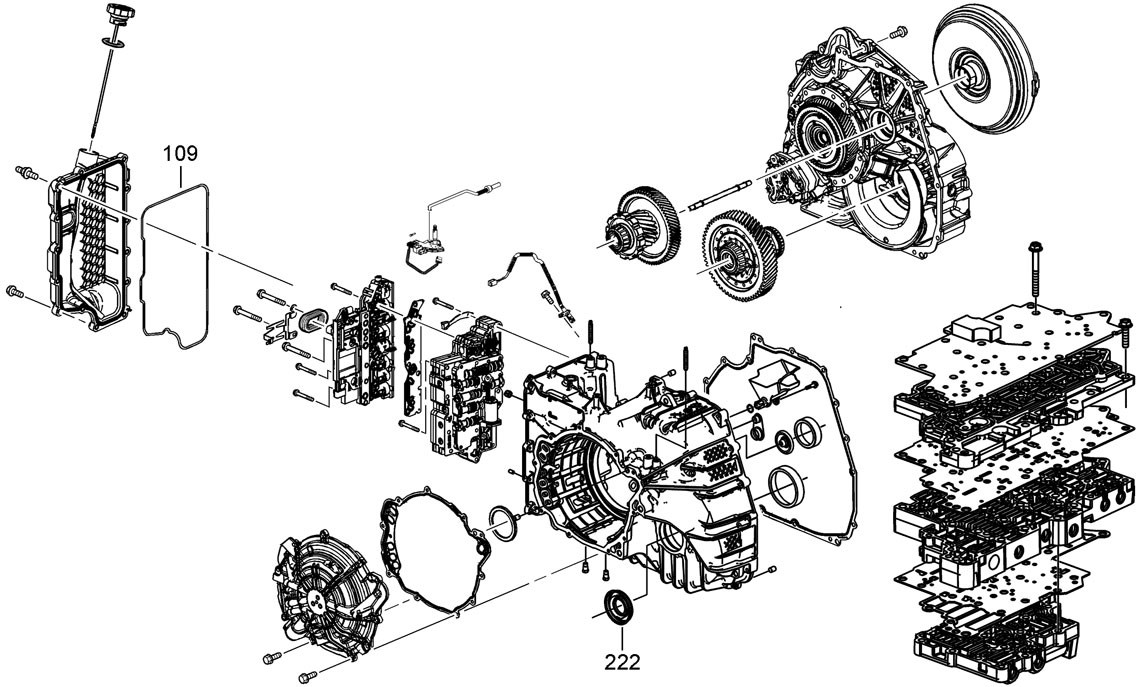

H
Case Components, Valve Body & Differential
109
222
seals
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
220G | 135220 | Converter Seal | 07-ON | 1 | |
222H | 135222 | Lefthand Axle Seal | 07-ON | 1 | |
224G | 135224 | Righthand Axle Seal | 07-ON | 1 | |
226G | 135226 | Transfer Seal | 07-ON | 1 |
steel & pressure plates
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | 135366K | Steel Module | 07-ON | 1 | |
359B | 135359 | 2-6 Clutch Steel Plate | 182.75 ID x 2.90mm x 5T | 07-ON | 3 |
363C | 135363 | 1-2-3-4 Clutch Steel Plate | 175 ID x 2.16mm x 12T | 07-ON | 2 |
365B | 135365 | Low & Reverse Clutch Steel Plate | 197 ID x 1.75mm x 10T | 07-ON | 3 |
373D | 135373 | 3-5-Reverse Clutch Steel Plate | 167.34 OD x 2.90mm x 36 Int T | 07-ON | 4 |
379E | 135379 | 4-5-6 Clutch Steel Plate | 100 ID x 1.75mm x 36T | 07-ON | 6 |
bushes
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | 135420K | Bush Kit | 07-ON | 1 | |
NI | 135420 | Converter Bush | 07-ON | 1 |
sundry parts
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | 32776K | Pressure Switch Plastic Piston (10 per bag) | 07-ON | 1 |
