A

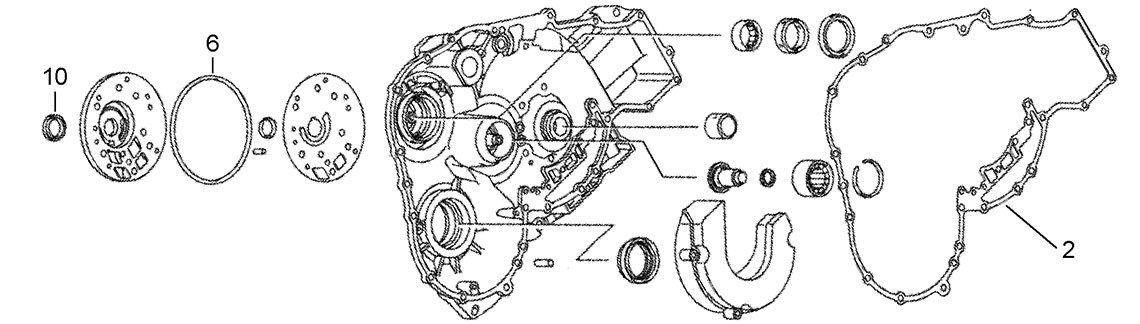

Pump & Bell Housing
6
10
2
B

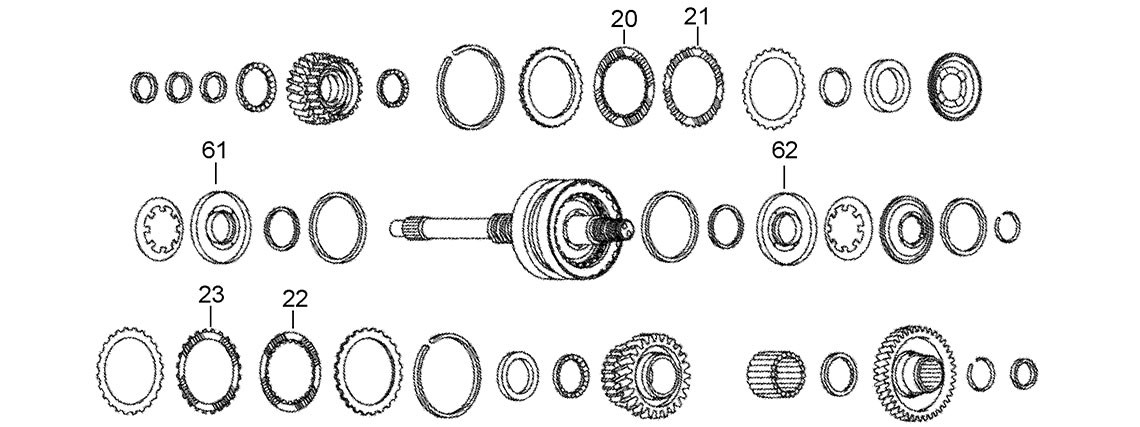

Input Shaft, K3 & K4 Clutch Assemblies
62
21
22
61
23
20
C

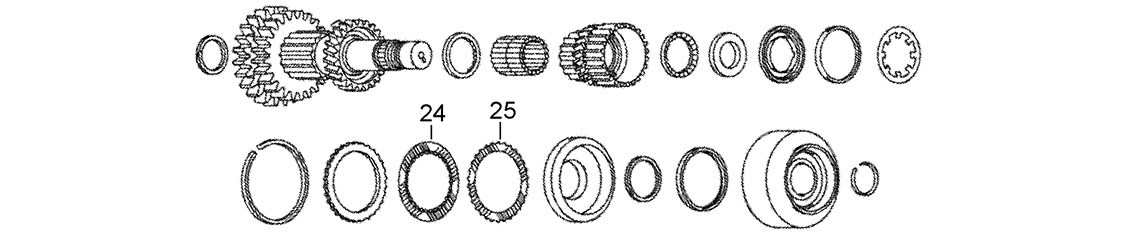

Driven Shaft & K5 Clutch
24
25
D

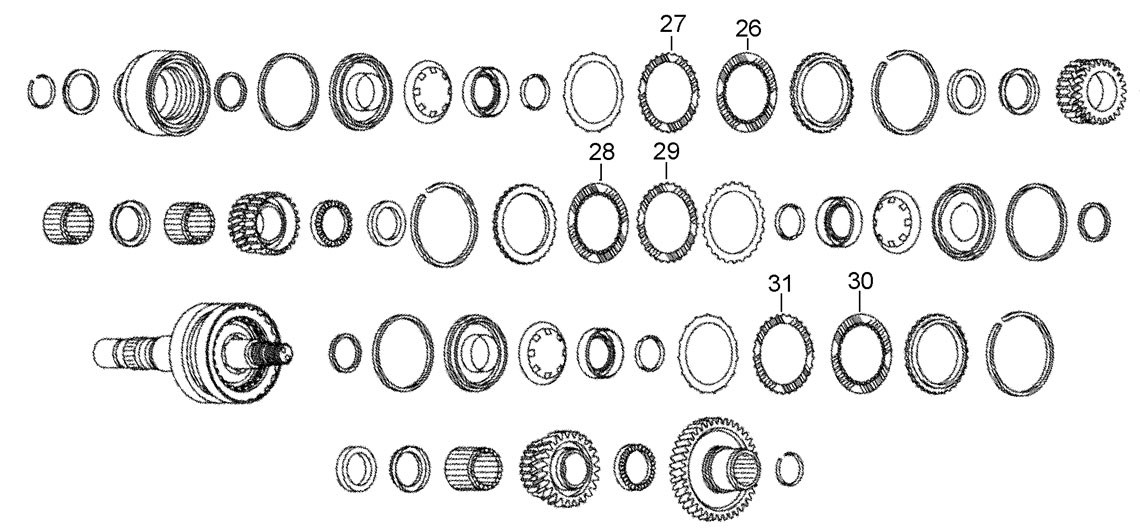

Countershaft K1 K2 & Kr Clutch Assemblies
29
28
31
26
27
30
E

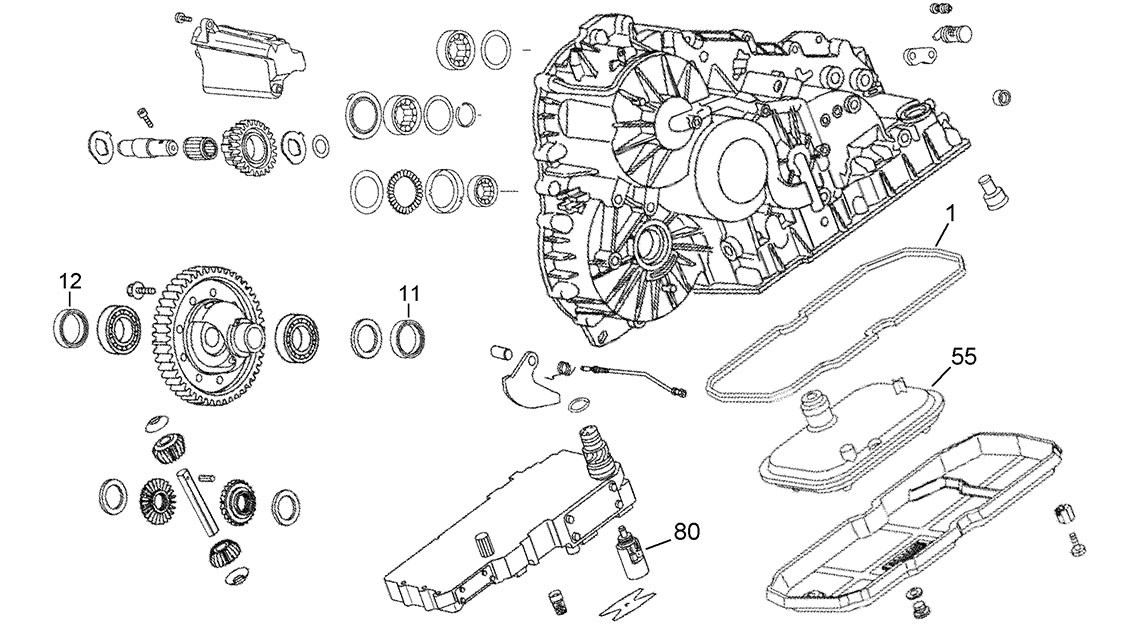

Filter, Pan & Main Case
12
80
1
11
55
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1E | 88100 | Pan Gasket | 00-ON | 1 | |
| 2A | 88110 | Case to Case Gasket | 00-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | 86202 | Front Pump Seal | 35 ID x 50 OD x 6.60mm | 00-ON | 1 |
| 11E | 88210 | Axle Seal Lefthand | 36 ID x 54 OD x 8.00mm | 00-ON | 1 |
| 12E | 88210 | Axle Seal Righthand | 36 ID x 54 OD x 8.00mm | 00-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20B | 88310 | K3 Internal Teeth | 111 OD x 1.60mm x 24T | 00-ON | 3 |
| 21B | 88312 | K3 External Teeth | 89 ID x 1.60mm x 24T | 00-ON | 3 |
| 22B | 88310 | K4 Internal Teeth | 111 OD x 1.60mm x 24T | 00-ON | 3 |
| 23B | 88312 | K4 External Teeth | 89 ID x 1.60mm x 24T | 00-ON | 3 |
| 24C | 88318 | K5 Internal Teeth | 108 OD x 1.60mm x 32T | 00-ON | 3 |
| 25C | 88320 | K5 External Teeth | 93 ID x 1.60mm x 24T | 00-ON | 3 |
| 26D | 88314 | K1 Internal Teeth | 115 OD x 1.60mm x 24T | 00-ON | 3 |
| 27D | 88316 | K1 External Teeth | 100 ID x 1.60mm x 30T | 00-ON | 3 |
| 28D | 88314 | K2 Internal Teeth | 115 OD x 1.60mm x 24T | 00-ON | 4 |
| 29D | 88316 | K2 External Teeth | 100 ID x 1.60mm x 30T | 00-ON | 4 |
| 30D | 88314 | KR Internal Splines | 115 OD x 1.60mm x 24T | 00-ON | 3 |
| 31D | 88316 | KR External Splines | 100 ID x 1.60mm x 30T | 00-ON | 3 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 80E | 88700 | Pressure Control Solenoid | 00-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
