A

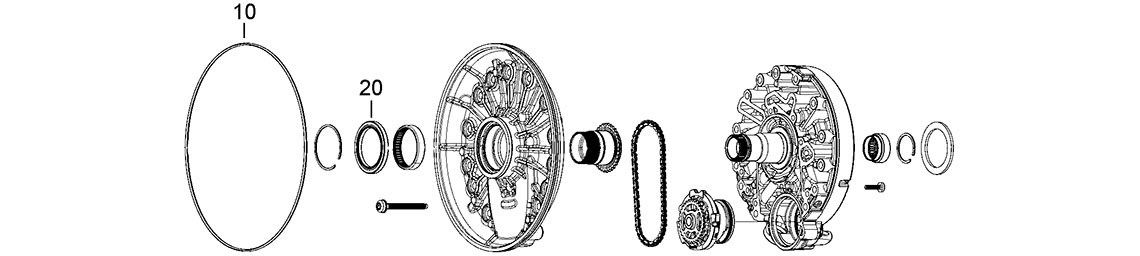

Pump
20
10

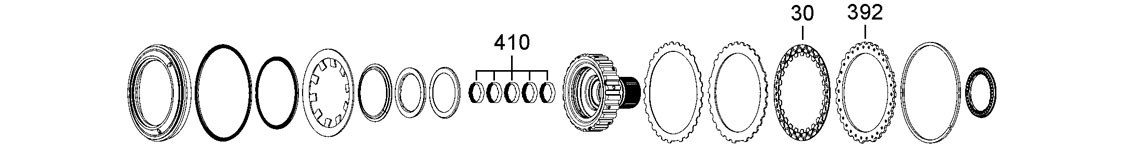

B
A Clutch
30
392
410

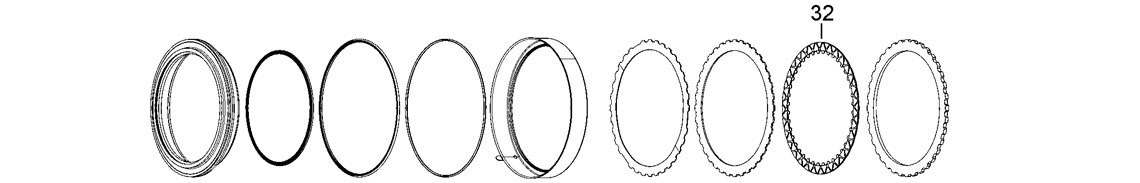

C
B Clutch
32

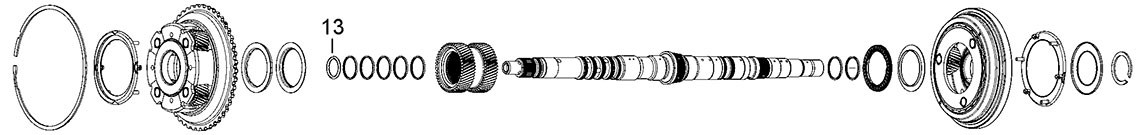

D
No 1 & No 2 Planetary Gear Sets
13
E

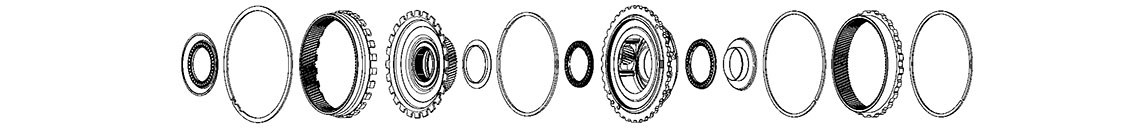

No 3 Planetary Gear Sets

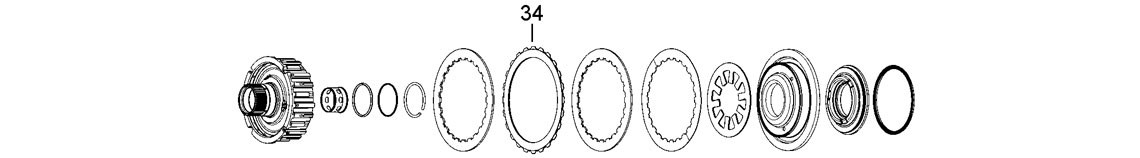

F
E Clutch
34

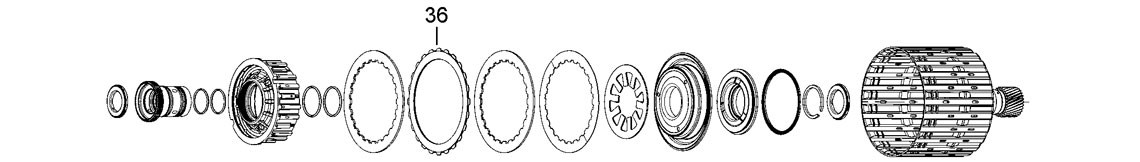

G
C Clutch
36

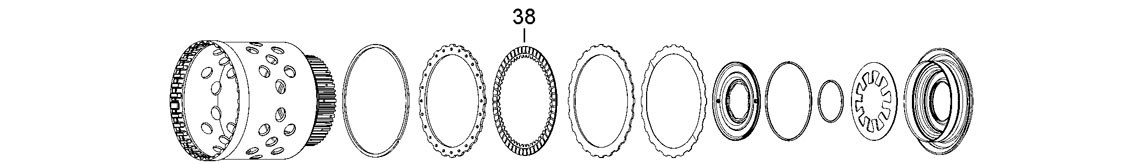

H
D Clutch
38

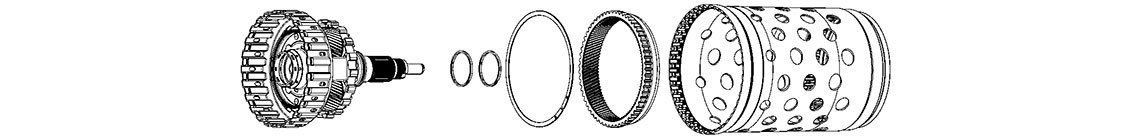

J
No 4 Planetary Gear Set

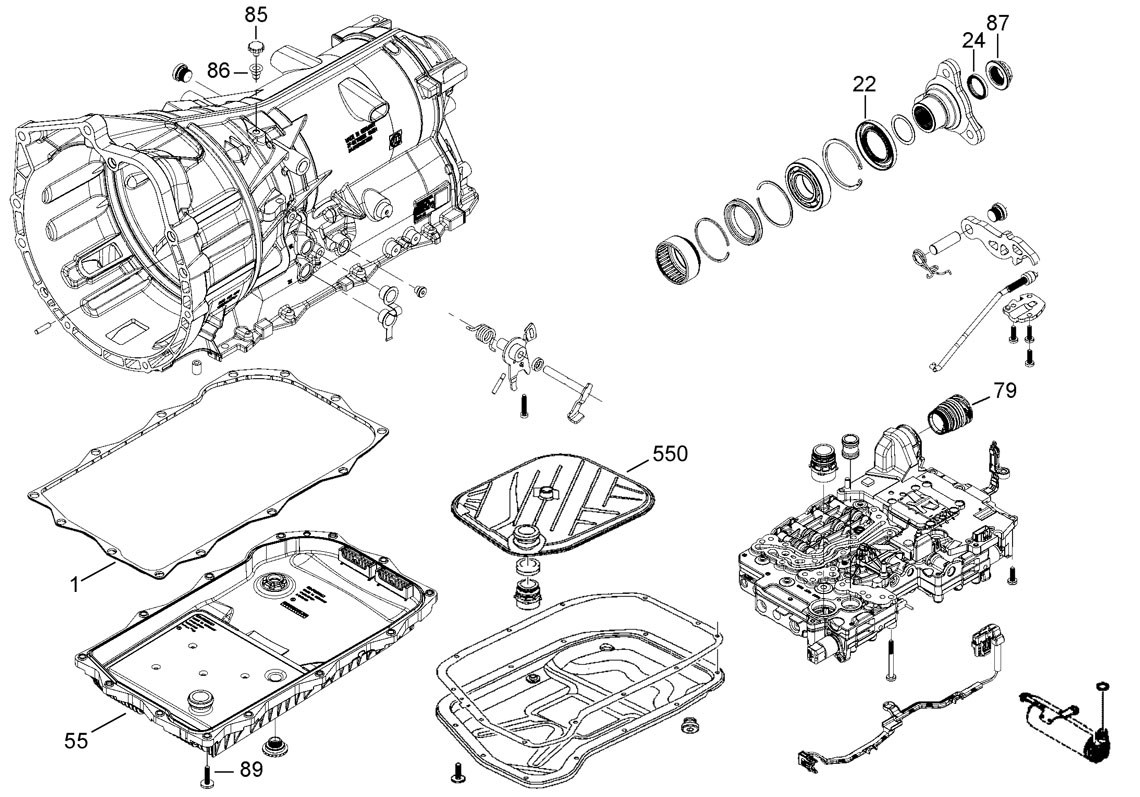

K
24
85
86
89
87
79
1
22
55
550
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121002K | Overhaul Kit 845RE, Transtec | Transtec | 08-ON | 1 |
| Kit | 121004K | Overhaul Kit 850RE with Pistons TT | Transtec | 15-ON | 1 |
| Kit | 121006K | Overhaul Kit 850RE without Pistons TT | Transtec | 15-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1K | 121100 | Pan Gasket (Moulded Rubber) | 08-ON | 1 | |
| 1K | 121106 | Pan Gasket 850RE Jeep | 15-ON | 1 | |
| NI | 121135 | Pump Bolt Washer | 08-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121190K | Valve Body Components Kit | 08-ON | 1 | |
| 10A | 121160 | Front Cover to Case O Ring | 08-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | 121200 | Converter Seal | 53 ID x 71 OD x 7.00mm | 08-ON | 1 |
| 22K | 99220 | Extension Housing Seal 2WD | 44 ID x 72 OD x 8.00mm | 08-ON | 1 |
| 24K | 99222 | Ouput Seal 4WD | 39 ID x 72 OD x 8.00mm | 08-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121300KA | Friction Module | 08-ON | Alt | |
| Kit | 121300KGPZ | Friction Module, GPZ | 08-ON | 1 | |
| Kit | 121304K | Friction Module, 850RE | 17-ON | 1 | |
| 30B | 121310 | A Clutch, 845RE | 130 OD x 1.56mm x 24T | 08-ON | 5 |
| 32C | 121314 | B Clutch, 845RE | 178 OD x 2.06mm x 38T | 08-ON | 5 |
| 34F | 121318 | E Clutch | 116 ID x 2.12mm x 24 Ext. T | 08-ON | 6 |
| 36G | 121318 | C Clutch | 116 ID x 2.12mm x 24 Ext. T | 08-ON | 6 |
| 38H | 121322 | D Clutch | 148 OD x 2.12mm x 54T Waved | 08-ON | 5 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121350K | Steel Module | 08-ON | 1 | |
| Kit | 121352K | Steel Module, Chrysler | 08-ON | 1 | |
| 392B | 121392 | A Clutch Pressure Plate (Sonnax) Heavy Duty | 08-ON | 1 |
bushes
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121400K | Bush Kit | 08-ON | 1 | |
| Kit | 121401K | Bush Kit, Sonnax | 08-ON | 1 | |
| 410B | 121410 | A Hub Front Bush | 08-ON | 5 | |
| 410B | 121410-5 | A Hub Front Bush, Pack of 5 | 5 Pack | 08-ON | 1 |
| NI | 121414 | Front Stator Bush | 27.6 ID x 30.6 OD x 15.00mm | 08-ON | 1 |
| NI | 121414-5 | Front Stator Bush, Pack of 5 | 27.6 ID x 30.6 OD x 15.00mm | 08-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121482 | BALL BEARING OUTPUT SHAFT | 08-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550K | 121557 | Filter, Jeep (850RE) | 15-ON | 1 | |
| 550K | 122555 | Filter 8HP55A/8HP55FL/0BK OEM | 11-ON | 1 | |
| 550K | 122555A | Filter | 08-ON | 1 |
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121557K | Filter Kit, Jeep (850RE) | 15-ON | 1 | |
| 55K | 123551K | Filter Kit inc Pan 8HP70X OE (Deep Pan) | 08-ON | 1 | |
| 55K | 123552K | Filter and Plastic Pan Assembly Jeep | 08-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121570K | Piston Kit (Transtec) | 08-ON | 1 | |
| Kit | 99590K | Sonnax Accumulator Piston Kit | 08-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121760K | Pump Bolt Kit | 08-ON | 1 | |
| Kit | 121774K | Solenoid Test Manifold Kit | 08-ON | 1 | |
| Kit | 121775K | Thermal Bypass Eliminator Kit | 08-ON | 1 | |
| Kit | 121784K | Oversize Pressure Reg Valve Kit | 08-ON | 1 | |
| Kit | 121786K | Priming Valve & Seal Kit | 08-ON | 1 | |
| Kit | 121788K | Oversized TCC Valve Kit | 08-ON | 1 | |
| Kit | 121790K | Oversized TC Pressure Valve Kit | 08-ON | 1 | |
| 85K | 96782 | Plastic Breather Cap | 08-ON | 1 | |
| 86K | 99752 | Plastic Breather Tube | 08-ON | 1 | |
| 87K | 99758 | Output Shaft Nut | 08-ON | 1 | |
| 89K | 99768 | Oil Pan Bolt (M6x28.5) | M6 x 28.5mm | 08-ON | 13 |
| NI | 121792K | Oversized TC Switch Valve | 08-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 121810K | Zip Kit Gen I | 08-15 | 1 | |
| Kit | 121812K | Zip Kit | 15-ON | 1 | |
| Kit | 121814K | Valve Body Shift Kit, Gen 1 | 08-15 | 1 | |
| Kit | 121816K | Valve Body Kit | 12-ON | 1 | |
| Kit | 121818K | Valve Body Kit for Heavy Duty Applications | 12-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121990 | Separator Plate Code 048 | 08-ON | 1 | |
| NI | 121991 | Separator Plate Code 049 | 08 ON | 1 | |
| NI | 121991A | Separator Plate Code 049 | Precision | 08-ON | Alt |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121999-01 | ZF Lifeguard 8 1 Litre Pack | 08-ON | AR | |
| NI | 121999-05 | ZF Lifeguard 8 5 Litre Pack | 08-ON | AR | |
| NI | 121999-20 | ZF Lifeguard 8 20 Litre Pack | 08-ON | AR |
tools
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | T-0140 | Glycol Test Kit | 08-ON | 1 | |
| Kit | TF-35740-TL | Tool Kit for 121792K | 08-ON | 1 | |
| Kit | TVACTEST | Vacuum Test Stand Kit | 08-ON | 1 | |
| NI | T-121814K | Tool Kit for 121814K | 08-15 | 1 | |
| NI | T-121950K | Drum Repair Tool | 08-ON | 1 | |
| NI | T-121970 | D Clutch Bonded Lip Seal Tool | 08-ON | 1 |
