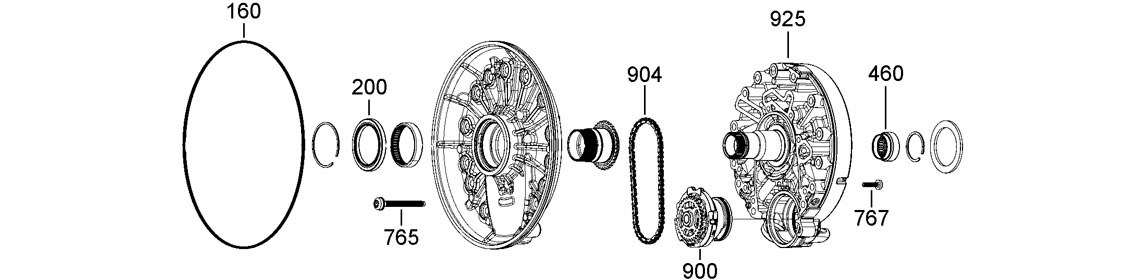

A

Pump

160
200
765
904
900
767
460
925

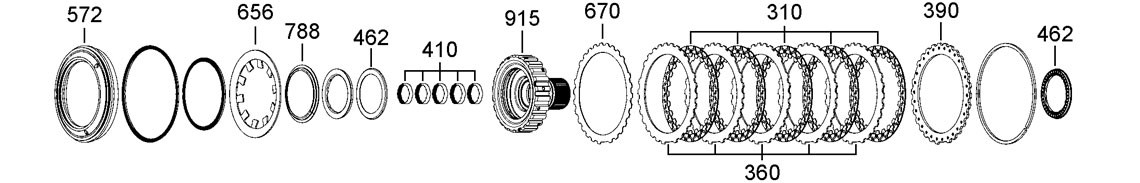

B

A Clutch

572
462
915
310
360
390
462
670
656
788
410

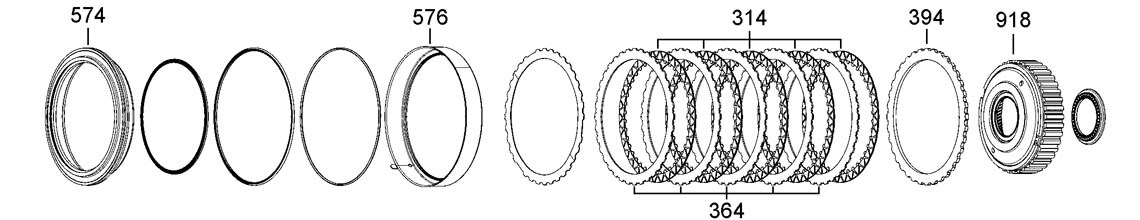

C

B Clutch

576
574
394
314
364
918

D

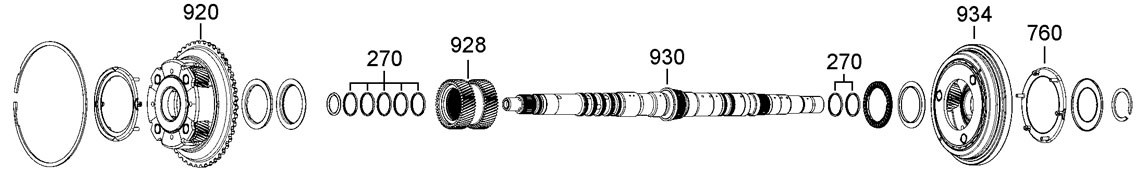

No 1 & No 2 Planetary Gear Sets

920
270
928
930
270
934
760

E

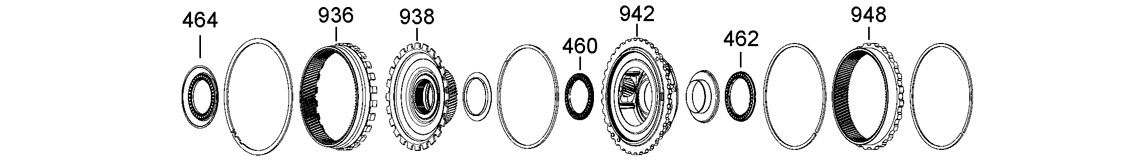

No 3 Planetary Gear Set

464
936
938
460
942
462
948

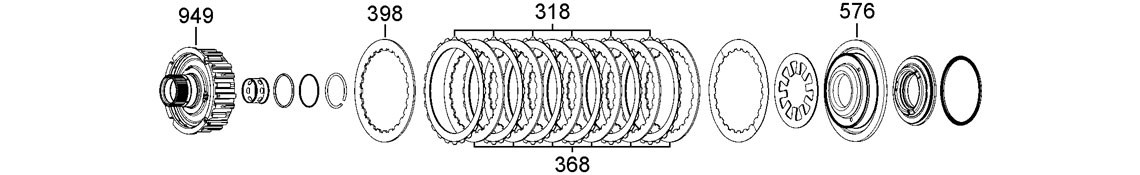

F

E Clutch

398
318
368
576
949

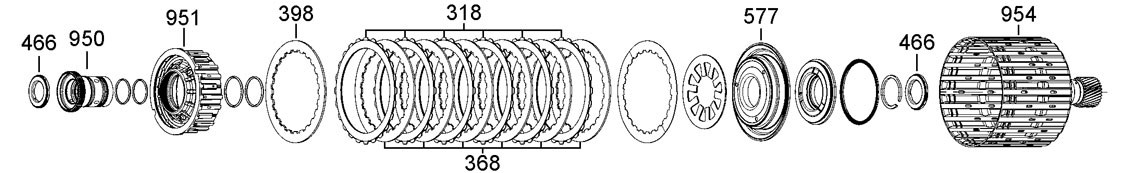

G

C Clutch

466
951
398
318
368
577
466
954
950

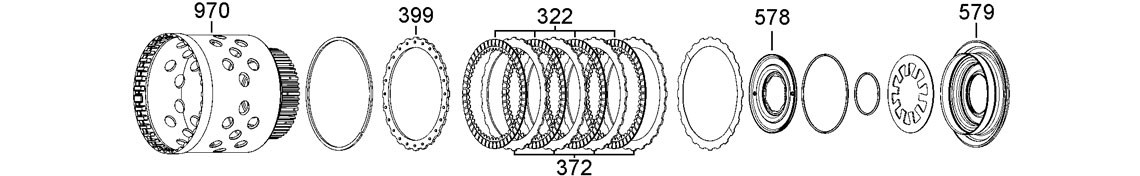

H

D Clutch

970
399
322
372
578
579

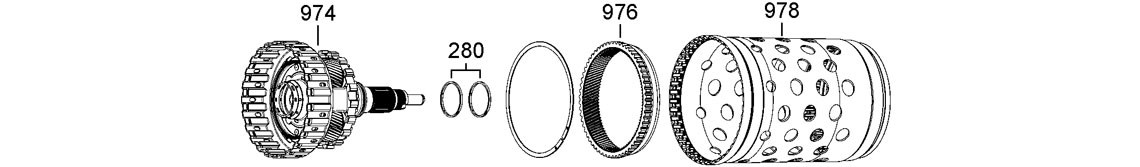

J

No 4 Planetary Gear Set

974
280
976
978

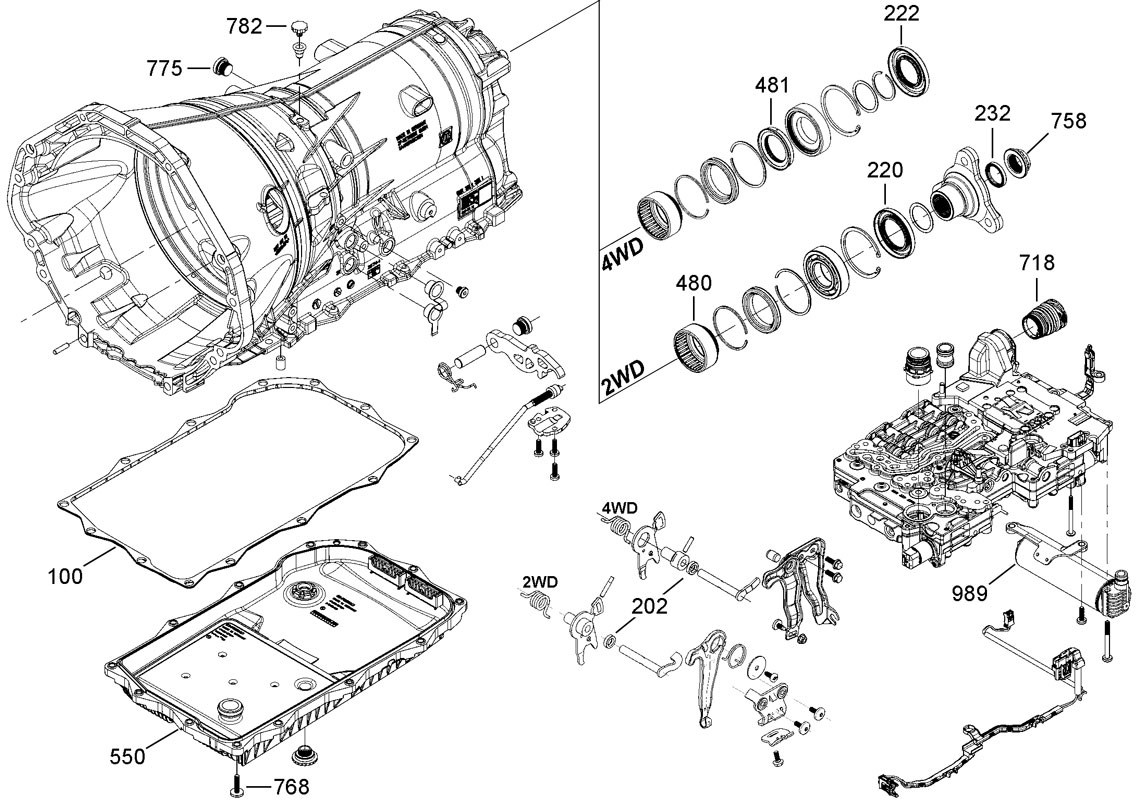

K

768
550
100
775
782
202
989
718
480
220
232
758
481
222

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123000K Overhaul Kit, ZF 09-ON 1
Kit 123002K Overhaul Kit, Transtec Transtec 09-ON 1
Kit 123002KA Overhaul Kit Precision 09-ON Alt
Kit 123004K Overhaul Kit, ZF (8HP75) 09-ON 1
Kit 123005K Overhaul Kit with Pistons, Transtec (8HP75) Transtec 09-ON 1
Kit 123006K Overhaul Kit without Pistons, Transtec (8HP75) Transtec 09-ON 1
Kit 123010K Overhaul Kit, Hybrid 09-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
100K 121100 Pan Gasket 09-ON 1
NI 121135 Pump Bolt Washer 09-ON AR

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 121150K Pump Leak Kit 08-ON 1
160A 121160 Front Cover to Case O Ring 09-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 121200 Converter Seal 53 ID x 71 OD x 7.00mm 09-ON 1
202K 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 09-ON 1
220K 99220 Extension Housing Seal 44 ID x 72 OD x 8.00mm 09-ON 1
222K 121222 Output Shaft Seal 42.5 ID x 75 OD x 7.00mm 09-ON 1
222K 99222 Output Shaft Seal 39 ID x 72 OD x 8.00mm 09-ON 1
232K 121232 Output Flange to Nut Seal 26.2 ID x 36.5 OD x 4.80mm 09-ON 1
NI 123222 Righthand Front Diff Seal 45 ID x 65 OD x 9/13mm 09-ON 1
NI 123224 Lefthand Front Diff Seal 45 ID x 75 OD x 9/13mm 09-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
270D 121270 Input Shaft Sealing Ring 09-ON 7
280J 121280 Output Shaft to D Clutch Sealing Rings 09-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123300K Friction Kit ORANGE DOT 09-ON 1
Kit 123300KGPZ Friction Kit (GPZ) 09-ON 1
Kit 123302K Friction Kit PURPLE DOT 09-ON 1
310B 123310 A Clutch Friction Plate 145.8 OD x 1.60mm x 32T 09-ON 5
314C 123314 B Clutch Friction Plate 198.45 OD x 2.10mm x 38T 09-ON 5
318F 123318 E Clutch Friction Plate 135.5 ID x 2.10mm x 32 Ext.T 09-ON 6
318G 123318 C Clutch Friction Plate 135.5 ID x 2.10mm x 32 Ext.T 09-ON 6
322H 123322 D Clutch Friction Plate 172 OD x 2.10mm x 63T 09-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123350K Steel Kit 09-ON 1
360B 123360 A Clutch Steel Plate 122.85 ID x 1.80mm x 27T 09-ON 5
364C 123364 B Clutch Steel Plate 172.8 ID x 1.80mm x 36T 09-ON 5
368F 123368 E Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 09-ON 6
368G 123368 C Clutch Steel Plate 163.3 ODx 2.05mm x 24 Int.T 09-ON 6
372H 123372 D Clutch Steel Plate 145.25 ID x 2.00mm x 30T 09-ON 4
390B 121392 A Clutch Pressure Plate (Sonnax) Heavy Duty 09-ON 1
390B 123390 A Clutch Pressure Plate 122.85 ID x 3.00mm x 30T 09-ON 1
390B 123392 A Clutch Pressure Plate, Sonnax Heavy Duty 122.85 ID x 3.00mm x 30T 09-ON 1
394C 123394B B Clutch Pressure Plate 172.8 ID x 4.80mm x 36T 09-ON AR
394C 123394C B Clutch Pressure Plate 172.8 ID x 5.00mm x 36T 09-ON AR
394C 123394D B Clutch Pressure Plate 172.8 ID x 5.20mm x 36T 09-ON AR
394C 123394E B Clutch Pressure Plate 172.8 ID x 5.35mm x 36T 09-ON AR
394C 123394F B Clutch Pressure Plate 172.8 ID x 5.50mm x 36T 09-ON AR
394C 123394G B Clutch Pressure Plate 172.8 ID x 5.75mm x 36T 09-ON AR
398F 123398A E Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 09-ON AR
398F 123398B E Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 09-ON AR
398F 123398C E Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 09-ON AR
398F 123398D E Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 09-ON AR
398F 123398E E Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 09-ON AR
398F 123398F E Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 09-ON AR
398G 123398A C Clutch Pressure Plate 163.3 OD x 3.00mm x 24 Int.T 09-ON AR
398G 123398B C Clutch Pressure Plate 163.3 OD x 3.30mm x 24 Int.T 09-ON AR
398G 123398C C Clutch Pressure Plate 163.3 OD x 3.60mm x 24 Int.T 09-ON AR
398G 123398D C Clutch Pressure Plate 163.3 OD x 3.90mm x 24 Int.T 09-ON AR
398G 123398E C Clutch Pressure Plate 163.3 OD x 4.20mm x 24 Int.T 09-ON AR
398G 123398F C Clutch Pressure Plate 163.3 OD x 4.50mm x 24 Int.T 09-ON AR
399H 123399 D Clutch Pressure Plate 145.25 ID x 3.00mm x 30T 09-ON AR
399H 123399S D Clutch Pressure Plate, Sonnax Heavy Duty 145.25 ID x 30T 09-ON 1
670B 123670 A Clutch Wave Plate 125 ID x 0.80mm x 27T 09-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 121401K Bush Kit, Sonnax 09-ON 1
Kit 123400K Bush Kit with 7 Bushes 09-ON 1
410B 121410-5 A Hub Front Bush 09-ON 1
NI 121414 Front Stator Bush 27.6 ID x 30.6 OD x 15.00mm 09-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
460A 123460 Stator Bearing 09-ON 1
460E 122460 Planetary 3 Needle Bearing 57 ID x 72.7 OD x 4mm 09-ON 1
462B 121462 A Clutch Needle Bearing 50.8 ID x 67.5 OD x 4.00mm 09-ON 1
462E 121462 Needle Bearing 50.8 ID x 67.5 OD x 4.00mm 09-ON 1
464E 122464 Planetary 3 Needle Bearing 57.6 ID x 89.1 OD x 3.8MM 09-ON 1
466G 121466 C Clutch Hub Needle Bearing 31.5 ID x 48.4 OD x 5.00mm 09-ON 1
480K 121480 Output Shaft Needle Bearing 2WD 09-ON 1
481K 121481 Output Shaft Needle Bearing 4WD 09-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123562 Filter (8HP75, 8HP76) 09-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
550K 121550K Filter Kit including Pan (8HP70) Aftermarket 09-ON 1
550K 121551K Filter Kit including Pan (8HP70) OEM 09-ON 1
550K 123551K Filter Kit Including Deep Pan (8HP70X) OEM 09-ON 1
550K 123552K Filter Kit Including Deep Pan (8HP70X) Aftermarket 09-ON 1
550K 123557K Filter Kit including Pan (8HP70L) 09-ON 1
550K 123559K Filter Kit Including Pan (8HP75PH, 8HP75XPH) 09-ON 1

121550K is used in

•  HP70 Codes 1087 010, 016, 024, 034-037, 047 & 050

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123570K Piston Kit 09-ON 1
Kit 99590K Accumulator Piston Kit, Sonnax 09-ON 1
572B 122573 A Clutch Piston 09-ON 1
574C 123574 B Clutch Piston 09-ON 1
576C 123576 B Clutch Balance Piston 09-ON 1
576F 122576 E Clutch Moulded Piston 09-ON 1
577G 122577 C Clutch Moulded Piston 09-ON 1
578H 122578 D Clutch Balance Piston 09-ON 1
579H 122579 D Clutch Piston 09-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
656B 123656 A Clutch Diaphragm Spring 09-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 123720K Solenoid Set 09-ON 1
718K 121718 Case Connector 09-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 121760K Pump Cover Bolt Kit 09-ON 1
Kit 121775K Thermal Bypass Eliminator Kit 09-ON 1
Kit 121784K Oversize Pressure Reg Valve Kit, 8HP70 09-ON 1
Kit 121785K Oversized Pressure Regulator Valve Kit 8HP75 09-ON 1
Kit 121786K Priming Valve & Seal Kit 09-ON 1
Kit 121788K Oversized TCC Valve Kit 09-ON 1
Kit 121790K Oversized TC Pressure Valve Kit 09-ON 1
758K 99758 Output Shaft Nut 09-ON 1
760D 122760 Planetary 2 Oil Tray 09-ON 1-2
760D 122762 Planetary 2 Oil Tray 09-ON 1-2
765A 121765K Pump Cover Screw Kit M8 x 74mm 09-ON 1
767A 121767K Pump Torx Screw Kit M6 x 24mm 09-ON 1
768K 99768 Plastic Pan Torx Screw M6 x 28.5mm 09-ON 21
775K 95775 Filler Bung 09-ON 1
782K 96782 Breather Cap 09-ON 1
788B 123788 A Clutch Retainer (Pack of 2) 09-ON 1
NI 121792K Oversized TC Switch Valve 09-ON 1
NI 123797 Thermal Control Bypass 14-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 121810K Zip Kit (8HP70) Sonnax 09-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
900A 121900 Oil Pump 09-ON 1
904A 122904 Drive Chain for Oil Pump 09-ON 1
915B 122915 A Clutch Hub & Sungear 09-ON 1
918C 121918 Planetary 1 Annulus 09-ON 1
920D 122920 Planetary 1 Carrier 09-ON 1
925A 123925 Stator - VIN Required 09-ON 1
928D 122928 Planetary 1 to 2 Sungear 09-ON 1
930D 122930 Input Shaft 09-ON 1
934D 122934 Planetary 2 Carrier 09-ON 1
936E 122936 Planetary 2 Annulus 09-ON 1
938E 122938 Planetary 3 Sungear 09-ON 1
942E 122942 Planetary 3 Carrier 09-ON 1
948E 122948 Planetary 3 Annulus 09-ON 1
949F 123948 E Clutch Hub, 48 Spline 09-ON 1
949F 123948HD E Clutch Hub, 48 Spline, Heavy Duty 09-ON 1
949F 123949HD E Clutch Hub, 38 Spline, Heavy Duty 09-ON 1
950G 123950 C Clutch Inner Hub 09-ON 1
951G 122951 C Clutch Hub 09-ON 1
951G 123951 C Clutch Hub, 8HP75 09-ON 1
954G 122954 Planetary 4 Sungear 09-ON 1
970H 123972 D Clutch Cylinder 09-ON 1
974J 122974 Planetary 4 Carrier 09-ON 1
976J 122976 Planetary 4 Annulus 09-ON 1
978J 122978 Planetary 4 Drum 09-ON 1
989K 121989 Accumulator - Used in HIS Versions Only 09-ON 1
NI 121990 Separator Plate 048 Code 08-ON 1
NI 121991 Separator Plate Code 049 08 ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49469K Cooler Kit, VW Amarok, Coolmaster 12-22 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 121999-01 ZF Lifeguard 8, 1 Litre Pack 09-ON AR
NI 121999-05 ZF Lifeguard 8, 5 Litre Pack 09-ON AR
NI 121999-20 ZF Lifeguard 8, 20 Litre Pack 09-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit TF-35740-TL Tool Kit for 121792K 09-ON 1
NI T-0140 Glycol Test Kit 09-ON 1
NI T-121760 Spring Tension Gauge 09-ON 1
NI T-121950K Drum Repair Tool 09-ON 1
NI T-121960 C Clutch Spring Compressor 09-ON 1
NI T-123970 D Clutch Bonded Lip Seal Tool 09-ON 1
