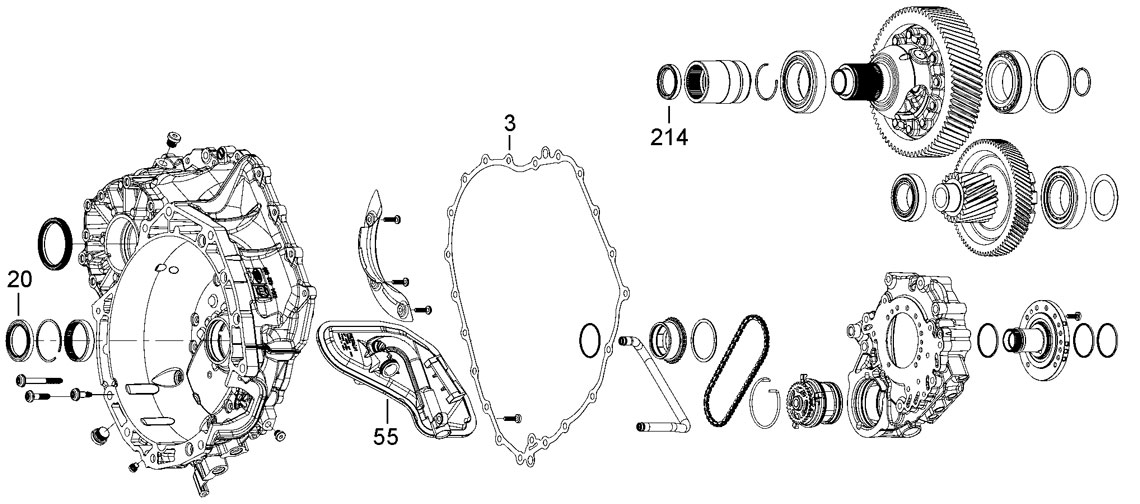

A
Converter Housing, Filter, Pump & Differential
20
55
3
214

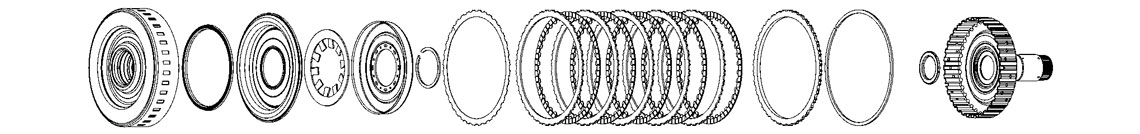

B
E Clutch

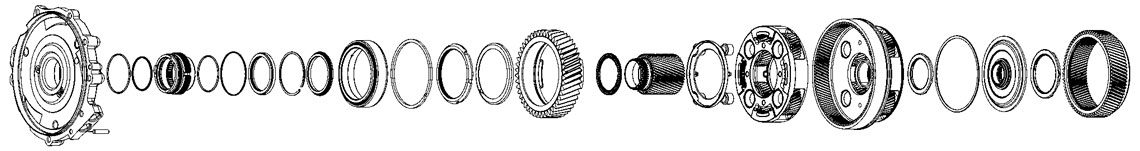

C
Dog Clutch F With Part Of Input & Planetary

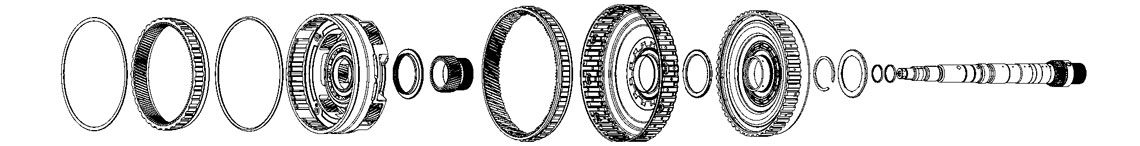

D
Remaining Input & Planetary With Dog Clutch A

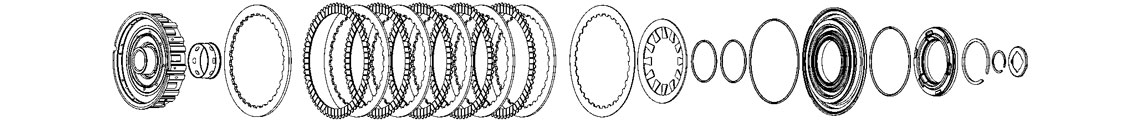

E
B Clutch

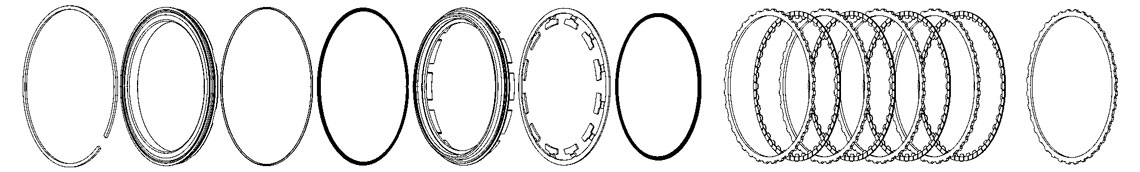

F
D Brake

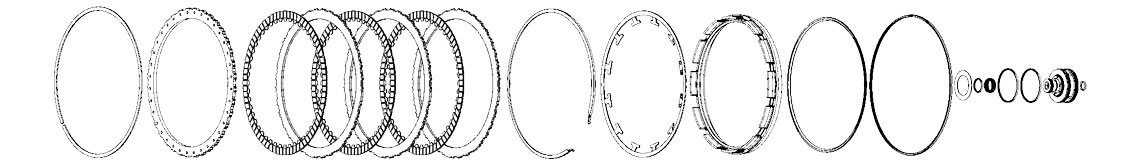

G
C Brake

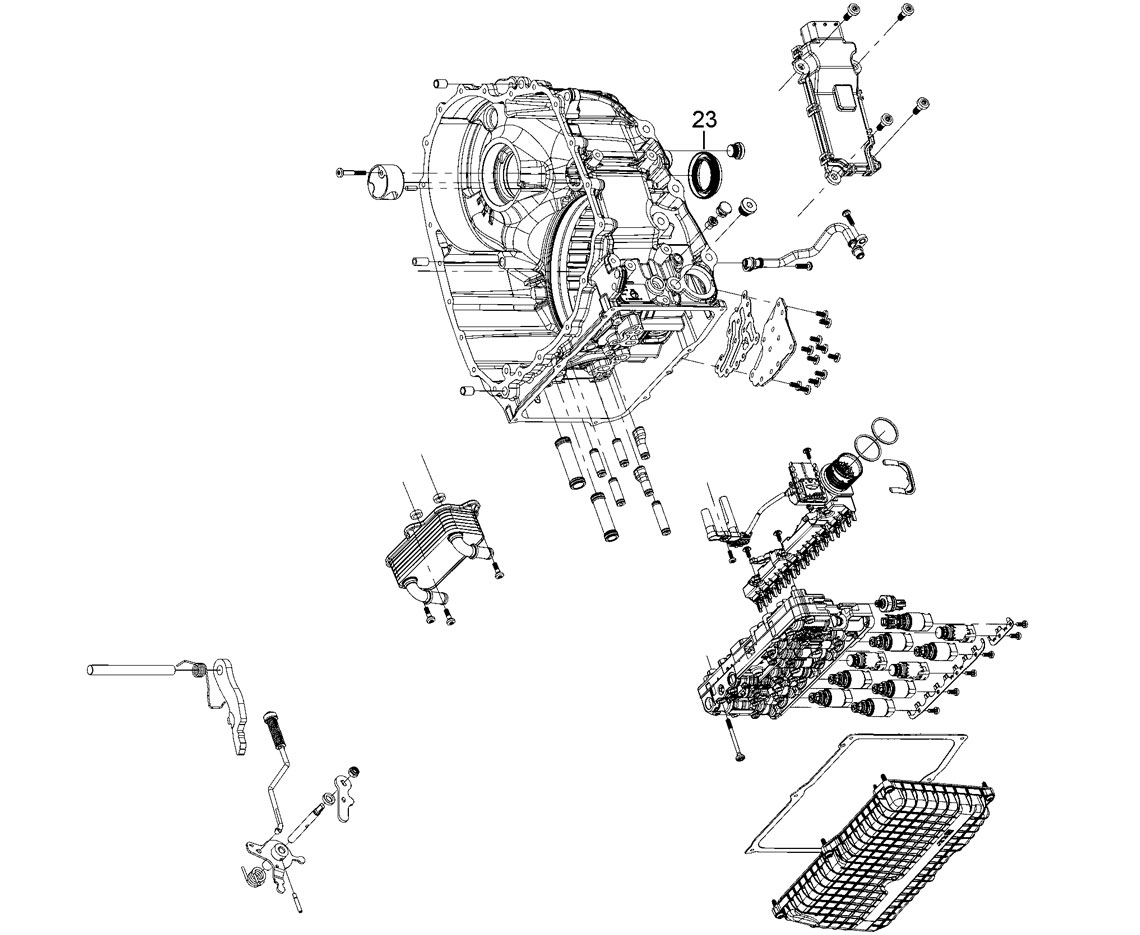

H
Main Case, Cooler, Valve Body & Control Unit
23
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | 126200 | Converter Seal | 44 ID x 60.3 OD x 7.00mm | 20-ON | 1 |
| 23H | 126210 | Lefthand Axle Seal | 42 ID x 67 OD x 9.00/15.00mm | 20-ON | 1 |
| 25A | 126216 | Righthand Axle Seal | 61 ID x 75 OD x 8.00mm | 20-ON | 1 |
| 214A | 126214 | Righthand Inner Axle Seal | 20-ON | 1 |
