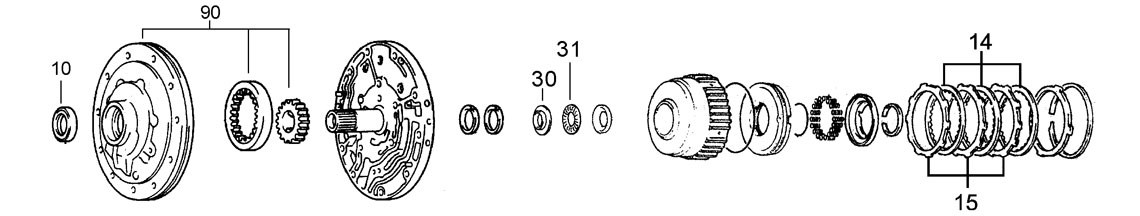

A

Pump & Overdrive Clutch

30
31
10
90
14
15

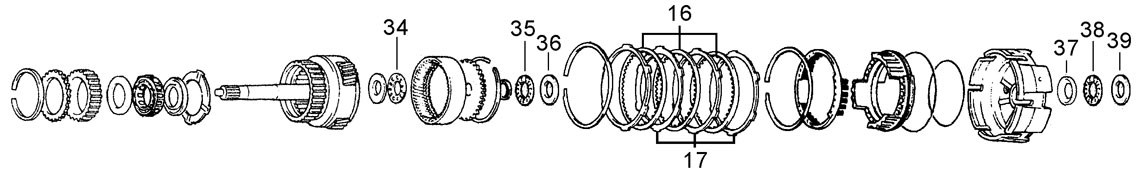

B

Overdrive Planet & Overdrive Brake

38
39
34
36
37
16
17
35

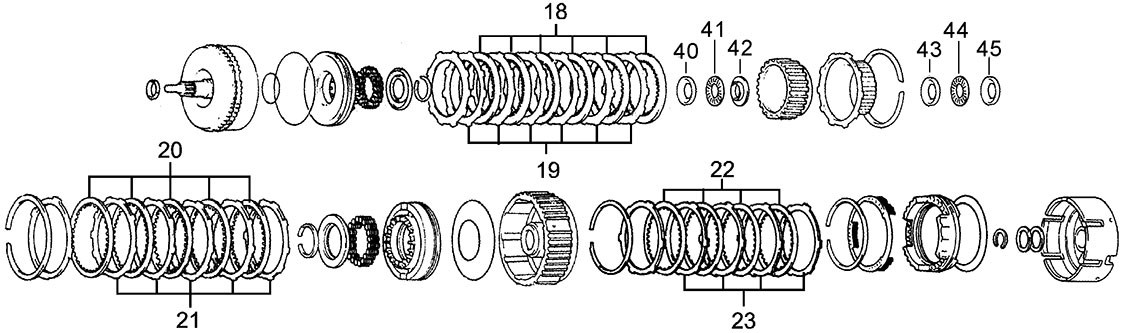

C

Forward, Direct & Intermediate Clutches

20
44
21
40
42
45
23
41
22
43
19
18

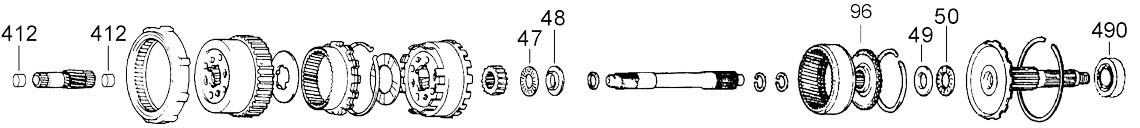

D

Planet Sets

49
47
50
96
48
490
412
412

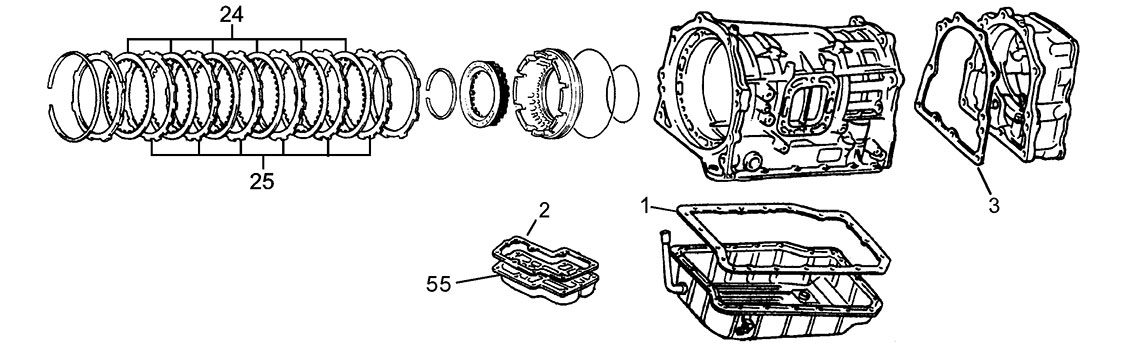

E

Low & Reverse Brake, Case, Pan & Filter

24
2
3
1
25
55

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77000K Overhaul Kit A440F. A442F Transmission * Transtec 86-ON 1
Kit 77000KA Overhaul Kit A440F. A442F Transmission * 86-95 Alt
Kit 77000KP Overhaul Kit A440F Only Precision 86-95 Alt
Kit 77002K Overhaul Kit Transfer Case Transtec 86-1/90 1
NI 77006K OVERHAUL KIT (A440F) 85-92 INCL TC SEALS 85-92 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77000KM Master Kit, 4WD 86-92 1
Kit 77002KM Master Kit 93-95 1
Kit 77004KM Master Kit 95-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77120K Valve Body Gasket Kit A440F 86-97 1
Kit 77122K Valve Body Gasket Kit A442F 98-ON 1
Kit 77150K Pump Leak Kit 86-ON 1
1E 77100 Pan Gasket Cork 86-ON 1
1E 77101 Pan Gasket Duraprene 86-ON Alt
1E 77101F Pan Gasket Farpark 86-ON Alt
2E 77130 Filter Gasket 10 Holes 86-ON 1
3E 77140 Extension Housing Gasket 86-ON 1
NI 77110 Pump Gasket 86-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77170K Overdrive Clutch Seal Kit 86-ON 1
Kit 77175K Forward/Direct Clutch Seal Kit 86-ON 1
Kit 77176K Intermediate & Low & Reverse Seal Kit 86-ON 1
Kit 77190K Solenoid & Valve Body O Ring Kit 86-ON 1
NI 77160 Pump O Ring 86-ON 1
NI 77162 Case to Converter Housing 86-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 77200 Pump Seal 42 ID x 60 OD x 8.50mm 86-ON 1
NI 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 86-ON 2
NI 77210 Case to Valve Body Seal 86-ON 1
NI 77224 Extension Housing Seal 2WD 45 ID x 62 OD x 8.00mm 86-ON 1
NI 77226 Output Shaft Seal 47 ID x 74 OD x 9.85mm 86-ON 1
NI 77230 Adaptor Housing Seal 48 ID x 62 OD x 8.00mm 90-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77250K Sealing Ring Kit 86-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77300K Friction Module 86-92 1
Kit 77300KA Friction Module Toyota A442F Allomatic 92-ON 1
Kit 77302K Friction Module 93-95 1
Kit 77305K Friction Module 95-ON 1
14A 77310 Overdrive Clutch 127 OD x 2.10mm x 46T 86-95 3
14A 77311 Overdrive Clutch 127 OD x 2.10mm x 47T 95-ON 3
16B 77312 Overdrive Brake 175 OD x 2.10mm x 70T 86-92 3
16B 77313 Overdrive Brake A442F 184 OD x 2.10mm x 75T 93-95 3
16B 77314 Overdrive Brake Selective 184 OD x 1.60mm x 20T 95-ON AR
16B 77314A Overdrive Brake 184 OD x 2.10mm x 20T 95-ON 3
18C 77310 Forward 127 OD x 2.10mm x 46T 86-ON 6
18C 77310A Forward 127 OD x 1.70mm x 46T 95-ON 7
20C 77310 Direct 127 OD x 2.10mm x 46T 86-ON 5
22C 77312 Intermediate 175 OD x 2.10mm x 70T 86-ON 4-5
24E 77316 Low & Reverse 175 OD x 1.80mm x 70T 86-ON 7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
15A 77360 Overdrive Clutch 101 ID x 1.80mm x 10T 86-ON 3
15A 77360A Overdrive Clutch Selective 101 ID x 2.00mm x 10T 86-ON AR
15A 77360B Overdrive Clutch Selective 101 ID x 2.20mm x 10T 86-ON AR
15A 77360C Overdrive Clutch Selective 101 ID x 2.40mm x 10T 86-ON AR
15A 77361 Overdrive Clutch 101 ID x 2.00mm x 20T 95-ON 3
17B 77363 Overdrive Brake A442F 162 ID x 185 ODx 2.40mm x 6T 95-ON 1
17B 77364 Overdrive Brake 152mm ID 152 ID x 175 OD x 2.00mm x 6T 93-95 3
17B 77364A Overdrive Brake 152mm ID 152 ID x 175 OD x 2.40mm x 6T 86-92 3
17B 77364B Overdrive Brake 152mm ID 152 ID x 175 OD x 2.80mm x 6T 86.95 AR
17B 77365 Overdrive Brake 152mm ID 152 ID x 185 OD x 4.00mm x 6T 93-95 1
19C 77360 Forward Clutch 101 ID x 1.80mm x 10T 86-ON 3
19C 77360A Forward Clutch Selective 101 ID x 2.00mm x 10T 86-ON AR
19C 77360B Forward Clutch Selective 101 ID x 2.20mm x 10T 86-ON AR
19C 77360C Forward Clutch Selective 101 ID x 2.40mm x 10T 86-ON AR
21C 77360 Direct Clutch 101 ID x 1.80mm x 10T 86-ON 3
21C 77360A Direct Clutch Selective 101 ID x 2.00mm x 10T 86-ON AR
21C 77360B Direct Clutch Selective 101 ID x 2.20mm x 10T 86-ON AR
21C 77360C Direct Clutch Selective 101 ID x 2.40mm x 10T 86-ON AR
23C 77364 Intermediate 152 ID x 175 OD x 2.00mm x 6T 91-95 4
23C 77364A Intermediate 152 ID x 175 OD x 2.40mm x 6T 86-90 4
23C 77364B Intermediate Selective 152 ID x 175 OD x 2.80mm x 6T 86-ON 5
25E 77366 Low & Reverse A440F 152 ID x 1.80mm x 16T 86-92 6
25E 77367 Low & Reverse A442F 152 ID x 2.40mm x 16T 93-ON 6

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
412D 77412 Sungear Bush 93-95 1
412D 77414 Sungear Bush 86-92 1
NI 77410 Pump Bush* 86-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
30A 77460 Stator to Overdrive Drum Bearing Race 28 ID x 42 OD x 4.00mm 86-ON 1
31A 77462 Stator to Overdrive Drum Bearing 28.5 ID x 45.8 OD x 2.00mm 86-ON 1
34B 77462 Overdrive Planet to Hub Bearing 28.5 ID x 45.8 OD x 2.00mm 86-ON 1
35B 77482 Overdrive Annulus to Overdrive Drum Bearing 34.5 ID x 51.5 OD x 2.00mm 86-ON 1
36B 77486 Bearing to Overdrive Drum Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
37B 77486 Centre Support to Bearing Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
38B 77480 Centre Support to Forward Drum Bearing 32 ID x 52 OD x 2.85mm 86-ON Alt
38B 77482 Centre Support to Forward Drum Bearing 34.5 ID x 51.5 OD x 2.00mm 86-ON 1
39B 77484 Bearing to Forward Drum Race Internal Lip 32 ID x 50 OD x 3.8 Inside lip 86-ON 1
40C 77486 Forward Drum to Bearing Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
41C 77480 Forward Drum to Forward Hub Bearing 32 ID x 52 OD x 2.85mm 86-ON 1
41C 77482 Forward Drum to Forward Hub Bearing 34.5 ID x 51.5 OD x 2.00mm 86-ON Alt
42C 77484 Bearing to Forward Hub Race Internal Lip 32 ID x 50 OD x 3.8 Inside lip 86-ON 1
43C 77484 Forward Hub to Bearing Race Internal Lip 32 ID x 50 OD x 3.8 Inside lip 86-ON Alt
43C 77486 Forward Hub to Bearing Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
44C 77480 Forward Hub to Direct Drum Bearing 32 ID x 52 OD x 2.85mm 86-ON 1
44C 77482 Forward Hub to Direct Drum Bearing 34.5 ID x 51.5 OD x 2.00mm 86-ON Alt
45C 77486 Bearing to Direct Hub Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
47D 77480 Rear Planet to Rear Hub Bearing 32 ID x 52 OD x 2.85mm 86-ON 1
48D 77486 Bearing to Rear Hub Race External Lip 37 ID x 52OD x 3.3 Outside lip 86-ON 1
49D 77484 Rear Hub to Bearing Race Internal Lip 32 ID x 50 OD x 3.8 Inside lip 86-ON 1
50D 77480 Rear Hub to Output Shaft Bearing 32 ID x 52 OD x 2.85mm 86-ON 1
490D 77490 Output Shaft Front Bearing 88-96 1
NI 77494 Output Shaft Rear Bearing 40 ID x 72 OD x 17mm 88-96 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 77550 Filter 10 Bolt 4WD (50mm Thick) 86-ON 1
55E 77552 Filter 10 Bolt 2WD (29mm Thick) 86-ON 1
55E 77554 Filter A442F 4 Bolt Single Valve Body Feed Hole 93-ON 1
55E 77556 Filter A442F 4 Bolt Two Valve Body Feed Holes 24mm pick up opening 98-ON 1
55E 77558 Filter A442 2WD 4 Bolt 9mm Pick Up 95-ON 1
55E 77570 Filter A442F 4 Bolt Two Valve Body Feed Holes 38.5mm pick up opening 98-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77550K Filter Kit 10 Bolt 4WD (50mm Thick) 86-ON 1
Kit 77552K Filter Kit 10 Bolt 2WD (29mm Thick) 86-ON 1
Kit 77554K Filter Kit A442F 4 Bolt Single Valve Body Feed Hole 93-ON 1
Kit 77556K Filter Kit A442F 4 Bolt Two Valve Body Feed Holes 24mm pick up opening 98-ON 1
Kit 77558K Filter Kit A442 2WD 4 Bolt 9mm Pick Up 95-ON 1
Kit 77570K Filter Kit A442F 4 Bolt Two Valve Body Feed Holes 38.5mm pick up opening 98-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 77720K Solenoid Kit 12 Volt Does not Contain Pressure Control Solenoid 98-ON 1
Kit 77720KOE Solenoid Set 92-ON 1
NI 77700 Pressure Control Solenoid 12/24 Volt 98-ON 1
NI 77704 Lock Up Solenoid 12 Volt 86-ON 1
NI 77705 Lock Up Solenoid 24 Volt 86-ON 1
NI 77706 Timing Solenoid 12 Volt 92-ON 1
NI 77708 Timing Solenoid 24 Volt 92-ON 1
NI 77710 Shift Solenoid 12 Volt 92-ON 1-2
NI 77712 Shift Solenoid 24 Volt 92-ON 1-2
NI 77734 Input Speed Sensor 92-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49207K KICKDOWN CABLE A440 FZJ80R PETROL P.I. Inr -127mm Otr - 107.5mm 86-ON 1
NI 49208K KICKDOWN CABLE A440 FJ80 90-92 Inr -143mm Otr - 123mm 90-92 Alt
NI 49209K Kickdown Cable, HJ61/60 Turbo Diesel Inr -135mm Otr - 114.5mm 86-ON Alt
NI 49210K KICKDOWN CABLE A440 FJ62/70/73 PETROL Inr -149mm Otr - 127mm 86-ON Alt
NI 77785 Breather 86-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 77902 Front Pump Body & Gears 12mm Wide Gears 95-98 1
90A 77904 Front Pump Body & Gears 14mm Wide Gears 13.993-14.007 99-ON 1
96D 77982 Rear Planet Ring Gear Hub 21 Internal Splines 83 External Teeth 90-ON 1
96D 77986 Rear Planet Ring Gear Hub 21 Internal Splines 82 External Teeth 93-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
