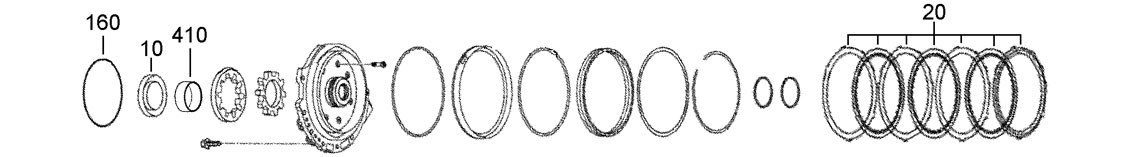

A

Pump & 2-6 Brake

20
10
160
410

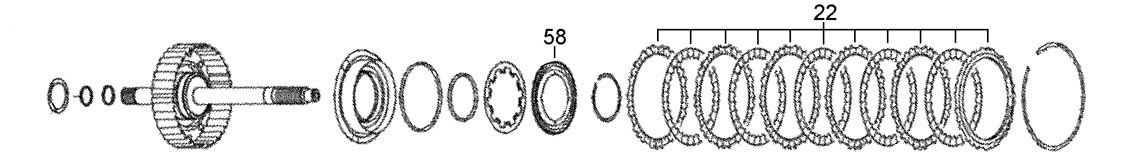

B

3-5-Reverse Clutch

58
22

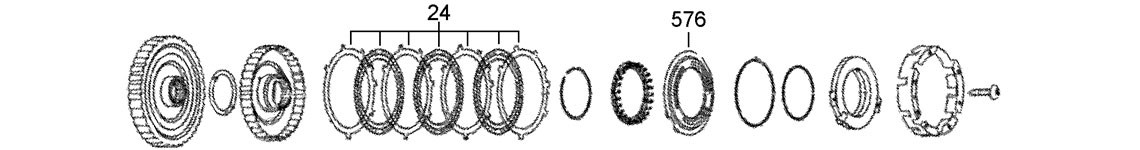

C

Underdrive Brake

24
576

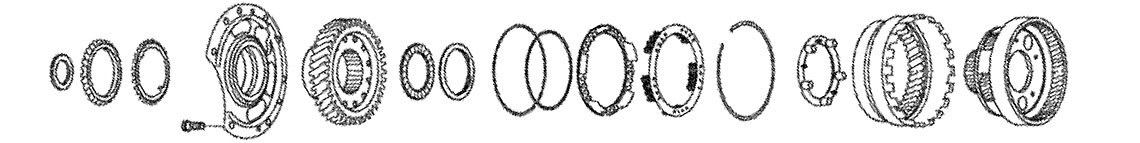

D

Reverse Piston & Front Planet

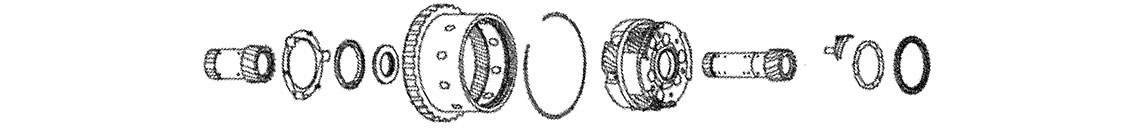

E

Front Sungear, Centre & Rear Planets

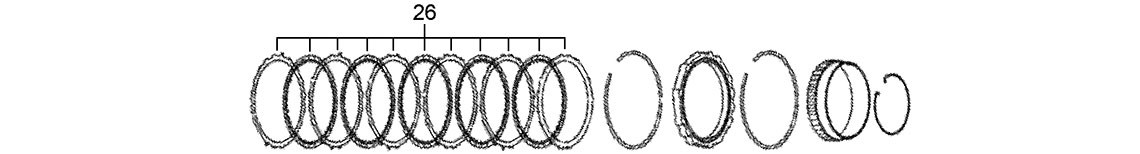

F

Low & Reverse Brake

26

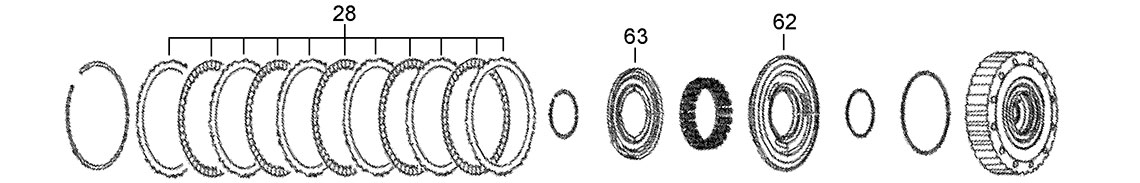

G

Overdrive Clutch

28
63
62

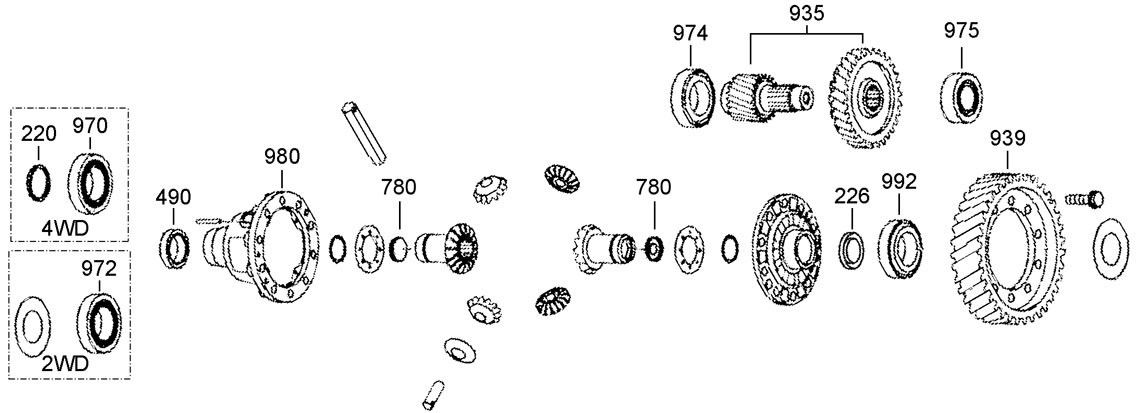

H

Transfer Gear & Diff Assembly - VIN Required

992
980
780
780
220
970
972
490
226
974
935
975
939

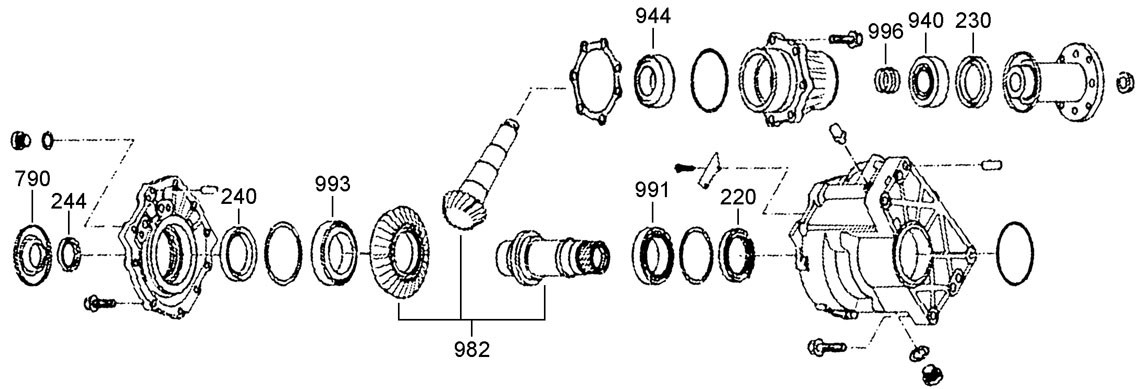

J

Transfer Assembly - VIN Required

790
244
240
993
982
991
220
944
996
940
230

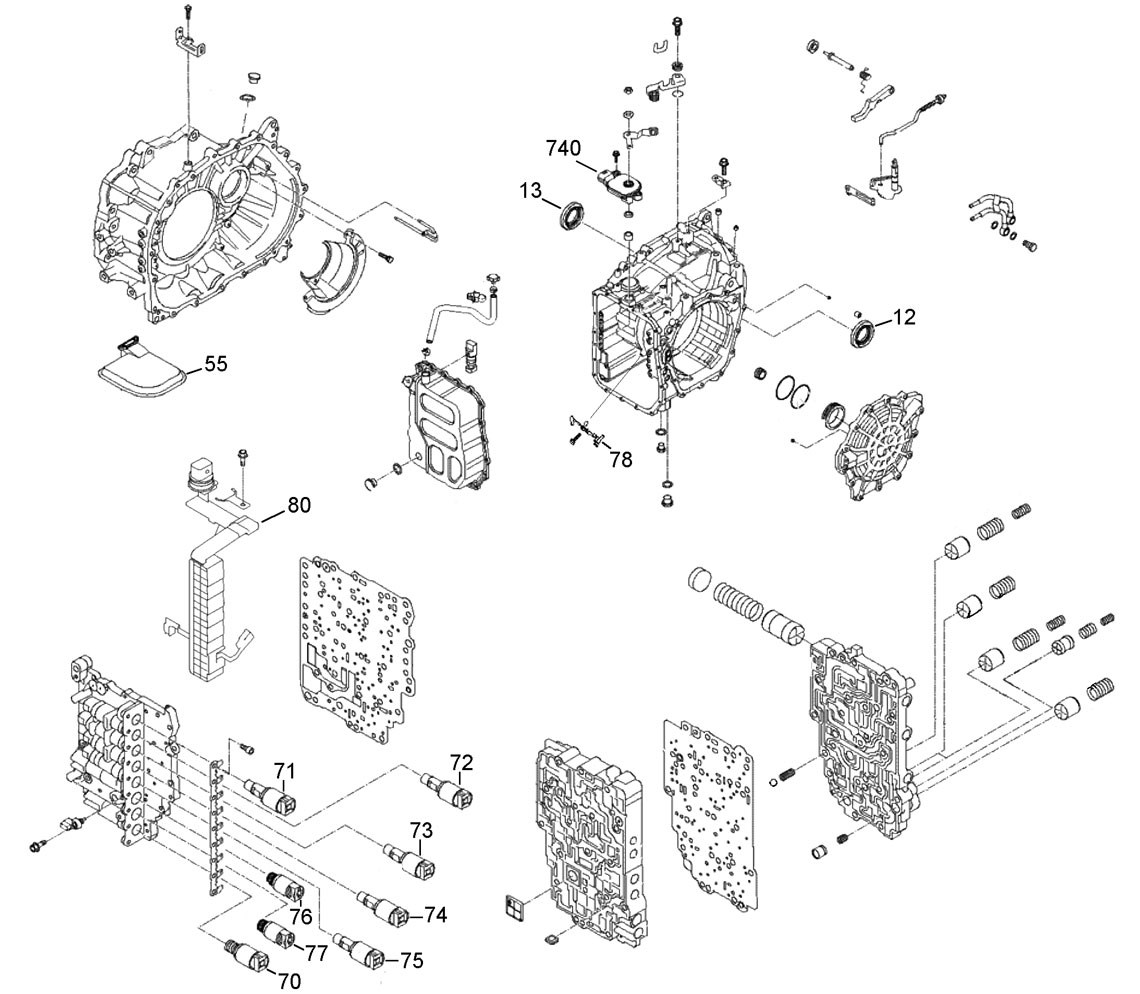

K

Case, Filter & Valve Body

70
77
76
75
74
73
71
72
80
55
78
12
13
740
992
991

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113000K Overhaul Kit With Bonded Pistons Transtec 09-ON 1
Kit 113001K Overhaul Kit Without Bonded Pistons Transtec 09-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113000KMP Master Kit, A6GF1 Precision 09-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
NI 113100 Valve Body Cover Gasket 09-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113170K O Ring Kit 09-ON 1
160A 113160 Oil Pump O-Ring, Fits A6GF1 only 09-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 114200 Front Pump Seal 43 ID x 60 OD x 6.00mm 09-ON 1
12K 113210 Axle Seal Lefthand, 2WD 37 ID x 62 OD x 10.00mm 09-ON 1
12K 115210 Axle Seal Lefthand, 4WD 40 ID x 70 OD x 10.00mm 09-ON 1
13K 113216 Axle Seal Righthand, 2WD 37 ID x 65 OD x 10.00mm 09-ON 1
13K 115220 Axle Seal Righthand, 4WD 63 ID x 82 OD x 10.00mm 09-ON 1
220H 114220 Transfer Shaft Seal 34 ID x 44 OD x 7.00mm 09-ON 1
220J 20220 Seat Axle Righthand 54 ID x 73 OD x 8.00mm 09-ON 1
220J B115233 Seat Axle Righthand 54 ID x 73 OD x 8.00mm 09-ON 1
220J B115234 Seat Axle Righthand 54 ID x 73 OD x 8.00mm 09-ON 1
226H 115226 Axle Seal Righthand Inner 37 ID x 47 OD x 5.00mm 09-ON 1
230J B115230 Output Seal Righthand Drive Shaft 45 ID x 69 OD x 8.00mm 09-ON 1
230J B115232 Output Seal Righthand Drive Shaft 45 ID x 69 OD x 16.00mm 09-ON 1
240J B115240 Pinion Seal 56 ID x 76 OD x 9.00mm 09-ON 1
240J B115242 Pinion Seal 45 ID x 69 OD x 8.00mm 09-ON 1
244J B115244 Pinion Seal 34 ID x 49 OD x 7.00mm 09-ON 1
244J B115245 Pinion Seal 34 ID x 49 OD x 9.00mm 09-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113300K Friction Module Raybestos 09-ON 1
20A 113312K 2-6 Brake Clutch Kit 09-ON 1
22B 113314K 3-5-Reverse Clutch Kit 09-ON 1
22B 113315K 3-5-Reverse Clutch Kit 06-ON 1
24C 113320K Underdrive Brake Clutch Kit 09-ON 1
26F 113322K Low & Reverse Brake Clutch Kit 09-ON 1
26F 113323K Low & Reverse Brake Clutch Kit 09-ON 1
26F 113324K Low & Reverse Brake Clutch Kit 09-ON 1
28G 113326K Overdrive Clutch Kit 09-ON 1
28G 113328K Overdrive Clutch Kit 09-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113400KD Bush Kit 09-ON 1
410A 114410 Pump Bush 09-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
490H 114490 Diff Carrier Needle Bearing, 4WD 38 ID x 42 OD x 17.00mm 09-ON 1
490H 115490 Di ff Carrier Needle Bearing, 4WD 40 ID x 44.8 OD x 17.00mm 09-ON 1
490H 115974 Diff Carrier Needle Bearing, 2WD 54.5 ID x 85 OD x 22.00mm 09-ON 1
940J B115940 Transfer Case Bearing 30 ID x 68 OD x 22.00mm 09-ON 1
940J B115941 Transfer Case Bearing 30 ID x 68.2 OD x 22.80mm 09-ON 1
940J B115942 Transfer Case Bearing 09-ON 1
944J B115944 Transfer Case Bearing 39 ID x 75 OD x 27.00mm 09-ON 1
944J B115945 Transfer Case Bearing 40 ID x 75 OD x 27.20mm 09-ON 1
970H 114970 Transfer Driven Gear Bearing, 4WD 62 ID x 90 OD x 16.00mm 09-ON 1
970H 114972 Transfer Driven Gear Bearing, 4WD 50 ID x 80 OD x 20.00mm 09-ON 1
970H 115976 Transfer Driven Gear Bearing, 4WD 64 ID x 93 OD x 22.00mm 09-ON 1
972H 114972 Transfer Gear Outer Bearing, 2WD 50 ID x 80 OD x 20.00mm 09-ON 1
972H 115974 Transfer Driven Gear Bearing, 2WD 54.5 ID x 85 OD x 22.00mm 09-ON 1
972H B115990 Transfer Driven Gear Bearing, 2WD 54.5 ID x 80 OD x 17.50mm 09-ON 1
974H 113936 Transfer Gear Inner Bearing 40 ID x 71 OD x 19.00mm 09-ON 1
974H 114936 Transfer Gear Inner Bearing 32 ID x 65 OD x 22.00mm 09-ON 1
974H 114937 Transfer Gear Inner Bearing 35 ID x 65 OD x 20.00mm 09-ON 1
974H 115971 Transfer Gear Inner Bearing 48 ID x 80 OD x 20.00mm 09-ON 1
975H 113934 Transfer Gear Outer Bearing 32.5 ID x 62 OD x 20.00mm 09-ON 1
975H 114934 Transfer Gear Outer Bearing 45 ID x 75 OD x 20.00mm 09-ON 1
975H 115975 Transfer Gear Outer Bearing 59.5 ID x 90 OD x 23.50mm 09-ON 1
975H 115977 Transfer Gear Outer Bearing 35 ID x 68 OD x 22.00mm 09-ON 1
975H 115978 Transfer Gear Outer Bearing 65 ID x 93 OD x 17.5mm 09-ON 1
991J B115990 Transfer Pinion Bearing 54.5 ID x 80 OD x 17.50mm 09-ON 1
992H 114972 Transfer Gear Bearing 50 ID x 80 OD x 20.00mm 09-ON 1
992H B115992 Transfer Gear Bearing 57 ID x 87.5 OD x 20.00mm 09-ON 1
993J B115992 Transfer Pinion Bearing 57 ID x 87.5 OD x 20.00mm 09-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55K 113552 Filter 17-ON 1
55K 114550 Filter 09-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113570K Piston Kit 09-ON 1
58B 113574 3-5-Reverse Balance Piston 09-ON 1
62G 113578 Overdrive Piston (Alloy) 09-ON 1
63G 114580 Overdrive Balance Piston 09-ON 1
576C 113576 Underdrive Piston 09-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70K 115700 Pressure Control Solenoid 09-ON 1
71K 113702 TCC Solenoid 09-ON 1
71K 113704 TCC Solenoid 09-ON 1
72K 113707 3-5-Reverse Solenoid 09-ON 1
73K 113704 2-6 Brake Solenoid 09-ON 1
73K 115702 2-6 Brake Solenoid 09-ON 1
74K 113707 Underdrive Solenoid 09-ON 1
74K 113708 Underdrive Solenoid 09-ON 1
75K 113707 Overdrive Solenoid 09-ON 1
75K 113708 Overdrive Solenoid 09-ON 1
76K 115710 Shift Solenoid B (SSB) 09-ON 1
77K 115710 Shift Solenoid A (SSA) 09-ON 1
78K 113730 Speed Sensor Assembly 09-ON 1
78K 113732 Speed Sensor Assembly 09-ON 1
80K 114720 Wiring Harness 09-13 1
740K 115740 Inhibitor Switch 09-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 114772K Oversized TCC Control Valve Kit 09-ON 1
Kit 114775K Drain Bung and Washer Kit 09-ON 1
Kit 115772K Oversize 3/5/Rev & Underdrive Pressure Control Valve, Tool Required 09-ON 1
780H 115780 Blanking Cap 30 ID x 34 OD x 5.00mm 09-ON 2
790J B115790 Transfer Case Dust Cover 09-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 115802K Shift Kit, Tool Required 09-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113900 Pump Assembly 09-ON 1
935H 114935 Pinion & Transfer Gear 09-ON 1
939H 114939 Crown Wheel 09-13 1
980H 113980 Differential Carrier 09-ON 1
980H 114980 Differential Carrier 09-ON 1
980H 115980 Differential Carrier 12 Bolts 09-ON 1
980H 115981 Differential Carrier 10 Bolts 09-ON 1
982J B115982 Hypoid Gear Shaft Set 09-ON 1
982J B115984 Hypoid Gear Shaft Set 09-ON 1
982J B115985 Hypoid Gear Shaft Set 09-ON 1
991K 113991 Separator Plate 09-ON 1
992K 113992 Separator Plate 09-ON 1
996J B115996 Transfer Bearing Spacer 09-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 113942 Valve Body 09-ON 1
Kit 113944 Valve Body 09-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
NI B14999-01 Transfer Case Fluid 09-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-A4A6-RV-TK Toolkit for 115802K 09-ON 1
NI TF-102741-TL13 Tool for 115772K 09-ON 1
