A6LF1, A6LF2, A6LF3

A

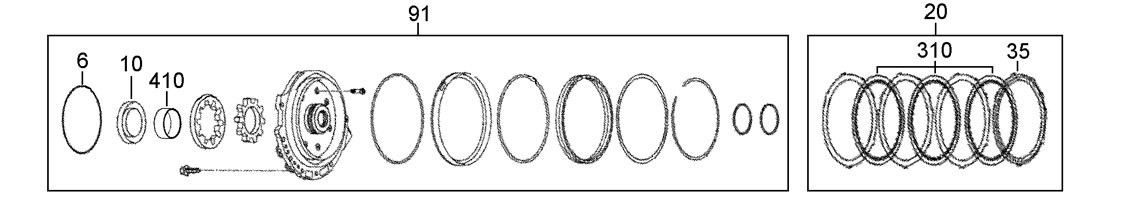

Pump & 2-6 Brake

310

410

B

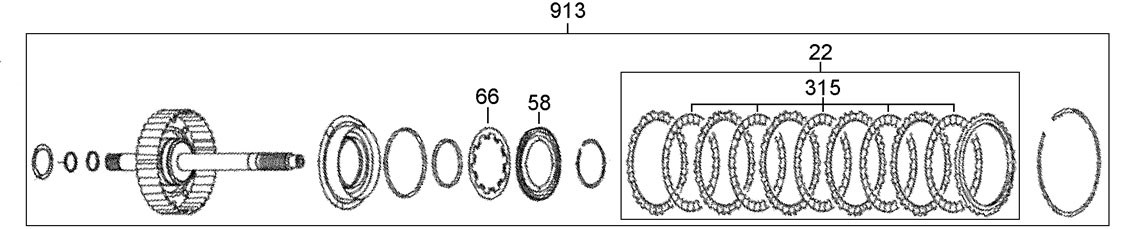

3-5-Reverse Clutch

913

315

C

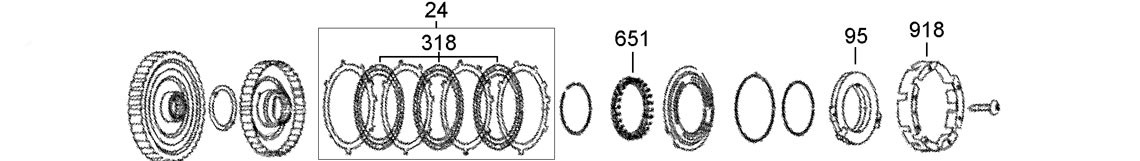

Underdrive Brake

918

651

318

D

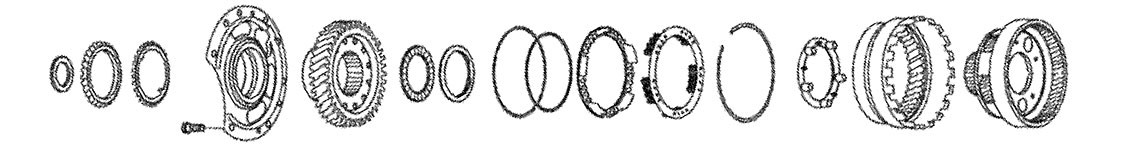

Reverse Piston & Front Planet

E

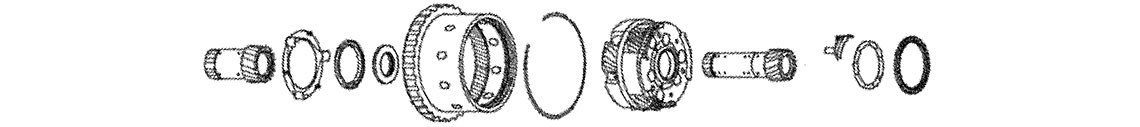

Front Sungear, Centre & Rear Planets

F

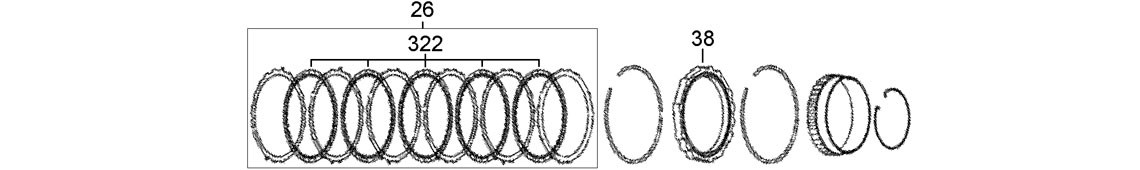

Low & Reverse Brake

322

G

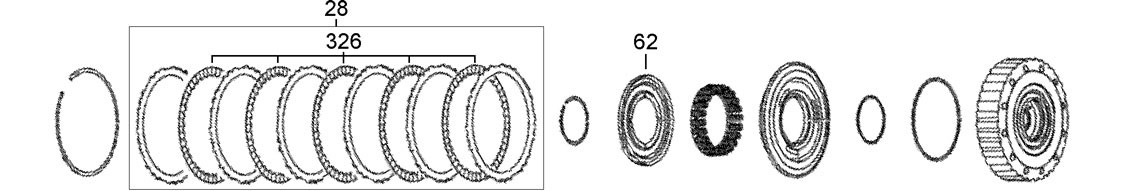

Overdrive Clutch

326

H

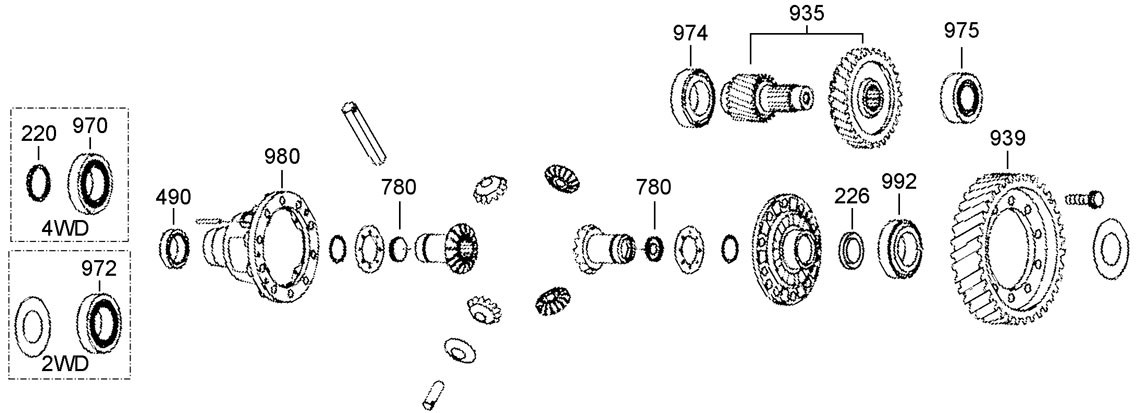

Transfer Gear & Diff Assembly - VIN Required

992

975

490

226

780

980

220

970

972

974

935

939

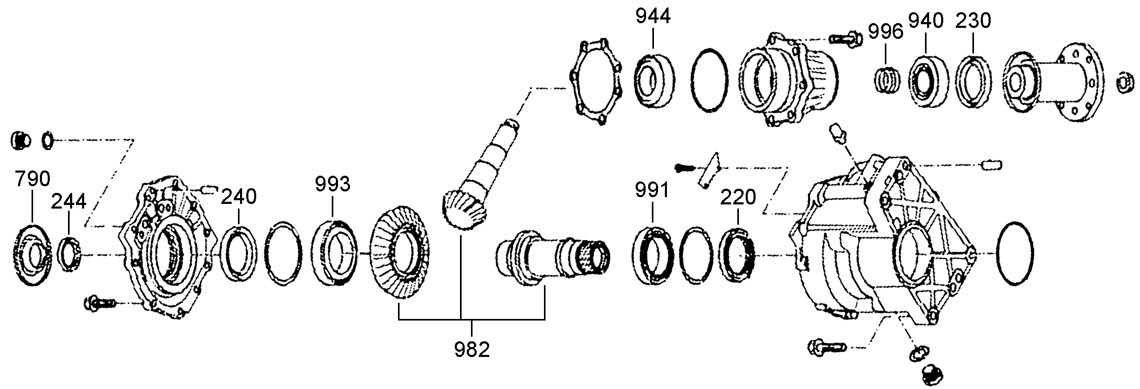

J

Transfer Assembly - VIN Required

244

240

993

982

991

220

944

940

230

790

996

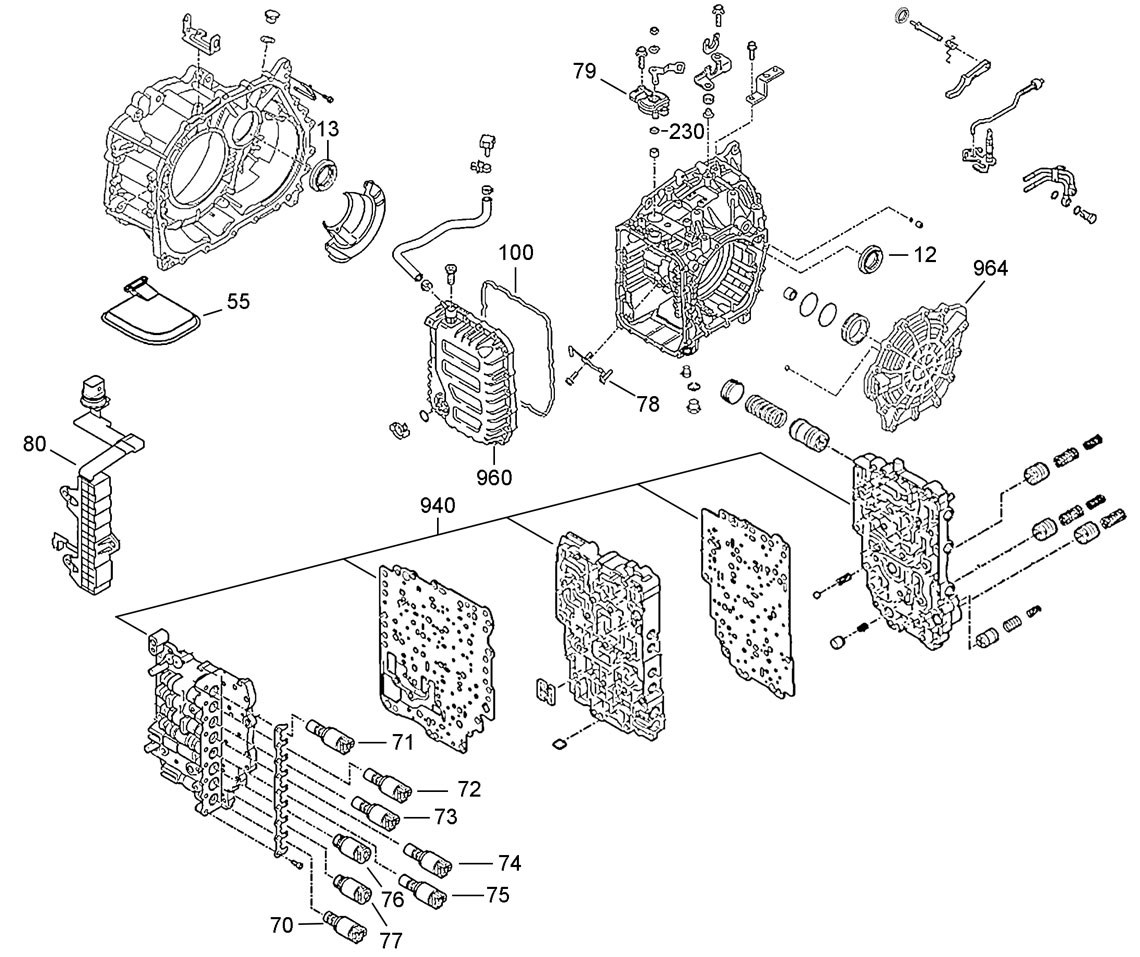

K

Case, Filter & Valve Body

964

940

960

100

230

overhaul kits

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	115000K	Overhaul Kit With Bonded Pistons	10-ON	1
Kit	115000KA	Overhaul Kit With Bonded Pistons	10-ON	Alt
Kit	115001K	Overhaul Kit Without Bonded Pistons	10-ON	1
Kit	115001KA	Overhaul Kit Without Bonded Pistons	10-ON	Alt

gaskets

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	114120K	Valve Body Gasket Kit	10-ON	1
100K	115100	Valve Body Cover Gasket Cork	10-ON	1
100K	115100F	Valve Body Cover Gasket	10-ON	Alt
100K	115100H	Valve Body Cover Gasket Duraprene	10-ON	1
NI	115102	Valve Body Cover Seal	10-ON	1

rubber components

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	115190K	Seal Kit End Cover & Case Halves		10-ON	1
6A	115160	Pump O-Ring		10-ON	1

seals

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
10A	115200	Front Pump Seal	47 ID x 64 OD x 6.00mm	10-ON	1
10A	115200A	Front Pump Seal		10-ON	Alt
12K	115210	Axle Seal Lefthand	40 ID x 70 OD x 10.00mm	10-ON	1
12K	115212	Axle Seal Lefthand	43 ID x 70 OD x 10.00mm	10-ON	1
13K	115214	Axle Seal Righthand	40 ID x 74 OD x 10.00mm	10-ON	1
13K	115216	Axle Seal Righthand	43 ID x 74 OD x 10.00mm	10-ON	1
13K	115220	Axle Seal Righthand 2.2L 4WD	63 ID x 82 OD x 10.00mm	10-ON	1
13K	115226	Axle Seal Righthand Inner	37 ID x 47 OD x 5.00mm	10-ON	1
220H	114220	Transfer Shaft Seal	34 ID x 44 OD x 7.00mm	10-ON	1
220J	20220	Seal Axle Righthand	54 ID x 73 OD x 8.00mm	10-ON	1
220J	B115233	Seal Axle Righthand	54 ID x 73 OD x 8.00mm	10-ON	1
220J	B115234	Seal Axle Righthand	54 ID x 73 OD x 8.00mm	10-ON	1
226H	115226	Axle Seal Righthand Inner	37 ID x 47 OD x 5.00mm	10-ON	1
230J	B115230	Output Seal Righthand Drive Shaft	45 ID x 69 OD x 8.00mm	10-ON	1
230J	B115232	Output Seal Righthand Drive Shaft	45 ID x 69 OD x 16.00mm	10-ON	1
230K	131230	Manual Shaft Seal	14 ID x 20 OD x 4mm	10-ON	1
240J	B115240	Pinion Seal	56 ID x 76 OD x 9.00mm	10-ON	1
240J	B115242	Pinion Seal	45 ID x 69 OD x 8.00mm	10-ON	1
244J	B115244	Pinion Seal	34 ID x 49 OD x 7.00mm	10-ON	1
244J	B115245	Pinion Seal	34 ID x 49 OD x 9.00mm	10-ON	1

sealing rings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	115208K	Axle Seal Kit		10-ON	1
Kit	115250K	Sealing Ring Kit		10-ON	1

friction plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
20A	115310K	2-6 Brake Clutch Kit		10-ON	1
20A	115311K	2-6 Brake Clutch Kit		10-ON	1
20A	115312K	2-6 Brake Clutch Kit		10-ON	Alt
22B	115314K	3-5-Reverse Clutch Kit		10-ON	1
22B	115315K	3-5-Reverse Clutch Kit		10-ON	1
22B	115316K	3-5-Reverse Clutch Kit		10-ON	Alt
24C	115318K	Underdrive Brake Clutch Kit		10-ON	1
24C	115319K	Underdrive Brake Clutch Kit		10-ON	1
26F	115322K	Low & Reverse Brake Clutch Kit		10-ON	1
26F	115323K	Low & Reverse Clutch Kit		10-ON	1
28G	115326K	Overdrive Clutch Kit		10-ON	1
28G	115327K	Overdrive Clutch Kit		10-ON	1
310A	115310A	2-6 Brake Clutch Friction Plate	189 OD x 1.80mm x 36T	10-ON	4
315B	115315	3-5-Reverse Clutch Friction Plate	148.7 OD x 2.30mm x 27/36T	10-ON	5
318C	115318	Underdrive Brake Friction Plate	179 OD x 1.75mm x 36T	10-ON	3-4
322F	115322	Low & Reverse Brake Friction Plate	190.5 OD x 1.75mm x 40T	10-ON	5-6
326G	115326	Overdrive Clutch Friction Plate	170 OD x 1.65mm x 36T	10-ON	5

Friction Plates are only available as a Clutch Kit.
Individual Plates will be added as they become Available

steel & pressure plates

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
35A	115390	2-6 Brake Pressure Plate 2.10mm	167 OD x 2.10mm x 7T	10-ON	1
35A	115390A	2-6 Brake Pressure Plate 2.30mm	167 OD x 2.30mm x 7T	10-ON	1
35A	115390B	2-6 Brake Pressure Plate 2.90mm	167 OD x 2.50mm x 7T	10-ON	1
35A	115390C	2-6 Brake Pressure Plate 3.10mm	167 OD x 2.70mm x 7T	10-ON	1
38F	115395	Low & Reverse Brake Pressure Plate 2.10mm	173.3 ID x 2.10mm x 15T	10-ON	1
38F	115395A	Low & Reverse Brake Pressure Plate 2.50mm	173.3 ID x 2.50mm x 15T	10-ON	1
38F	115395C	Low & Reverse Brake Pressure Plate 2.90mm	173.3 ID x 2.90mm x 15T	10-ON	1
38F	115395D	Low & Reverse Brake Pressure Plate 3.10mm	173.3 ID x 3.10mm x 15T	10-ON	1

bushes

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
410A	115410	Pump Bush		10-ON	1

thrust washers & bearings

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
490H	114490	Diff Carrier Needle Bearing, 4WD	38 ID x 42 OD x 17.00mm	10-ON	1
490H	115490	Diff Carrier Needle Bearing, 4WD	40 ID x 44.8 OD x 17.00mm	10-ON	1
490H	115974	Diff Carrier Needle Bearing, 2WD	54.5 ID x 85 OD x 22.00mm	10-ON	1
940J	B115940	Transfer Case Bearing	30 ID x 68 OD x 22.00mm	10-ON	1
940J	B115941	Transfer Case Bearing	30 ID x 68.2 OD x 22.80mm	10-ON	1
940J	B115942	Transfer Case Bearing		10-ON	1
944J	B115944	Transfer Case Bearing	39 ID x 75 OD x 27.00mm	10-ON	1
944J	B115945	Transfer Case Bearing	40 ID x 75 OD x 27.20mm	10-ON	1
970H	114970	Transfer Driven Gear Bearing, 4WD	62 ID x 90 OD x 16.00mm	10-ON	1
970H	114972	Transfer Driven Gear Bearing, 4WD	50 ID x 80 OD x 20.00mm	10-ON	1
970H	115976	Transfer Driven Gear Bearing, 4WD	64 ID x 93 OD x 22.00mm	10-ON	1
972H	114972	Transfer Driven Gear Bearing, 2WD	50 ID x 80 OD x 20.00mm	10-ON	1
972H	115974	Transfer Driven Gear Bearing, 2WD	54.5 ID x 85 OD x 22.00mm	10-ON	1
972H	B115990	Transfer Driven Gear Bearing, 2WD	54.5 ID x 80 OD x 17.50mm	10-ON	1
974H	113936	Transfer Gear Inner Bearing	40 ID x 71 OD x 19.00mm	10-ON	1
974H	114936	Transfer Gear Inner Bearing	32 ID x 65 OD x 22.00mm	10-ON	1
974H	114937	Transfer Gear Inner Bearing	35 ID x 65 OD x 20.00mm	10-ON	1
974H	115971	Transfer Gear Inner Bearing	48 ID x 80 OD x 20.00mm	10-ON	1
975H	113934	Transfer Gear Outer Bearing	32.5 ID x 62 OD x 20.00mm	10-ON	1
975H	114934	Transfer Gear Outer Bearing	45 ID x 75 OD x 20.00mm	10-ON	1
975H	115975	Transfer Gear Outer Bearing	59.5 ID x 90 OD x 23.50mm	10-ON	1
975H	115977	Transfer Gear Outer Bearing	35 ID x 68 OD x 22.00mm	10-ON	1
975H	115978	Transfer Gear Outer Bearing	65 ID x 93 OD x 17.5mm	10-ON	1
991J	B115990	Transfer Pinion Bearing	54.5 ID x 80 OD x 17.50mm	10-ON	1
992H	114972	Transfer Gear Bearing	50 ID x 80 OD x 20.00mm	10-ON	1
992H	B115992	Transfer Gear Bearing	57 ID x 87.5 OD x 20.00mm	10-ON	1
993J	B115992	Transfer Pinion Bearing	57 ID x 87.5 OD x 20.00mm	10-ON	1

filters

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
55K	115550	Filter		10-ON	1

Transmission must be Disassembled to change Filter.

pistons

NO	PART #	DESCRIPTION	YEARS	QTY
Kit	115570K	Bonded Piston Kit	10-ON	1
58B	115574	3-5-Reverse Balance Piston	10-ON	1
62G	115580	Overdrive Balance Piston	10-ON	1

springs & one way clutches

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
66B	115650	3-5-Reverse Return Spring		10-ON	1
651C	115651	Underdrive Brake Return Spring		10-ON	1

electrical components

NO	PART #	DESCRIPTION	YEARS	QTY
70K	115700	Pressure Control Solenoid	10-ON	1
71K	115702	TCC Solenoid	10-ON	1
71K	115711	TCC/SSA & SSB Solenoid	10-ON	AR
72K	115706	3-5-Reverse Solenoid	10-ON	1
72K	115707	3-5-Reverse Solenoid	10-ON	1
73K	115702	2-6 Brake Solenoid	10-ON	1
73K	115704	2-6 Brake Solenoid	10-ON	1
74K	115706	Underdrive Solenoid	10-ON	1
74K	115707	Underdrive Solenoid	10-ON	1
75K	115706	Overdrive Solenoid	10-ON	1
75K	115707	Overdrive Solenoid	10-ON	1
76K	115710	Shift Solenoid B (SSB)	10-ON	1
77K	115710	Shift Solenoid A (SSA)	10-ON	1
78K	115728	Speed Sensor	10-ON	1
78K	115730	Speed Sensor Assembly 2.2L	10-ON	1
78K	115734	Speed Sensor	10-ON	1
79K	115740	Inhibitor Switch	10-ON	1
80K	114720	Wiring Harness*	10-ON	1
80K	115720	Wiring Harness*	10-ON	1
80K	115721	Wiring Harness	10-ON	1
NI	115732	Speed Sensor A6LF3	10-ON	1
NI	115738	Temperature Sensor (A6LF1/A6MF1)	10-ON	1

To ensure correct Wiring Harness is supplied please provide vehicle details

sundry parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	114772K	Oversized TCC Control Valve Kit		10-ON	1
Kit	114775K	Drain Bung and Waher Kit		10-ON	1
Kit	115770K	Oversized Overdrive Pressure Control Valve Kit, Sonnax		10-ON	1
780H	115780	Blanking Cap	30 ID x 34 OD x 5.00mm	10-ON	2
790J	B115790	Transfer Case Dust Cover		10-ON	1
NI	114770	Oversized Pressure Reducing Valve		10-ON	1-2
NI	115772K	Oversize 3/5/Rev & Underdrive Pressure Control Valve, Tool Required		10-ON	1

shift & reprogramme kits

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
Kit	115802K	Shift Kit		10-ON	1

hard parts

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
91A	115900	Pump Assembly *		10-ON	1
91A	115902	Pump Assembly *		10-ON	1
95C	115920	Underdrive Brake Housing		10-ON	1
95C	115922	Underdrive Brake Housing		10-ON	Alt
913B	115913K	3-5 Reverse Clutch Assembly		10-ON	1
918C	115918	Underdrive Brake Retainer (A6LF1, A6LF2)	180 ID x 190 OD x 37.40mm	10-ON	1
918C	115919	Underdrive Brake Retainer	180 ID x 190 OD x 41mm	10-ON	1
935H	114935	Pinion & Transfer Gear		10-ON	1
939H	114939	Crown Wheel		10-13	1
960K	115960	Plastic Valve Body Cover, A6LF1		10-ON	1
964K	115964	End Cover		10-ON	1
980H	113980	Differential Carrier		10-ON	1
980H	114980	Differential Carrier		10-ON	1
980H	115980	Differential Carrier 12 Bolts		10-ON	1
980H	115981	Differential Carrier 10 Bolts		10-ON	1
982J	B115982	Hypoid Gear Shaft Set		10-ON	1
982J	B115984	Hypoid Gear Shaft Set		10-ON	1
982J	B115985	Hypoid Gear Shaft Set		10-ON	1
996J	B115996	Transfer Bearing Spacer		10-ON	1
NI	115950	Convertor Spout	47.00mm	10-ON	1

To ensure correct part is supplied please provide vehicle details

valve bodies

NO	PART #	DESCRIPTION	YEARS	QTY
940K	114940	Valve Body Complete	10-ON	1
940K	115940	Valve Body Complete*	10-ON	1
940K	115941	Valve Body	10-ON	1
940K	115942	Valve Body	10-ON	1

fluids

NO	PART #	DESCRIPTION	QTY
NI	49991-01	LUBEGARD COMPLETE FULL SYNTHETIC (946ml)	AR
NI	49991-05	LUBEGARD COMPLETE FULL SYNTHETIC 5L	AR
NI	49991-20	LUBEGARD COMPLETE FULL SYNTHETIC (20L)	AR
NI	49991-22	LUBEGARD COMPLETE FULL SYNTHETIC (22.7L)	AR

tools

NO	PART #	DESCRIPTION	SIZE	YEARS	QTY
NI	T-A4A6-RV-TK	Toolkit for 115802K		10-ON	1
NI	TF-102741-TL13	Tool for 115772K		10-ON	1
