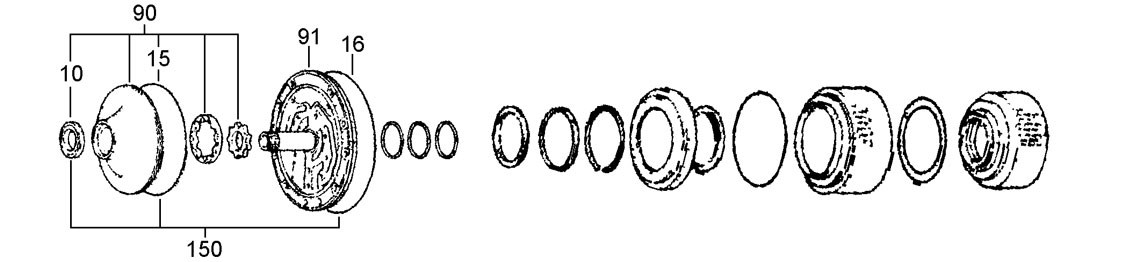

A

Pump

91
90
16
15
10

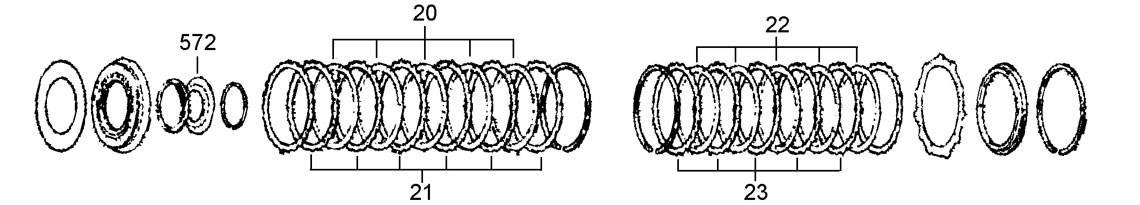

B

C2 (Direct) & C3 (Reverse) Clutches

23
22
21
20
572

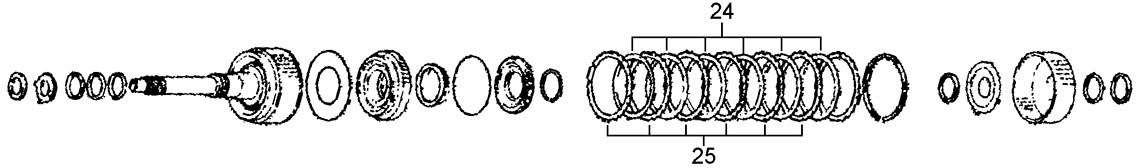

C

C1 (Forward) Clutch

25
24

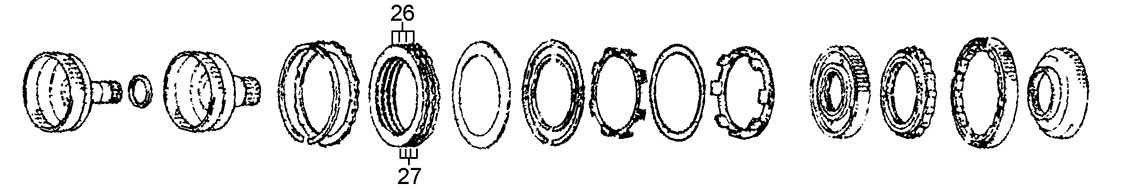

D

B3 Brake, F2 & F1 One Way Clutches

27
26

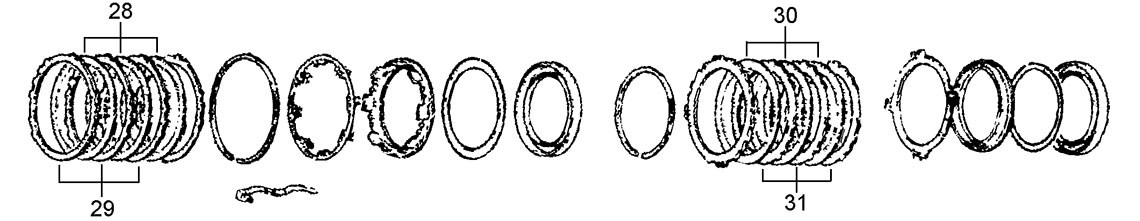

E

B1 & B2 Brakes

29
28
30
31

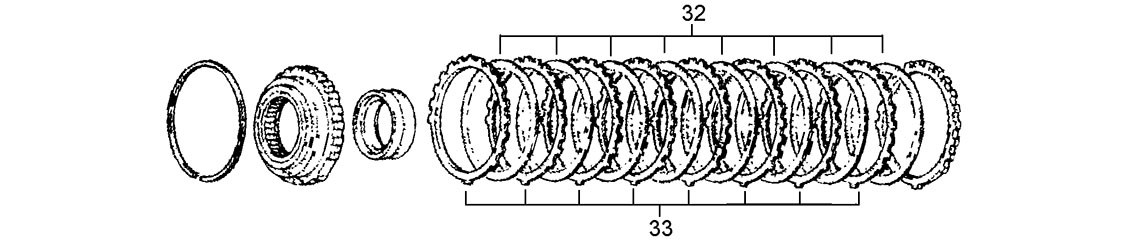

F

F3 One Way Clutch & 84 (Low & Reverse) Brake

33
32

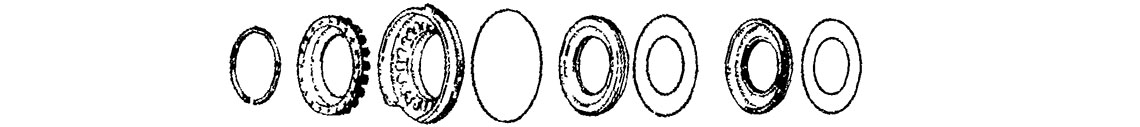

G

B4 (Low & Reverse) Brake Piston Assembly

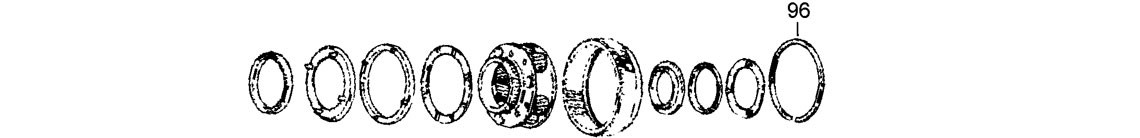

H

Front Planetary Assembly

96

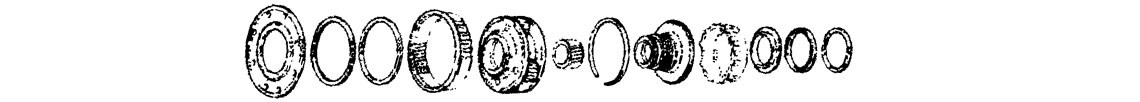

J

Centre Planetary Assembly

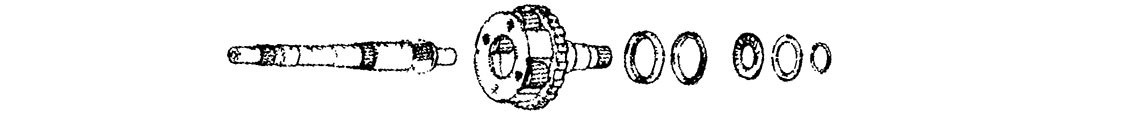

K

Rear Planetary Assembly

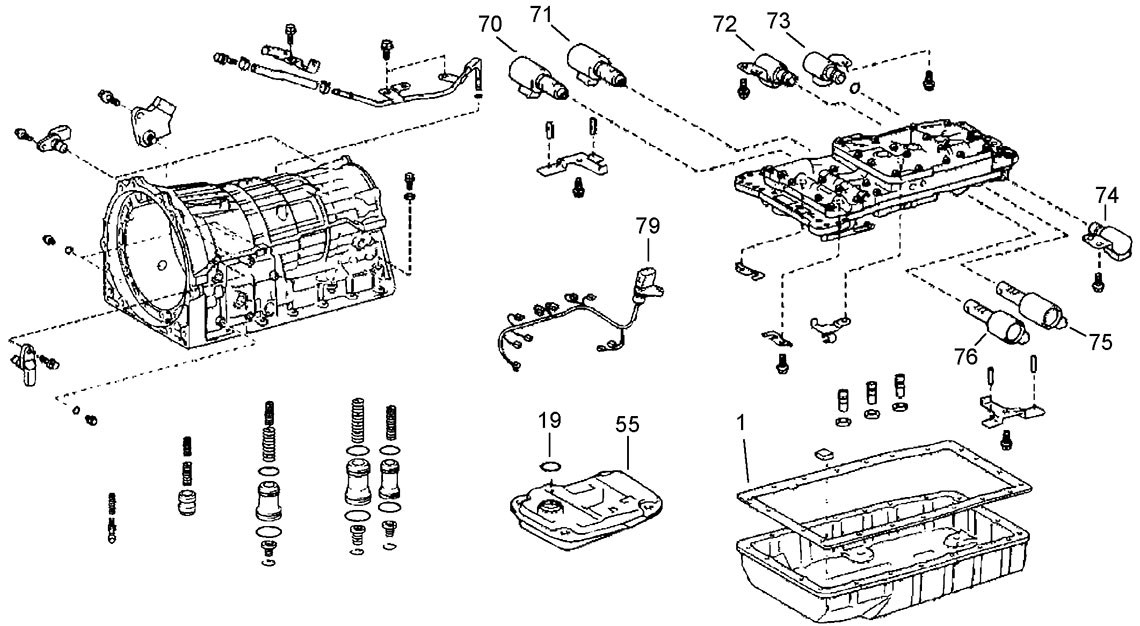

L

Case, Pan, Filter & Valve Body

79
76
73
72
75
71
70
55
74
1
19

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72000K Overhaul Kit A750E, A750F, TB-50LS Transtec 03-ON 1
Kit 72000KA Overhaul Kit Precision 03-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72000KM Master Kit 03-ON 1
Kit 72000KMHT Master Kit with High Energy Frictions 03-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72120K Valve Body Gasket Kit 03-ON 1
1L 72100 Pan Gasket Cork 03-ON 1
1L 72101 Pan Gasket Duraprene 03-ON 1
1L 72101F Pan Gasket, Farpack 03-ON Alt

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
15A 72160 Pump Body to Pump Cover 03-ON 1
16A 72162 Pump Body to Case 03-ON 1
19L 72165 Filter O Ring 03-ON 1
NI 68172 Electrical Connector O Ring 03-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 72200 Front Pump Seal 38 ID x 55 OD x 7.50mm 03-ON 1
10A 73200 Front Pump Seal 38 ID x 55 OD x 7.70mm 03-ON 1
NI 72240 Transfer Case Rear Output Seal 40 x 61 x 8.00 x 13.00mm 03-ON 1
NI 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 03-ON 1
NI 76220 Extension Housing Seal 40 ID x 58 OD x 10.00mm 03-ON 1
NI 76234 Transmission Case Adapter Seal 48 ID x 62 ODx 8.00mm 03-ON 1
NI 76236 Adapter Housing Seal 43 ID x 58 OD x 7.00mm 03-ON 1
NI 76244 Transfer Case Front Driveshaft Flange Seal 41 ID x 59 OD x 10.00mm 03-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72250K Sealing Ring Kit 03-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72300K Friction Kit 03-ON 1
Kit 72304KHT High Energy Friction Kit 03-ON 1
20B 72310 C2 (Direct) Clutch, Waved 162 OD x 1.50mm x 36T Waved 03-ON 5
20B 72310HT C2 (Direct) Clutch, Hybrid Technology 162 OD x 1.50mm x 36T 03-ON Alt
22B 72314 C3 (Reverse) Clutch 161.8 OD x 1.50mm x 40T Waved 03-ON 5
22B 72314HT C3 (Reverse) Clutch, Hybrid Technology 161.8 OD x 1.50mm x 40T 03-ON Alt
24C 72318 C1 (Forward) Clutch 119.7 OD x 1.90mm x 30T Waved 03-ON 7
26D 72322 B3 Brake Friction 163.5 ODx 1.85mm x 40T 03-ON 4
26D 72322HT B3 Brake Wide Tooth, Hybrid Technnology 163.5 OD x 1.88mm x 40T 03-ON Alt
28E 72326 B1 Brake 158.3 OD x 1.83mm x 40T 03-ON 4
28E 72326HT B1 Brake Friction, Hybrid Technology 158.3 OD x 1.83mm x 40T 03-ON AR
30E 72330 B2 Brake 138.3 OD x 1.55mm x 40T 03-ON 3
30E 72330HT B2 Brake Friction, Hybrid Technology 138.3 OD x 1.55mm x 40T 03-ON Alt
32F 72334 B4 (Low & Reverse) Brake 140.4 OD x 1.55mm x 48T Waved 03-ON 8
32F 72334HT B4 (Low & Reverse) Brake Friction, Hybrid Technology 140.4 OD x 1.55mm x 48T 03-ON Alt

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 72360 C2 (Direct) Clutch 149 ID x 1.80mm x 24T 03-ON 6-10
23B 72364 C3 (Reverse) Clutch 149 ID x 2.40mm x 24T 03-ON 4
25C 72368 C1 (Forward) Clutch 106 ID x 1.80mm x 24T 03-ON 5
25C 72368A C1 (Forward) Clutch 106 ID x 2.40mm x 24T 03-ON AR
27D 72372 B3 Brake 132 ID x 2.03mm x 16T 03-ON 4
29E 72376 B1 Brake 140.3 ID x 2.40mm x 13T 03-ON 3
31E 72380 B2 Brake 115 ID x 2.00mm x 13T 03-ON 3
33F 72384 B4 (Low & Reverse) Brake 125 ID x 1.80mm x 16T 03-ON 7

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72400K Bush Kit 03-ON 1
NI 73410 Front Pump Bush, Bronze with Dimples 38 ID x 41.2 OD 03-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72450K Thrust Washer Kit, Plastics 03-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55L 72550 Filter 03-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72550K Filter Kit 03-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72580K Accumulator Piston Kit 03-ON 1
572B 72572A Direct Clutch Bonded Piston 03-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72754K Ext Harness Repair Kit 04-18 1
70L 72700 SLT, PCS-D Line Pressure Solenoid for Toyota Landcruiser 03-ON 1
70L 72701 SLT, PCS-D Line Pressure Solenoid for Toyota Prado & Hi Lux 03-ON 1
71L 72704 SL1, PCS-A Clutch Control #1 Solenoid for Toyota Landcruiser 03-ON 1
71L 72705 SL1, PCS-A Clutch Control #1 Solenoid for Toyota Prado & Hi Lux 03-ON 1
72L 72713 Clutch Control #1 Solenoid for Suzuki Grand Vitara & Escudo 03-ON 1
73L 72708 S2, SSB Clutch Control #3 Solenoid for Toyota Landcruiser, Prado & Hi Lux 03-ON 1
73L 72714 Clutch Control #2 Solenoid for Suzuki Grand Vitara & Escudo 03-ON 1
74L 72710 SR, SSE 3 Way No 2 Solenoid for Toyota Landcruiser, Prado & Hi Lux 03-ON 1
75L 72702 SLU, TCC-PCS Lock Up Solenoid for Toyota Landcruiser 03-ON 1
75L 72703 SLU, TCC-PCS Lock Up Solenoid for Toyota Prado & Hi Lux 03-ON 1
76L 72705 SL2, PCS-B Clutch Control #2 Solenoid for Toyota Prado & Hi Lux 03-ON 1
76L 72712 SL2, PCS-B Clutch Control #2 Solenoid for Toyota Landcruiser 03-ON 1
76L 72716 Clutch Control #3 Solenoid for Suzuki Grand Vitara & Escudo 03-ON 1
79L 72750 Internal Wiring Harness for Toyota Landcruiser, Prado & Hi Lux 03-ON 1
79L 72750 Internal Wiring Harness for Suzuki Grand Vitara & Escudo 03-ON 1
79L 72752 Internal Wiring Harness for Toyota Landcruiser 03-ON 1
NI 72706 Solenoid, 3 Way No 1 Landcrusier 03-ON 1
NI 72707 Solenoid, 3 Way No 1 Prado & Hilux 03-ON 1
NI 77734 Input Speed Sensor 03-ON 2

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72784K Oversize Main Pressure Regulator & Boost Valve Kit (Reamer Required) 03-ON 1
Kit 72790K Oversize Secondary Pressure Regulator Valve Kit (Reamer Required) 03-ON 1
Kit 72792K Oversize Lock Up Control Valve Kit 03-ON 1
Kit 72793K Oversize Lock Up Relay Valve Kit 03-ON 1
Kit 72794K Lock Up Control Plunger Valve Kit 03-ON 1
Kit 72795K Line Pressure Booster Kit 03-ON 1
NI 72780K Boost Valve & Sleeve Kit 03-ON 1
NI 72796K Oversize Accumulator Control Valve Kit 03-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72800K Sonnax Zip Kit 03-ON 1
Kit 72804K Shift Kit 03-ON 1
Kit 72806K Refill Kit 03-ON 1
Kit 72808K Shift Kit Ratio Tek 03-08 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72960K Flange & Annulus Upgrade Kit 03-ON 1
90A 72902 Pump Body & Gears 03-ON 1
90A 72902U Pump Body & Gears (Used) 03-ON 1
91A 72906 Stator Assembly 03-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49473K Cooler Kit, FJ Cruiser 11-16 1
Kit 49479K Cooler Kit, Isuzu D-Max to MY19 12-21 1
Kit 49479KDL Cooler Kit, Isuzu D-Max & MU-X, Coolmaster 12-21 1
Kit 49494K Cooler Kit, Prado 120, Coolmaster 02-09 1
Kit 49495K Prado Cooler Kit 03-ON 1
Kit 49495KDL Cooler Kit, Prado 150, Coolmaster 09-ON 1
Kit 49498K Cooler Kit, Landcruiser 200, Coolmaster 15-21 1
NI 49496K Cooler Kit, Hilux 7th Gen, Coolmaster 05-15 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 Lubegard Complete Full Synthetic 946ml Bottle 03-ON AR
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 03-ON AR
NI 49991-20 Lubegard Complete Full Synthetic 20 Litre Pack 03-ON AR
NI 49991-22 Lubegard Complete Full Synthetic 22 Litre Pack 03-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-F147741-TL16 Sonnax Tool Kit for 72792K 03-ON 1
NI T-F147741-TL4 Sonnax Tool Kit for 72784K & 74790K 03-ON 1
