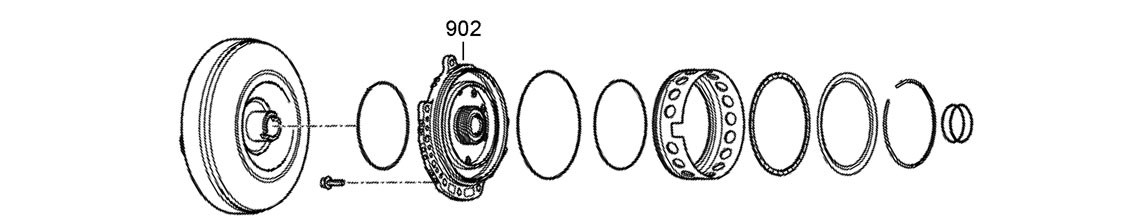

A
Torque Converter, Oil Pump & Chain
902

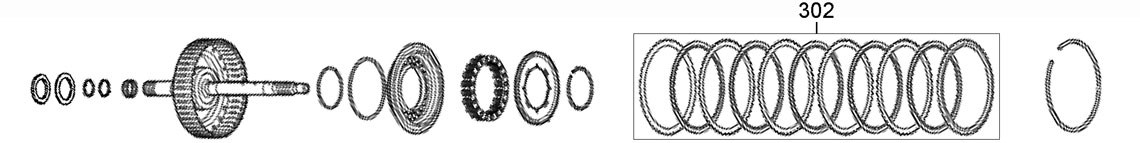

B
Overdrive Clutch Assembly
302

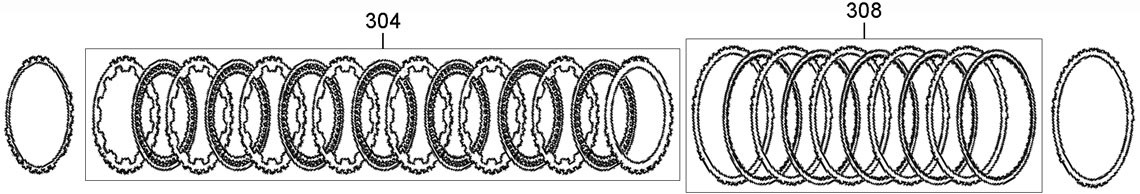

C
Low & Reverse Brake
304
308

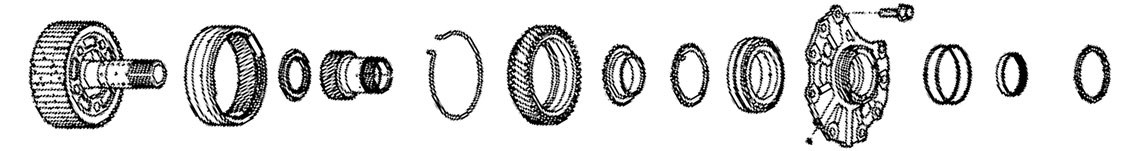

D
Front Planetary and Sungear & Centre Support Assembly

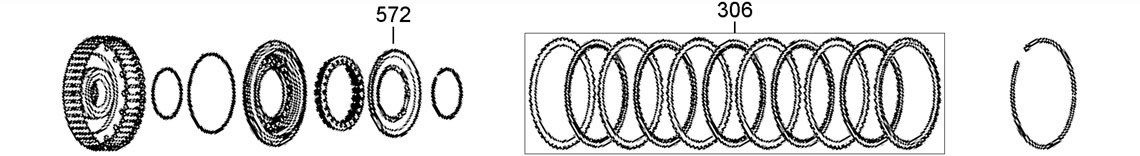

E
Underdrive Clutch Assembly
572
306

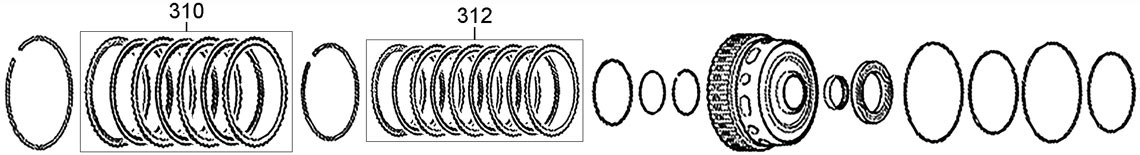

F
2-8 Brake, 3-7-Reverse & 4-6 Clutch Assembly
310
312

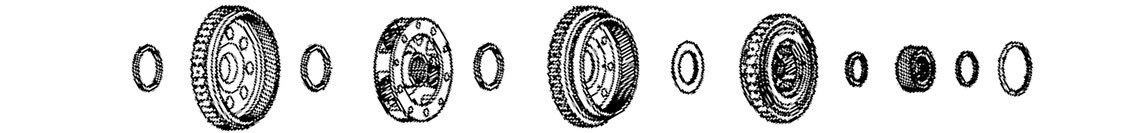

G
Middle & Rear Planetary

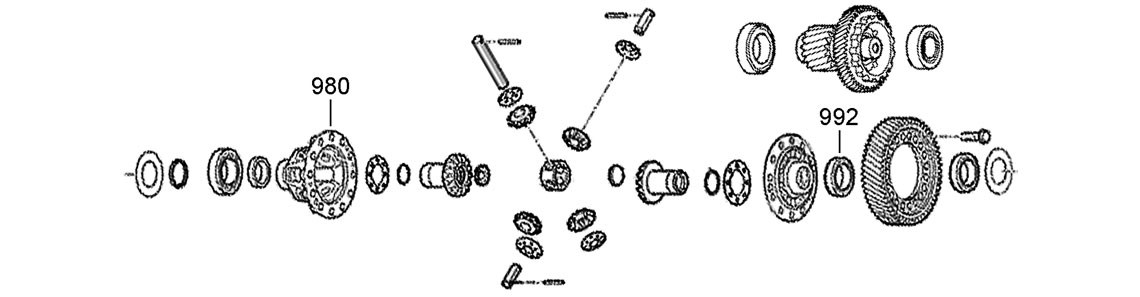

H
Transfer Gear & Diff Assembly
980
992

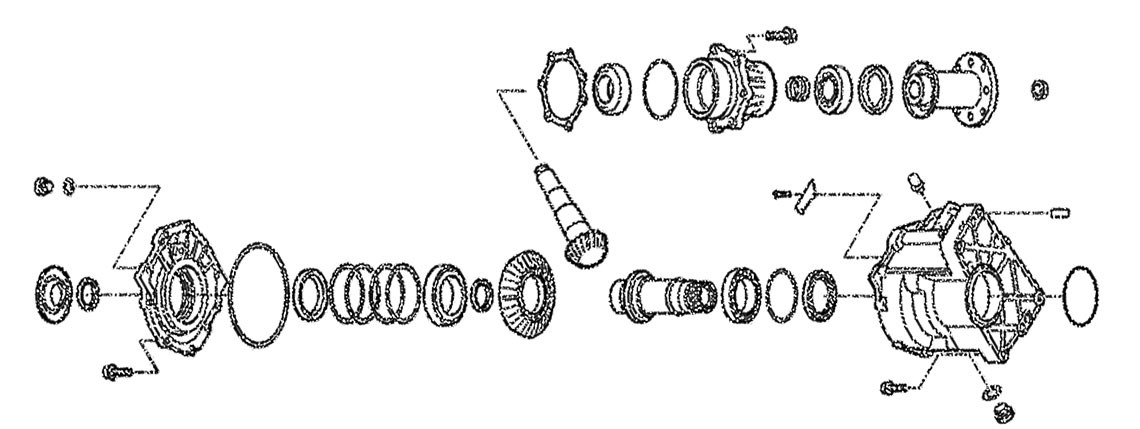

J
Transfer Assembly

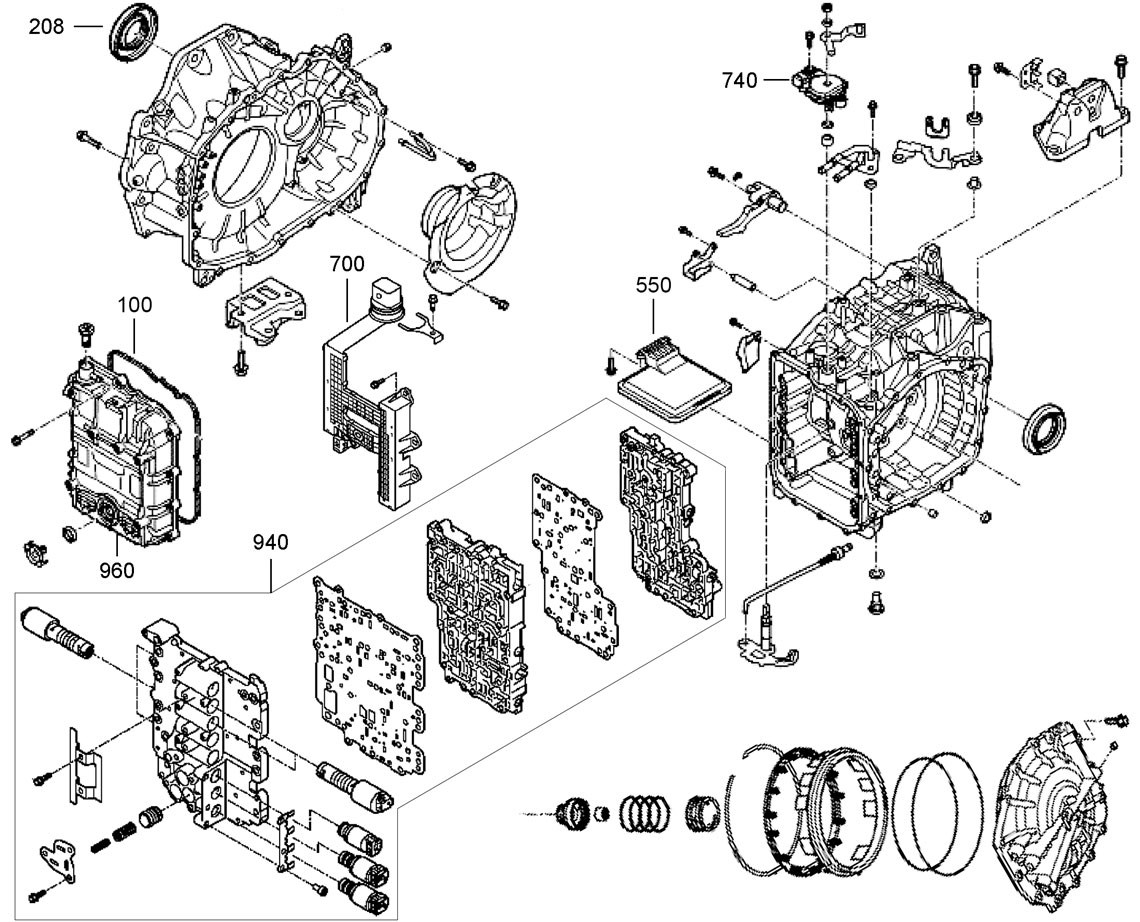

K
Case Assembly, Valve body & Components
208
100
960
940
550
740
700
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 208K | 151208 | Righthand Axel Seal | 40 ID x 74 OD x 10/17.00mm | 18-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 302B | 151302K | Overdrive Clutch Kit | 18-ON | 1 | |
| 304C | 151304K | Low & Reverse Clutch Kit | 18-ON | 1 | |
| 306E | 151306K | Underdrive Clutch Kit | 18-ON | 1 | |
| 308C | 151308K | 2-8 Brake Clutch Kit | 18-ON | 1 | |
| 310F | 151310K | 3-7-Reverse Clutch Kit | 18-ON | 1 | |
| 312F | 151312K | 4-6 Clutch Kit | 18-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 992H | 151992 | Transfer Case Bearing | 18-ON | 1 | |
| NI | 151936 | Transfer Case Inner Bearing | 18-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 572E | 151572 | Underdrive Clutch Balance Piston | 87 ID x 150 OD x 8.00mm | 18-ON | 1 |
| NI | 151570 | Clutch Balance Piston | 70 ID x 130 OD x 4.00mm | 18-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 700K | 151700 | Wiring Loom | 18-ON | 1 | |
| 740K | 151740 | Inhibitor Switch | 18-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 902A | 151902 | Oil Pump Assembly | 18-ON | 1 | |
| 960K | 151960 | Transmission Pan Assembly | 18-ON | 1 | |
| 980H | 151980 | Differential Carrier | 18-ON | 1 |
