A

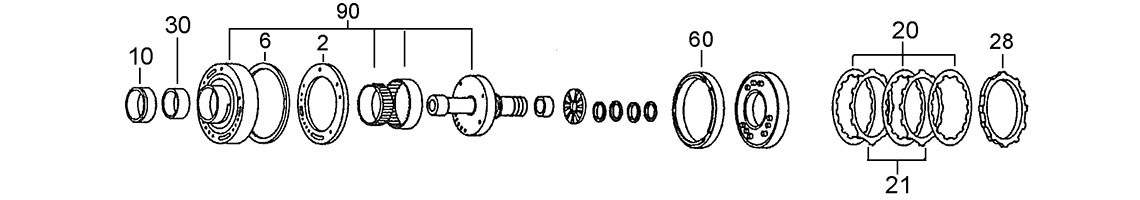

Pump & Intermediate Clutch

28
60
2
6
90
10
30
21
20

B

Reverse Clutch

22
67
684
68
92
50
23
458
762

C

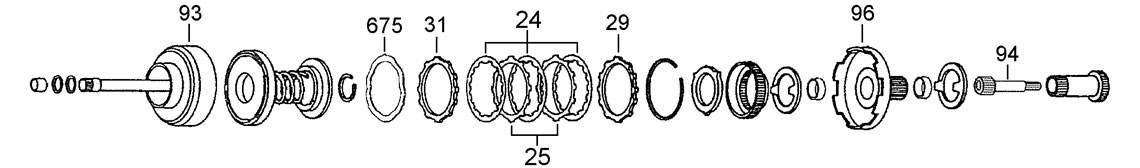

Forward Clutch

29
93
96
675
31
24
25
94

D

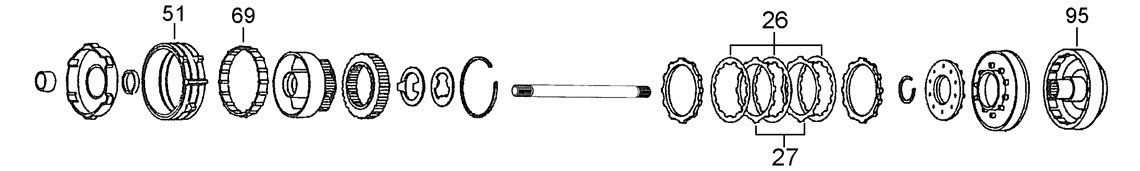

Direct Clutch

27
26
69
95
51

E

Case, Valve Body, Filter & Pan

9
98
61
64
62
97
99
1
15
39
55
63
980

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42002K Overhaul Kit AODE, 4R70W Transtec 92-95 1
Kit 42004K Overhaul Kit 4R70W Transtec 96-03 1
Kit 42006K Overhaul Kit 4R70W, 4R75E, 4R75W Transtec 04-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42002KM Master Kit AODE, 4R70W 92-95 1
Kit 42004KM Master Kit 4R70W 96-03 1
Kit 42006KM Master Kit 4R70W, 4R75E, 4R75W 04-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42128K Valve Body Gasket Kit 4R70W, 4R75W 96-ON 1
1E 42102 Pan Gasket Moulded Rubber 92-ON 1
2A 42111 Pump to Case Gasket 92-ON 1
9E 42120 Extension Housing Gasket AODE 92-95 1
9E 42122 Extension Housing Gasket Silicone beaded 4R70W 96-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42178K Super Seal Kit for 42578 92-98 1
6A 42150 Front Pump Lathe Cut Seal 92-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 42202 Front Pump Seal 50 ID x 69.9 OD x 9.20mm 92-ON 1
15E 42220 Extension Housing Seal 4R70W 39 x 63 x 11.50mm with Boot 92-ON 1
15E 44206B Extension Housing Seal AODE 36 x 60.40 x 11.80mm with Boot 92-95 1
NI 44210 Linkage Shaft to Case seal 18.5 ID x 27.2 OD x 5.30mm 92-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42252K Sealing Ring Kit 92-03 1
Kit 42256K Sealing Ring Kit 04-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42304K Friction Module, Raybestos Stage 1 92-ON 1
Kit 42306K Friction and Steel Direct Module Hi Performance 92-95 1
Kit 42358K Power Pack Direct 92-ON 1
20A 42312 Intermediate Smooth Friction Plate 180 OD x 1.70mm x 60T 92-97 3-4
20A 42314 Intermediate Grooved Friction Plate 180 OD x 1.70mm x 60T 98-ON 3-4
20A 42314H Intermediate Friction, Raybestos Stage 1 180 OD x 1.70mm x 60T 98-ON 3-4
22B 42318 Reverse Friction Plate 133.5 OD x 1.65mm x 45T 92-ON 4-5
22B 42318H Reverse Friction Plate, Raybestos, Stage 1 133.5 OD x 1.6mm x 45T 92-ON AR
22B 42318HB Reverse Friction Plate, Raybestos, Blue 133.35 OD x 1.57mm x 45T 92-ON Alt
22B 42318HP Reverse Friction Plate 133.5 OD x 1.6mm x 45T 92-ON Alt
24C 42322 Forward Friction Plate 136 OD x 1.65mm x 45T 92-ON 5
24C 42322GPZ Forward Friction Plate GPZ 136 OD x 1.65mm x 45T 92-ON Alt
24C 42322H Forward Friction, Raybestos Stage 1 136 OD x 1.65mm x 45T 92-ON 5
26D 42326 Direct Friction Plate 118 OD x 1.90mm x 42T 92-96 5
26D 42327H Direct Friction, Raybestos Stage 1 118 OD x 1.70mm x 42T 92-ON AR
26D 42328 Direct Friction Plate 118 OD x 1.80mm x 42T 97-ON 5-6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42354K Steel Module Kolene 92-ON 1
21A 42368 Intermediate Steel Plate 149 ID x 1.70mm x 18T 92-ON 3-4
21A 42368A Intermediate Steel Plate 149 ID x 2.00mm x 18T 92-ON 3-4
21A 42368K Intermediate Kolene Steel Plate 149 ID x 1.70mm x 18T 92-ON AR
23B 42371 Reverse Steel Plate 99 ID x 1.75mm x 32T 92-ON 3
23B 42371K Reverse Steel Plate (4R70W) Kolene 99 ID x 1.75mm x 32T 96-ON AR
25C 42372 Forward Steel Plate 99 ID x 1.75mm x 34T 92-ON 5
25C 42372K Forward Steel Plate (AODE) Kolene 99 ID x 1.75mm x 34T 92-ON AR
27D 42376 Direct Steel Plate 93 ID x 1.75mm x 34T 92-99 6
27D 42376K Direct Steel Plate 93 ID x 1.75mm x 34T 92-99 Alt
27D 42378 Direct Steel Plate 93 ID x 2.00mm x 34T 98-ON 6
27D 42378S Direct Steel Plate 93 ID x 1.60mm x 34T 98-ON 6
28A 42390U Intermediate Pressure Plate 149 ID x 6.55mm x 18T 92-ON AR
29C 42394 Forward Pressure Plate Steel Drum 99 ID x 2.95mm x 34T 92-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42402K Bush Kit 92-93 1
Kit 42404K Bush Kit 94-ON 1
30A 41410 Pump Bush 19.25mm 50.7 ID x 54.3 OD x 19.3mm 92-ON 1
30A 42410 Pump Bush 17.70mm 50.5ID x 54OD x 17.70mm 92-ON 1
39E 42430 Extension Housing 40.80mm ID 40.80mm ID 93-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42450K Thrust Washer Kit, AODE 92-ON 1
Kit 42456K Thrust Bearing Kit 92-03 1
458B 42458 Reverse Drum to Forward Drum Bearing 92-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50B 42502 Overdrive Band 92-ON 1
50B 42502H Overdrive Band Heavy Duty 92-ON 1
51D 42510 Reverse Band 92-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 42560 Filter 2WD 92-95 1
55E 42562 Filter 2WD 94-ON 1
55E 42562 Filter 4WD 92-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42560K Filter Kit 2WD 92-95 1
Kit 42562K Filter Kit 2WD 94-ON 1
Kit 42562K Filter Kit 4WD 92-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42579 Overdrive. Super Servo Combo With Adjustable Pin 92-ON 1
60A 42594 Intermediate Clutch Bonded Piston 04-ON 1
61E 42570 1-2 Accumulator Bonded Piston 94-ON 1
62E 42574 Overdrive Servo Bonded Piston One piece design 68.07mm 92-ON 1
62E 42576 Overdrive Servo Bonded Piston Two piece design 63.50mm 94-ON 1
63E 42580 Reverse Servo Piston 1 Groove 92-ON 1
63E 42582 Reverse Servo Piston 2 Grooves 92-ON 1
63E 42584 Reverse Servo Piston 3 Grooves 92-ON 1
64E 42586 2-3 Accumulator Bonded Piston 92-ON 1
97E 42950 1-2 Bonded Accumulator Cover 94-ON 1
98E 42960 Reverse Servo Bonded Cover 92-ON 1
NI 42578 Overdrive Servo Super Hold PIston Superior One piece Design 92-98 1
NI 42587 Billet Aluminum 2-3 accumulator piston with 4 ring/seal design 93-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
NI 42640 Circlip Forward & Reverse (AODE) 2.65mm 92-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
31C 42675 Forward Clutch Cushon Plate .074" 92-ON 1
67B 42665 Intermediate Sprag Retainer to Reverse Drum Snap Ring (Spiral Update) 92-ON 1
68B 42670 Reverse Clutch Diaphram Spring 92-ON 1
69D 36682 Low Roller Clutch (Rear) 92-ON 1
675C 42675 Wave Spring FWD CL (4R70/75W) .074" 96-ON 1
684B 42684 Sprag Inter (AODE) 7 Roller 80-97 1
684B 42685 Sprag Inter (AODE) 14 Roller 92-97 1
684B 42686 Sprag Inter (4R70W) Ratchet Style 96-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42710K Solenoid Set Shift (AODE) 92-97 1
Kit 42712K Solenoid Set Shift (AODE/4R70) 98-08 1
Kit 42722K Solenoid Kit (AODE) 95-97 1
NI 42702 EPC (Pressure Control) Solenoid 92-97 1
NI 42704 EPC (Pressure Control) Solenoid Tan 2 Prong Connector 98-04 1
NI 42706 EPC (Pressure Control) Solenoid Black Connector Hard Wire 05-08 1
NI 42708 EPC (Pressure Control) Solenoid Soft Wire 09-ON 1
NI 42714 TCC Solenoid (AODE) 13 Ohm 95-97 1
NI 42716 TCC Solenoid (4R70W) 13 Ohm 98-08 1
NI 42724 Output Speed Sensor (AODE) 92-01 1
NI 42726 Output Speed Sensor (AODE) 01-03 1
NI 42728 Output Speed Sensor (AODE) 04-ON 1
NI 42730 Centre Speed Sensor (4R70/75E) 04-ON 1
NI 42732 Connector & Harness (AODE/4R70) 92-97 1
NI 42734 Connector & Harness (4R7OW) 98-08 1
NI 42735 Case Connector (4R70W) Hard Wire 98-15 1
NI 43706A MLPS Sensor 8 pin 92-97 1
NI 43708 DTR Sensor 12 pin 98-ON 1
NI 43725 Output Speed Sensor (VSS) on Differential 92-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 135794K Thermal By-Pass Kit 92-ON 1
Kit 135796K Thermal Bypass Kit 92-ON 1
Kit 42765K Cooler Bypass Delete Kit, TransGo 92-ON 1
762B 42762 Intermediate Sprag Retainer 92-ON 1
NI 33768 Servo Pin Bore Sleeve (4R70W) 92-ON 1
NI 99757 Converter Nut (AODE/4R70W) 91-ON AR

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42801K Shift Kit AODE, 4R70W 91-ON 1
Kit 42804K Sonnax Sure Cure Kit AODE, 4R70W 96-ON 1
Kit 42814K Reprogramme Kit AODE, 4R70W 91-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 42940KU Gear Train (4R70W) 25T pinion, Used 96-ON 1
Kit 42948K Direct Clutch Drum & Shaft Kit 92-ON 1
90A 42904U Pump (4R70W) Used 95-03 1
90A 42906U Aluminium Body Pump (4R70W) 04-ON 1
92B 42924U Reverse Drum With Sprag (4R70W) 98-ON 1
92B 42928KU Reverse Drum Kit (4R70W) Stamped Steel 96-ON 1
93C 42932 Forward Drum (upgraded) Drum Only 92-ON 1
93C 42933 Forward Drum, Hi Capacity (4R70W/AODE) 92-ON Alt
93C 42934U Forward Drum (AODE/4R70W) Used 92-ON 1
94C 42938 Direct Drive Shaft 92-ON 1
95D 42946 Direct Drum 6 Plate Stamped Steel 34T Steels 92-ON 1
95D 42946KU Direct Drum Kit (AODE/4R70W) 92-ON 1
95D 42946U Direct Drum (AODE/4R70W) 92-ON 1
96C 42937 Shell with front Sungear 38T Magnetic, 4R70W, 4R75W 92-03 1
96C 42941U Forward Sungear 93-02 1
96C 42942 Forward Sungear (4R70W/4R75W) 03-ON 1
980E 42980 Transmission Pan, Deep 92-ON 1
980E 42980B Transmission Pan, Deep & Black 92-ON Alt
NI 42972 Selector Shaft & Arms (AODE/4R70W) 92-ON 1
NI 42985 Super Tuff Valve Body Plate 4R70W 01-ON 1
NI 42987 Valve Body Plate Super Tuff with .073'' 1-2 Feed Hole 01-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
99E 42990U Valve Body (4R70W/4R75W) 01-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
