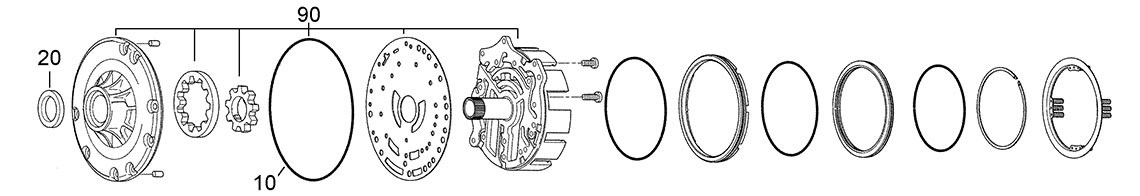

A

Pump

20
90
10

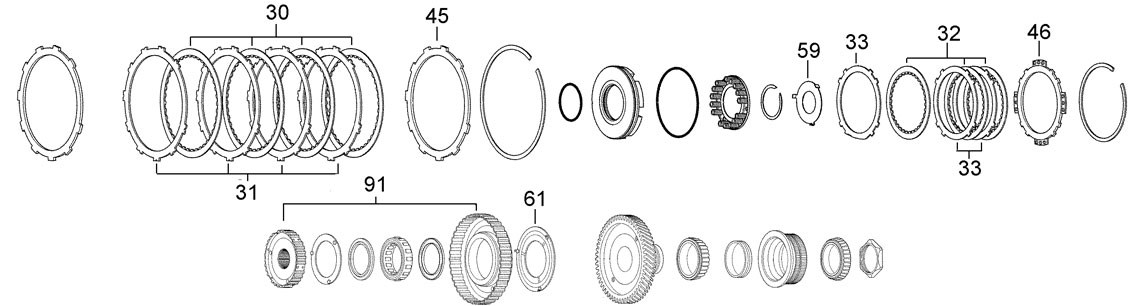

B

Second Brake (B2) & Second Coast (B1)

45
46
61
59
60
32
33
33
91
31
30

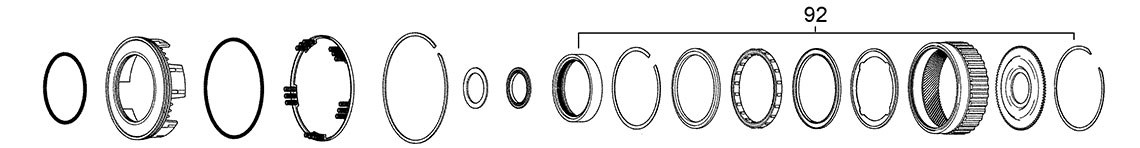

C

Front Internal Gear & Low Clutch Sprag

92

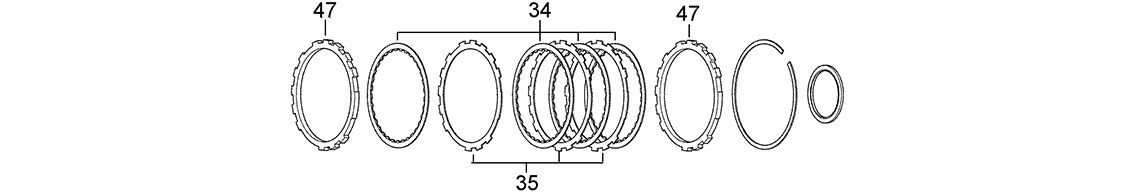

D

Low & Reverse Clutch (B3)

47
35
34
47

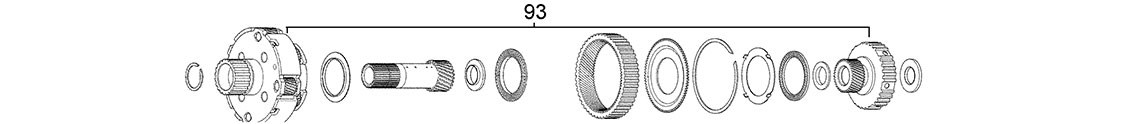

E

Front Carrier & Sungear

93

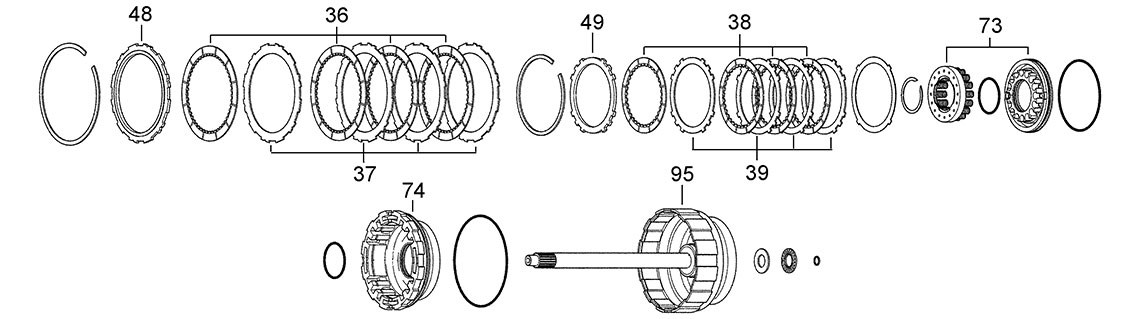

F

Forward & Direct Drum

49
48
38
74
73
36
95
39
37

G

Front Differential & Transfer Gear Assembly

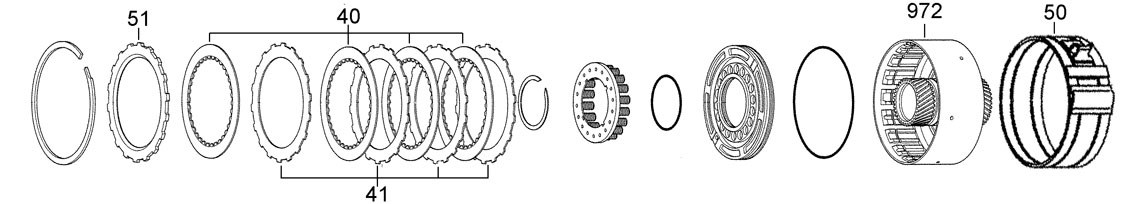

H

4-5 (C3) Clutch

41
40
50
51
972

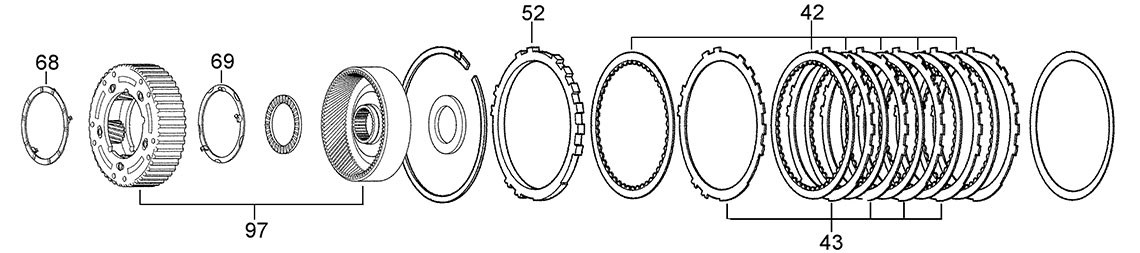

J

1-2 Reverse (B5) Brake

43
42
69
52
68
97

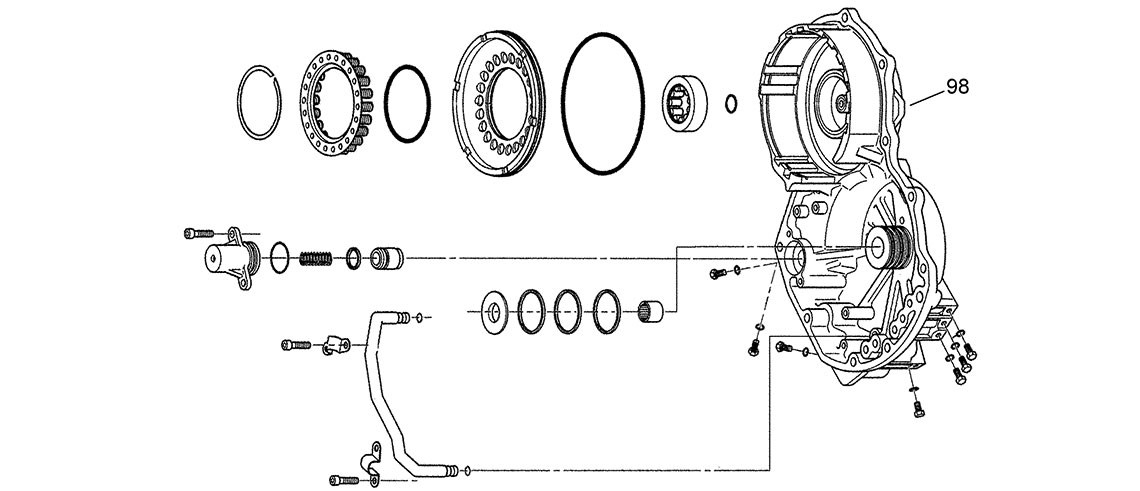

K

End Cover Assembly

98

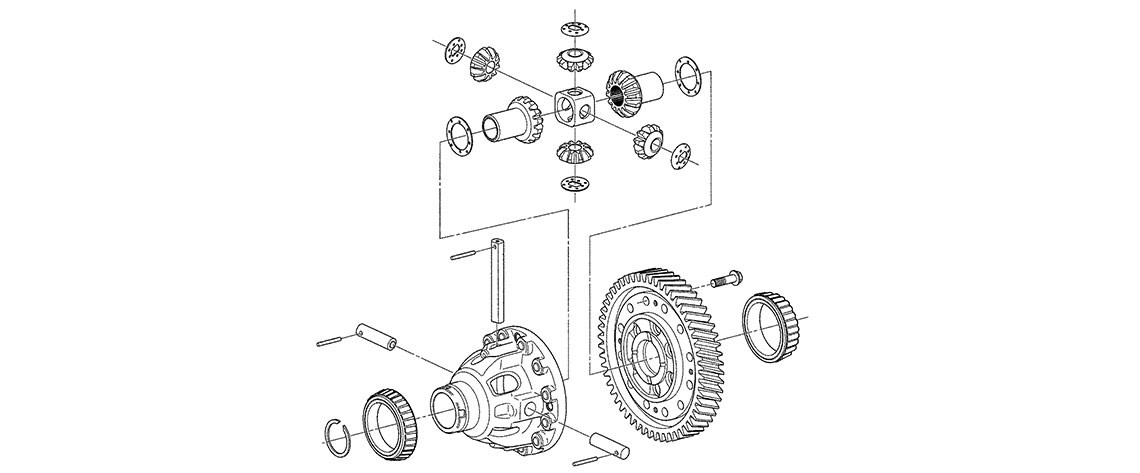

L

Diff Assy 2WD Units

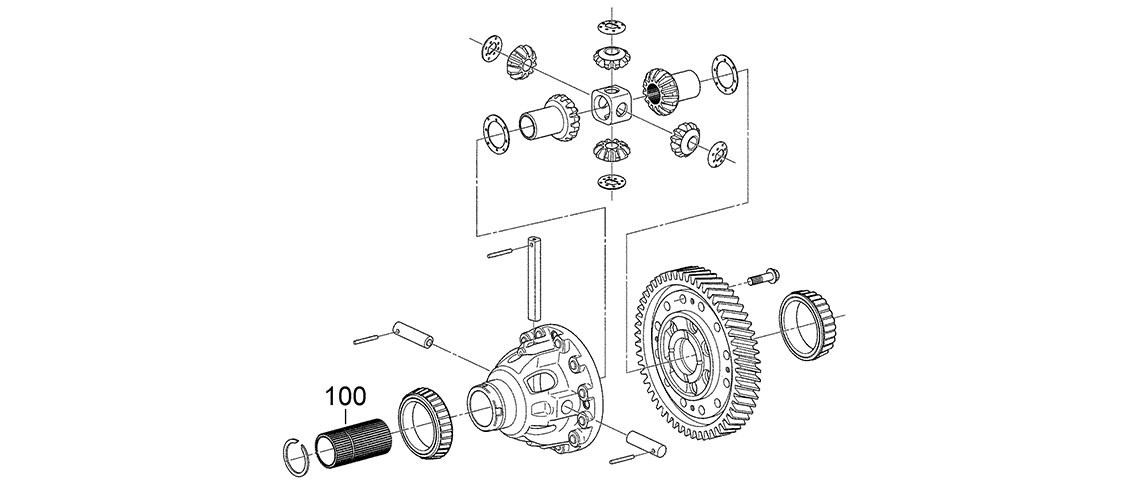

M

Diff Assy Awd Units

100

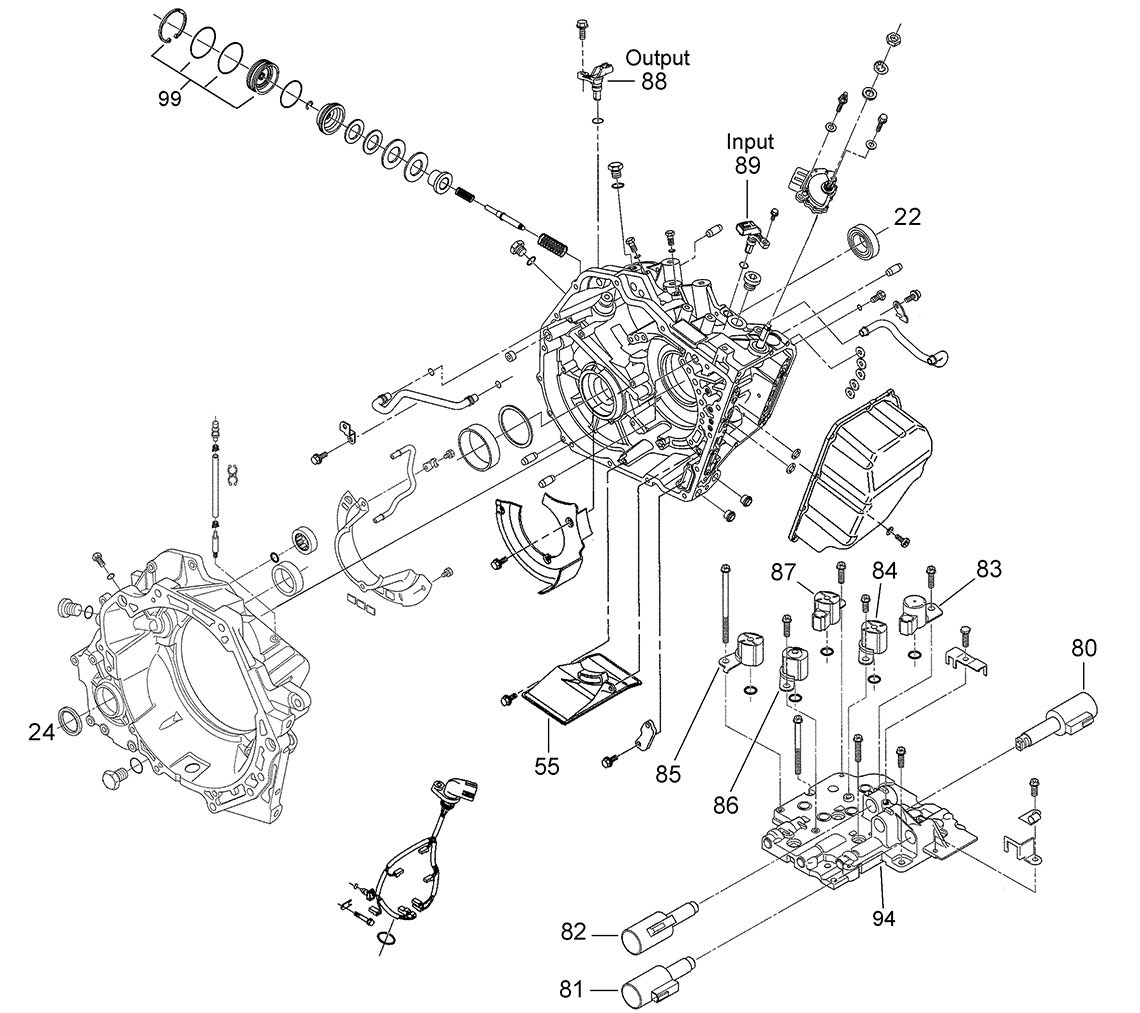

N

87
22
89
84
80
81
88
86
24
94
99
83
55
85
82

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74010K Overhaul Kit AW55-50SN, AF33-35, RE5F22A Transtec 99-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74132K Valve Body Gasket Kit 99-ON 1
NI 74110 Valve Body Cover Gasket 99-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
10A 74160 Pump O Ring 99-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 99-ON 1
22N 58214 Axle Seal Lefthand Opel 35 ID x 55 OD x 15.40mm 99-ON 1
22N 74210 Axle Seal Lefthand Volvo 40 ID x 63 OD x 9.00mm 99-ON 1
24N 58214 Axle Seal Righthand Opel 35 ID x 55 OD x 15.40mm 99-ON 1
24N 74211 Axle Seal Righthand Volvo 2WD 39 ID x 75.2 OD x 10.30mm 99-ON 1
24N 74212 Axle Seal Righthand Volvo AWD 61 ID x 75 OD x 8.00mm 99-ON 1
NI 74208 Hose to Case Cooler Seal 99-ON 1
NI 74220 4x4 Shaft Inner 34 ID x 43.5 OD x 7.00mm 99-ON 1
NI 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 99-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74252K Sealing Ring Kit 99-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74353K Friction Kit 05-ON 1
30B 74330 B2 Second Brake 160 OD x 1.70mm x 40T 99-ON 3
30B 74330A B2 Second Brake 160 OD x 1.90mm x 40T 99-ON AR
32B 74332 B1 Second Coast Brake (Vectra) 108 OD x 1.70mm x 34T 99-ON 3
32B 74332 B1 Second Coast Brake (Volvo) 108 OD x 1.70mm x 34T 99-ON 2
32B 74338 B1 Second Coast Brake 108 OD x 1.70mm x 34T 05-ON 2
34D 74312 B3 Low & Reverse Brake 160mm ODx 1.70mm 33T Grooved 160 ODx 1.70mm 33T Grooved 05-ON 3
34D 74334 B3 Low Reverse Brake (Vectra) 160 OD x 1.70mm x 33T 99-ON 4
34D 74334 B3 Low Reverse Brake (Volvo) 160 OD x 1.70mm x 33T 99-ON 3
36F 74336 C1 Forward Clutch 136 OD x 1.70mm x 49T 99-ON 4
38F 74337 C2 Direct Clutch Waved 108 OD x 1.50mm x 34T 99-ON 4
38F 74338 C2 Direct Clutch Flat 108 OD x 1.70mm x 34T 99-ON 4
40H 74340 C3 4-5 Clutch 114 OD x 1.75mm x 34T 99-05 4
40H 74341 C3 4-5 Clutch 114 OD x 1.50mm x 34T 05-ON 5
42J 74342 B5 1-2 Reverse Brake 141 OD x 1.70mm x 47T 99-ON 6
NI 74351K FRICTION KIT (AW55-50SN)

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31B 74370 B2 Second Brake 141 ID x 1.80mm x 10T 99-ON 2-3
31B 74370A B2 Second Brake 141 ID x 2.50mm x 10T 99-ON AR
31B 74370B B2 Second Brake 141mm 141 ID x 3.60mm x 10T 99-ON AR
31B 74370C B2 Second Brake 141 ID x 4.00mm x 10T 99-ON AR
33B 74360 B1 Second Coast Brake 91 ID x 1.80mm x 8T (Volvo) 99-ON 2
35D 74372 B3 Low Reverse Brake 144 ID x 1.80mm x 13T 99-ON 2
37F 74361 C1 Forward Clutch 114 ID x 1.80mm x 12T 99-ON 4
37F 74361A C1 Forward Clutch 114 ID x 1.95mm x 12T 99-ON 4
39F 74366 C2 Direct Clutch 91 ID x 1.80mm x 12T 99-ON 4
41H 74368 C3 4-5 Clutch 91 ID x 1.80mm x 18T 99-ON 4
41H 74369 C3 4-5 Clutch 91 ID x 2.5mm x 18T 99-ON Alt
43J 74378 B5 1-2 Reverse Brake 124 ID x 1.80mm x 12T 99-ON 6
45B 74390 B2 Second Brake Backing Plate 141 ID x 3.80mm x 10T 99-ON 1
47D 74392 B3 Low Reverse Brake 144 ID x 4.40mm x 13T 99-ON 2
49F 74396 C2 Direct Clutch Backing Plate 91 ID x 3.60mm x 12T 99-ON AR
49F 74396A C2 Direct Clutch Backing Plate 91 ID x 3.80mm x 12T 99-ON AR
51H 74398 C3 4-5 Clutch Backing Plate 91 ID x 4.00mm x 18T 99-ON 1
52J 74399 B5 1-2 Reverse Brake Apply Plate 124 ID x 5.10mm x 12T 99-ON 1
52J 74399A B5 1-2 Reverse Brake Apply Plate 124 ID x 5.20mm x 12T 99-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74406K Bush Kit 99-ON 1
Kit 74407K Bush Kit 9 Pieces 05-ON 1
NI 73410 Pump Bush 38 ID x 41.2 OD 99-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
59B 74478 Pump to B1 Hub 3 tang Thrust 99-ON 1
60B 74480 B1-B2 Hub Thrust 56 ID x 77 OD 99-ON 1
61B 74482 B2 Hub to Counter Gear Thrust 99 x 56mm 99-ON 1
68J 74494 Underdrive Planet Thrust Front 66 ID x 77 OD 99-ON 1
69J 74494 Underdrive Planet Thrust Rear 66 ID x 77 OD 99-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50H 74506 B4 Band (52mm Wide) 99-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55N 74554 Filter Volvo & Renault 99-ON 1
55N 74556 Filter Vectra & Saab 99-ON 1
55N 74558 Filter Captiva & Epica 06-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
73F 74584 Direct Piston 99-ON 1
74F 74588 Forward Piston 99-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
NI 74660 B5 Control Valve Spring 99-ON 1

electrical components

Transmission Code & Vehicle Details required when ordering these parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74716K Re-manufactued SLS, SLT & SLU Solenoid Set Early with Short Solenoids 99-01 1
Kit 74718K Remanufactued SLS, SLT & SLU Solenoid Set Early with Long Solenoids 99-01 1
80N 74722 Line Pressure Solenoid SLT (Blue) up to Code 02E Modification Required 99-5/02 1
80N 74722 Line Pressure Solenoid SLT (Blue) Code 02E on 6/02-ON 1
81N 74724 Lock Up Solenoid SLU (Black) 99-ON 1
82N 74728 Shift Pressure Control Solenoid SLS (Green) up to Code 02E Modification Required 99-5/02 1
82N 74728 Shift Pressure Control Solenoid SLS (Green) Code 02E on 6/02-ON 1
83N 74731 S1 Solenoid Reverse 1st Shift 99-01 1
84N 74732 S2 Solenoid Grey Connector 2-3, 3-4 Shift Volvo & Renault 99-ON 1
84N 74733 S2 Solenoid Black Connector 2-3, 3-4 Shift Holden, Opel, Saab & Vauxhall 99-ON 1
85N 74734 S3 Solenoid 1-2, 2-3, Reverse Shift 99-ON 1
86N 74736 S4 Solenoid 3-4, 4-5 Shift 99-ON 1
87N 74738 S5 Solenoid Green Connector Reverse Shift 99-ON 1
88N 74740 Output Speed Sensor 2 Pins on wire (Volvo) 99-ON 1
88N 74742 Output Speed Sensor 2 Pins no wire (Vectra) 99-ON 1
88N 74744 Input & Output Speed Sensor Both on Long Wire (Volvo) 99-ON 1
88N 74748 Output Speed Sensor (Renault) 99-ON 1
89N 74742 Input Speed Sensor 2 Pins no wire (Vectra) 99-ON 1
89N 74746 Input Speed Sensor 2 Round Pins (Volvo) 99-ON 1
89N 74748 Input Speed Sensor (Renault) 99-ON 1
NI 74750 Wiring Harness Volvo Series 3 type will fit Series 2 01-ON AR
NI 74752 Wiring Harness Saab Two 16 Pin external connectors * 01-ON AR
NI 74754 Wiring Harness Ford 99-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74138K Valve Body Check Valve Kit 99-ON 1
Kit 74766K LPC Accumulator Piston Kit 99-ON 1
Kit 74784K Valve Body Ball Kit 99-ON 1
Kit 74788K O Ringed End Plug Kit 99-ON 1
Kit 74790K Oversized Pressure Regulator & Boost Valve (Requires Tool available by Special Order) 99-ON 1
Kit 74791K Main Boost Valve & Sleeve 99-ON 1
Kit 74792K Modulator Valve Capsule 99-ON 1
Kit 74793K Solenoid Relay Valve & Sleeve 99-ON 1
Kit 74794K Lock Up Relay Control Valve & Sleeve 99-ON 1
Kit 74795K Lock Up Control Valve & Sleeve 99-ON 1
Kit 74796K Secondary Regulator Valve & Spring Kit (Requires Tool available by Special Order) 99-ON 1
99N 74960 Servo Cover Cap & O Ring Kit 99-ON 1
NI 74770 Solenoid Retaining Bracket For use with SLS & SLT on Vehicles Before 2002 if Required 99-02 AR
NI 74775 Valve Body Accumulator Plug 99-ON AR
NI 74798K B4 Relese Valve Kit 99-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74800K Shaft Kit 99-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 74904 Pump Assembly 99-ON 1
91B 74914 B2 One Way Clutch Assembly 99-ON 1
92C 74918 Low Sprag Assembly 99-ON 1
93E 74931 Front Carrier & Sungear Assembly With one piece Sungear 99-ON 1
94N 74940 Front Valve Body Casting Early No Code on Original part use 74940 and 74731 99-0N 1
94N 74942 Front Valve Body Casting Late A Code on Original part use 74942 and 74731 99-ON 1
95F 74922 C1/C2 Drum (Input) 99-ON 1
97J 74982 B5 1-2 Reverse Carrier Gear Assembly 99-ON 1
98K 74988 End Over Assembly Renault 99-ON 1
100M 74989K 4 x 4 Splined Stub Shaft 99-ON 1
972H 74972U C3 Drum 99-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
NI 74952 Valve Body OEM Volvo & Renault 99-ON 1
NI 74952VBX Valve Body Reman 99-ON 1
NI 74954 Valve Body OEM Holden Captiva 02-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T-F147741-TL4 Sonnax Tool Kit for 72784K & 74790K 99-ON 1
