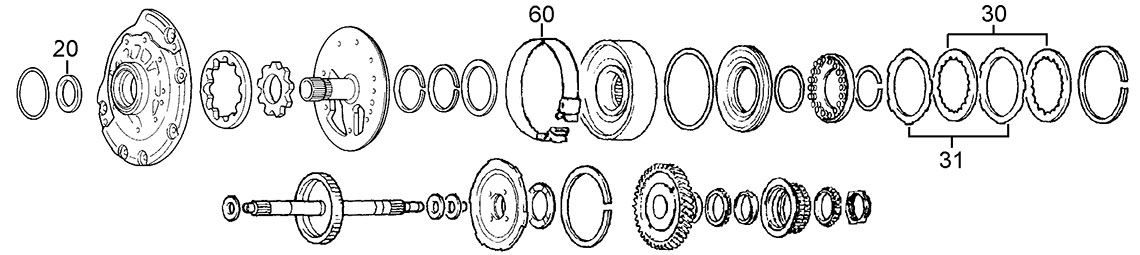

A

Pump, Reverse Clutch & Intermediate Drive Gear

60
20
31
30

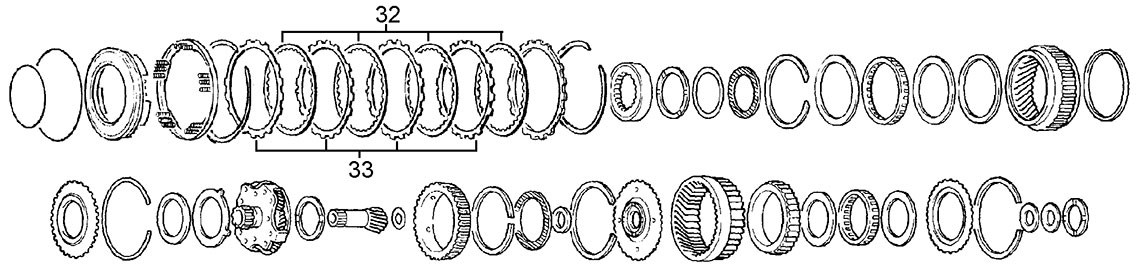

B

Low & Reverse Brake & Front & Rear Planets

33
32

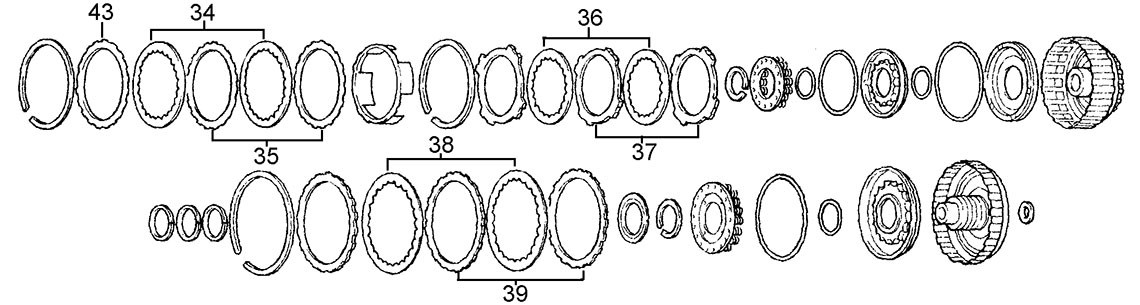

C

Overdrive, Coast & Forward Clutches

37
43
39
38
36
34
35

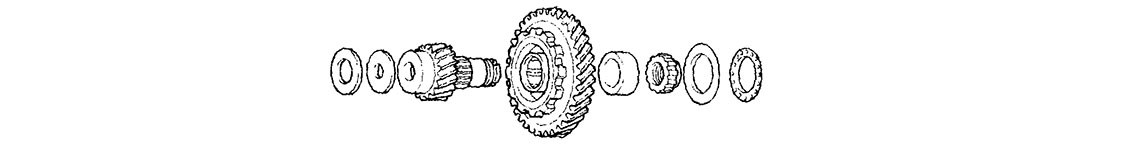

D

Counter Driven Gear

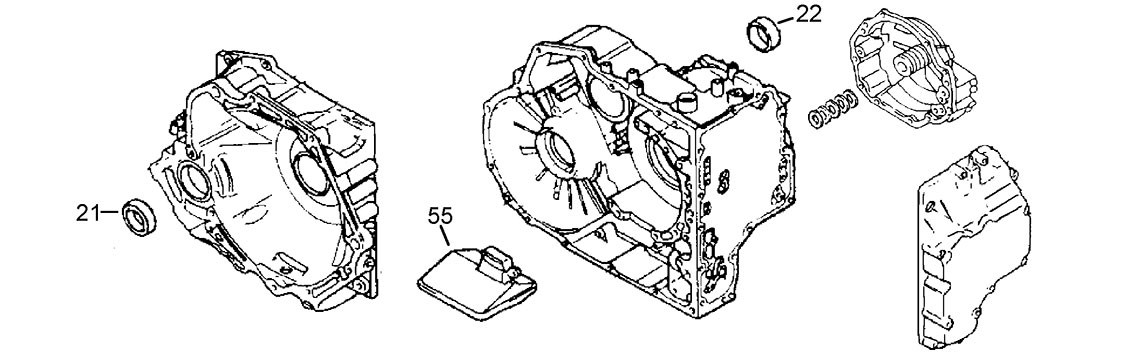

E

Case Filter & Valve Body Cover

21
55
22

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74002K Overhaul Kit AW60-40LE, AW61-40SN, AF13, AF17 Transtec 92-ON 1
Kit 74002KA Overhaul Kit AW60-40LE, AW61-40SN, AF13, AF17 Driveline 92-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74122K Valve Body Gasket Kit 60-40LE 92-ON 1
Kit 74124K Valve Body Gasket Kit 60-41SN 98-ON 1
NI 74102 Valve Body Cover Gasket 92-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 74162 Pump O Ring 92-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 92-ON 1
21E 74216 Axle Seal Lefthand 35 ID x 54.3 OD x 9.50mm 92-ON 1
22E 74216 Axle Seal Righthand 35 ID x 54.3 OD x 9.50mm 92-97 1
22E 74218 Axle Seal Righthand 35 ID x 58.3 OD x 9.50mm 98-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 74254K Sealing Ring Kit 92-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A 74320 Reverse (C2) Clutch 126 OD x 1.85mm x 44T 92-98 2
30A 74321 Reverse (C2) Clutch 133 OD x 1.85mm x 44T 98-ON 2
32B 74334 Low & Reverse (B2) Brake 160 OD x 1.70mm x 33T 92-ON 5
34C 74322 Overdrive (C0) Clutch 142 OD x 1.75mm x 51T 92-98 2-3
34C 74323 Overdrive (C0) Clutch 142 OD x 1.70mm x 51T 98-ON 3
36C 74324 Coast (C3) Clutch 126 OD x 1.70mm x 44T 92-ON 2
38C 74322 Forward (C1) Clutch 142 OD x 1.75mm x 51T 92-98 2-3
38C 74323 Forward (C1) Clutch 142 OD x 1.70mm x 51T 98-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A 74380 Reverse (C2) Clutch 104 ID x 1.80mm x 6T 92-98 2
31A 74380A Reverse (C2) Clutch Steel Plate 114 ID x 1.80mm x15T 92-ON Alt
33B 74384 Low & Reverse (B2) Brake 144 ID x 1.60mm x 15T 92-ON 4
35C 74381 Overdrive (C0) Clutch 119 ID x 1.80mm x 36T 92-ON 2
35C 74381A Overdrive (C0) Clutch 119 ID x 2.50mm x 36T 92-ON Alt
37C 74386 Coast (C3) Clutch 104 ID x 1.80mm x 16T 92-ON 1
39C 74382 Forward (C1) Clutch 119 ID x 1.85mm x 20T 92-ON 2
43C 74389A Overdrive (C0) Pressure Plate 3.60mm 119 ID x 3.60mm x 36T 92-ON 1
43C 74389B Overdrive (C0) Pressure Plate 3.80mm 119 ID x 3.80mm x 36T 92-ON Alt
43C 74389C Overdrive (C0) Pressure Plate 4.00mm 119 ID x 4.00mm x 36T 92-ON Alt

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
NI 73410 Pump Bush 38 ID x 41.2 OD 92-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60A 74502 B1 Brake Band 92-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 74560 Filter 92-ON 1

Transmission must be disassembled to fit Filter

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 74707 Lock Up Solenoid On-Off 92-98 1
NI 74708 Lock Up Solenoid PWM 98-ON 1
NI 74710 1-2/3-4 Shift Solenoid 95-ON 1
NI 74710 2-3 Shift Solenoid 95-ON 1
NI 74712 Neutral Control Solenoid 99-ON 1
NI 74714 Input Speed Sensor Small Black Sensor Located on lower back of the case 92-ON 1
NI 74715 Output Speed Sensor Large Grey Sensor Located on the upper middle of the case 92-ON 1

Pressure Control Solenoid Not Available

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
