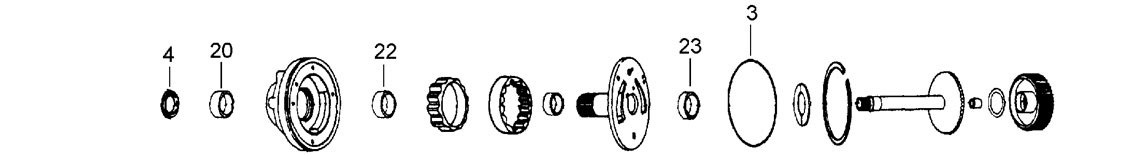

A

Pump

4
20
3
22

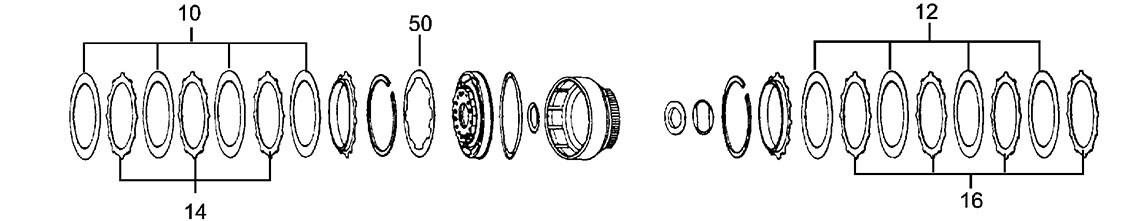

B

Forward & High & Reverse Clutches

14
16
12
10
50

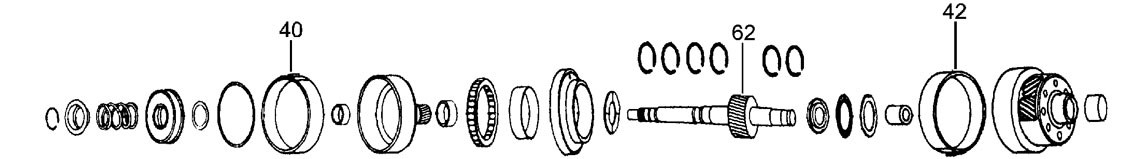

C

Sungear & Planet Set

42
62
40

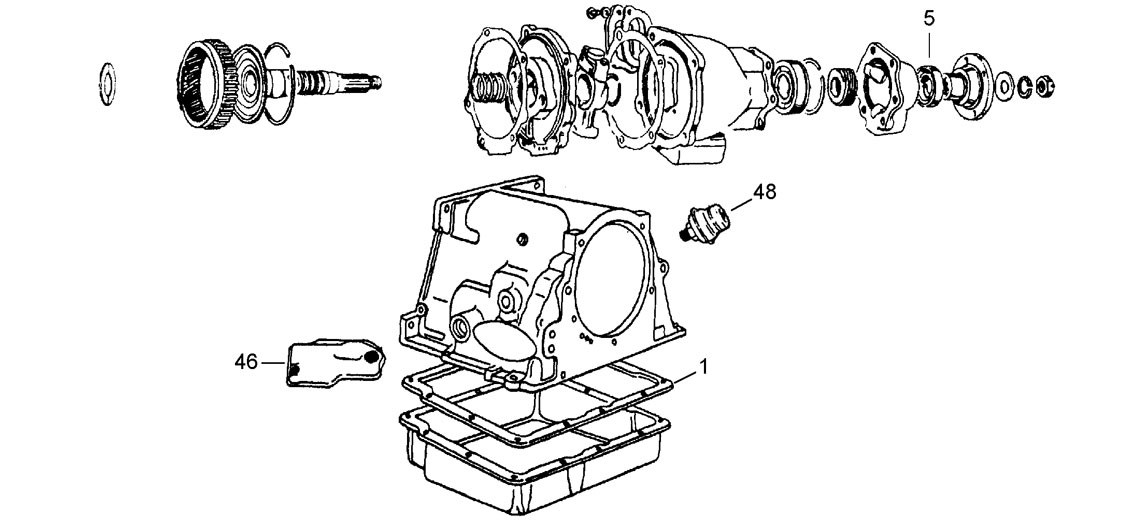

D

Case & Output Shaft

48
46
5
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 41006K Overhaul Kit Model 8 & Rambler Transtec 62-71 1
Kit 41006K Overhaul Kit Model 12. Does not contain Extension Housing Seal 41212 for Jaguar Transtec 67-71 1
Kit 41006K-1 Gasket & Rubber Kit Models 8 & 12 Transtec 62-71 1
Kit 41006KA Overhaul Kit Model 8 Driveline 62-71 Alt
Kit 41007KA Overhaul Kit Model 12 Precision 62-71 Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1D 41100 Pan Gasket 62-71 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
3A 41152 Front Pump O Ring 62-71 1
NI 44158 Detent Connector to Case O Ring Model 12 67-71 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
4A 41200 Front Pump Seal Model 8 & 12 48 ID x 68.3 OD x 9.5mm 62-71 1
5D 41212 Extension Housing Model 12 Jaguar Only 53 ID x 77.8 OD x 13.00mm 67-71 1
5D A99222 Extension Housing Seal (DG) 38 ID x 62.2 OD x 12.50mm 62-71 1
NI 44210 Selector Shaft Model 8 & 12 18.5 ID x 27.2 OD x 5.30mm 62-71 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
10B 41310 Forward (Front) .058” 133.35 OD x 1.47mm x 43T 62-71 4-5
12B 41310 High & Reverse (Rear) .058” 133.35 OD x 1.47mm x 43T 62-71 4-5
12B 41318 High & Reverse Bronze Model 8 133.35 OD x 1.55mm x 45T 62-66 AR
NI 41312 Forward & High & Reverse .088” 133.35 OD x 2.24mm x 45T 62-71 AR
NI 41314 Forward & High & Reverse .077” 133.35 OD x 2.00mm x 43T 67-71 AR
NI 41314A Forward & High & Reverse .079' 133.35 OD x 2.00mm x 45T 67-71 AR
NI 41316 Forward & High & Reverse .098” 133.35 OD x 2.50mm x 43T 62-71 AR

The Following Plates can be used selectively to achieve correct Clearances if Required.

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
14B 41360 Forward (Front) .070” 99.3 ID x 1.75mm x 54T 62-71 3-4
14B 41360X Forward (Front) Oversize .090” 99.3 ID x 2.30mm x 54T 62-71 AR
16B 41362 High & Reverse (Rear) 99.3 ID x 1.73mm x 50T 62-71 5

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
20A 41432 Front Pump Bush 49.5 ID x 52.4 OD x 14.50mm 62-71 1
NI 21421 High Clutch Drum Bush 62-71 1
NI 41428 Output Support 62-71 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
40C 41503 Intermediate (Front) Centre Lug Thick Lining 62-66 1
40C 41508 Intermediate Band Flex Replaces Solid Straight Ears 67-71 1

Some Listed Bands May Only Be Available Relined & by Special Order

filters

NO PART # DESCRIPTION SIZE YEARS QTY
46D 41558 Filter, BorgWarner Model12 62-71 1
46D 41559 Filter Model 8 62-66 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
48D 21600 Modulator Model 12 Rambler 70-ON 1
48D 41600 Modulator 62-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
50B 41670 Forward Clutch Diaphragm Spring 62-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 41705 Case to Solenoid Connector 67-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
62C 41982 Primary Sungear (Model 8) 62-71 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49994-04 Transmission ATF Type F, 4 Litre Pack 62-71 AR
