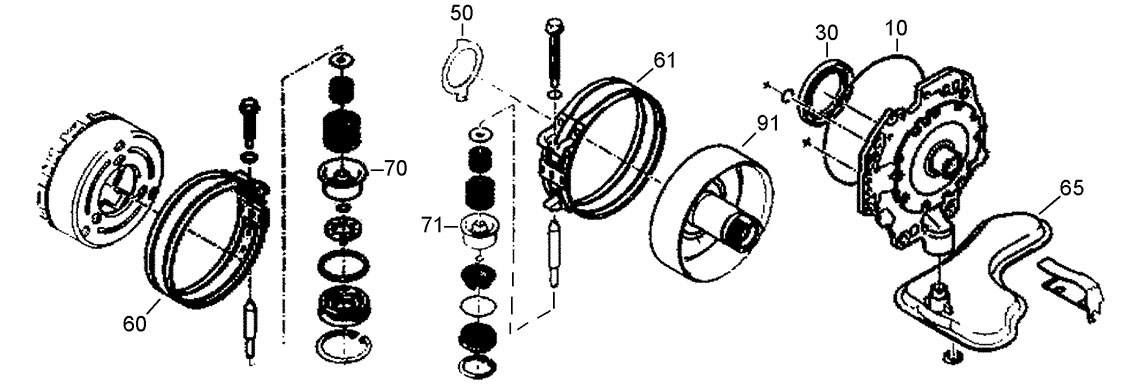

F2 & F3 Brake Assemblies, Oil Pump And Filter

71
65
60
70
61
30
91
50
10

B

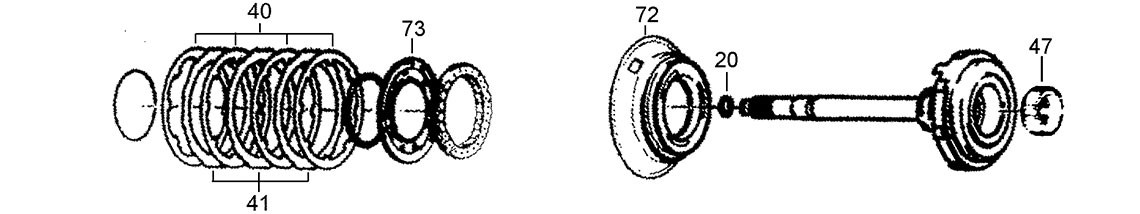

E1 Clutch

41
40
20
47
73
72

C

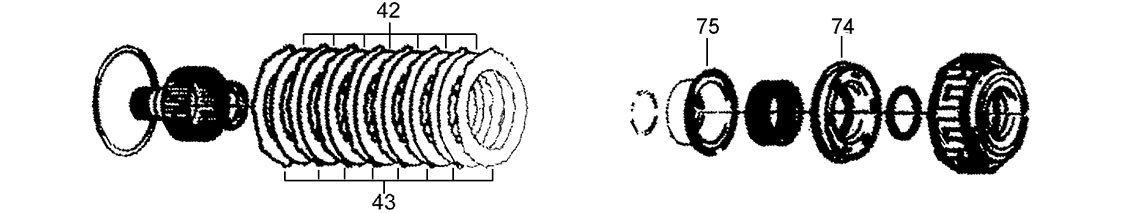

E2 Clutch

42
43
74
75

D

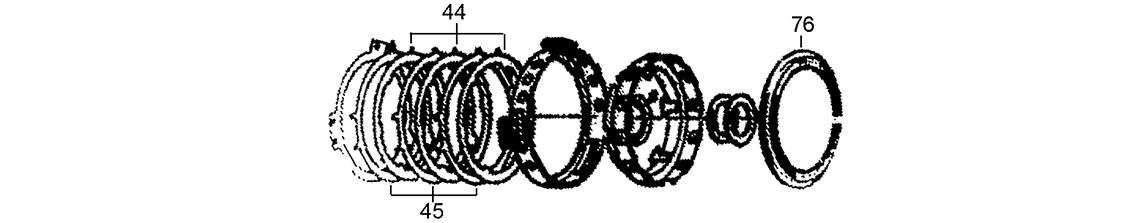

F1 Brake

45
44
76

E

Middle Shaft, Primary Gear & Drive Pinion & Planets

92
58

F

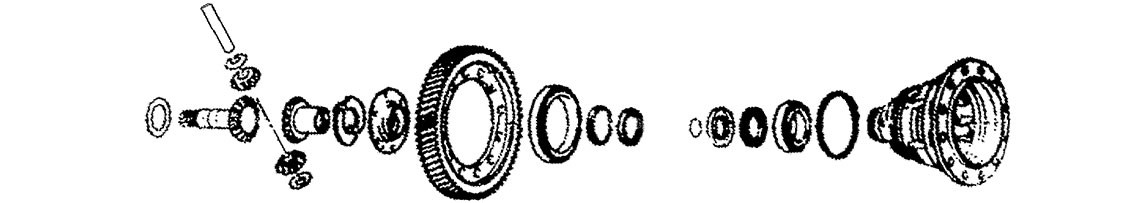

Differential Assembly


G

Sensors And Connectors, Shift And Park Linkage & Valve Body Assembly

944
83
82
84
86
88
82
85
80
81

H

Transmission Case

2
25
26
24
3
98
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90000K Overhaul Kit Renault DPO Citroen & Peugeot AL4* 99-ON 1
Kit 90002K Overhaul Kit With OEM Rings 99-ON 1

* Kit does not contain Bonded Pistons, Metal Case & Cover Gasket or Centre Bowl Gasket

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1H 90100 Valve Body Cover Gasket 99-ON 1
2H 90115 Rear Cover Gasket Metal & Rubber 99-ON 1
3H 90110 Metal Case Gasket (May also require 90765) 99-ON 1
3H 90112 Metal Case Gasket Citroen (May also require 90765) 99-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
10A 90160 Pump O Ring 99-ON 1
NI 90162 Pump Bolt O Ring 99-ON 10
NI 90164 Band Anchor Bolt O Ring 99-ON AR
NI 90170 Heat Exchanger Seal Inner 99-ON 1
NI 90172 Heat Exchanger Seal Outer 99-ON 1
NI 90180 Valve Body to Case O Ring 99-ON 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
30A 90200 Converter Seal 55 ID x 72 OD x 6.50mm 99-ON 1
NI 90205 Selector Shaft Seal 12 ID x 22.1 OD x 9.10mm 99-ON 1
NI 90210 Axle Seal Lefthand Inner 50 ID x 61 OD x 6.10mm 99-ON 1
NI 90212 Axle Seal Lefthand Outer 40 ID x 54.40 OD x 6.80mm 99-ON 1
NI 90214 Axle Seal Righthand 28 ID x 56 OD x 8.00mm 99-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90260K Sealing Ring Kit, O/E Style 99-ON 1
20B 90260 Input Shaft Sealing Ring 99-ON 1
24H 90268 E2 Sealing Ring (OEM) 99-ON 1
25H 90270 E1 Supply Sealing Rings (OEM) 99-ON 2
25H 90271 Sealing Ring E1 Supply Overlap Joint 99-ON 1
25H 90272 Sealing Ring E1 Supply (DPO) Updated 99-ON 1
26H 90268 Accumulator Inner (OEM) 99-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90300K Friction Kit Exedy 99-ON 1
40B 90310 E1 Friction Internal Teeth 120 ID x 160 OD x 1.60mm x 8T 99-ON 3
41B 90311 E1 Friction External Teeth Early with Wedge Teeth 133 ID x 165 OD x 1.60mm x 12T 99-ON 3
41B 90312 E1 Friction External Teeth Late with Square Teeth 133 ID x 165 OD x 1.60mm x 12T 99-ON 3
42C 90314 E2 Friction Internal Teeth 78 ID x 118 OD x 1.60mm x 20T 99-ON 7
43C 90316 E2 Friction External Teeth 82 ID x 124 OD x 1.60mm x 8T 99-ON 7
44D 90318 F1 Friction Internal Teeth 137 ID x 171 OD x 1.60mm x 6T 99-ON 3
45D 90320 F1 Friction External Teeth 146 ID x 199 OD x 1.60mm x 6T 99-ON 3

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90400K Bush Kit 99-ON 1
Kit 90405K Stator Bush Kit 99-ON 1
47B 90420 E1 Clutch Drum Bush 99-ON 1
NI 90410 Pump Bush 99-ON 1
NI 90412 Pump Bush Oversize 99-ON Alt

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
50A 90460 Plastic Thrust Washer 2 Tang 48 ID x 63mm OD 99-ON 1
58E 90468 Hexagonal Nut Thrust 99-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60A 90500 F2 Band 99-ON 1
61A 90500 F3 Band 99-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
65A 90550 Filter 99-ON 1

Transmission must be Disassembled to change Filter

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90571KA Piston Kit 99-ON Alt
70A 90582 F2 Servo Piston 99-ON 1
71A 90584 F3 Servo Piston 99-ON 1
72B 90572 E1 Moulded Piston 99-ON 1
73B 90574 E1 Accumulator Piston 99-ON 1
74C 90576 E2 Moulded Piston 99-ON 1
75C 90578 E2 Accumulator Piston 99-ON 1
76D 90580 F1 Moulded Piston 99-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
80G 90700 EPC (Pressure Control) Solenoid 99-ON 1
81G 90700 Lock Up Solenoid 99-ON 1
82G 90702 Shift Solenoid 99-ON 6
83G 90710 Range Switch Megane, Clio & Scenic 99-ON 1
84G 90712 Valve Body Loom Megane, Clio & Scenic 99-ON 1
86G 90718 Input Speed Sensor Megane, Clio & Scenic 99-ON 1
88G 90722 Output Speed Sensor Round Connector 99-ON 1
88G 90724 Output Speed Sensor Flat Connector 02-ON 1
NI 90714 Press Sensor 99-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 90755 Remote Cooler Adaptor Kit Enables fitting of an Auxilliary oil Cooler** 99-ON 1
Kit 90794 Oversized Pressure Regulator Valve Kit * 99-ON 1
3H 90765 Late Case Gasket Bowl Citroen (Use with 90110 & 90112) 02-ON 1
92E 90770 Primary Gear Assembly Nut 99-ON 1
NI 90758 Cooler Bolt Washer (Copper/Rubber) 99-ON 1
NI 90760 F3 (Front) Band Anti Rattle Clip 99-ON 1
NI 90760 F3 (Front) Band Anti Rattle Clip 99-ON 1

* Reamer Required
** Also requires 49407 Cooler

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
98H 90960 End Cover 99-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
944G 90942 Valve Body Assembly (Exchange) with late solenoids Renault 99-ON 1
944G 90944 Valve Body (Rebuilt) DPO Late NDTH Type 99-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 Lubegard Complete Full Synthetic 946ml Bottle 99-ON AR
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 99-ON AR
NI 49991-20 Lubegard Complete Full Synthetic 20 Litre Pack 99-ON AR
NI 49991-22 Lubegard Complete Full Synthetic 22 Litre Pack 99-ON AR
