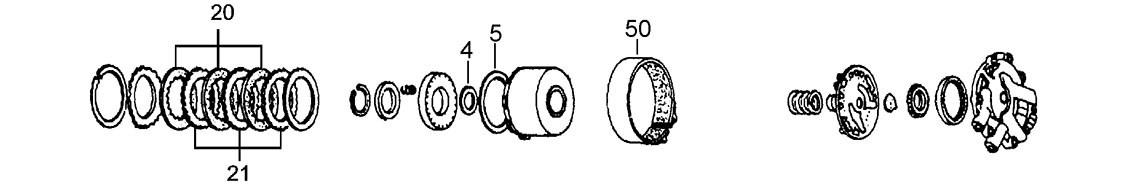

A

Pump & Direct Clutch

4
21
20
5
50

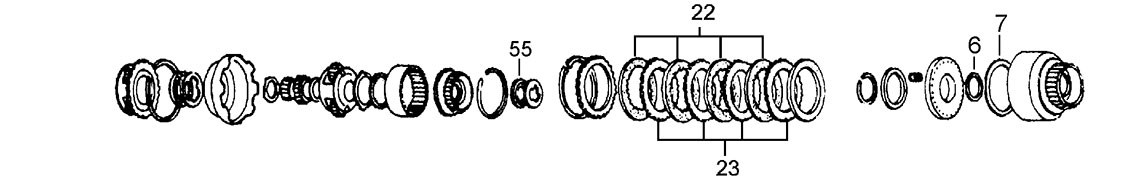

B

Forward Clutch & Planet Sets

6
7
23
55
22

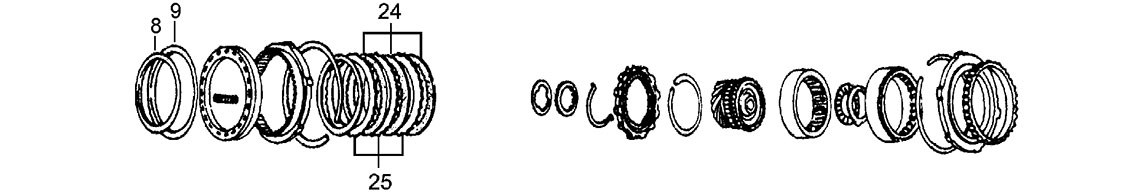

C

Low & Reverse Brake

24
8
9
25

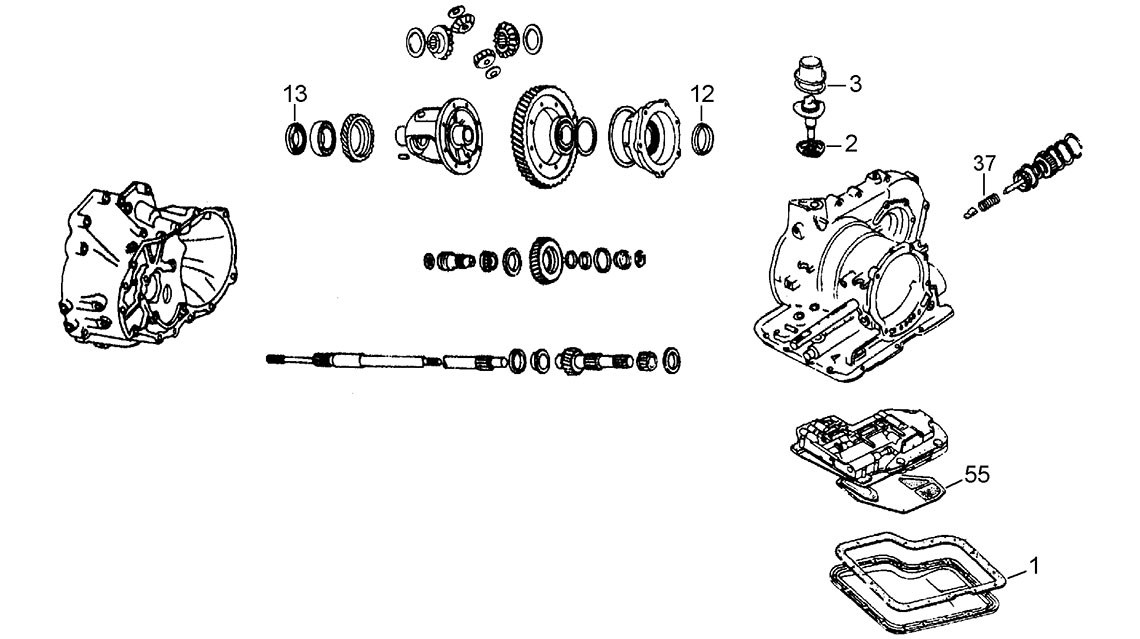

D

Pan, Filter & Case

2
3
37
12
1
13
55

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 65000K Overhaul Kit F3A Transtec 81-ON 1
Kit 65000KA Overhaul Kit, F3A Driveline 81-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1D 65100 Pan Gasket Except Isuzu Cork 81-ON 1
1D 65101 Pan Gasket Except Isuzu Duraprene 81-ON 1
2D 65112 Governor Adaptor to Case 81-ON 1
3D 65114 Governor Cover to Adaptor 81-ON 1
NI 65110 Pump Gasket 81-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
4A 65170 Direct Clutch Inner O Ring 81-ON 1
5A 65172 Direct Clutch Outer O Ring 81-ON 1
6B 65170 Forward Clutch Inner O Ring 81-ON 1
7B 65172 Forward Clutch Outer O Ring 81-ON 1
8C 65174 Low & Reverse Clutch Inner O Ring 81-ON 1
9C 65176 Low & Reverse Clutch Outer O Ring 81-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
12D 180210 Axle Seal Lefthand 35 ID x 56 OD x 9.00mm 81-ON 1
13D 180210 Axle Seal Righthand 35 ID x 56 OD x 9.00mm 81-ON 1
NI 65200 Converter Seal 45 ID x 62 OD x 9.00mm 81-ON 1
NI 67216 Speedo Housing 8 ID x 16 OD x 6.00mm 81-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60250K Sealing Ring Kit (Teflon) 81-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20A 60310 Direct 116 OD x 1.50mm x 44T 81-ON 3
22B 60310 Forward 116 OD x 1.50mm x 44T 81-ON 4
24C 65318 Low & Reverse 147 OD x 1.55mm x 62T 81-ON 3-5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21A 60360 Direct Oversize (2.0mm) 92 ID x 2.00mm x 28T 81-ON AR
21A 65360 Direct (1.5mm) 92 ID x 1.50mm x 28T 81-ON 3
23B 60360 Forward Oversize (2.0mm) 92 ID x 2.00mm x 28T 81-ON AR
23B 65360 Forward (1.5mm) 92 ID x 1.50mm x 28T 81-ON 4
25C 65366 Low & Reverse 81-ON 3-5

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 65400K Bush Kit 81-ON 1
NI 65412 Converter 37mm OD (Telstar/626) 37 OD 81-ON 1
NI 65420 Direct Drum Bush 81-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 60450K Plastic Selective Kit 81-ON 1
Kit 65450K Washer & Bearing Kit 81-ON 1
NI 56456 Park Gear Bearing 35 ID x 52.8 OD x 2.85mm 81-ON 1
NI 65468A Forward Drum to Pump 42mm OD Selective 1.2mm 1.20mm 81-ON AR
NI 65468B Forward Drum to Pump 42mm OD Selective 1.4mm 1.40mm 81-ON AR
NI 65468C Forward Drum to Pump 42mm OD Selective 1.6mm 1.60mm 81-ON AR
NI 65468D Forward Drum to Pump 42mm OD Selective 1.8mm 1.80mm 81-ON AR
NI 65468E Forward Drum to Pump 42mm OD Selective 2.0mm 2.00mm 81-ON AR
NI 65468F Forward Drum to Pump 42mm OD Selective 2.2mm 2.20mm 81-ON AR

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50A 60500 BAND JATCO (3/4N71B/F3A) OEM 81-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D 65550 Filter Non Lock Up 81-ON 1
55D 65552 Filter with Lock Up Converter 85-90 1
55D 65554 Filter Isuzu 85-86 1
55D 65555 Filter with 70mm Pipe 87-ON 1
55D 65556 Filter Small with No Pipe 89-93 1
55D 65558 Filter with 40mm Pipe 94-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 65550K Filter Kit Non Lock Up 81-ON 1
Kit 65552K Filter Kit with Lock Up Converter 85-90 1
Kit 65554K Filter Kit Isuzu 85-86 1
Kit 65555K Filter Kit with 70mm Pipe 87-ON 1
Kit 65556K Filter Kit Small with No Pipe 89-93 1
Kit 65558K Filter Kit with 40mm Pipe 94-ON 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
NI 60600 Modulator 81-93 1
NI 65604 Modulator Ford Fiesta With Bracket 81-ON 1
NI 65610 Modulator Mechanical Diesel 323 81-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
37D 65670 Servo Spring Telstar 81-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49910 Lubegard Red (10oz) 81-ON 1
NI 49999-04 ATF DX III 4 Litre 81-ON AR
