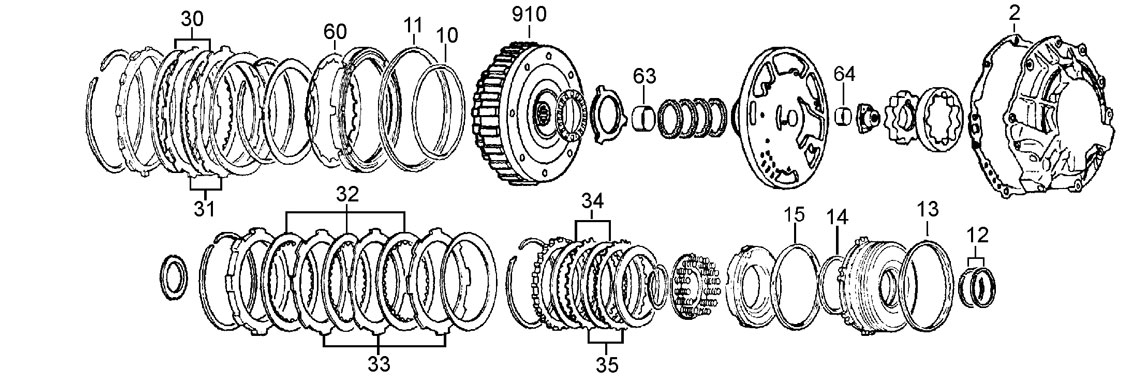

A

Reverse, Forward & Coast Clutches

2
63
33
35
32
30
34
31
64
10
12
14
11
13
15
60
910

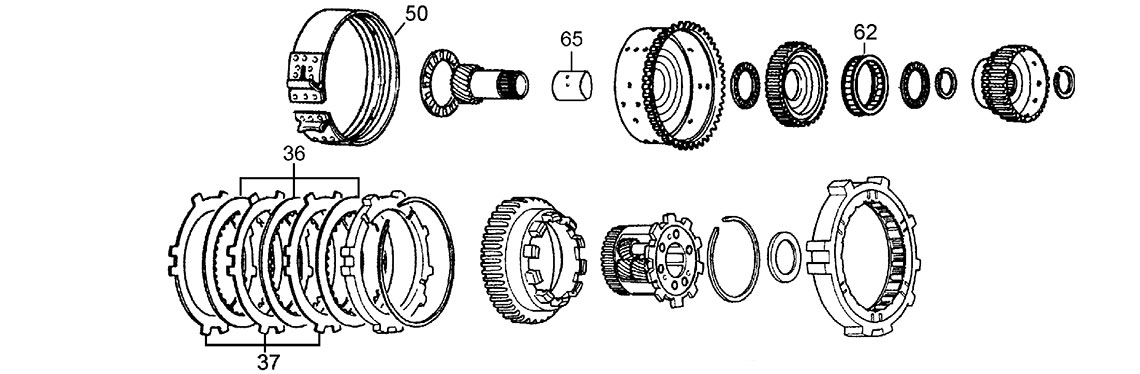

B

Low & Reverse Brake & Planet

37
62
36
65
50

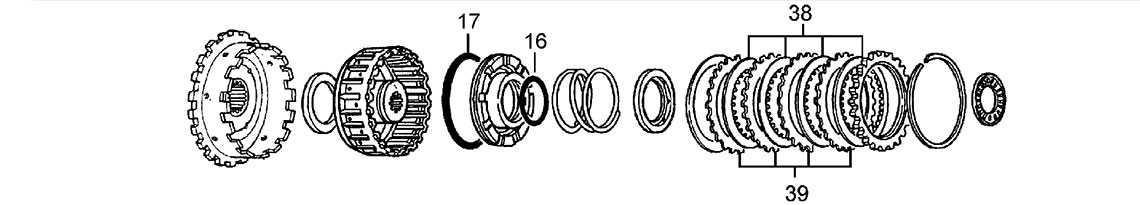

C

3-4 Clutch & Output Hub

39
38
16
17

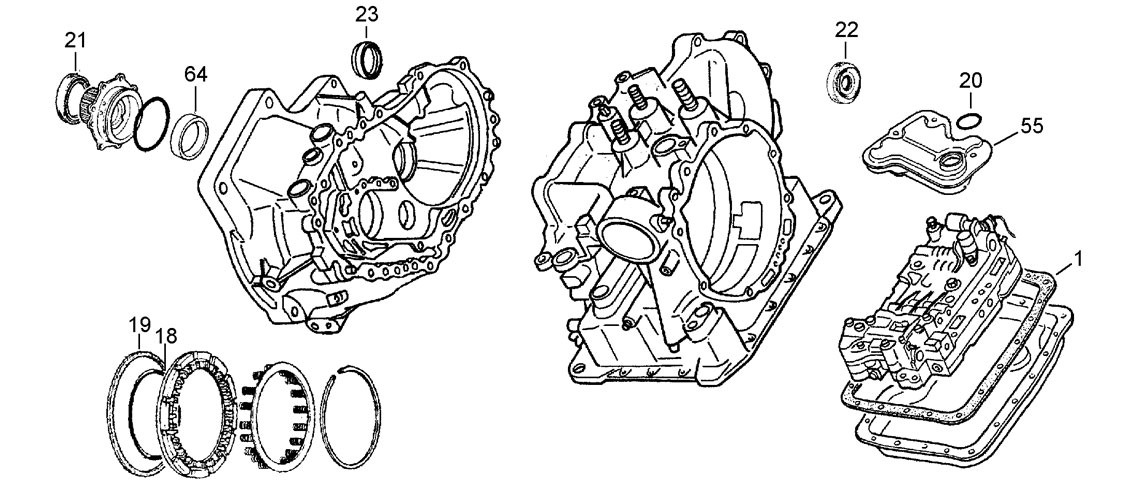

D

Case, Pan & Filter

20
22
21
23
55
64
1
18
19

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66000K Overhaul Kit F4A-EL, 4EAT, F4E-III Transtec 90-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66120K Valve Body Gasket Kit Mazda 90-96 1
Kit 66120K Valve Body Gasket Kit Ford 91-97 1
Kit 66120K Valve Body Gasket Kit Demio & Kia 97-ON 1
Kit 66122K Valve Body Gasket Kit Mazda 97-99 1
Kit 66122K Valve Body Gasket Kit Ford 98-ON 1
1D 66100 Pan Gasket (Cork) 90-ON 1
1D 66101 Pan Gasket (Duraprene) 90-ON 1
2A 66110 Pump Gasket 90-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66199K Seal Kit Accumulator 90-ON 1
10A 66174 Reverse Clutch Inner O Ring 90-ON 1
11A 66176 Reverse Clutch Outer Lip Seal 90-ON 1
12A 66285 Forward Clutch Inner Sealing Ring 90-ON 2
13A 66178 Forward Clutch Outer Lip Seal 90-ON 1
14A 66180 Coast Clutch Inner O Ring 90-ON 1
15A 66182 Coast Clutch Outer Lip Seal 90-ON 1
16C 67170 3-4 Clutch Inner O Ring 90-ON 1
17C 66172 3-4 Clutch Outer D Ring 90-ON 1
18D 66174 Low & Reverse Clutch Inner O Ring 90-ON 1
19D 66184 Low & Reverse Clutch Outer Lip Seal 90-ON 1
20D 66165 Filter O Ring 90-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
21D 67200 Converter Seal 68 ID x 88 OD x 8.00mm 90-ON 1
22D 180210 Axle Seal Lefthand 35 ID x 56 OD x 9.00mm 90-ON 1
23D 180210 Axle Seal Righthand 35 ID x 56 OD x 9.00mm 90-ON 1
NI 67216 Speedo Housing 8 ID x 16 OD x 6.00mm 90-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
30A 66318 Reverse Clutch 175 OD x 1.60mm x 45T 90-ON 2-3
32A 66314 Forward Clutch 126 OD x 1.60mm x 42T 90-ON 2-3
34A 66316 Coast Clutch 115 OD x 1.60mm x 16T 90-ON 4-5
36B 66312 Low & Reverse Brake 180 OD x 1.60mm x 48T 90-ON 3-5
38C 66310 3-4 Clutch 110 OD x 1.60mm x 22T 90-ON 3-4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A 66368 Reverse Clutch 159 ID x 1.60mm x 32T 90-ON 2-3
33A 66364 Forward Clutch 110 ID x 1.60mm x 32T 90-ON 2-3
35A 66366 Coast Clutch 97 ID x 1.60mm x 26T 90-ON 4-5
37B 66362 Low & Reverse Brake 166 ID x 1.60mm x 16T 90-ON 3-5
39C 66360 3-4 Clutch 1.8mm 92 ID x 1.80mm x 38T 90-ON AR
39C 66360S 3-4 Clutch 1.6mm 92 ID x 1.60mm x 38T 90-ON AR
39C 66361 3-4 Clutch 2.3mm 92 ID x 2.30mm x 38T 90-ON AR
39C 66361X 3-4 Clutch 3.3mm 92 ID x 3.30mm x 38T 90-ON AR

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66400K Bush Kit 90-ON 1
63A 66420 Pump Cover Rear (No Groove) 90-ON 1
64A 66422 Pump Cover Front (With Groove) 90-ON 1
65B 66424 Band Drum Bush 90-ON 1
NI 67410 Converter Bush 57mm OD 90-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
64D 66930 Transfer Gear Bearing 90-ON 2
NI 66930 Differential Bearing 90-ON 2

bands

NO PART # DESCRIPTION SIZE YEARS QTY
50B 66500 Band 90-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D 66550 Filter 90-ON 1
55D 66552 Filter Mazda 121 90-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66550K Filter Kit 90-ON 1
Kit 66552K Filter Kit Mazda 121 90-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
60A 66670 Reverse Clutch Diaphragm Spring 90-ON 1
62B 66650 Input Sprag 92-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66702K Solenoid Set 90-ON 1
NI 66700 1-2 Shift Solenoids 90-ON 1
NI 66705K 2-3 & 3-4 Shift Solenoids with wiring 90-ON 1
NI 66710 Lock Up Solenoid 90-ON 1
NI 66720 Pressure Control Solenoid F4E-III, F4A-AEL with no cable 98-ON 1
NI 66722 Pressure Control Solenoid Kia 98-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 66770K Pump Boost Valve Kit 90-ON 1
NI 66750 Retainer Converter Seal 90-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
NI 66800K Shift Kit F4A-EL 90-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
910A 66910 Reverse/Coast/Forward Drum (F4A-EL) 90-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49910 Lubegard Red (10oz) 90-ON 1
NI 49999-04 ATF DX III 4 LITRE 95-ON AR
