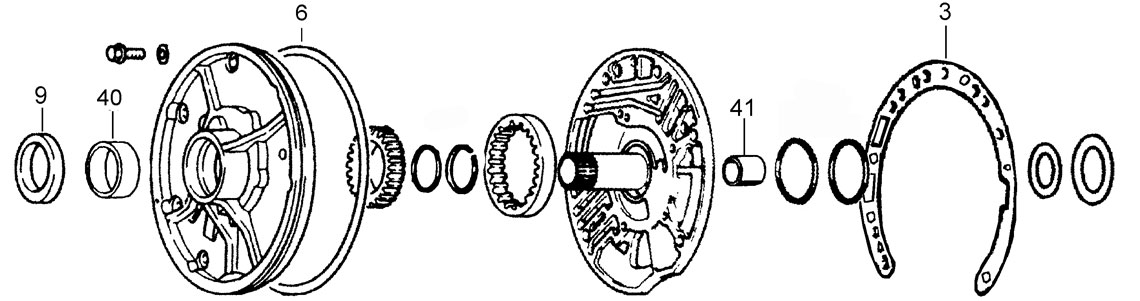

A

Pump

9
40
6
41
3

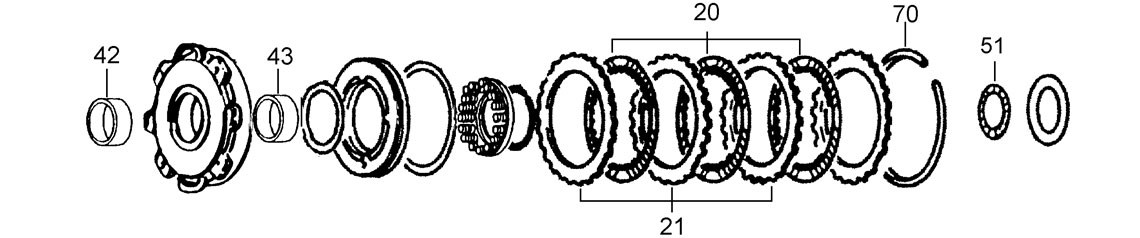

B

Direct Clutch

42
43
21
20
70
51

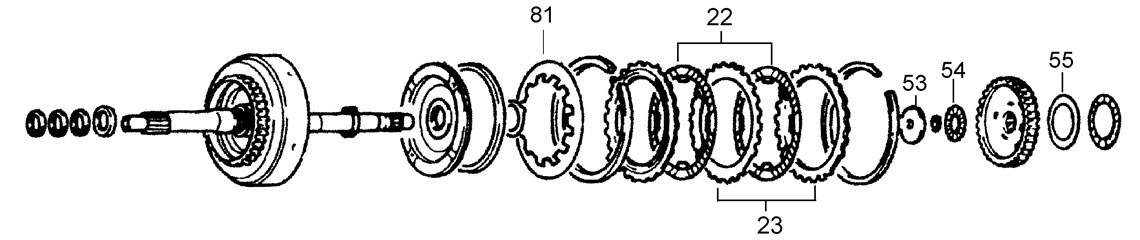

C

Forward Clutch

81
22
23
53
54
55

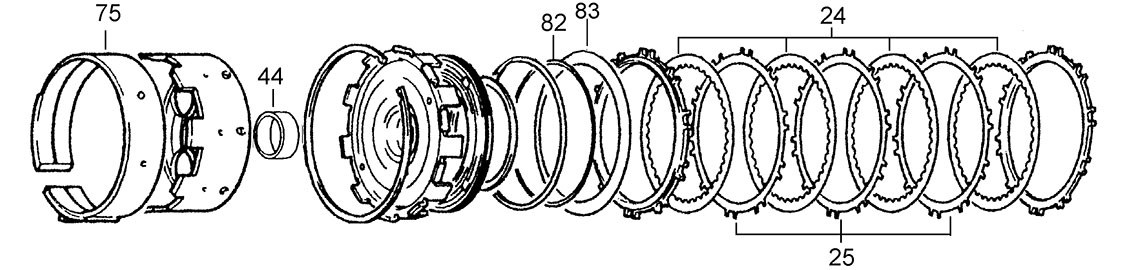

D

Band And Low & Reverse Clutch

75
44
82
83
25
24

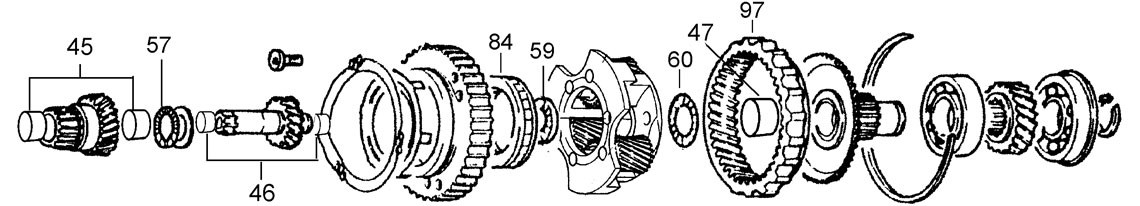

E

Planet Set & Output Shaft

45
57
46
84
59
60
47
97

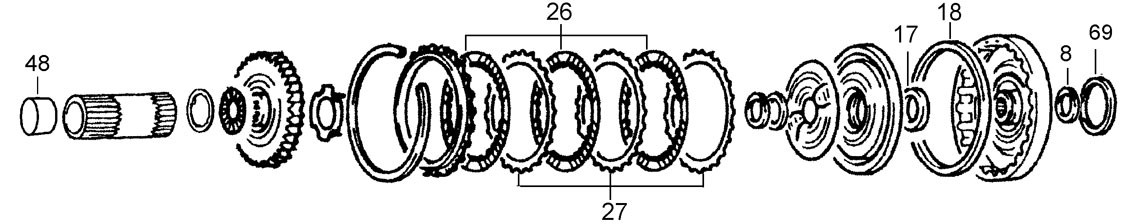

F

End Clutch (Overdrive)

48
26
27
17
18
8
69

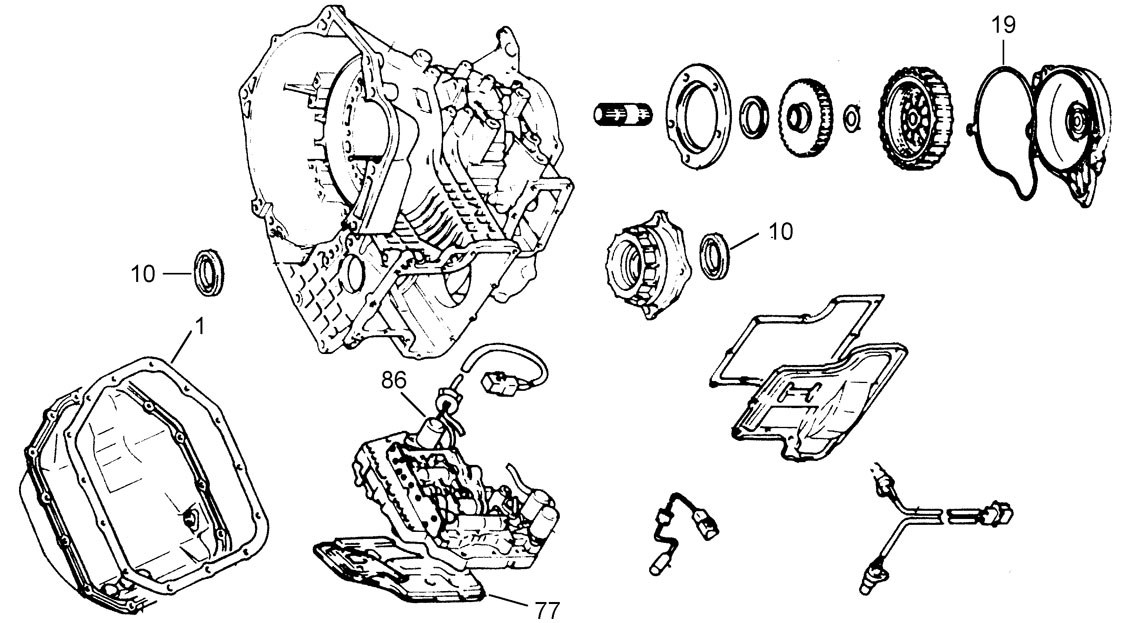

G

Case, Pan & Filter

10
86
77
10
19
1

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190000K Overhaul Kit 2WD F4A32. F4A33 Transtec 91-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190155K Pump Leak Kit 91-ON 1
1G 190100 Pan Gasket Cork 91-ON 1
1G 190101 Pan Gasket Duraprene 91-ON Alt
3A 190110 Pump Gasket 91-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180187K Overdrive Seal Kit Without Overdrive Cover O Ring 91-ON 1
Kit 190166K Servo D Ring Ring Kit 91-ON 1
Kit 190175K Forward & Direct Seal Kit 91-ON 1
Kit 190189K Overdrive Repair Kit 91-ON 1
6A 180160 Pump O Ring 91-ON 1
17F 190190 Overdrive Clutch Inner D Ring 91-ON 1
18F 180183 Overdrive Clutch Outer Lip Seal 91-ON 1
19G 190194 Overdrive Cover O Ring 91-ON 1
NI 190170 Forward Clutch Outer D Ring 114.80 x 3.40mm 91-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
8F 190230 Overdrive Clutch Housing Seal 13 ID x 20.9 OD x 3.50mm 91-ON 1
9A 180200 Front Pump Seal 43 ID x 60 OD x 9.00mm 91-ON 1
10G 180210 Axle Seal 2WD Left & Righthand 35 ID x 56 OD x 9.00mm 91-6/92 2
10G 190212 Axle Seal 2WD Left & Righthand 37 ID x 56 OD x 9.00mm 6/92-ON 2
10G 190214 Axle Seal 2WD with 4WS Left & Righthand 34 ID x 54 OD x 10/16.60mm 91-ON 2
NI 190220 Extension Housing Seal AWD 32 ID x 48 OD x 10.00mm 91-ON 1
NI 190240 Jackshaft Seal AWD, 4WS 30 ID x 45 OD x 7.00mm 91-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180254K Sealing Ring Kit (KM175-177) 93-99 1
Kit 190250K Sealing Ring Kit 91-ON 1
69F 180260 Overdrive Clutch Sealing Ring 91-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 180311 Direct Friction F4A32 127 OD x 1.90mm x 38T 91-ON 3
20B 190310 Direct Friction F4A33 137.9 OD x 1.70mm x 38T 91-ON 4
22C 180311 Forward Friction F4A32 127 OD x 1.90mm x 38T 91-ON 3
22C 190314 Forward Friction F4A33 137.9 OD x 1.70mm x 42T 91-ON 5
24D 180322 Low & Reverse Friction F4A32 152 OD x 1.85mm x 51T 91-ON 6
24D 190320 Low & Reverse Friction F4A33 157.6 OD x 1.70mm x 54T 91-ON 6
26F 180330 Overdrive 123 OD x 1.80mm x 40T 91-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190395K Transfer Clutch Kit Contains Frictions & Steels 91-ON 1
21B 180361A Direct F4A32 104.6 ID x 3.10mm x 24T 91-ON 3
21B 190360 Direct F4A33 104.6 ID x 2.20mm x 26T 91-ON 3
23C 180363 Forward F4A32 104.4 ID x 1.80mm x 24T 91-ON 3
23C 190364 Forward 26 Teeth 110.8 ID x 1.80mm x 26T 91-ON 5
25D 180382 Low & Reverse F4A32 134 ID x 1.0mm x 20T 91-ON 5
25D 180384 Low & Reverse F4A32 134 ID x 1.8mm x 20T 91-ON 5
25D 190370 Low & Reverse F4A33 142 ID x 1.00mm x 20T 91-ON 5
27F 180390 Overdrive All 106 ID x 0.80mm x 25T 91-ON 4
NI 190395K Transfer Clutch Kit 91-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180406K Bush Kit F4A32, W4A32 91-ON 1
Kit 190402K Bush Kit F4A33, W4A33 91-ON 1
40A 180410 Pump Bush 91-ON 1
41A 180424 Stator Support Bush 91-ON 1
42B 180413 Direct Drum Front Bush 91-ON 1
43B 180413A Direct Drum Rear Bush 91-ON 1
44D 180421 Centre Support Bush 91-ON 1
45E 180417 Secondary Sungear Bushes 91-ON 2
46E 180415 Primary Sungear Bushes 91-ON 2
47E 180425 Output Shaft 91-ON 1
48F 180415 Overdrive Shaft Bush 91-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
51B 180461 Forward to Direct Clutch Bearing 34.5 x 48 x 3.00mm 91-ON 1
53C 180468A Forward Hub Thrust Plate 37.9 ID x 22.6 OD x 3.80mm 91-ON 1
54C 180464A Forward Hub Bearing 91-ON 1
55C 180465 Forward Hub to Shell Plate 1.60mm 91-ON 1
57E 190466 Primary to Secondary Sungear Needle Bearing F/W4A33 91-ON 1
59E 180468B Sungear to Planet Needle Bearing F4A32 42.3 ID x 22.4 OD x 3.80mm 91-ON 1
59E 190470 Sungear to Planet Needle Bearing F4A33 91-ON 1
60E 190472 Planet to Output Shaft Bearing 54 ID x 36.5 OD x 3.50mm 91-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
75D 180502 Band F4A32, W4A32 91-ON 1
75D 190500 Band F4A33, W4A33 91-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
77G 190550 Filter 91-ON 1
77G 190551 Filter, F4A33-1 Hyundai Sonata V6 (Late) 91-ON Alt

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 190550K Filter Kit 91-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
70B 180630E Forward & Direct Circlip F4A32, W4A32 2.10mm 91-ON AR
70B 180630F Forward & Direct Circlip F4A32, W4A32 2.20mm 91-ON AR
70B 180630G Forward & Direct Circlip F4A32, W4A32 2.30mm 91-ON AR
70B 190630A Forward & Direct Circlip F4A33, W4A33 1.30mm 91-ON AR
70B 190630B Forward & Direct Circlip F4A33, W4A33 1.40mm 91-ON AR
70B 190630C Forward & Direct Circlip F4A33, W4A33 1.50mm 91-ON AR
70B 190630D Forward & Direct Circlip F4A33, W4A3 1.60mm 91-ON AR
70B 190630E Forward & Direct Circlip F4A33, W4A33 1.70mm 91-ON AR
70B 190630F Forward & Direct Circlip F4A33, W4A33 1.80mm 91-ON AR
70B 190630G Forward & Direct Circlip F4A33, W4A33 1.90mm 91-ON AR
70B 190630H Forward & Direct Circlip F4A33, W4A33 2.00mm 91-ON AR
70B 190630J Forward & Direct Circlip F4A33, W4A33 2.10mm 91-ON AR
70B 190630K Forward & Direct Circlip F4A33, W4A33 2.20mm 91-ON AR
70B 190630L Forward & Direct Circlip F4A33, W4A33 2.30mm 91-ON AR

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
81C 180656 Forward Clutch Diaphram Spring W4A32 Only 91-ON 1
82D 180672 Low & Reverse Spring Ring F4A32, W4A32 91-ON 1
82D 190670 Low & Reverse Spring Ring F4A33, W4A32 91-ON 1
83D 190680 Low & Reverse Return Spring 91-ON 1
84E 190650 Low Sprag F4A33 91-ON 1
84E 33650 Low Sprag F4A32 91-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180720K Solenoid Set 91-ON 1
86G 180702 Pressure Control Solenoid 91-ON 1
NI 180722 Transmission to Case Connector 91-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 190760 Idler Gear Lock Washer 91-ON 3

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
97E 190936 Annulus F4A33, W4A33 91-ON 1
