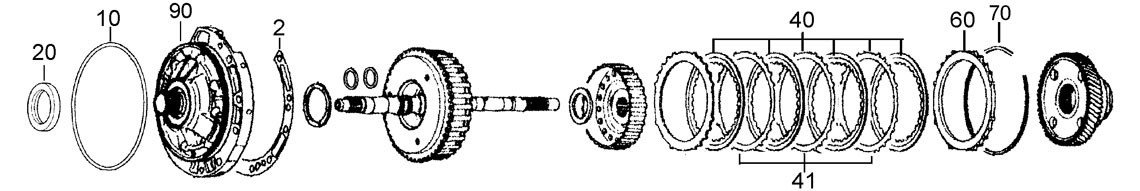

A

Pump & Underdrive Clutch

41
40
60
2
90
20
10
70

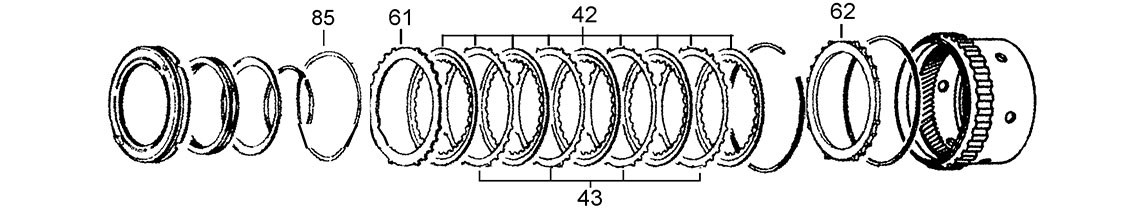

B

Low-Reverse Brake

43
42
61
62
85

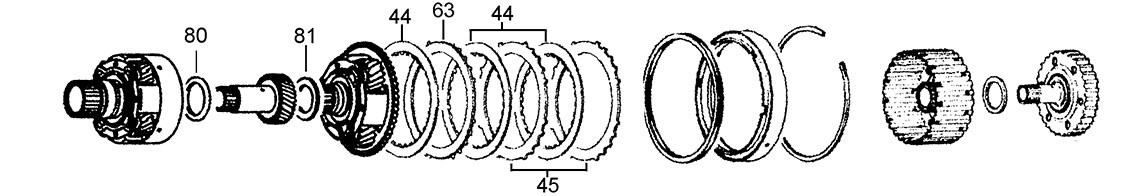

C

Second Brake

44
45
63
80
44
81

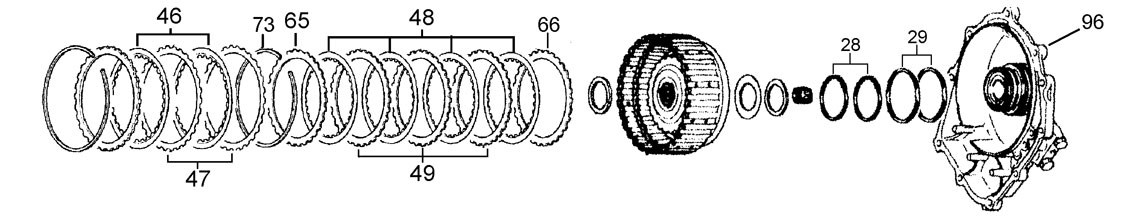

D

Reverse And Overdrive Clutches

49
46
48
47
66
73
96
29
28
65

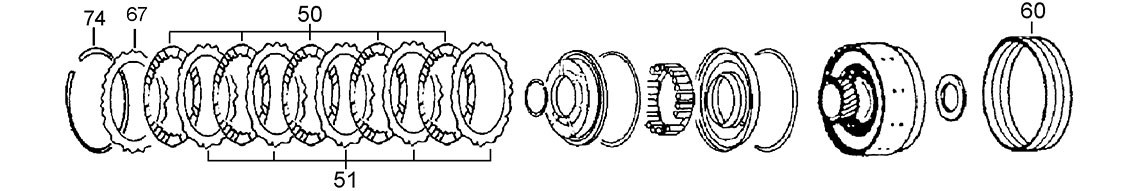

E

Direct Clutch (5 Speed)

60
50
74
67
51

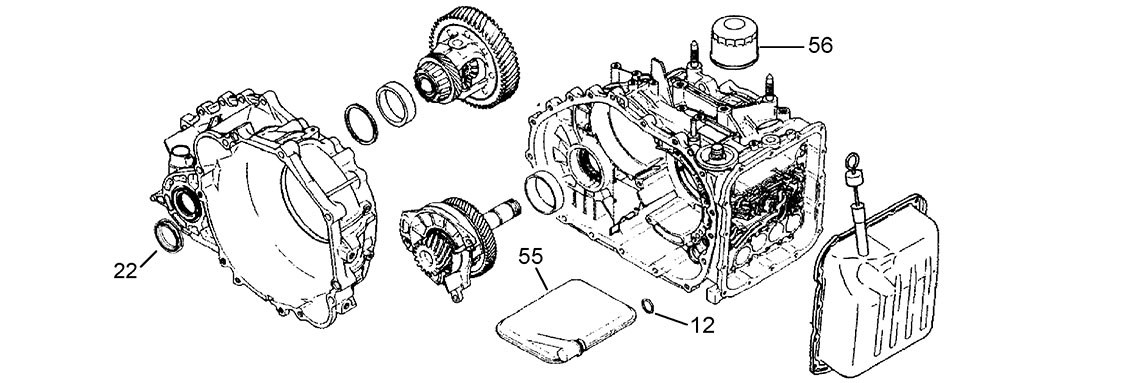

F

Case, Pan And Filters

55
56
22
12

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20002K Overhaul Kit F4A-51, W4A51 4 Speed Transtec 96-ON 1
Kit 20002KA Overhaul Kit F4A-51, W4A51 4 Speed Driveline 96-ON Alt
Kit 20010K Overhaul Kit F5A-51, W5A51 5 Speed Transtec 96-ON 1
Kit 20010KA Overhaul Kit F5A-51, W5A51 5 Speed Precision 96-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20002KM Master Kit (F4A51) 96-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
2A 20112 Pump Gasket 96-ON 1
NI 20102 Pan Gasket 96-ON 1
NI 20102A Pan Gasket 96-ON Alt
NI 20120 Valve Body Gasket 96-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20169K Underdrive Clutch Seal Kit 96-ON 1
Kit 20173K 2nd Brake Seal Kit 96-ON 1
Kit 20175K Reverse Seal Kit 96-ON 1
Kit 20177K Overdrive Clutch Seal Kit 96-ON 1
Kit 20185K Accumulator Piston Seal Kit F4A51, F5A51 96-ON 1
10A 20160 Pump O Ring 96-ON 1
12F 20164 Filter O Ring 96-ON 1
NI 20162 D Ring Accumulator (F4A51/V5A51) 96-ON 1
NI 20180 2nd Brake Feed Tube 13.5 OD x 33.50mm 96-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A 180200 Converter Seal 43 ID x 60 OD x 9.00mm 96-ON 1
22F 20210 Axle Seal 41 ID x 61.30 OD x 8.90mm 96-ON 2
NI 190240 Jackshaft Seal 4WD, 4WS 30 ID x 45 OD x 7.00mm 96-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20250K Sealing Ring Kit All 4 Speed 96-ON 1
Kit 20253K Sealing Ring Kit F5A51 96-ON 1
28D 20258 Overdrive Clutch 96-ON 2
29D 20260 Reverse Clutch 96-ON 2
NI 20258 Underdrive Clutch (Stator Support) 96-ON 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20302K Friction Kit F4A51 96-ON 1
Kit 20304K Friction Module, 5 Speed F/V5A51 96-ON 1
40A 20312A Underdrive Friction Plate F4A51 148 OD x 1.70mm x 30T 96-ON AR
40A 20328 Underdrive Clutch Friction Plate 148 OD x 1.80mm x 30T 96-ON 4
42B 20316 Low/Reverse Brake 179 OD x 1.80mm x 30T 96-ON 6
42B 20316A Low/Reverse Brake Friction Plate 96-ON Alt
44C 20320 2nd Brake 179 OD x 1.80mm x 30T 96-ON 3-4
44C 20320A 2nd Brake Friction Plate 96-ON Alt
46D 20324 Reverse Clutch 166 OD x 1.80mm x 30T 96-ON 2
46D 20324A Reverse Clutch Friction Plate 96-ON Alt
48D 20312A Overdrive Friction Plate (F4A51) 148 OD x 1.70mm x 30T 96-ON AR
48D 20328 Overdrive Clutch Friction Plate 148 OD x 1.80mm x 30T 96-ON 4
48D 20328D Overdrive Clutch Friction Plate, Exedy 148 OD x 1.70mm x 30T 96-ON Alt
50E 20330 Direct Clutch F5A-51 Only 121.9 OD x 1.80mm x 30T 96-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
41A 20362 Underdrive Clutch 123 ID x 1.80mm x 20T 96-ON 4
43B 20366 Low-Reverse Brake 160 ID x 1.00mm x 16T 96-ON 6
45C 20370 2nd Brake 153 ID x 2.50mm x 16T 96-ON 3
45C 27371 2nd Brake 153 ID x 3.90mm x 16T 96-ON 3
47D 20374 Reverse Clutch 153 ID x 1.80mm x 20T 96-ON 2
49D 20378 Overdrive Clutch 123 ID x 2.50mm x 20T 96-ON 4
49D 20378A Overdrive Clutch 123 ID x 3.00mm x 20T 96-ON AR
51E 20379 Direct Clutch F5A-51 Only 88 ID x 2.50mm x 20T 96-ON 5
60A 20382 Underdrive Clutch Pressure Plate 4.0mm 123 ID x 4.00mm x 20T 96-ON 1
61B 20387 Low-Reverse Reaction Plate 2.6mm stepped 153 ID x 2.60mm x 16T Stepped 96-ON 1
62B 20386 Low-Reverse Pressure Plate 6.0mm 153 ID x 6.0mm x 24T 96-ON 1
63C 20390 2nd Brake Pressure Plate 1.60mm 153 ID x 1.60mm x 16T 96-ON AR
63C 20390C 2nd Brake Pressure Plate 2.20mm 153 ID x 2.20mm x 16T 96-ON AR
63C 20390D 2nd Brake Pressure Plate 2.40mm 153 ID x 2.40mm x 16T 96-ON AR
63C 20390E 2nd Brake Pressure Plate 2.60mm 153 ID x 2.60mm x 16T 96-ON AR
63C 20390F 2nd Brake Pressure Plate 2.80mm 153 ID x 2.80mm x 16T 96-ON AR
63C 20390G 2nd Brake Pressure Plate 3.00mm 153 ID x 3.00mm x 16T 96-ON AR
65D 20397 Overdrive Pressure Plate (6mm) 123 ID x 6.00mm x 20T 96-ON 1
66D 20382 Overdrive End Plate (4mm) 123 ID x 4.00mm x 20T 96-ON 1
67E 20399 Direct Clutch P/Plate 4.00mm F5A-51 Only 88 ID x 4.00mm x 20T 96-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20402K Bush Kit (4 Speed) 96-ON 1
NI 20410 Pump Bush 96-ON 1
NI 20420 Pump Bush 43 ID x 46 OD x 13.80mm 96-ON Alt

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
80C 20466 Front Planet to Sungear Bearing 38.6 ID x 56.8 OD x 4.00mm 96-ON 1
81C 20470 Sungear to Low Reverse Annulus 38.5 ID x 55.3 OD x 3.90mm 96-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
60E 20510 Reduction Brake Band F5A-51 Only 96-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55F 20552 Internal Filter 96-5/99 1
55F 20554 Internal Filter 5/99-ON 1
56F 20560 Spin On External Filter 96-ON 1

Transmission must be Disassembled to replace Internal Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20590 Accumulator Piston Kit Contains Piston Viton D Ring & Guide Seal 06-ON 1-5

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
70A 20632G Underdrive Circlip 2.20mm 96-ON 1
70A 20632J Underdrive Circlip 2.40mm 2.40mm 96-ON 1
70A 20632K Underdrive Circlip 2.50mm 2.50mm 96-ON 1
70A 20632L Underdrive Circlip 2.60mm 2.60mm 96-ON 1
70A 20632M Underdrive Circlip 2.70mm 2.70mm 96-ON 1
70A 20632N Underdrive Circlip 2.80mm 2.80mm 96-ON 1
70A 20632P Underdrive Circlip 2.90mm 2.90mm 96-ON 1
73D 20632G Overdrive Circlip 2.20mm 96-ON 1
73D 20632J Overdrive Circlip 2.40mm 2.40mm 96-ON 1
73D 20632K Overdrive Circlip 2.50mm 2.50mm 96-ON 1
73D 20632L Overdrive Circlip 2.60mm 2.60mm 96-ON 1
73D 20632M Overdrive Circlip 2.70mm 2.70mm 96-ON 1
73D 20632N Overdrive Circlip 2.80mm 2.80mm 96-ON 1
73D 20632P Overdrive Circlip 2.90mm 2.90mm 96-ON 1
74E 20642 Direct Clutch Circlip (1.9mm) 1.90mm 96-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
85B 20672 Low & Reverse Waved Spring 96-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 20700 Lock Up Solenoid F4A51, F5A51 96-ON 1
NI 20700 Shift Solenoids F4A51, F5A51 96-ON 1-5
NI 20718 Input/Output Speed Sensor 3 Pin 96-ON 1
NI 20724 Input/Output Speed Sensor 3 Pin 96-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20787K TCC Control Valve Kit OE valve spool diameters must be measured to verify application 06-ON 1
NI 20770 Output Shaft Pinion Cover 96-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 20943KU Gear Train (F4A51) Used 96-ON 1
90A 20900 Pump Body & Gears F4A51, F5A51 96-ON 1
90A 20900WO Pump Body & Bush No Gears F4A51, F5A51 96-ON 1
90A 20902 Complete Pump (F4A51/F5A51) 96-ON 1
96D 20961R End Housing (F4A51) Rebuilt 96-ON 1
96D 20962 End Housing (F5A51) Rebuilt 96-ON 1
NI 20989 Seperator Plate “A” Code 96-ON 1
NI 20990 Seperator Plate “E” Code 96-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
