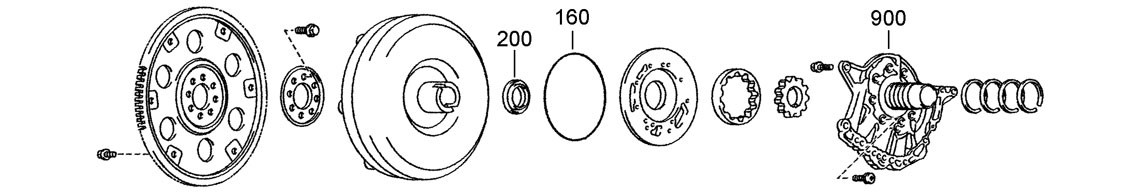

A

Torque Converter & Oil Pump

200
160
900

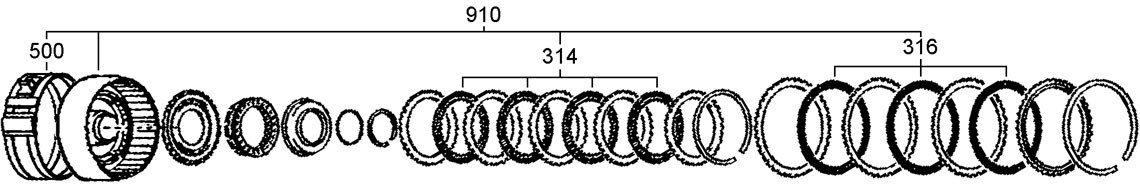

B

B1 Band, C4 Clutch & C3 Clutch

316
314
500
910

C

Front Planetary

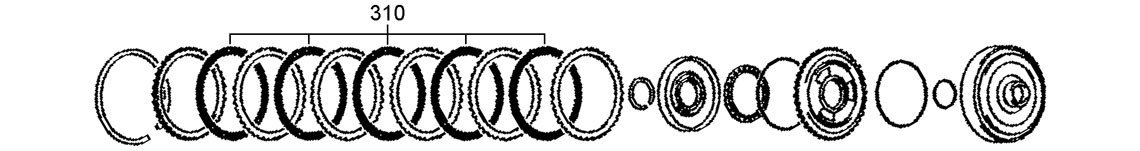

D

C1 (Forward) Clutch

310

E

Rear Planetary

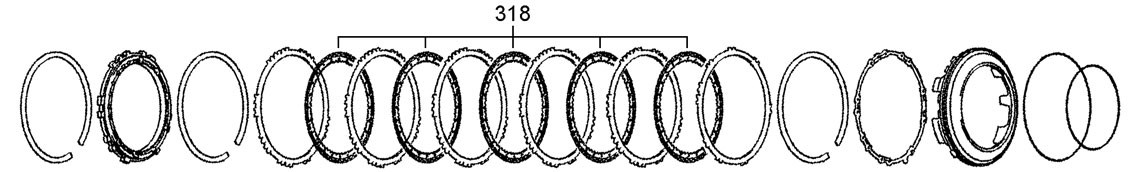

F

B2 (First & Reverse) Brake

318

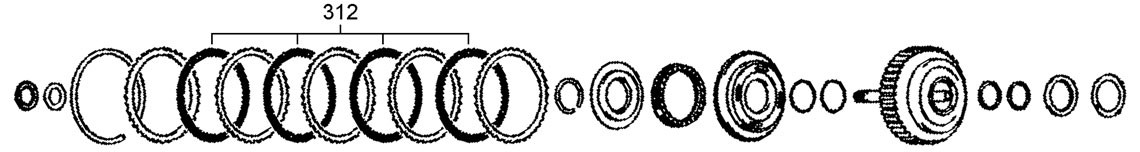

G

C2 Clutch

312

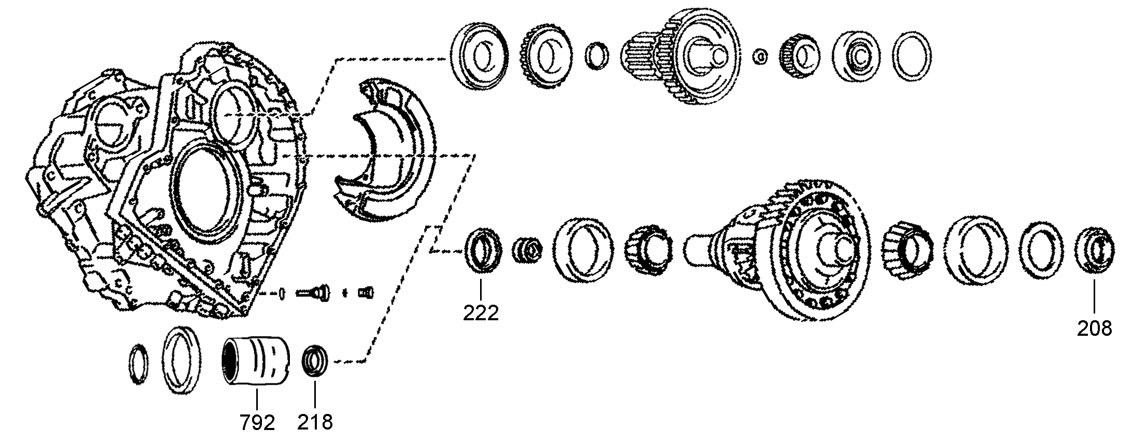

H

Transfer Gear & Differential

222
208
792
218

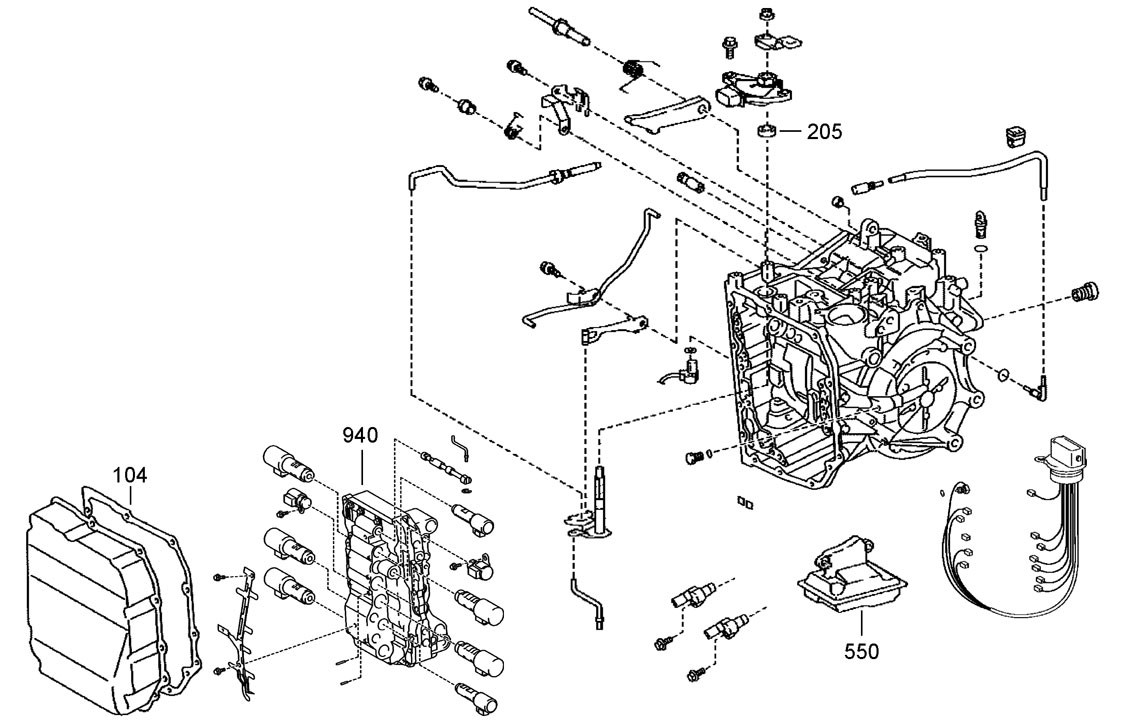

J

Main Case, Valve Body & Components

104
550
205
940

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162000K Overhaul Kit without Pistons (AF50-8) GM Transtec 13-ON 1
Kit 162000KA Overhaul Kit Precision 13-ON 1
Kit 162002K Overhaul Kit without Pistons (U880E/U881) Transtec 13-ON 1
NI 162004K OVERHAUL KIT W/O PISTONS (TG-81) VOLVO) Transtec 13-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162000KMA Banner Kit & Steels 13-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
104J 110104 Pan Gasket 13-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
160A 105160 Pump O Ring 13-ON 1
NI 162150 Inner Righthand Axle O-Ring, Volvo TG-81 13-ON 1
NI 162152 Inner Lefthand Axle O-Ring, VOLVO TG-81 13-ON 1
NI 162154 Case Connector O Ring, TG-81/AF50 13-ON 1
NI 162156 Case Connector O Ring 13-ON 1
NI 162160 Case Connector Seal, TG-81/AF50 13-ON 1
NI 162162 Case Seal, Half 13-ON 3

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 103200 Front Pump Seal 42 ID x 62 OD x 6.00mm 13-ON 1
205J 75205 Manual Shaft Seal 12 ID x 22 OD x 7.00mm 13-ON 1
208H 162208 Righthand Differential Seal, 4WD 42 ID x 62 OD x 6.00mm 13-ON 1
208H 162210 Lefthand Differential Seal, 4WD 39 ID x 63 OD x 11.00mm 13-ON 1
218H 105218 Righthand Inner Axle Seal, Volvo TF80-SC 35 ID x 45.6 OD x 7.00mm 13-ON 1
222H 105212 Righthand Axle Seal (TF80-SC/AF40-6) 35 ID x 73 OD x 8.1/13.90mm 13-ON 1
222H 105230 Righthand Axle Seal, TF80SC 40 ID x 75 OD x 10/13.9mm 13-ON 1
222H 162212 Righthand Differential Seal, 2WD 37 ID x 75 OD x 10.00mm 13-ON 1
222H 78222 Righthand Axle Seal 55 ID x 74 OD x 9.90mm 13-ON 1
NI 105210 Lefthand Axle Seal, TF80-SC, AF40-6 35 ID x 54.9 OD x 8.2 x 13.9mm 13-ON 1
NI 105220 Righthand Outer Axle Seal, Volvo TF80-SC 64 ID x 75 OD x 8.00mm 13-ON 1
NI 162214 Lefthand Axle Shaft Seal, 2WD 13-ON 1
NI 162216 Filter to Pump Seal 13-ON 1
NI 78212 Lefthand Axle Seal 50 ID x 68.3 OD x 8.80mm 13-ON 1
NI 78235 Differential to Transmission Seal 34 ID x 41.6 OD x 21.70mm 13-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162250K Sealing Ring Kit 13-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162300KA Friction Kit, AWF8F35 13-ON 1
Kit 162300KHT Friction Module, Hybrid Technology 13-ON 1
310D 162310 C1 (Forward) Clutch Friction Plate 157 OD x 1.50mm x 54T 13-ON 6
312G 162312 C2 Clutch Friction Plate 160 OD x 1.50mm x 55T Waved 13-ON 4
314B 162314 C3 Clutch Friction Plate 122.5 OD x 1.50mm x 36T Waved 13-ON 4
316B 162316 C4 Clutch Friction Plate 165.7 OD x 1.50mm x 54T Waved 13-ON 4
318F 162318 B2 (First & Reverse) Brake Friction Plate 185.7 OD x 1.50mm x 60T Waved 13-ON 6

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162350K Steel Module 13-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
500B 162500 B1 Band 13-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
550J 162550 Filter 13-ON 1
NI 162554 Valve Body Filter 13-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 162570K Piston Kit 13-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
792H 105792 Differential to Transfer Case Sleave 13-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
900A 162900FN Bush Type Pump, TG81SC 13-ON 1
900A 162902FN Bearing Type Pump, TG81SC 13-ON 1
910B 162910FN Loaded Drum with Band, From New 13-ON 1
910B 162912FN Loaded Drum with Band, From New 13-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
940J 162940 Valve Body, Volvo TG-81SC 13-ON 1
940J 162942 Valve Body, Volvo TG-81SC 13-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
