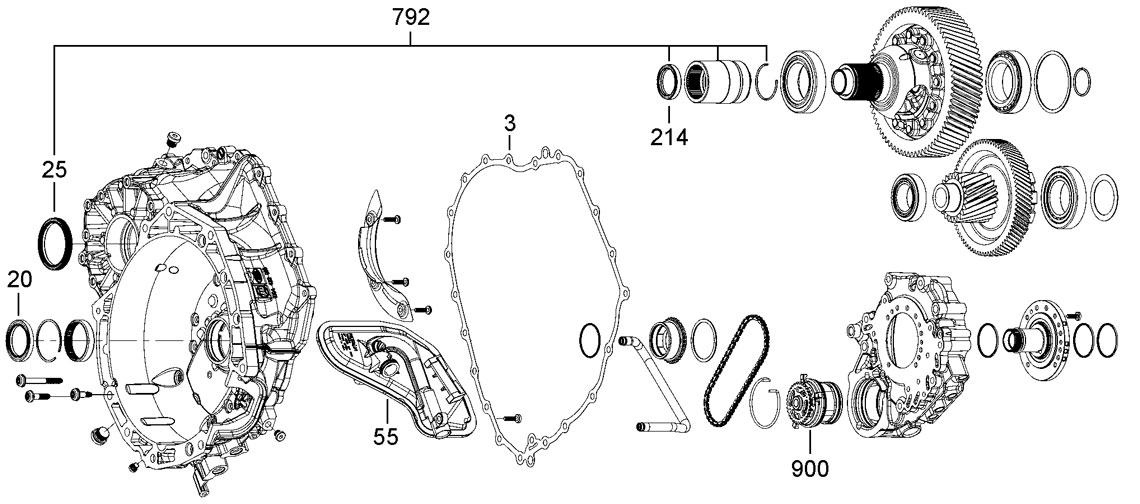

A
Converter Housing, Filter, Pump & Differential
20
3
25
55
792
214
900

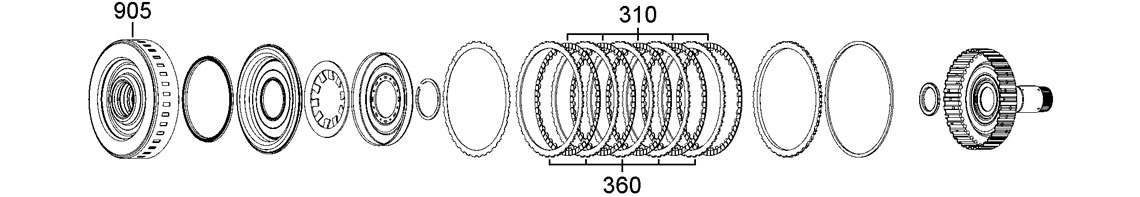

B
E Clutch
905
360
310
C

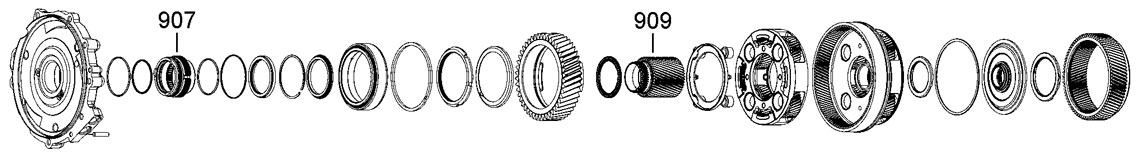

Dog Clutch F With Part Of Input & Planetary
907
909

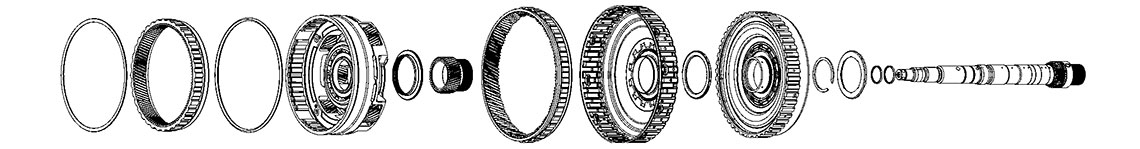

D
Remaining Input & Planetary With Dog Clutch A

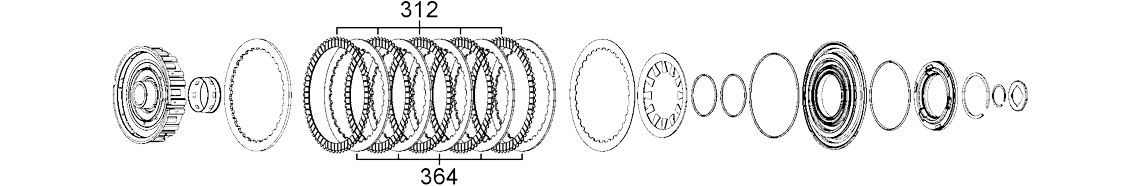

E
B Clutch
364
312

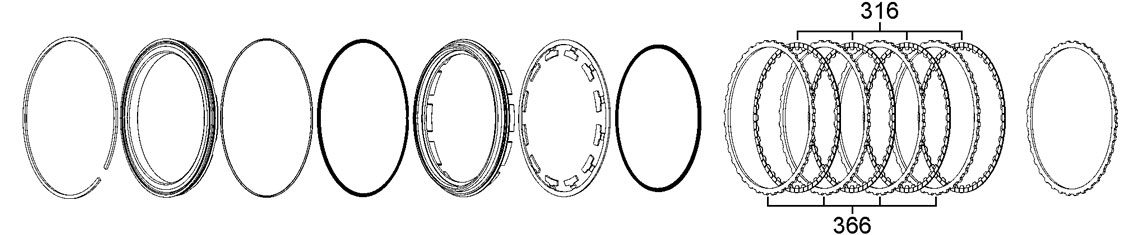

F
D Brake
366
316

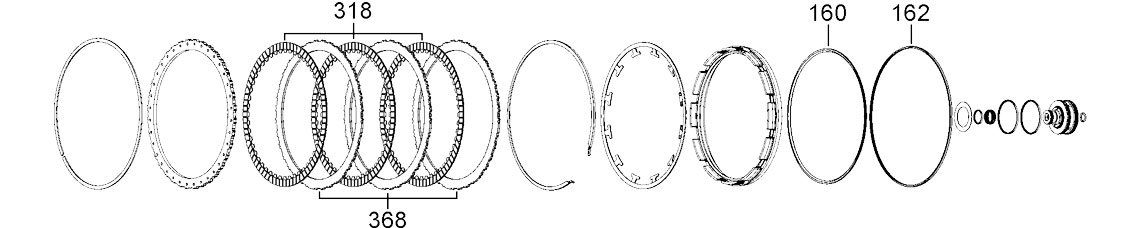

G
C Brake
160
162
368
318

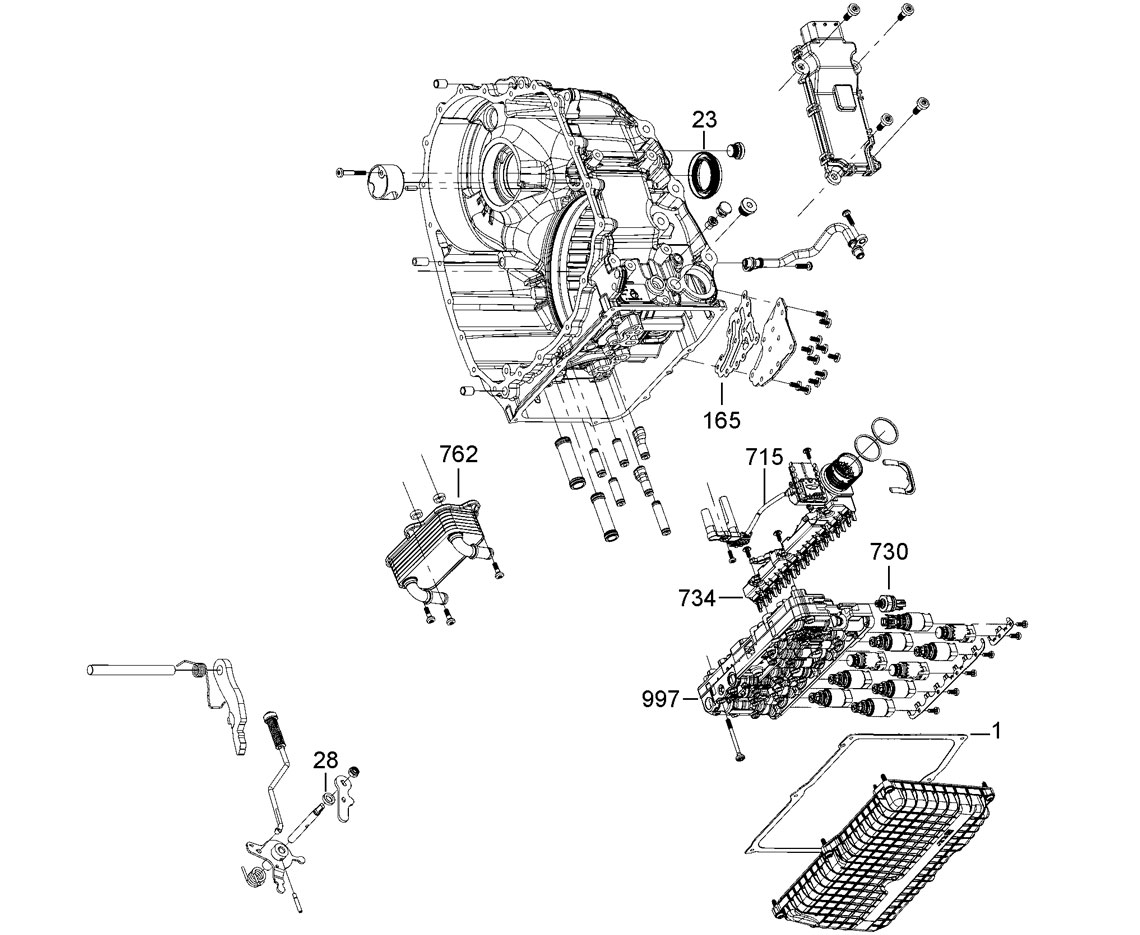

H
Main Case, Cooler, Valve Body & Control Unit
28
23
1
715
997
762
165
734
730
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 126000K | Overhaul Kit, ZF | 13-ON | 1 | |
| Kit | 126002K | Overhaul Kit 9HP48QX (Transtec) Range Rover Evoque | 13-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1H | 126100 | Valve Body Cover Gasket | 13-ON | 1 | |
| 3A | 126114 | Bellhousing Gasket Honda - 9HP48QXO | 13-ON | 1 | |
| 3A | 126118 | Bellhousing Gasket R/R Evoque - 9HP48 | 13-ON | 1 | |
| 165H | 126165 | Hydraulic Cover Gasket | 13-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 160G | 126160 | C Clutch Inner O-Ring, R/R Evoque | 13-ON | 1 | |
| 162G | 126162 | C Clutch Outer O-Ring, R/R Evoque | 13-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | 126200 | Converter to Case | 44 ID x 60.3 OD x 7mm | 13-ON | 1 |
| 23H | 126210 | Lefthand Axle Seal Range Rover | 42 ID x 67 OD x 9.00/15.00mm | 13-ON | 1 |
| 25A | 126212 | Lefthand Axle Seal Honda | 44 ID x 67 OD x 8.00mm | 13-ON | 1 |
| 25A | 126212 | Righthand Axle Seal Honda | 44 ID x 67 OD x 8.00mm | 13-ON | 1 |
| 25A | 126216 | Righthand Axle Seal Range Rover | 61 ID x 75 OD x 8.00mm | 13-ON | 1 |
| 28H | 126220 | Manual Shaft Seal | 13-ON | 1 | |
| 214A | 126214 | Righthand Inner Axle Seal, Land Rover | 13-ON | 1 | |
| NI | 126218 | Differential Seal | 13-ON | 2 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 126300K | Friction Module | 13-ON | 1 | |
| 310B | 126310A | E Clutch Friction Plate, Aftermarket | 161.22 OD x 1.80mm x 36T | 13-ON | 5 |
| 312E | 126312A | B Clutch Friction Plate, Aftermarket | 163.83 OD x 2.24mm x 64T | 13-15 | 5 |
| 312E | 126314A | B Clutch Friction Plate, Aftermarket | 162.3 ID x 2.26mm x 30 Int. T | 15-ON | 5 |
| 316F | 126316A | D Brake Friction Plate, Aftermarket | 195.58 OD x 1.85mm x 40T | 13-ON | 4 |
| 318G | 126318A | C Brake Friction Plate, Aftermarket | 208.03 OD x 2.24mm x 48T | 13-ON | 3 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 126350K | Steel Module | 13-ON | 1 | |
| Kit | 126351K | Steel Module | 15-ON | 1 | |
| 360B | 126360A | E Clutch Steel Plate | 147.32 ID x 2.10mm x 36 Ext. T | 13-ON | 5 |
| 364E | 126364A | B Clutch Steel Plate | 163.07 OD x 3.05mm x 30 Int. T | 13-ON | 5 |
| 366F | 126366A | D Brake Steel Plate | 203.45 ID x 3.00mm x 36T | 13-ON | 4 |
| 368G | 126368A | C Brake Steel Plate | 185.90 ID x 3.00mm x 33-36 T | 13-ON | 3 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55A | 126550 | Filter | 13-ON | 1 | |
| 55A | 126556 | Filter Jeep/Land Rover & Range Rover | 13-ON | 1 | |
| 55A | 126558 | FILTER (9HP48) R/ROVER EVOQUE OEM | 13-ON | 1 |
Transmission must be Disassembled to change Filter
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 126700K | Pressure Sensor Kit | 13-ON | 1 | |
| 715H | 126715K | Valve Body Loom, Sensor Kit With Tubes | 13-ON | 1 | |
| 730H | 126730 | Pressure Sensor | 13-ON | 1 | |
| 734H | 126734 | Range Sensor Land Rover | 13-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 900A | 126900 | Oil Pump | 13-ON | 1 | |
| 905B | 126905 | E Clutch Hub | 13-ON | 1 | |
| 907C | 126907 | Dog Clutch F | 13-ON | 1 | |
| 909C | 126909 | Dog Clutch F Sungear | 13-ON | 1 | |
| NI | 126990 | Intermediate Plate | VIN Required | 13-ON | 1 |
