A

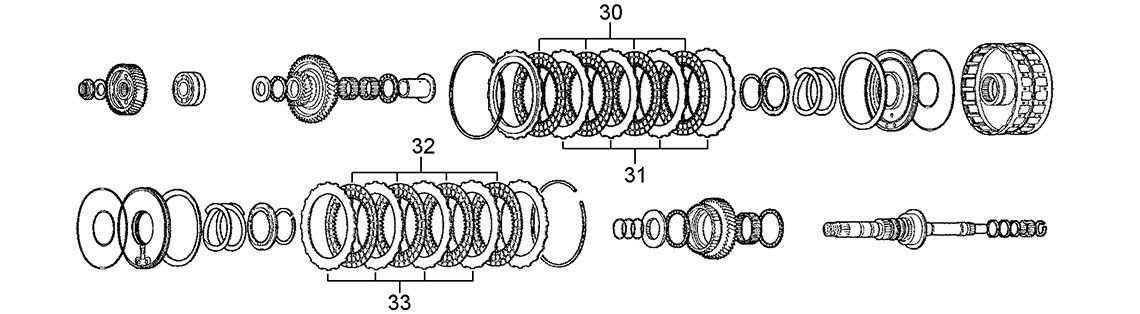

Mainshaft, 4th & 5th Clutches
30
32
33
31
B

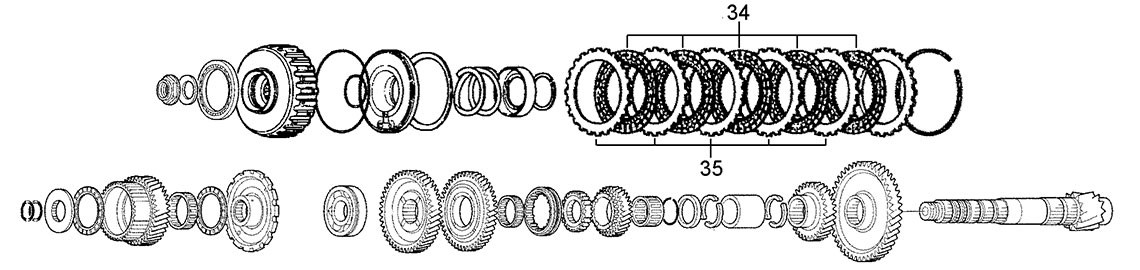

Countershaft & 3rd Clutch
34
35
C

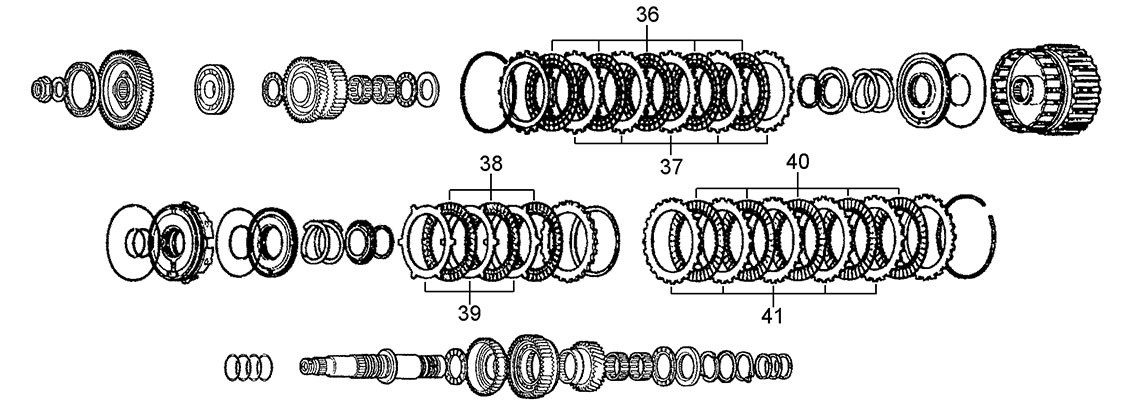

Secondary Shaft, 2nd, 1 St Hold & 1 St Clutches
36
38
37
40
39
41
D

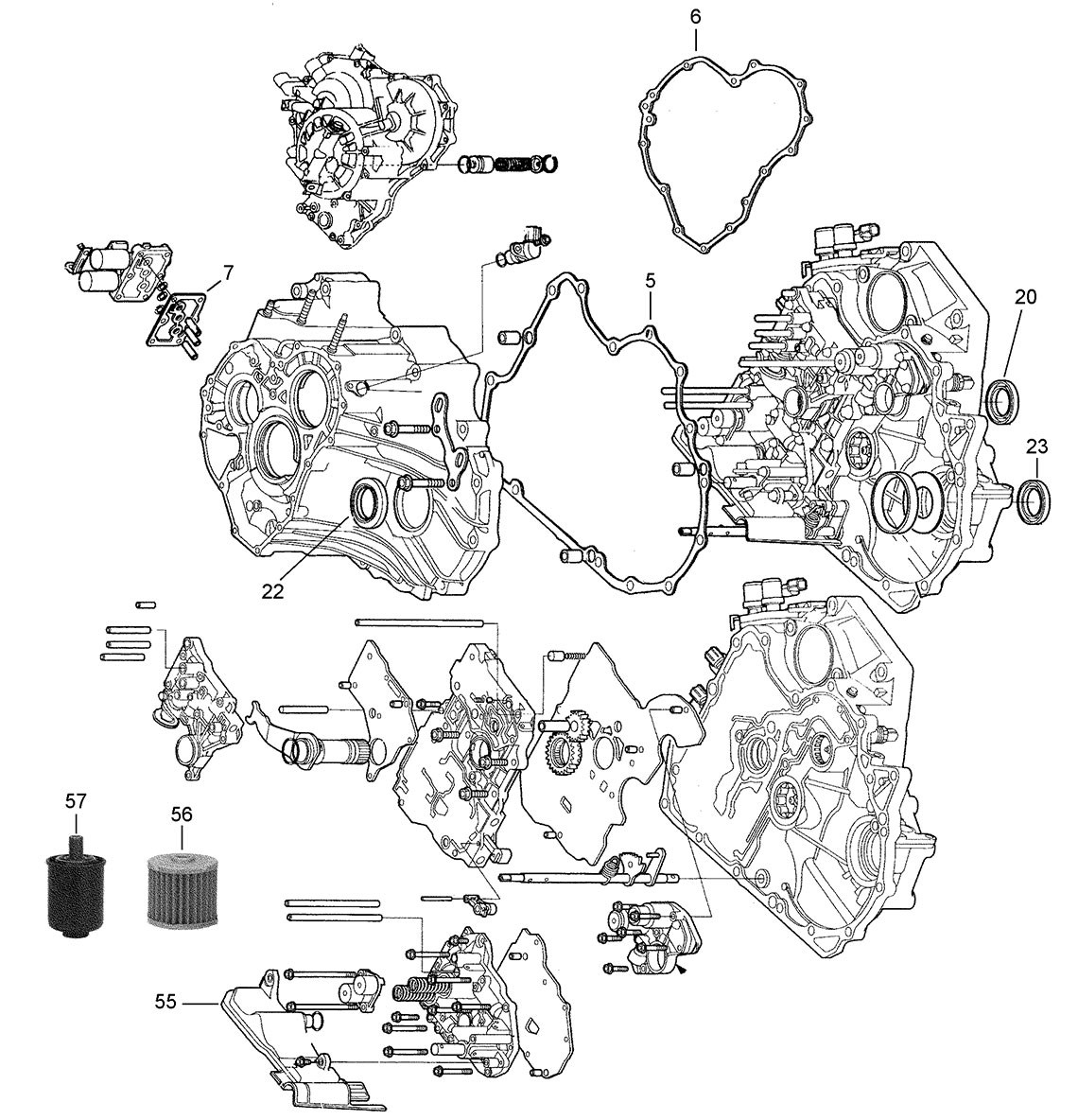

Cases, Valve Body & Filters
7
23
6
22
20
57
56
5
55
Please check the following to enable us to identify the correct kit:
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53000K | Overhaul Kit B7WA, BAYA, BDGA, BGFA, M7WA, MAYA, MFYA, MGFA MKEA & MRDA | Transtec | 00-ON | 1 |
| Kit | 53000KA | Overhaul Kit MZWA, B7WA, MGFA | Precision | 00-ON | Alt |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53000KM | Master Kit with 124mm 3rd Clutch Frictions | 00-ON | 1 | |
| Kit | 53001KM | Master Kit with 120mm 3rd Clutch Frictions | 00-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 5D | 53110 | Case Gasket | 00-ON | 1 | |
| 6D | 53130 | End Cover Gasket | 00-ON | 1 | |
| 7D | 51150 | Solenoid Gasket | 00-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 50160 | Converter Hub O Ring 32.0 | 32 ID x 1.90mm | 00-ON | 1 |
| NI | 53160 | Converter Hub O Ring 35.5 | 35.5 ID x 1.90mm | 00-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20D | 51202 | Converter Seal | 44 ID x 68OD x 8.00mm | 00-ON | 1 |
| 22D | 51228 | Axle Seal Lefthand | 40 ID x 56.3 OD x 9.00mm | 00-ON | 1 |
| 23D | 51230 | Axle Seal Righthand | 35 ID x 54 OD x 8.00mm | 00-ON | 1 |
| NI | 51207 | Inhibitor Shaft Seal | 9 ID x 18 OD x 7.00mm | 00-ON | 1 |
| NI | 75205 | Selector Shaft Seal | 12 ID x 22 OD x 7.00mm | 00-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 53934 | Differential Bearing | 45 ID x 80 OD x 19.00mm | 00-ON | 1 |
| NI | 53935 | Differential Bearing | 45 ID x 80 OD x 22.47mm | 00-ON | 1 |
| NI | 53936 | Differential Bearing | 45 ID x 81 OD x 16.00mm | 00-ON | 1 |
| NI | 53938 | Differential Bearing | 45 ID x 81 OD x 18.00mm | 00-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55D | 53550 | Internal Filter | 00-ON | 1 | |
| 55D | 53551 | Filter Honda Accord HYB | 00-ON | 1 | |
| 56D | 53562 | Filter External | 00-ON | 1 | |
| 57D | 53560 | Filter External | 00-ON | 1 |
Transmission must be Disassembled to change Filter.
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 51732 | 3rd Clutch Pressure Switch Grey/Black | 00-ON | 1 | |
| NI | 51734 | Oil Pressure Switch Brown | 00-ON | 1 | |
| NI | 53700 | Solenoid Linear Single | 00-ON | 1 | |
| NI | 53726 | 2nd Clutch Oil Pressure Switch Grey | 00-ON | 1 | |
| NI | 53730 | OIL PRESSURE SWITCH 3RD CLUTCH (BLK/GRN) | 00-ON | 1 | |
| NI | 53730A | Oil Pressure Switch 3rd Clutch (Green) Aftermarket | 00-ON | 1 | |
| NI | 53734 | Oil Pressure Switch 2/3 Clutch (Brown) | 00-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 53755 | Cooler Remote Adaptor MAYA | 00-ON | 1 | |
| NI | 53780 | TC Charge Regulated Pressure Reg Valve | 00-ON | 1 | |
| NI | 53790 | Collar Oil Guide Steel Upgrade | 00-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 51800K | Lube Correction Kit, TransGo | 97-09 | 1 | |
| Kit | 53800K | Shift Correction Package | 00-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
