A

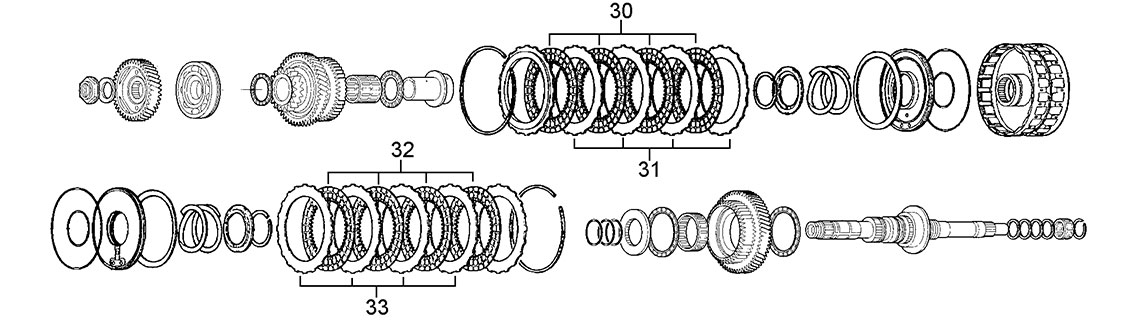

Mainshaft 5th & 4th Clutches
30
32
31
33
B
Countershaft
C

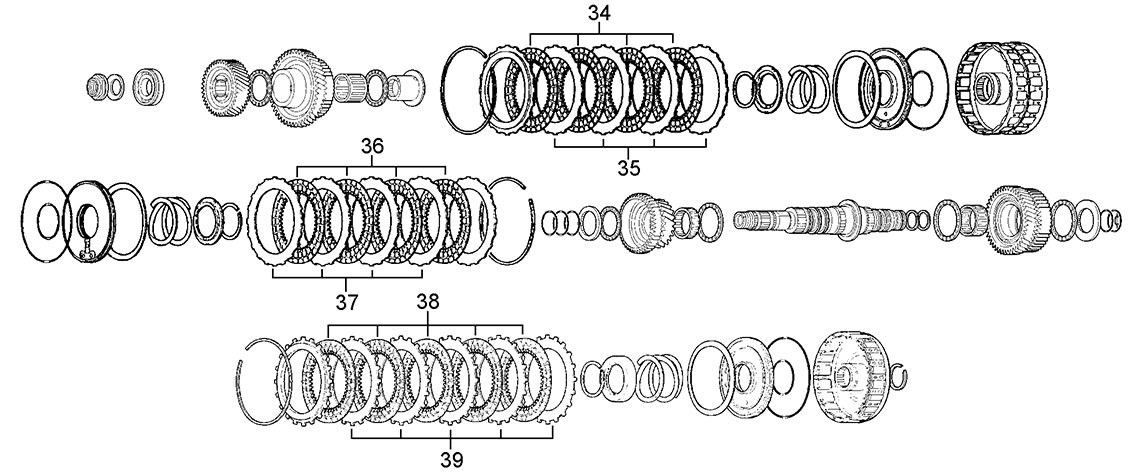

Secondary Shaft 3rd, 1 St & 2nd Clutches
34
35
36
37
38
39
D

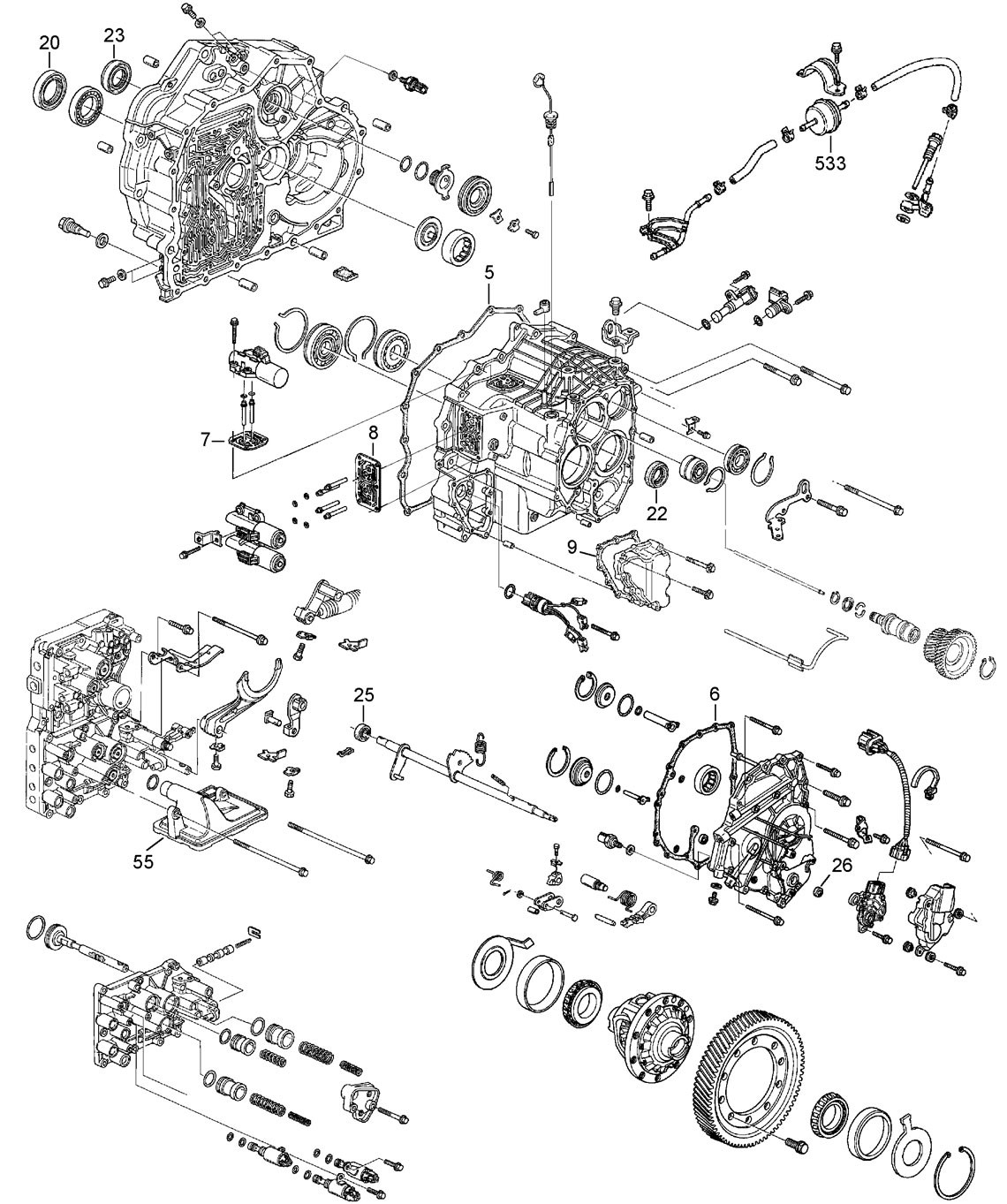

Cases, Valve Body & Filters
25
23
22
26
7
20
5
9
6
55
8
533
Please check the following to enable us to identify the correct kit:
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53005K | Overhaul Kit B90A, M91A | Transtec | 08-ON | 1 |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53005KM | Master Kit B5LA, B5MA, BZKA, MNZA, B90A | 00-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 5D | 53119 | Case Gasket | 08-ON | 1 | |
| 6D | 53136 | End Cover Gasket | 08-ON | 1 | |
| 7D | 53148 | Solenoid Gasket Single Solenoid | 08-ON | 1 | |
| 8D | 53149 | Solenoid Gasket Two Solenoid | 08-ON | 1 | |
| 9D | 53150 | Solenoid Cover Gasket | 00-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 50160 | Converter Hub O Ring 32.0 | 32 ID x 1.90mm | 08-ON | 1 |
| NI | 53160 | Converter Hub O Ring 35.5 | 35.5 ID x 1.90mm | 08-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20D | 51202 | Converter Seal | 44 ID x 68OD x 8.00mm | 08-ON | 1 |
| 22D | 51228 | Axle Seal Lefthand | 40 ID x 56.3 OD x 9.00mm | 08-ON | 1 |
| 23D | 51232 | Axle Seal Righthand | 35 ID x 58 OD x 8.00mm | 08-ON | 1 |
| 25D | 75205 | Selector Shaft Seal | 12 ID x 22 OD x 7.00mm | 08-ON | 1 |
| 26D | 51207 | Inhibitor Shaft Seal | 9 ID x 18 OD x 7.00mm | 08-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53305K | Friction Module | 08-ON | 1 |
For proper identification, please see here.
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55D | 53555 | Filter | 08-ON | 1 | |
| NI | 53567 | External Filter | 08-ON | 1 | |
| NI | 53568 | External Filter | 12-ON | 1 |
Transmission must be Disassembled to change Filter.
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 53726 | Oil Pressure Switch 2nd Clutch (Gray) | 08-ON | 1 | |
| NI | 53730 | Oil Pressure Switch 3rd Clutch (Black/Green) | 08-ON | Alt |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 51800K | Lube Correction Kit, TransGo | 08-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
