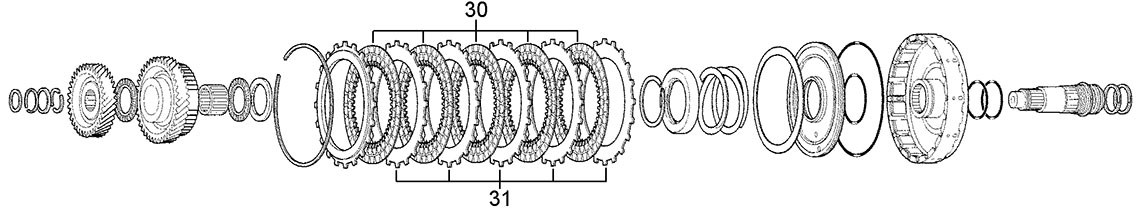

Intermediate Shaft & 3rd Clutch
30
31
B

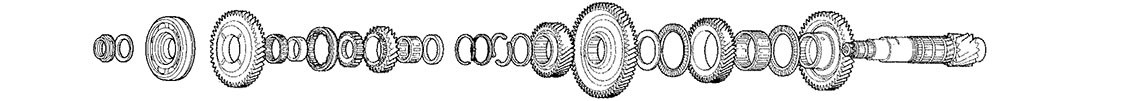

Countershaft
C

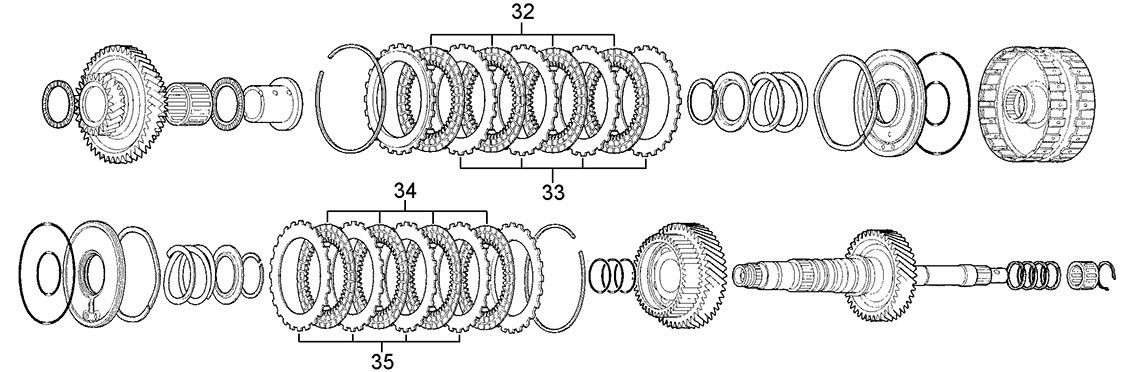

Mainshaft, 5th & 4th Clutches
32
34
33
35
D

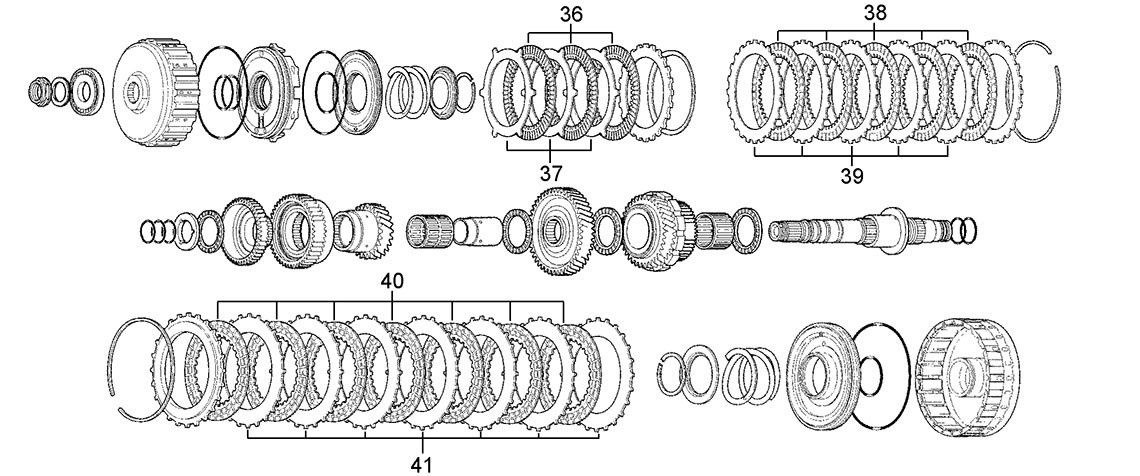

Secondary Shaft, 1 St Hold, 1 St & 2nd Clutches
41
40
37
39
36
38
E

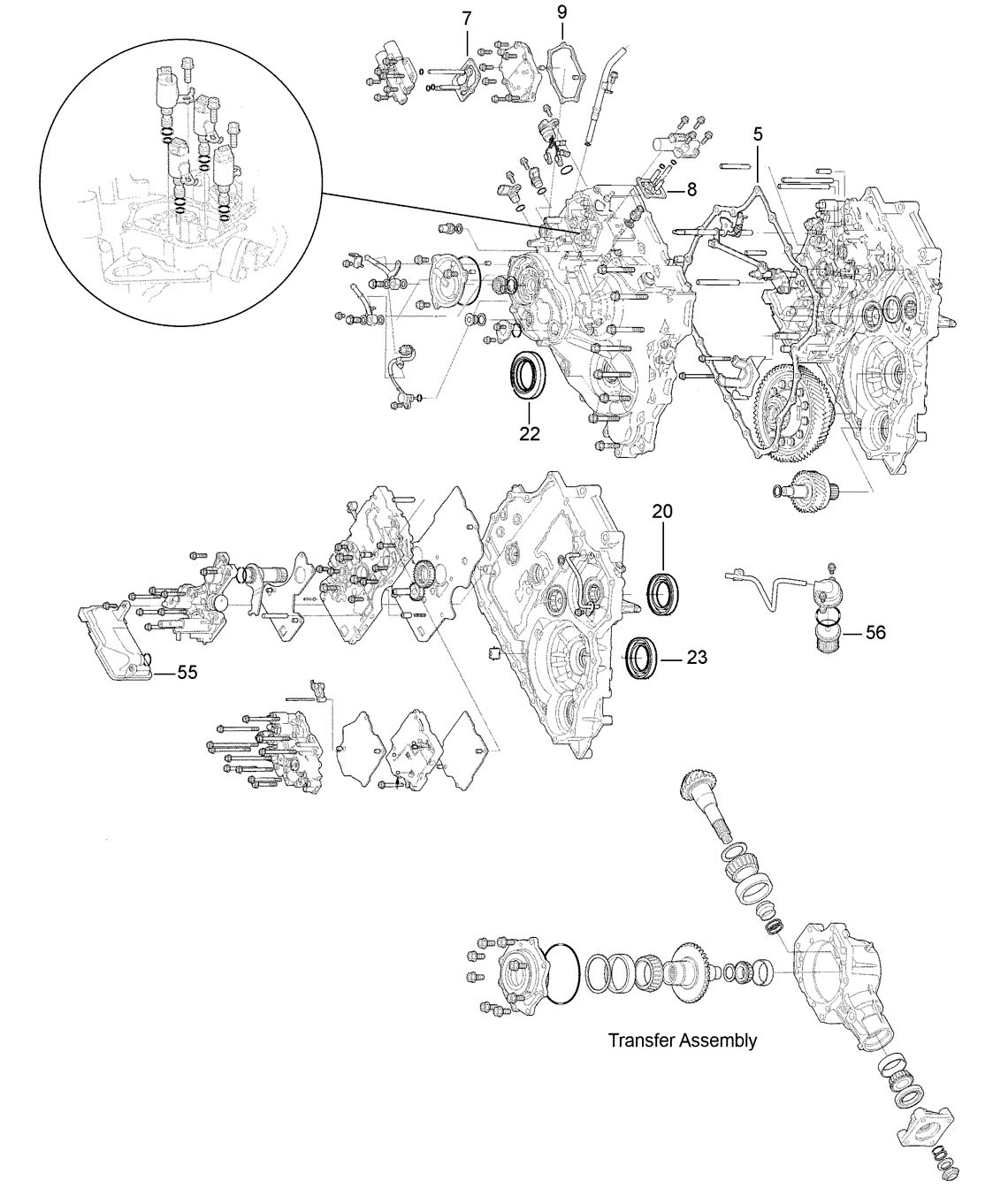

Case, Valve Body, Solenoids & Filters
20
23
7
55
5
22
8
56
9
Please check the following to enable us to identify the correct kit:
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53006K | Overhaul Kit BDKA, BJFA, BWEA, BVLA, MDKA, MJBA, MJFA, PVGA & PVLA | Transtec | 06-ON | 1 |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53006KM | Master Kit BDKA, BJFA, BWEA, BVLA, MDKA, MJBA, MJFA, PVGA & PVLA | 06-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53020K | Transfer Case Seal Kit | 06-ON | 1 | |
| 5E | 53120 | Case Gasket | 06-ON | 1 | |
| 8E | 53147 | Solenoid Gasket Two Solenoid | 06-ON | 1 | |
| 9E | 53152 | Solenoid Cover Gasket | 06-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 7E | 53146 | Solenoid Gasket Single Solenoid | 06-ON | 1 | |
| NI | 53160 | Converter Hub O Ring 35.5 | 35.5 ID x 1.90mm | 06-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20E | 51204 | Converter Seal | 46 ID x 70.3 OD x 8.00mm | 06-ON | 1 |
| 22E | 51228 | Axle Seal Lefthand | 40 ID x 56.3 OD x 9.00mm | 06-ON | 1 |
| 23E | 51230 | Axle Seal Righthand | 35 ID x 54 OD x 8.00mm | 06-ON | 1 |
| NI | 53234 | Transfer Gear Output Seal | 46.8 ID x 65 OD x 8.00mm | 06-ON | 1 |
| NI | 75205 | Selector Shaft Seal | 12 ID x 22 OD x 7.00mm | 06-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53306K | Friction Kit | 06-ON | 1 |
For proper identification, please see here.
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55E | 53556 | Filter Internal | 06-ON | 1 | |
| 56E | 53562 | Filter External | 06-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 53784K | TC Check Valve Kit | 06-ON | 1 | |
| Kit | 53786K | TC Check Valve Kit | 06-ON | 1 | |
| Kit | 53788K | Lock-Up Shift Valve Kit | 06-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 51800K | Lube Correction Kit, TransGo | 97-09 | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
