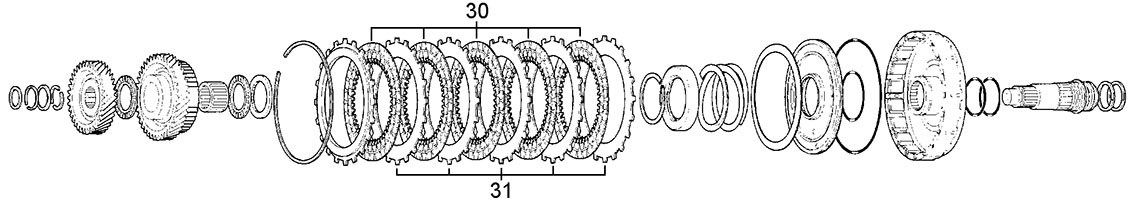

A

Intermediate Shaft & 3rd Clutch

30
31

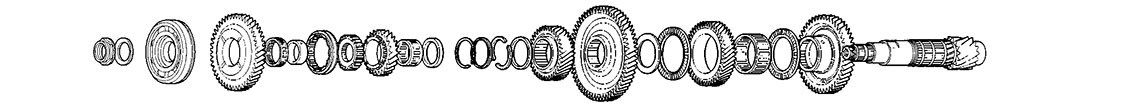

B

Countershaft

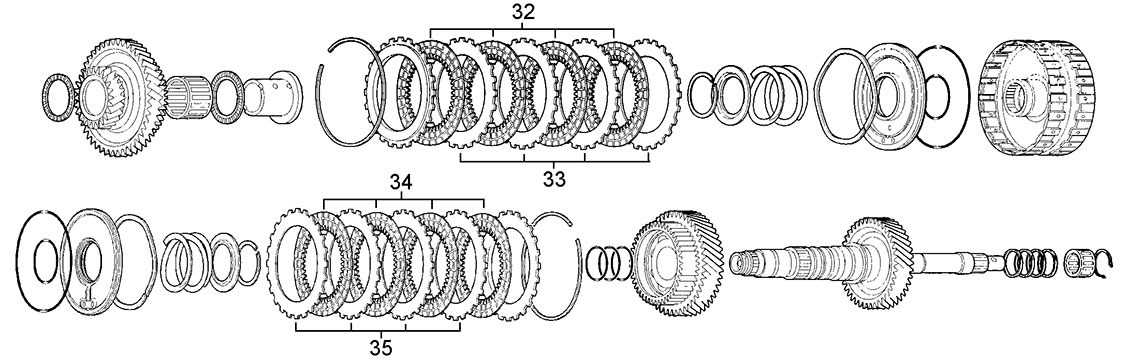

C

Mainshaft, 4th & 5th Clutches

32
33
34
35

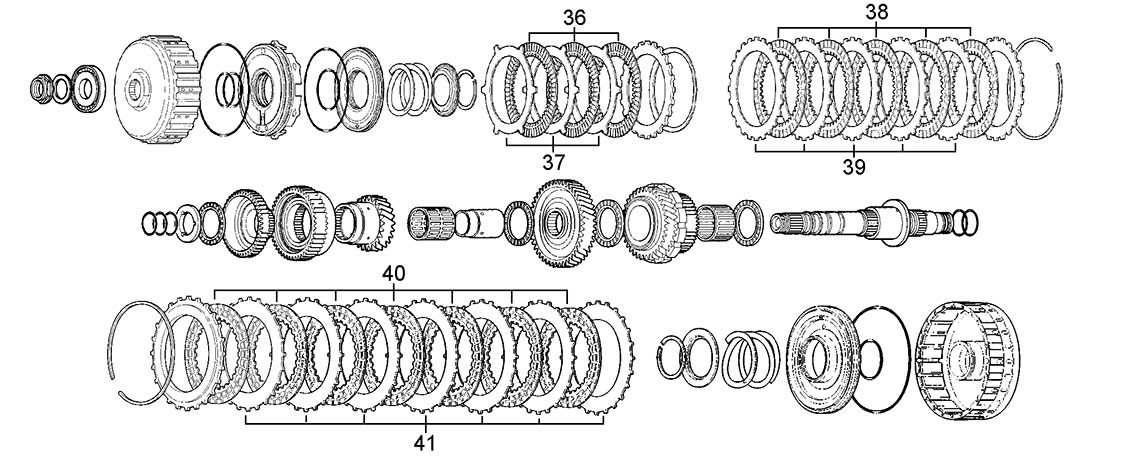

D

Secondary Shaft, 1 St Hold, 1 St & 2nd Clutches

36
37
38
39
40
41

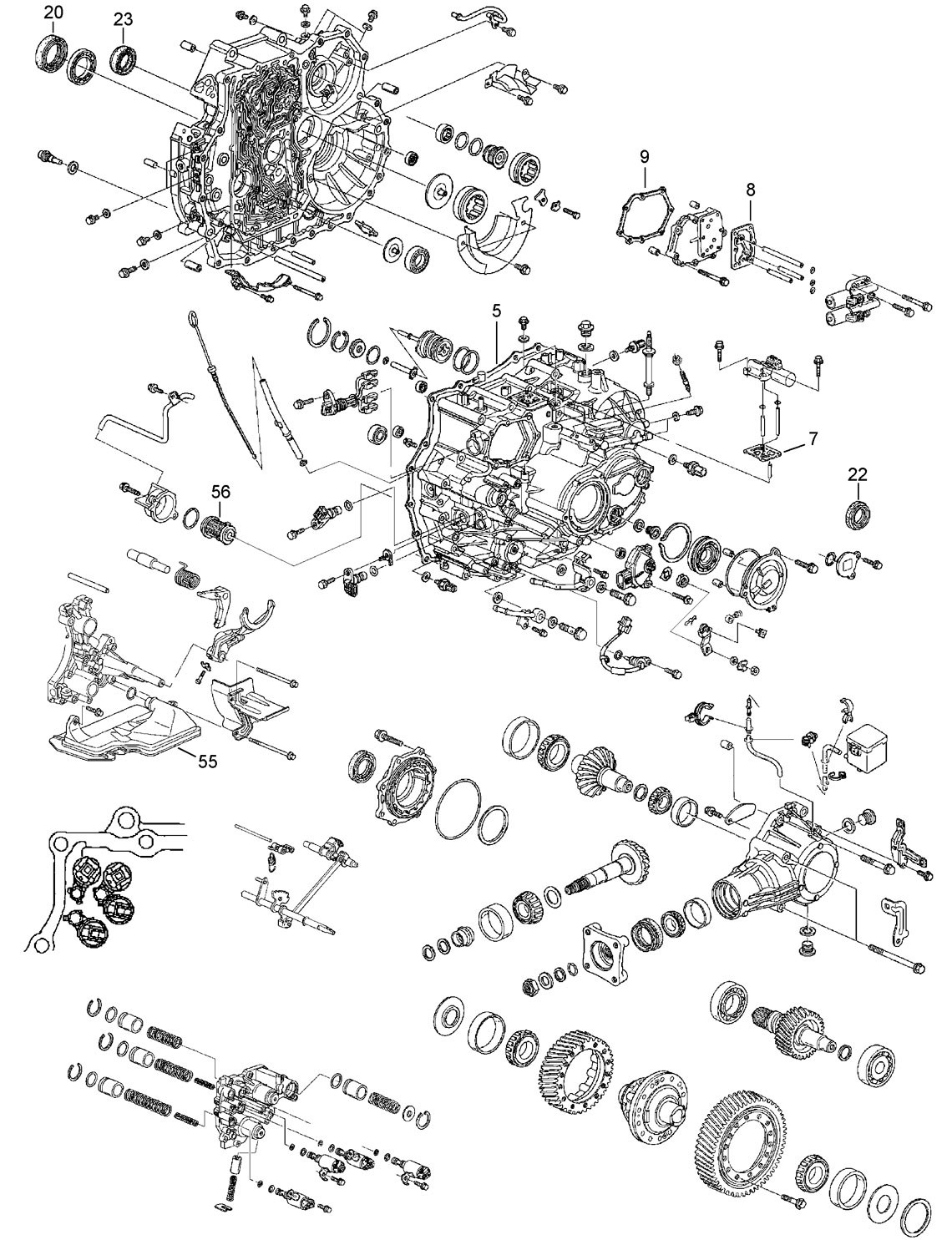

E

Cases, Valve Body & Filter

22
23
20
9
7
5
56
55
8

Please check the following to enable us to identify the correct kit:

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53009K Overhaul Kit BK4A, BT3A, BYFA, PN3A, PSFA Transtec 07-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53020K Transfer Case Seal Kit 07-ON 1
5E 53120 Case Gasket 07-ON 1
8E 53147 Solenoid Gasket Two Solenoid 07-ON 1
9E 53152 Solenoid Cover Gasket 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
7E 53146 Solenoid Gasket Single Solenoid 07-ON 1
NI 53160 Converter Hub O Ring 35.5 35.5 ID x 1.90mm 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20E 51204 Converter Seal 46 ID x 70.3 OD x 8.00mm 07-ON 1
22E 51228 Axle Seal Lefthand 40 ID x 56.3 OD x 9.00mm 07-ON 1
23E 51230 Axle Seal Righthand 35 ID x 54 OD x 8.00mm 07-ON 1
NI 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55E 53565 Filter 07-ON 1
56E C52564 Filter Internal Cartridge type 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 51800K Lube Correction Kit, TransGo 97-09 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
