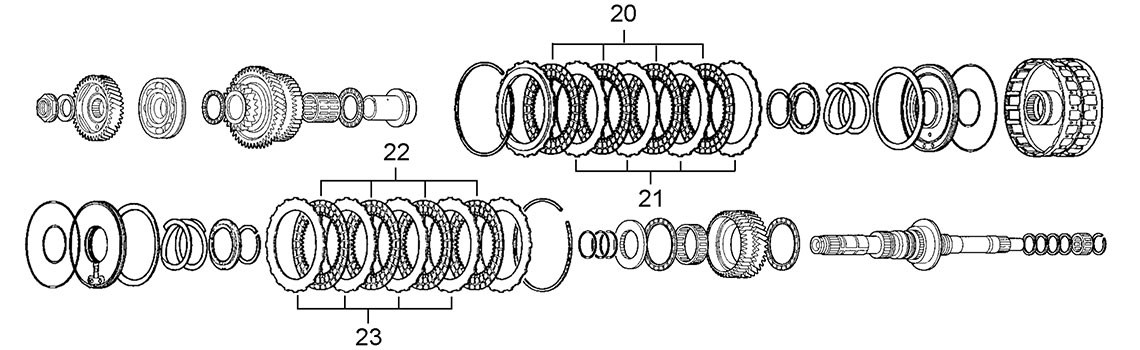

A

Mainshaft, Third & Fourth Clutches

20
22
23
21

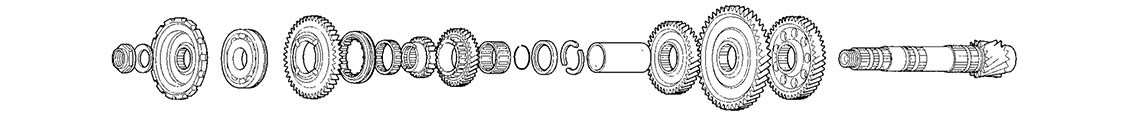

B

Countershaft

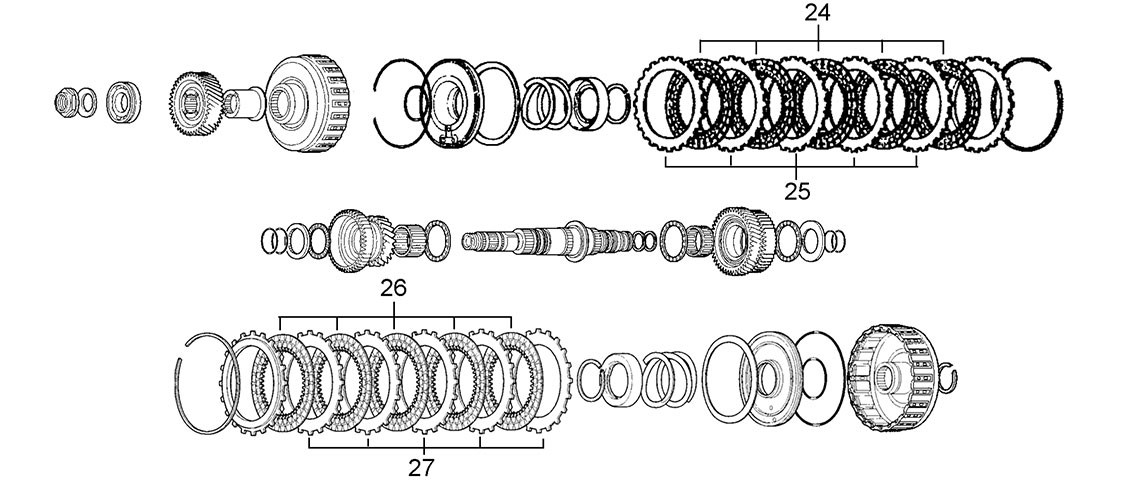

C

Secondary Shaft, First & Second Clutches

24
25
26
27

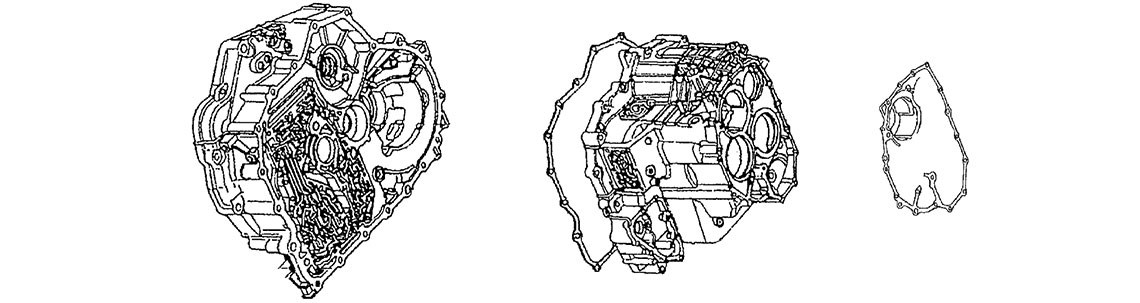

D

Cases


Please check the following to enable us to identify the correct kit:

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53004K Overhaul Kit MCVA CRV 2WD Transtec 02-ON 1
Kit 53004K Overhaul Kit MRVA CRV 4WD Transtec 02-ON 1
Kit 53004K Overhaul Kit Element BZKA Element 2WD Transtec 03-ON 1
Kit 53004K Overhaul Kit Element 4WD MZKA Transtec 03-ON 1
Kit 53004KA-1 Overhaul Kit, BZKA, MZKA, MCVA, MRVA Precision 02-ON Alt
Kit 53004KA-2 Overhaul Kit 4WD MZKA Precision 03-ON Alt
Kit 53004KA-3 Overhaul Kit, MRMA, BCLA, MCA, MFKA Precision 02-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53005KM Master Kit B5LA, B5MA, BZKA, MNZA, B90A 00-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 53020K Transfer Case Kit MRVA, MZKA 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 50160 Converter Hub O Ring 32.0 32 ID x 1.90mm 02-ON 1
NI 53160 Converter Hub O Ring 35.5 35.5 ID x 1.90mm 02-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
NI 51202 Converter Seal 44 ID x 68OD x 8.00mm 02-ON 1
NI 51207 Manual Shaft Seal 9 ID x 18 OD x 7.00mm 02-ON 1
NI 51228 Axle Lefthand 40 ID x 56.3 OD x 9.00mm 02-ON 1
NI 51232 Axle Righthand 35 ID x 58 OD x 8.00mm 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
NI 53554 Filter 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 53726 Oil Pressure Switch 2nd Clutch (Grey) 02-ON 1
NI 53730 Oil Pressure Switch 2nd Clutch (Black/Green) 02-ON Alt

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 51800K Lube Correction Kit, TransGo 97-09 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49911 Lubegard Black 02-ON 1
NI 49999-04 ATF DX III 4 Litre 02-ON AR
