A

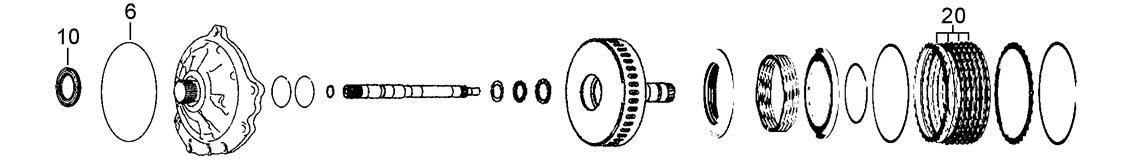

Pump, Input Shaft & 3-5-Reverse Clutch
6
20
10
B

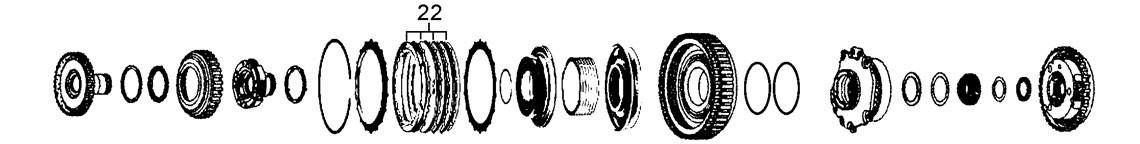

Front Planet, Low Clutch, Output Gear & Rear Planet
22
C

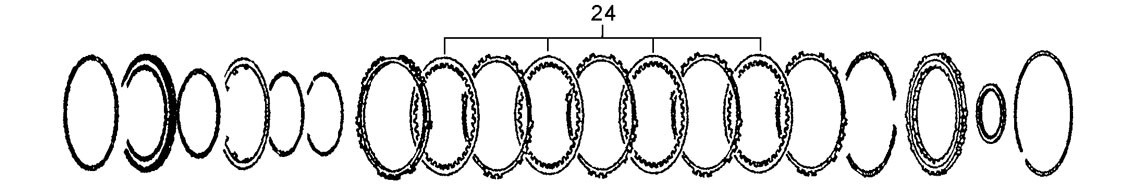

Low & Reverse Brake & One Way Clutch
24
D

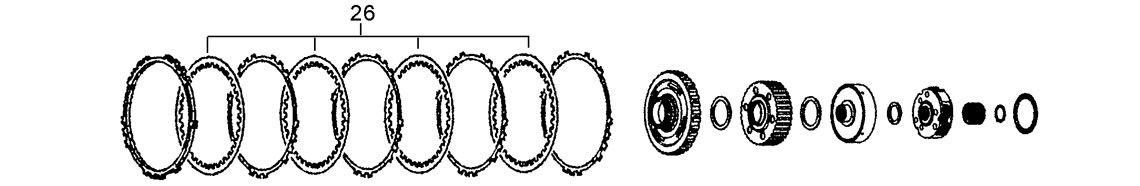

2-6 Brake & Reduction Planet
26
E

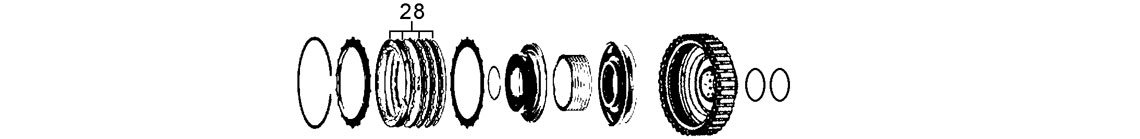

High Clutch
28
F

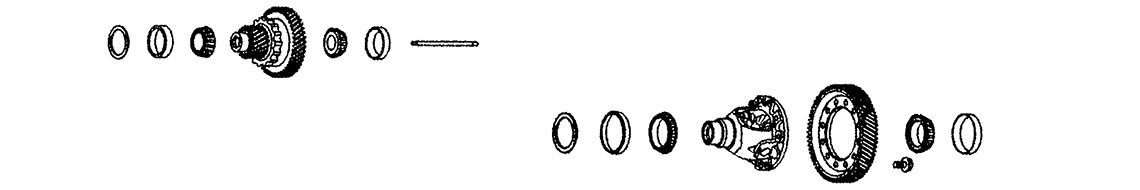

Reduction Pinion & Differential Unit
G

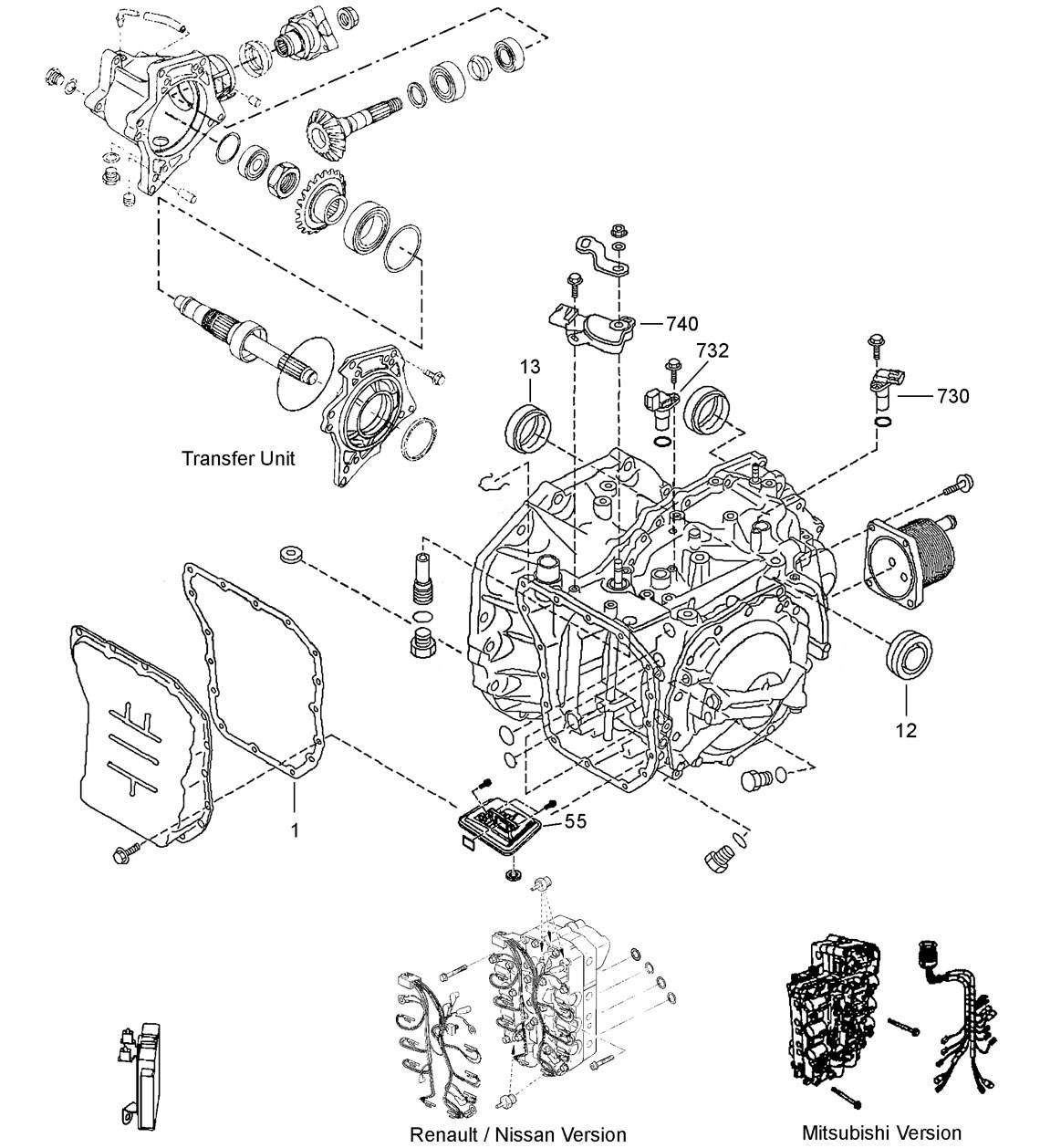

Case, Pan, Filter & Valve Body
55
740
13
1
12
732
730
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 116000K | Overhaul Kit with Pistons JF613E Mitsubishi F6AJA, W6AJA Nissan RE6F01A Renault AJO | Transtec | 06-ON | 1 |
| Kit | 116002K | Overhaul Kit without Pistons JF613E Mitsubishi F6AJA, W6AJA Nissan RE6F01A Renault AJO | Transtec | 06-ON | 1 |
| NI | 116000KP | OVERHAUL KIT-JF613E-W6AJA-F6AJA (W/PIST) | Precision | 06-ON | Alt |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | 116200 | Pump Seal | 46 ID x 61 OD x 6.80mm | 06-ON | 1 |
| 12G | 116210 | Axle Seal Lefthand | 41.3 ID x 59.2 OD x 7.90mm | 06-ON | 1 |
| 13G | 116210 | Axle Seal Righthand | 41.3 ID x 59.2 OD x 7.90mm | 06-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 116300K | Friction Kit JF613E | 06-ON | 1 | |
| 20A | 116310 | 3-5-Reverse Clutch | 159 OD x 1.60mm x 36T | 06-ON | 5 |
| 22B | 116314 | Low Clutch | 153.8 OD x 1.40mm x 36T | 06-ON | 5 |
| 24C | 116318 | Low & Reverse Brake | 205 OD x 1.50mm x 36T | 06-ON | 4 |
| 26D | 116322 | 2-6 Brake | 207 OD x 1.40mm x 36T | 06-ON | 4 |
| 28E | 116326 | High Clutch | 156.9 OD x 1.40mm x 36T | 06-ON | 6 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 730G | C12730 | Input Speed Sensor 3 Pin | 06-ON | 1 | |
| 732G | 116732 | Output Speed Sensor RE6F01A | 06-ON | 1 | |
| 740G | 116740 | Inhibitor Switch RE6F01A | 06-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-05 | LUBEGARD COMPLETE FULL SYNTHETIC 5L | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR |
