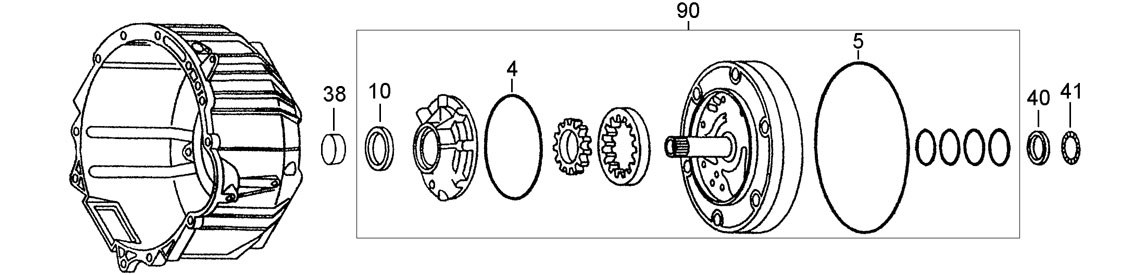

A
Pump Assembly
41
4
38
90
5
10
40

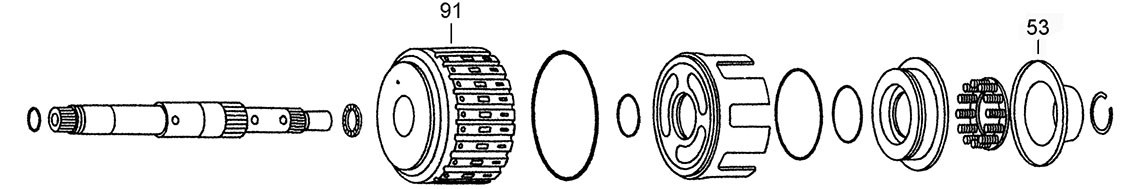

B
High & Reverse Clutch Assemblies
53
91
C
High Clutch Plates & Reverse Clutch Plates
21
22
43
42
20
23
92
33

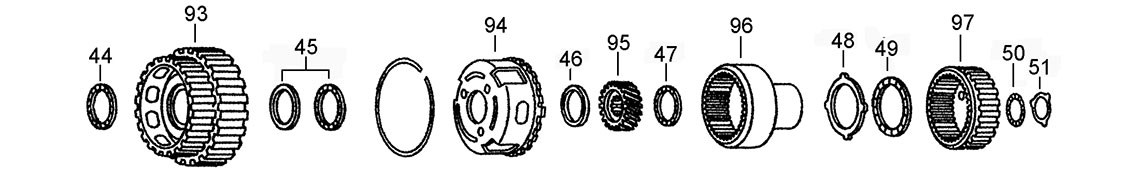

D
Planetary Assembly
46
44
48
49
50
47
45
51
97
94
95
93
96

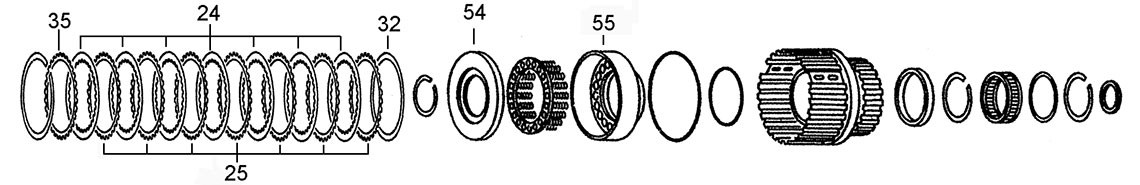

E
Low Clutch
25
24
55
32
54
35
F
Low & Reverse Brake
27
26
56
36
G
2-4 Brake
29
57
28

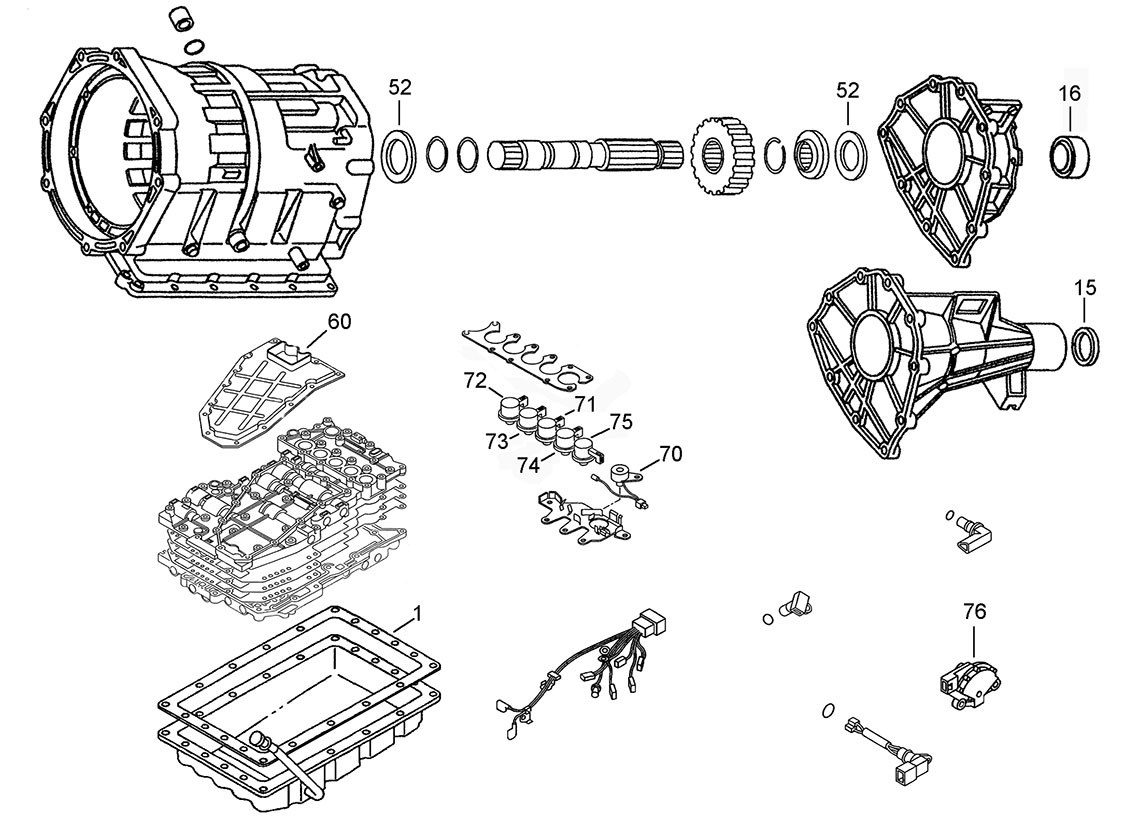

H
Case, Valve Body, Filter & Pan
75
74
60
71
52
76
73
52
72
16
15
1
70
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 61000K | Overhaul Kit JR405E, RC4A-EL, S45V-11A | Transtec | 99-ON | 1 |
| Kit | 61000KA | Overhaul Kit JR405E, RC4A-EL, S45V-11A | 99-ON | Alt |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 61120K | Valve Body Gasket Kit | 99-ON | 1 | |
| Kit | 61150K | Pump Leak Kit | 99-ON | 1 | |
| 1H | 61100 | Pan Gasket Except Mazda RX8 | 99-ON | 1 | |
| 1H | 61101 | Pan Gasket Duraprene | 99-ON | 1 | |
| 1H | 61102 | Pan Gasket Mazda RX8 | 99-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 63185K | Low Clutch Seal Kit | 99-ON | 1 | |
| 4A | 58160 | Pump Body O Ring | 99-ON | 1 | |
| 5A | 61162 | Pump to Case O Ring | 99-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | 61200 | Converter Seal | 46 ID x 63.1 OD x 8.20mm | 99-ON | 1 |
| 15H | 60236 | Extension housing Seal Mazda | 39 ID x 51.3 OD x 13.00mm | 99-ON | 1 |
| 15H | 61220 | Extension Housing Seal Holden Rodeo , Isuzu & Nissan | 38.4 ID x 49.6 OD x 12.0mm | 99-ON | 1 |
| 15H | 61222 | Extension Housing Seal Holden Rodeo & Isuzu | 39.30 x 62.30 x 11.20mm | 99-ON | 1 |
| 16H | 56232 | Adaptor Housing Seal | 41 ID x 65 OD x 10.00mm | 99-ON | 1 |
| NI | 75205 | Manual Shaft Seal | 12 ID x 22 OD x 7.00mm | 99-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 61360K | Steel Module | 99-ON | 1 | |
| 20C | 61310 | High Clutch | 129 OD x 1.60mm x 30T | 99-ON | 4-5 |
| 22C | 61314 | Reverse | 142 OD x 1.60mm x 30T | 99-ON | 2 |
| 24E | 62314 | Low Reverse Brake | 148 OD x 1.60mm x 30T | 99-ON | 6 |
| 26F | 63322 | Low Clutch | 138 OD x 1.80mm x 30T | 99-ON | 6-7 |
| 28G | 63318 | 2nd Brake | 167 OD x 1.60mm x 30T | 99-ON | 5 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 21C | 61360 | High Clutch | 104 ID x 2.00mm x 8T | 99-ON | 4 |
| 21C | 61360A | High Clutch | 104 ID x 3.00mm x 8T | 99-ON | 4 |
| 23C | 61364 | Reverse | 125 ID x 1.58mm x 32T | 99-ON | 2 |
| 25E | 61370 | Low Clutch | 123 ID x 2.10mm x 27T | 99-ON | 6 |
| 25E | 63372 | Low Clutch | 123 ID x 1.40mm x 30T | 99-ON | 6 |
| 27F | 61372 | Low Reverse Brake | 129 ID x 2.00mm x 20T | 99-ON | 6 |
| 29G | 61366 | 2-4 Brake | 144 ID x 3.60mm x 15T | 99-ON | 2 |
| 29G | 61366S | 2-4 Brake | 144 ID x 1.80mm x 15T | 99-ON | 2 |
| 33C | 61390 | High Pressure Plate | 104 ID x 5.00mm x 8T | 99-ON | 1 |
| 35E | 61394 | Low clutch Pressure Plate | 123 ID x 4.10mm x 30T | 99-ON | 1 |
| 36F | 61396 | Low & Reverse Pressure Plate | 129 ID x 5.20mm x 20T | 99-ON | 1 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 40A | 61460 | Pump to High Reverse Drum Thrust | 99-ON | 1 | |
| 41A | 61462 | Pump to Hgh /Reverse Drum Brg | 99-ON | 1 | |
| 42C | 61464 | High Clutch Hub Bearing | 99-ON | 1 | |
| 43C | 61468 | High Clutch Hub 4 Tang Thrust | 99-ON | 1 | |
| 44D | 61470 | Hub to Front Shell Bearing | 99-ON | 1 | |
| 45D | 61472K | Shell to Front Planet Bearing | 99-ON | 1 | |
| 46D | 61474 | Front Planet to Sungear Bearing | 99-ON | 1 | |
| 47D | 61476 | Sungear to Rear Planet Bearing | 99-ON | 1 | |
| 48D | 61480 | Rear Planet to Annulus Race | 99-ON | 1 | |
| 49D | 61482 | Rear Planet to Annulus Bearing | 99-ON | 1 | |
| 50D | 61486 | Annulus to Rear Hub Bearing | 99-ON | 1 | |
| 51D | 61488 | Annulus to Rear Hub Race | 99-ON | 1 | |
| 52H | 56490 | Park Gear Bearing | 99-ON | 2 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 60H | 61550 | Filter 3.9mm Pick Up | 99-ON | 1 | |
| 60H | 61552 | Filter 16.5mm Pick Up | 99-ON | 1 | |
| 60H | 61554 | Filter 31mm Pick Up (Holden Rodeo) | 99-ON | 1 |
filter kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 61550K | Filter Kit 3.9mm Pick Up | 99-ON | 1 | |
| Kit | 61552K | Filter Kit 16.5mm Pick Up | 99-ON | 1 | |
| Kit | 61554K | Filter Kit 31mm Pick Up (Holden Rodeo) | 99-ON | 1 | |
| Kit | 61555K | Filter Kit RX8 | 99-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 61570KA | Piston Kit | 99A | 1 | |
| 53B | 61570 | High & Reverse Balance Piston | 99-ON | 1 | |
| 54E | 61580 | Low Clutch Balance Piston | 99-ON | 1 | |
| 55E | 61582 | Low Clutch Piston | 99-ON | 1 | |
| 56F | 61584 | Low & Reverse Brake Piston | 99-ON | 1 | |
| 57G | 61578 | 2-4 Brake Piston | 99-ON | 1 |
springs & one way clutches
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 32E | 61680 | Low Clutch Dished Plate | 99-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 70H | 61700 | Pressure Control Solenoid With Wire | 99-ON | 1 | |
| 71H | 61702 | Lock Up Solenoid Grey Connector | 99-ON | 1 | |
| 72H | 61704 | Shift Solenoid Brown Connector | 99-ON | 1 | |
| 73H | 61704 | Shift Solenoid Brown Connector | 99-ON | 1 | |
| 74H | 61704 | Shift Solenoid Brown Connector | 99-ON | 1 | |
| 75H | 61704 | Shift Solenoid Brown Connector | 99-ON | 1 | |
| 76H | 61710 | Range Switch Mazda | 99-ON | 1 | |
| 76H | 61712 | Range Switch Holden & Izuzu | 99-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 90A | 61900 | Front Pump | 99-ON | 1 | |
| 91B | 61905 | High Clutch Drum | 99-ON | 1 | |
| 92C | 61915 | Hight Clutch Hub | 99-ON | 1 | |
| 93D | 61920 | Front Sungear & Shell | 99-ON | 1 | |
| 94D | 61924 | Front Planet | 99-ON | 1 | |
| 95D | 61928 | Rear Sungear | 99-ON | 1 | |
| 96D | 61932 | Rear Planet | 99-ON | 1 | |
| 97D | 61936 | Rear Planet Annulus | 99-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
