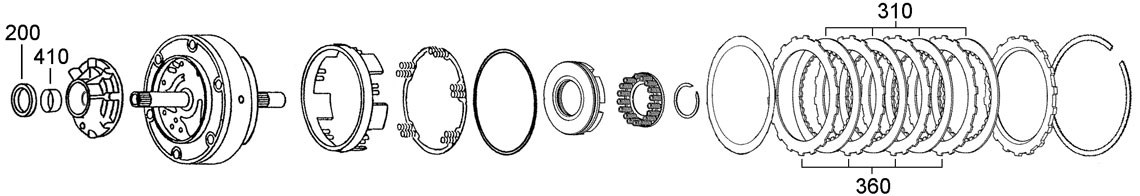

A

Oil Pump, B1 Piston & 2-3-4-6 B3 Brake Assembly

310
360
200
410

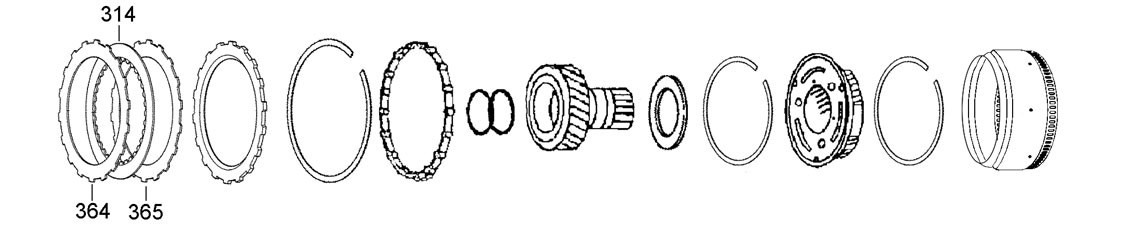

B

B1 Front Brake Assembly, F1 Roller Clutch & P1 Planetary

314
364
365

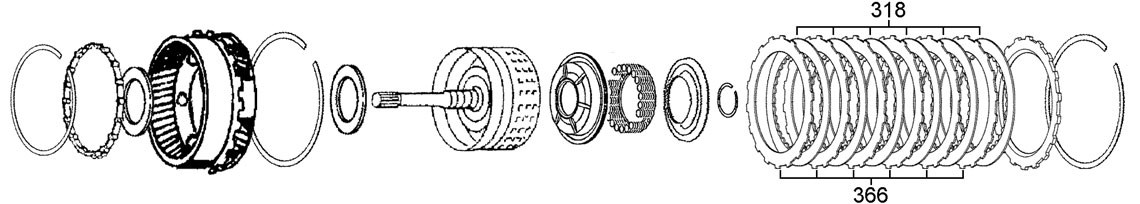

C

P2 Planetary & C1 Input Clutch Assembly

318
366

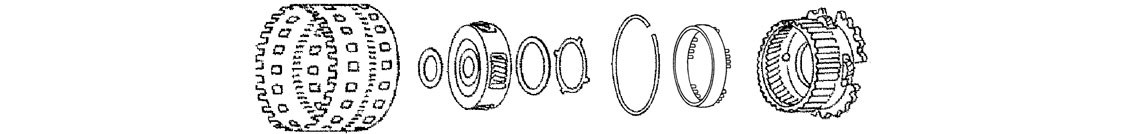

D

P3 & P4 Planetary Assemblies

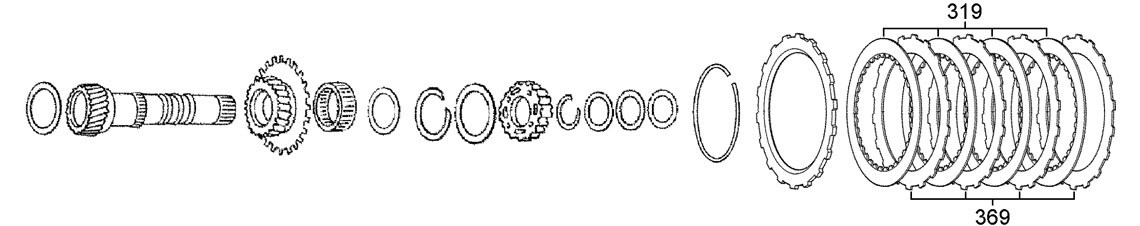

E

Sungears, F2 Sprag & C3 High and Low/Reverse Clutch

319
369

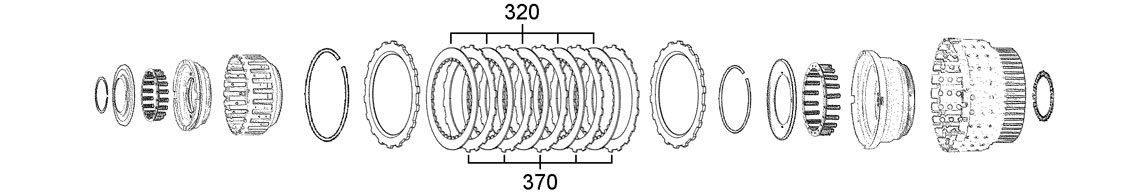

F

C2 Direct Clutch

320
370

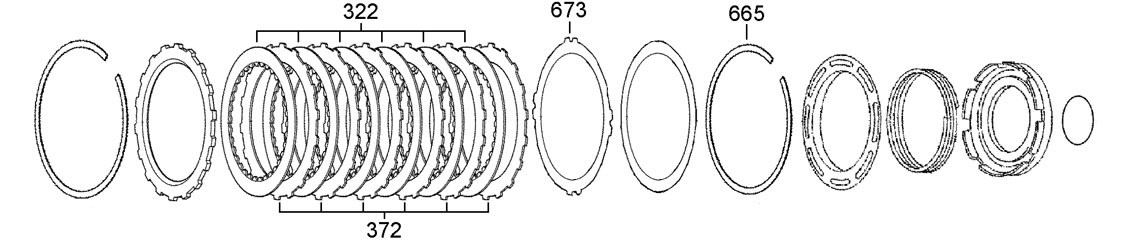

G

B4 Reverse Brake

322
372
673
665

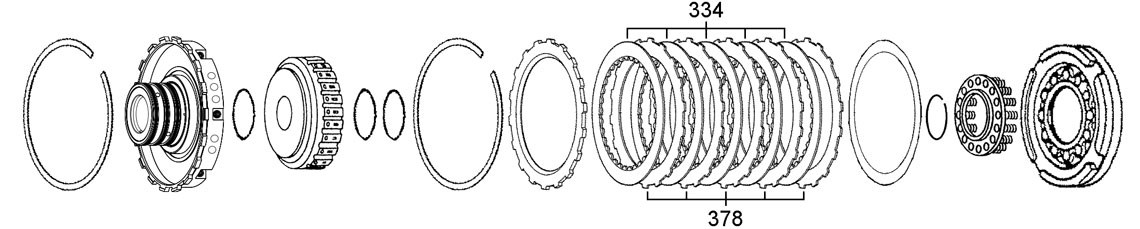

H

B2 Low Brake

334
378

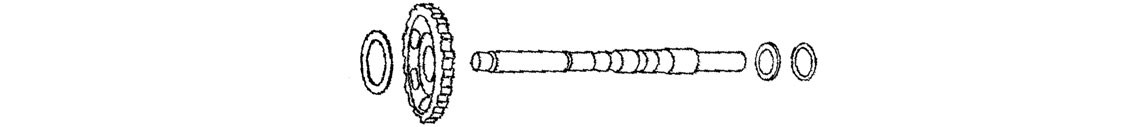

J

Park Gear & Output Shaft

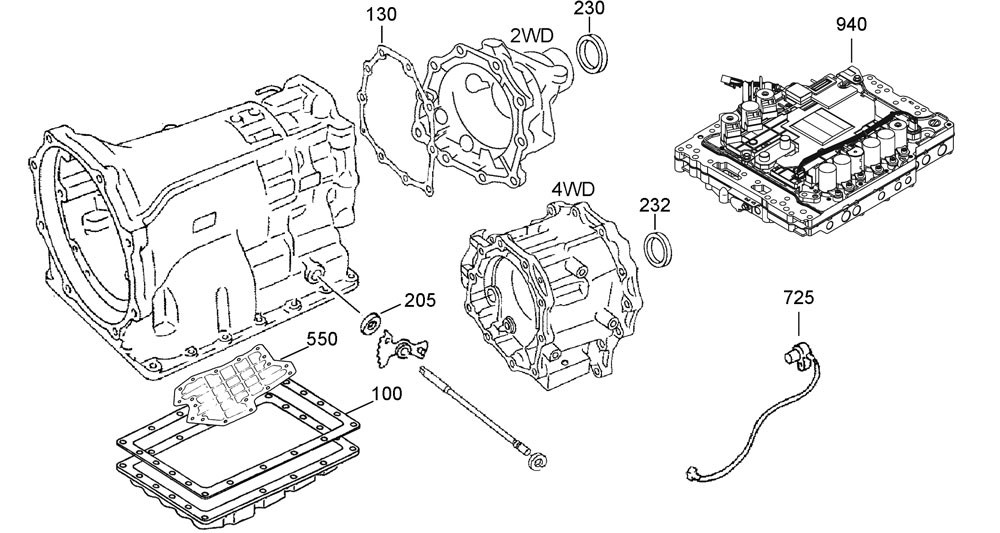

K

550
100
230
232
205
725
940
130

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117000K Overhaul Kit with Bonded Pistons JR710E, JR711E, RE7R01A Transtec 08-ON 1
Kit 117000KA Overhaul Kit with Pistons Precision 08-ON Alt
Kit 117001K Overhaul Kit without Bonded Pistons JR710E, JR711E, RE7R01A Transtec 08-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117000KM Master Kit 08-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
100K 117100 Pan Gasket 08-ON 1
100K 117101 Pan Gasket Duraprene JR710E 08-ON 1
100K 117101F Pan Gasket Farpak 08-ON Alt
130K 117130 Extension Housing Gasket, 2WD 08-ON 1
130K 117132 Extension Housing Gasket, 4WD 08-ON 1
130K 117134 Extension Housing Gasket, Titan 08-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 27160 Pump O Ring 08-ON 1
NI 56166 Input Shaft to Converter O Ring 27 x 23 x 1.72mm 08-ON 1
NI 58160 Pump O Ring 08-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
200A 55200 Converter Seal 46 ID x 63 OD x 7.70mm 08-ON 1
205K 73205 Selector Shaft Seal 11 ID x 22 OD x 7.00mm 08-ON 2
230K 56230 Extension Housing 2WD 44 ID x 62 OD x 10/15.9mm 08-ON 1
232K 59232 Adaptor Housing Seal 4WD 47.5 ID x 65 OD x 9.00mm 08-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117300K Friction Kit, JR710E Exedy 08-ON 1
Kit 117302K Friction Kit, JR711E Exedy 08-ON 1
Kit 117302KHP Friction Kit, RE7R01B, Avo Special Exedy 08-ON 1
Kit 117303KGPZ Friction Kit (GPZ), V8 Nismo Raybestos 08-ON 1
310A 117310 2-3-4-6 Brake (B3) 147 OD x 1.50mm x 36T 08-ON 4
314B 117314 Front Brake (B1) 186 OD x 1.50mm x 36T 08-ON 2
318C 117318 Input Clutch (C1) JR711E 161.1 OD x 1.80mm x 40T 08-ON 6
318C 59310 Input Clutch (C1) JR710E 161.1 OD x 1.80mm x 60T 08-ON 6
319E 59314 High & Low Reverse Clutch (C3) 124.8 OD x 1.60mm x 30T 08-ON 5
320F 59318 Direct Clutch (C2) 158.6 OD x 1.80mm x 24T 08-ON 6
322G 59320 Reverse Brake (B4) JR710E 167.5 OD x 1.80mm x 50T 08-ON 6
322G 59322 Reverse Brake (B4) JR711E 167.5 OD x 1.60mm x 40T 08-ON 8
334H 117334 Low Brake (B2) 147 OD x 1.50mm x 36T 08-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
360A 117360 2-3-4-6 Brake (B3) 115.8 ID x 2.00mm x 30T 08-ON 4
364B 117364 Front Brake (B1) 166.2 ID x 2.16mm x 11T 08-ON 1
365B 117365 Front Brake (B1) 166.2 ID x 2.00mm x 11T 08-ON 1
366C 117366 Input Clutch (C1) JR710E 146.3 ID x 2.00mm x 24T 08-ON 6
369E 59364 High & Low Reverse Clutch (C3) 95 ID x 131 OD x 2.40mm 24T 08-ON 4
370F 59368 Direct Clutch (C2) 140.7 ID x 2.40mm x 24T 08-ON 5
372G 59372 Reverse Brake (B4) JR710E 150.6 ID x 2.00mm x 18T 08-ON 6
372G 59372A Reverse Brake Steel 150.6 ID x 1.60mm x 18T 08-ON 7
378H 59378 Low Brake (B2) 124.3 ID x 1.60mm x 16T 08-ON 5

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117400K Bush Kit 08-ON 1
410A 59410 Pump Bush 08-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
550K 117550 Filter 08-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117550K Filter Kit 08-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59570K Moulded Piston Kit 08-ON 1
Kit 59570KA Moulded Piston Kit, Aftermarket 08-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
665G 59665 Snap Ring Reverse Brake H/Duty 05-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
673G 59673 B4 Reverse Brake Cushion Spring 08-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
725K 59725 Output Speed Sensor 08-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117784K Oversized Pressure Regulator & Boost Valve Kit 08-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
940K 117940 Valve Body, Navara 08-ON 1
940K 117942 Valve Body, Skyline 08-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49475K Cooler Kit, Patrol Y62, Coolmaster 13-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
