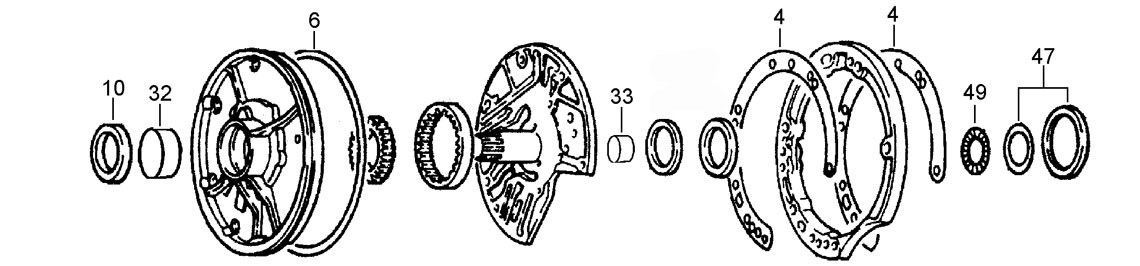

A

Pump

10
32
6
33
4
4
49
47

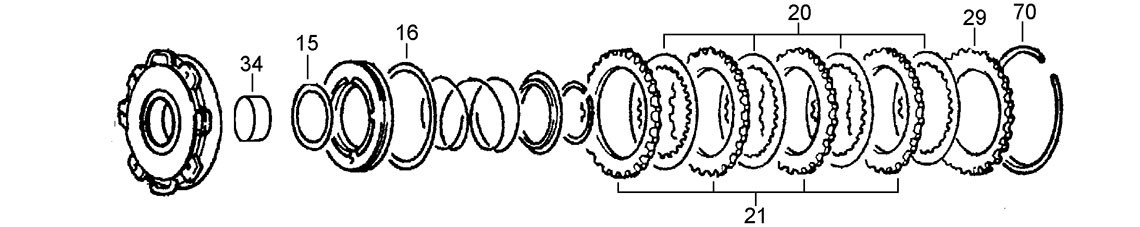

B

Direct Clutch

34
15
16
20
21
29
70

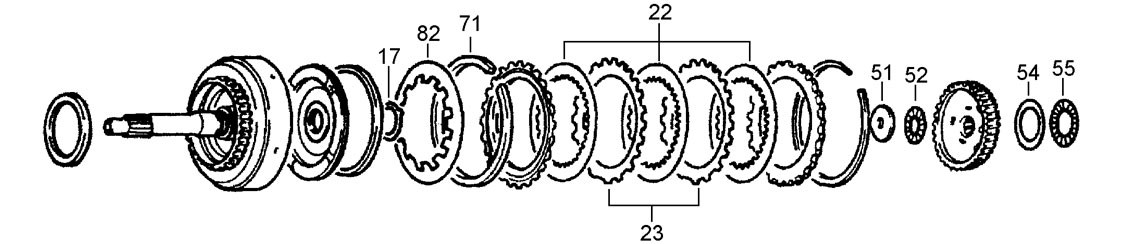

C

Forward Clutch

17
82
71
22
23
51
52
54
55

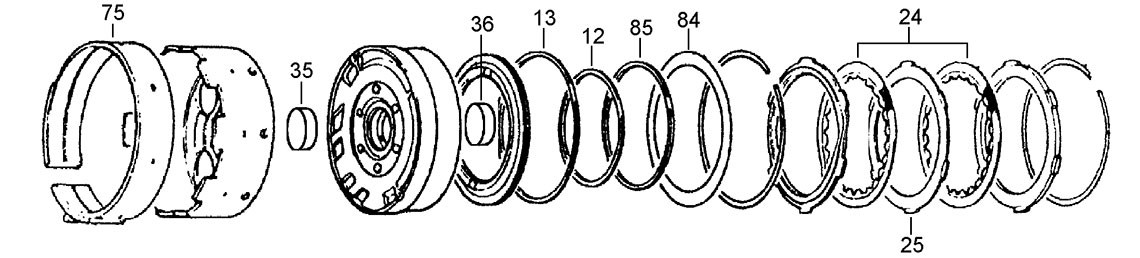

D

Band And Low & Reverse Brake

75
35
36
13
12
85
84
24
25

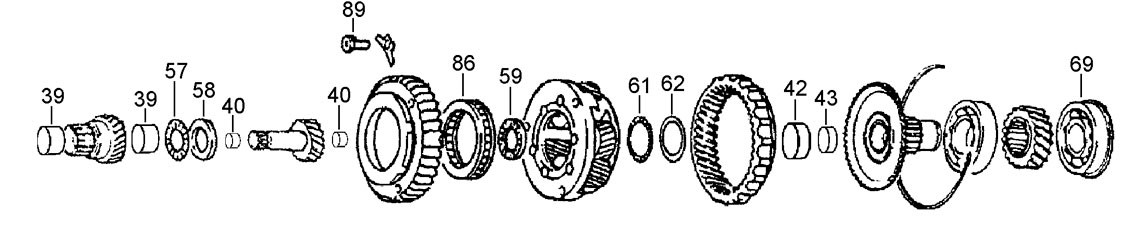

E

Planet Set & Output Shaft

39
39
57
58
40
40
89
86
59
61
62
42
43
69

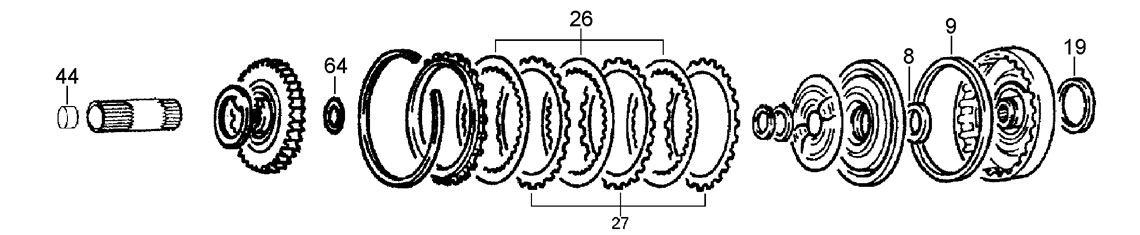

F

End Clutch (Overdrive)

44
64
26
27
8
9
19

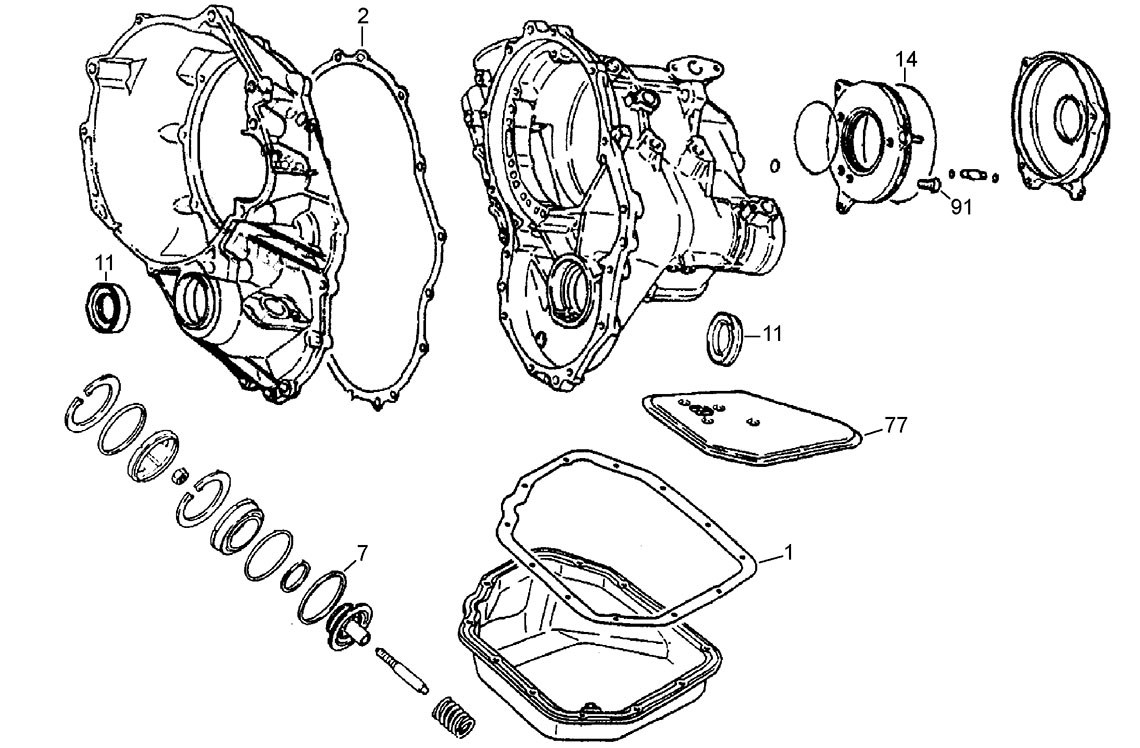

G

Case, Pan, Filter & Servo

7
1
77
11
11
2
14
91

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180000K Overhaul Kit KM170, 171, 172 Transtec 79-88 1
Kit 180000K-1 Gasket & Rubber Kit KM170, 171, 172 79-88 1
Kit 180002K Overhaul Kit (KM175-77) Transtec 85-88 1
Kit 180002KP Overhaul Kit (KM175-77) Driveline 85-88 Alt

* Note: For KM176 Order 18176 Separately

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1G 180100 Pan Gasket KM170-175 Cork 79-88 1
1G 180101 Pan Gasket KM170-175 Duraprene 79-88 1
1G 180102 Pan Gasket KM177 Cork 87-88 1
1G 180103 Pan Gasket KM177 Duraprene 87-88 1
2G 180130 Case to Converter Housing Gasket KM170-172 79-84 1
2G 180134 Case to Converter Housing KM175-177 84-88 1
4A 180110 Pump Gasket KM170-172 79-81 1
4A 180112 Pump Gasket KM175-177 82-88 2

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180166K Servo D Ring Ring Kit 79-88 1
Kit 180175K Forward & Direct D Ring Kit 79-88 1
Kit 180189K Overdrive Repair Kit Contains all Rubber Components & Overdrive Bolts Required for Overdrive Repair 85-88 1
6A 180160 Pump Body O Ring 79-88 1
7G 180166 Servo Piston Seal D Type Replaces Teflon Ring 79-88 1
8F 180180 Overdrive Clutch Inner D Ring 85-88 1
9F 180183 Overdrive Clutch Outer Lip Seal 85-88 1
12D 180190 Low & Reverse Piston Inner O Ring 79-88 1
13D 180192 Low & Reverse Piston Outer O Ring 79-88 1
14G 180184 Overdrive Cover O Ring 85-88 1
15B 180172 Direct Clutch Piston Inner D Ring 79-88 1
16B 180174 Direct Clutch Piston Outer D Ring (Except KM176) 79-88 1
16B 180176 Direct Clutch Piston Outer D Ring (KM176) 85-88 1
17C 180177 Forward Clutch Piston Inner D Ring 79-88 1
NI 180162 Pump Bolt Seals 79-88 6

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 180200 Front Pump Seal 43 ID x 60 OD x 9.00mm 79-88 1
11G 180210 Axle Seal Left & Righthand 35 ID x 56 OD x 9.00mm 79-88 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180254K Sealing Ring Kit 87-88 1
19F 180260 Overdrive Clutch Housing 175, 177 85-88 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180300KD Friction Kit, KM177 85-88 1
20B 180310 Direct (Front) 170-175 127 OD x 1.90mm x 38T 79-88 2-4
22C 180310 Forward (Rear) Except 172 127 OD x 1.90mm x 38T 79-88 2-5
22C 180312 Forward (10 Internal Splines) 127 OD x 2.00mm x 10T 84-88 2-4
24D 180320 Low & Reverse 48 Teeth 152 OD x 1.85mm x 48T 79-88 4-6
24D 180322 Low & Reverse 51 Teeth 152 OD x 1.85mm x 51T 87-88 4-6
26F 180330 Overdrive 175, 177 123 OD x 1.80mm x 40T 84-88 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 180360 Direct Thick (3.80mm) 101 ID x 3.80mm x 24T 79-88 3
23C 180362 Forward (Rear) 104.6 ID x 1.80mm x 24T 79-88 2
25D 180370 Low & Reverse 12 Teeth 1.8mm 134 ID x 1.70mm x 12T 82-88 AR
25D 180372 Low & Reverse 6 Teeth 3.80mm 134 ID x 3.80mm x 6T 79-88 AR
25D 180374 Low & Reverse 6 Teeth 1.80mm 134 ID x 1.70mm x 6T 79-88 AR
25D 180376 Low & Reverse 24 Teeth 1.8mm (Will fit 12 Teeth) 134 ID x 1.70mm x 24T 84-88 AR
25D 180380 Low & Reverse KM177 24 Teeth 1.0mm (135mm ID) 134 OD x 1.00mm x 24T 87-88 5
27F 180390 Overdrive KM175, 177 106 ID x 0.80mm x 25T 84-88 3-4
29B 180360 Direct Pressure Plate 101 ID x 3.80mm x 24T 79-88 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180400K Bush Kit Complete 3 Speed 79-88 1
Kit 180402K Bush Kit Complete 4 Speed 85-88 1
32A 180410 Pump Bush 79-88 1
33A 180411 Stator Support 79-5/88 1
33A 180424 Stator Support 6/88-ON 1
34B 180412 Direct Drum 79-88 1
34B 180412A Direct Drum, 10.70mm Wide, Late 79-88 1
35D 180420 Front Center Support Bush 89-ON 1
36D 180422 Centre Support Rear KM175 85-88 1
39E 180416 Secondary Sungear KM175 85-88 2
40E 180414 Primary Sungear KM175 85-88 2
42E 180419 Output Shaft Front KM175 85-88 1
43E 180416 Output Shaft Rear KM175 85-88 1
44F 180414 Overdrive Shaft KM175 85-88 1
NI 180431 Planetary KM170, 171, 172 79-88 1
NI 180434 Output Shaft KM170, 171 79-88 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
47A 180460C Direct Drum to Pump Selective Kit (2.6/1.6mm) 79-88 AR
47A 180460D Direct Drum to Pump Selective Kit (3.0/2.0mm) 79-88 AR
49A 180461 Direct to Forward Clutch Bearing 34.5 x 48 x 3.00mm 79-88 1
51C 180463 Forward Hub Thrust Plate (2.4mm) 85-88 1
52C 180464 Forward Hub Bearing KM175 26 x 42 x 3.00mm 85-88 1
52C 180468 Forward Hub Bearing KM170 79-86 1
54C 180465 Forward Hub to Input Shell Thrust Plate (1.6mm) KM175 1.60mm 85-88 1
55C 180461 Input Shell Bearing KM170 34.5 x 48 x 3.00mm 79-86 1
57E 180467 Primary to Secondary Sungear Bearing KM175 Non Turbo 85-88 1
57E 180467A Primary to Secondary Sungear Bearing KM175 Turbo 85-88 1
57E 180467B Primary to Secondary Sungear Bearing KM170 79-86 1
58E 180469 Primary to Secondary Sungear Skid Plate (1.2mm) 1.2mm 85-88 1
59E 180468 Sungear to Planet Needle Bearing Non Turbo 79-88 1
59E 180468A Sungear to Planet Needle Bearing Turbo 37.9 ID x 22.6 OD x 3.80mm 85-88 1
59E 180468B Sungear to Planet Needle Bearing Turbo 42.3 ID x 22.4 OD x 3.80mm 85-88 1
61E 180461 Planet to Output Shaft Brg KM170 34.5 x 48 x 3.00mm 79-86 1
62E 180474 Planet to Output Shaft Skid Plate (0.8mm) 0.8mm 85-88 1
64F 180472 Overdrive Piston to Hub 4 Tang Non Turbo 36 ID x 18.9 OD x 1.00mm 85-ON 1
64F 180473 Overdrive Piston to Hub Washer Turbo Only 36 ID x 19 OD x 1.00mm 85-88 1
69E 180478 Output Shaft Bearing Outer KM170 79-88 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
75D 180500 Band 40mm Wide KM170-175 79-88 1
75D 180502 Band 44mm Wide KM177 87-88 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
77G 180550 Filter KM170-172 6mm Thick 79-81 1
77G 180552 Filter KM170-172, KM175 9mm Thick 82-86 1
77G 180552 Filter KM172 9mm Thick 87-88 1
77G 180553 Filter Except KM172 18mm Thick 87-88 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 180550K Filter Kit KM170-172 6mm Thick 79-81 1
Kit 180552K Filter Kit KM170-172, KM175 9mm Thick 82-86 1
Kit 180552K Filter Kit KM172 9mm Thick 87-88 1
Kit 180553K Filter Kit Except KM172 18mm Thick 87-88 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
70B 180630E Direct Circlip 2.10mm 2.10mm 79-88 AR
70B 180630F Direct Circlip 2.20mm 2.20mm 79-88 AR
70B 180630G Direct Circlip 2.30mm 2.30mm 79-88 AR
71C 180630E Forward Circlip 2.10mm 2.10mm 79-88 AR
71C 180630F Forward Circlip 2.20mm 2.20mm 79-88 AR
71C 180630G Forward Circlip 2.30mm 2.30mm 79-88 AR

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
82C 180652 Forward Clutch Diaphragm Spring (1.40mm) 1.40mm 79-88 1
82C 180656 Forward Clutch Diaphragm Spring (1.70mm) 84-88 1
84D 180680 Low & Reverse Return Spring 80-88 1
85D 180670 Low & Reverse Spring Ring L81-88 1
86E 33650 One Way Clutch (Sprag) KM175 (Sprag must be Reversed) 84-88 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
89E 180750 Sprag Outer Race Bolt 79-88 3
91G 180754 Overdrive Housing Bolt 85-88 3

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49147 Ring Gear 106T 79-88 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49911 Lubegard Black 79-88 1
NI 49999-04 ATF DX III 4 Litre 79-88 AR
