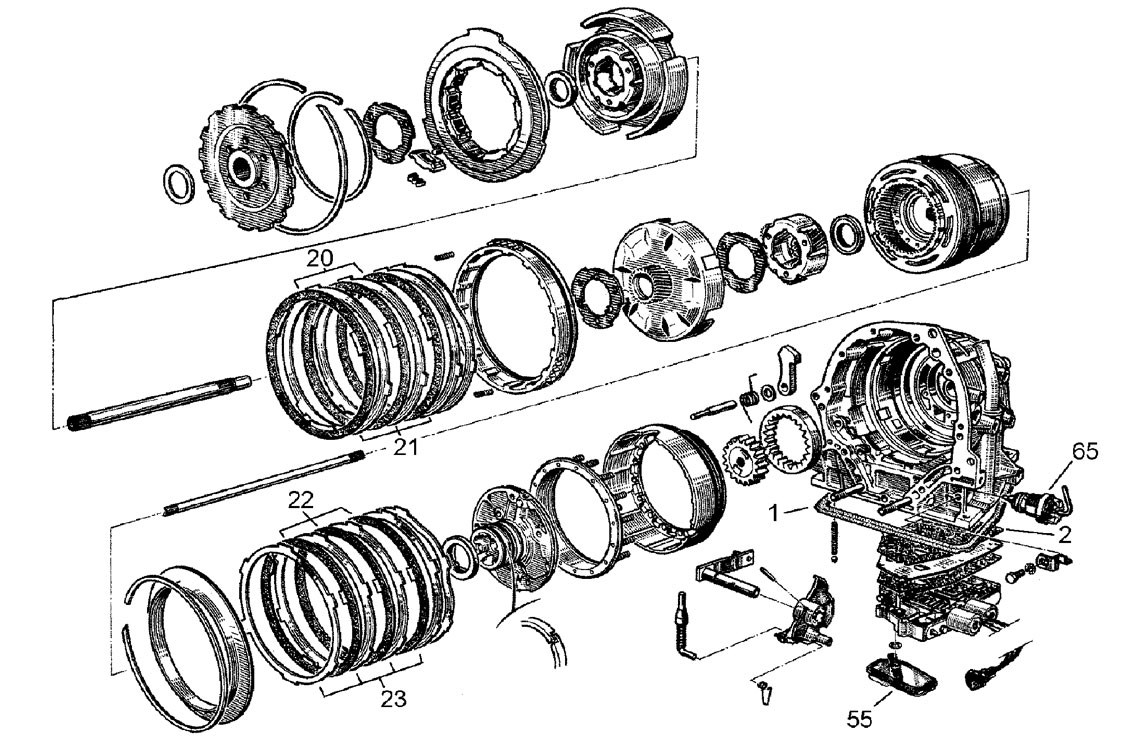

A

Low & Reverse Brake, Forward & Direct Clutches & Intermediate Brake

1
20
21
22
23
55
65
2

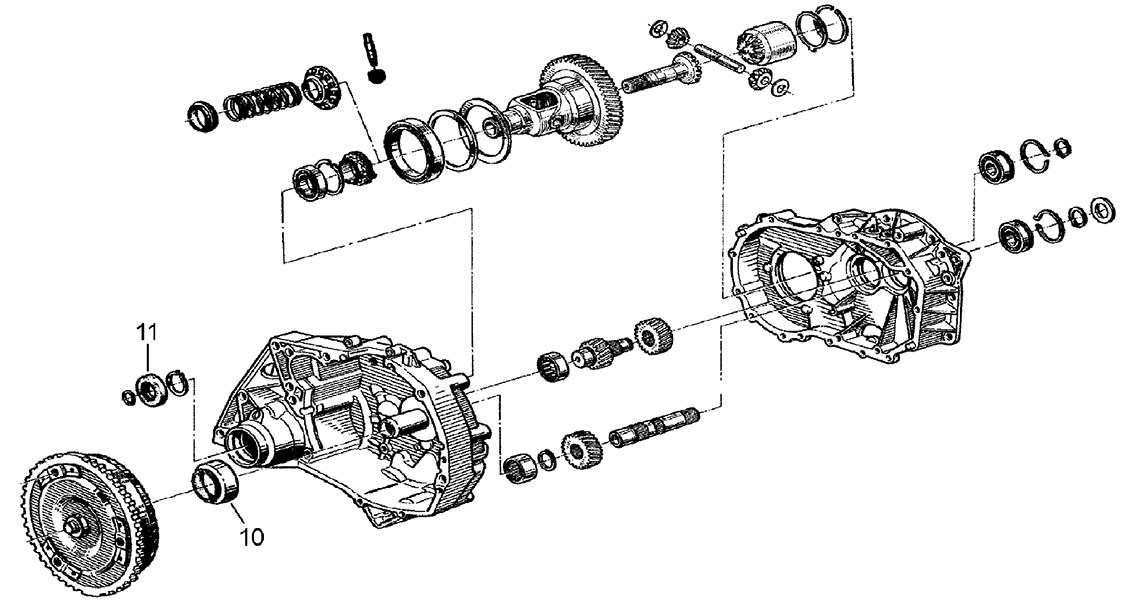

B

Cases & Differential Assembly

11
10

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit A93002K Overhaul Kit MJ1, MJ3 83-90 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1A A93100 Pan Gasket 83-90 1
2A A93120 Valve Body Gasket 83-90 2

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10B A93200 Converter MB1, MB3 42 ID x 66 OD x 23.00mm 83-90 1
10B A93202 Converter MJ1, MJ3 48 ID x 65 OD x 10.00mm 83-90 1
11B A93212 Axle Seal Renault 25 Clockwise Rotation 26 ID x 43.5 OD x 6.3/14.80mm 83-90 1
11B A93213 Axle Seal Renault 25 Anti-Clockwise Rotation 26 ID x 43.5 OD x 7/15.50mm 83-90 1
11B A93214 Axle Seal MB1, MB3 26 ID x 56 OD x 10.00mm 83-90 2
11B A93214 Axle Seal MJ1, MJ3 26 ID x 56 OD x 10.00mm 83-90 2

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20A A93310 Low & Reverse (F1) 83-90 4
22A A93316 Intermediate (F2) 83-90 4
NI A93312 Forward (E2) 125 OD x 2.03mm x 21T 83-90 5
NI A93314 Direct (E1) 150 OD x 2.03mm x 3T 83-90 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21A A93360 Low & Reverse (F1) 83-90 4
23A A93366 Intermediate (F2) 83-90 6

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55A A93550 Filter 25mm Deep 210mm Long Pick Up on End 83-88 1
55A A93552 Filter 150mm Long Pick Up on End 83-90 1
55A A93553 Filter 220mm Long Pick Up in Centre 83-90 1
55A A93553 Filter Renault Clio, Citroen SAXO & Peugeot 106 94-ON 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
65A A93600 Modulator All 83-90 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49910 Lubegard Red (10oz) 83-90 1
NI 49999-04 ATF DX III 4 LITRE 95-ON AR
