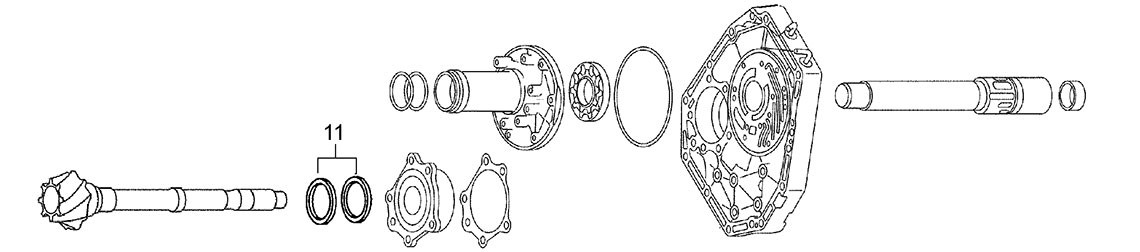

A

Pump

11

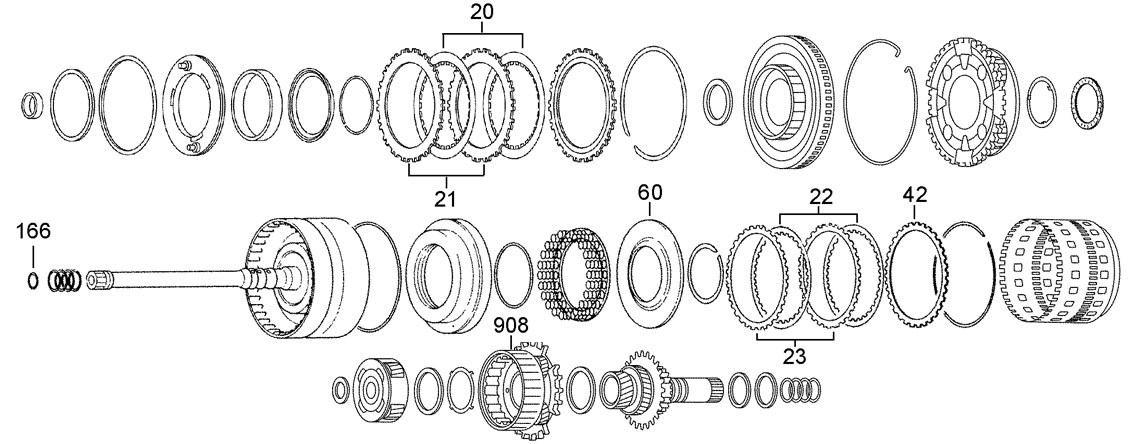

B

Front Brake, Input Clutch & Front, Middle & Rear Planets

42
23
22
20
21
60
166
908

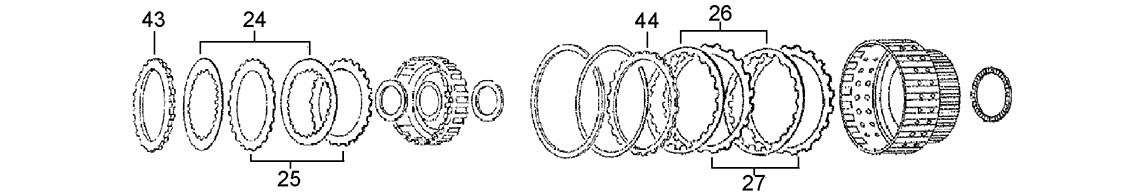

C

High & Low Reverse & Direct Clutches

25
44
24
43
26
27

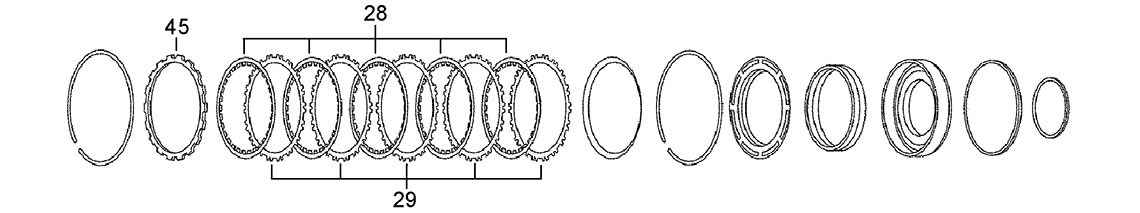

D

Reverse Brake

45
28
29

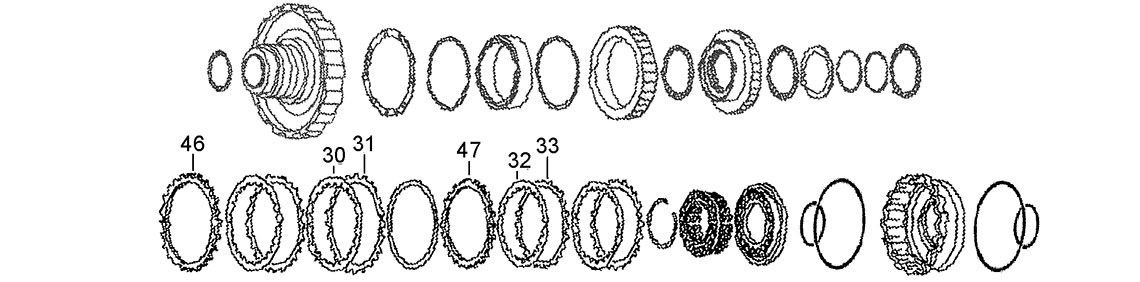

E

Forward & Low Coast Brakes

47
32
46
33
30
31

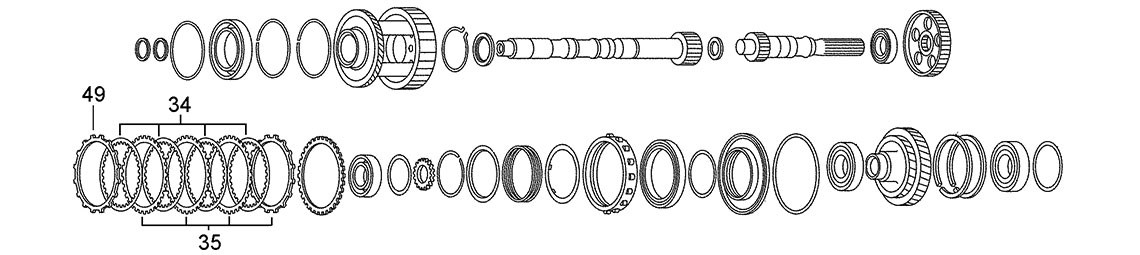

F

Transfer Clutch & Reduction Gear

49
34
35

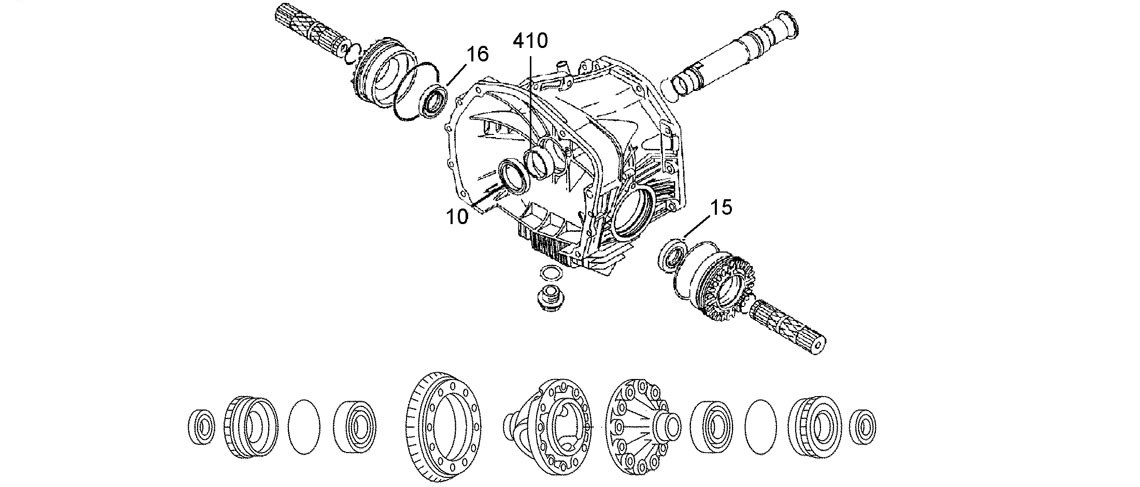

G

Differential Housing & Gear

10
15
16
410

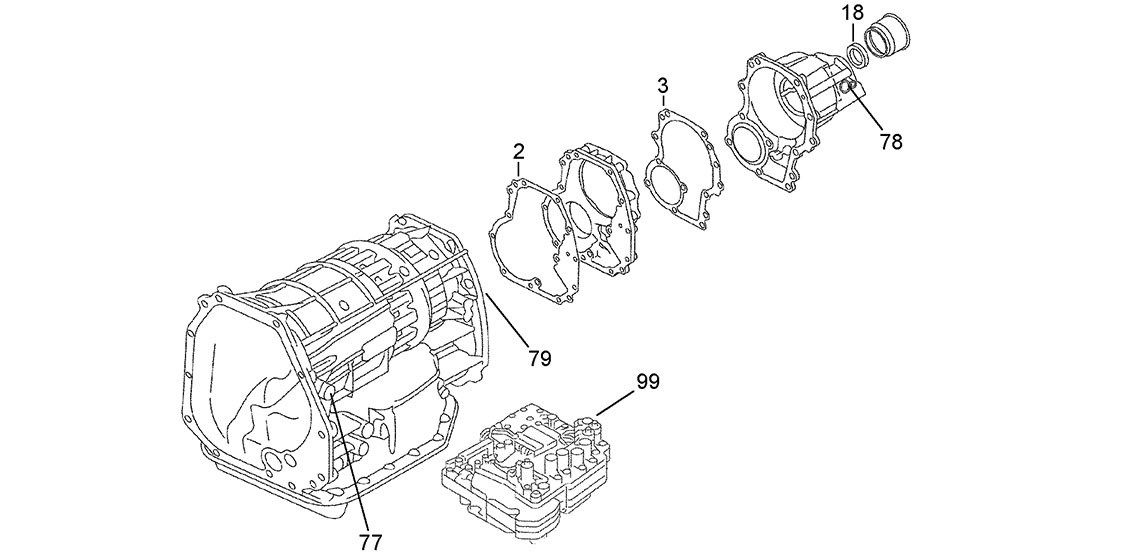

H

Case, Intermediate Housing, Extension Housing & Valve Body

77
78
2
3
99
79
18

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 64000K Overhaul Kit 5EAT Transtec 02-ON 1
Kit 64002KA Overhaul Kit With Pistons Precision 02-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
2H 64120 Case to Intermediate Housing Gasket 2WD 02-ON 1
2H 64122 Case to Intermediate Housing Gasket 4WD 02-ON 1
3H 64130 Intermediate Housing to Extension Housing Gasket 02-ON 1
NI 64100 Pan Gasket 02-ON 1
NI 64101 Pan Gasket Duraprene 02-ON Alt
NI 64110 Front Housing Gasket 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
166B 56166 Input Shaft to Converter O Ring 27 x 23 x 1.72mm 02-ON 1
NI 56176 Filter O Ring 02-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10G 62200 Converter Seal 50 ID x 65 OD x 10.00mm 02-ON 1
11A 62222 Pinion Seal 30 ID x 50 OD x 9.00mm 02-ON 2
15G 64220 Axle Seal Lefthand 35 ID x 50 OD x 9.00mm 02-ON 1
16G 64222 Axle Seal Righthand 35 ID x 50 OD x 9.00mm 02-ON 1
18H 60230 Extension Housing Seal 35 ID x 50 OD x 11.00mm 02-ON 1
NI 62235 Differential to Transmission Sealing Pipe 51.5 ID x 56.2 OD x 138 mm 02-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59250K Sealing Ring Kit 02-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 64300K Friction Kit 05-ON 1
20B 64310 Front Brake 132.5 OD x 1.60mm x 30T 02-ON 2
22B 59310 Input Clutch 161.1 OD x 1.80mm x 60T 02-ON 5-6
24C 59314 High & Low Reverse 124.8 OD x 1.60mm x 30T 02-ON 4
26C 59318 Direct Clutch 158.6 OD x 1.80mm x 24T 02-ON 5
28D 59320 Reverse Brake 167.5 OD x 1.80mm x 50T 02-ON 5
30E 59326 Forward Brake 147 OD x 1.60mm x 39T 02-ON 5
30E 59328 Forward Brake 02-ON Alt
32E 59330 Low Coast Brake 132.5 OD x 1.60mm 30T 02-ON 3
34F 62322 Transfer Clutch 118 OD x 1.80mm x 50T 02-ON 4
NI 62320 Transfer Case Friction 118 OD x 2.00mm x 24T 02-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 64360 Front Brake 107.8 ID x 2.80mm x 18T 02-ON 2
23B 59360 Input Clutch 144.5 ID x 2.00mm x 24T 02-ON 5-6
25C 59364 High & Low Reverse Clutch 95 ID x 131 OD x 2.40mm 24T 02-ON 6
27C 59368 Direct Clutch 140.7 ID x 2.40mm x 24T 02-ON 5
29D 59372 Reverse Brake 150.6 ID x 2.00mm x 18T 02-ON 5
29D 59372A Reverse Brake 150.6 ID x 1.60mm x 18T 02-ON 7
31E 59376 Forward Brake 124.3 ID x 2.00mm x 18T 02-ON 5
33E 59380 Low Coast Brake 112.9 ID x 2.00mm x 18T 02-ON 3
33E 59382 Low Coast Brake 112.85 ID x 1.60mm x 16T 02-ON 3
33E 59384 Low Coast Brake 112.85 ID x 1.80mm x 15T 02-ON 3
35F 62368 Transfer Clutch 104.6 ID x 1.60mm x 30T 02-ON AR
35F 62370 Transfer Clutch 104.6 ID x 1.80mm x 30T 02-ON AR
42B 59390 Input Clutch 144.5 ID x 4.40mm x 24T 02-ON 1
43C 59394A High & Low Reverse Clutch 95 ID x 4.20mm x 24T 02-ON AR
43C 59394B High & Low Reverse Clutch 95 ID x 4.40mm x 24T 02-ON AR
44C 59366 Direct Clutch 95 ID x 134 OD x 2.39mm 24T 02-ON 1
45D 59397 Reverse Brake 150.6 ID x 4.35mm x 18T 02-ON 1
45D 59397C Reverse Brake 150.6 ID x 4.80mm x 18T 02-ON 1
46E 59398 Forward Brake 124.3 ID x 3.70mm x 18T 02-ON 1
47E 59399 Low Coast Brake 112.9 ID x 4.40mm x 18T 02-ON 1
49F 62396 Transfer Clutch 104.6 ID x 4.00mm x 30T 02-ON 1
49F 62398 Transfer Clutch 104.6 ID x 5.00mm x 30T 02-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
410G 62410 Bellhousing to Converter Hub Bush 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
NI 63560 External Spin On Filter 02-ON 1
NI 64550 Internal Filter Metal 02-ON 1
NI 64552 Internal Filter Plastic 09-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 64550K Filter Kit Metal Filter Kit does not contain External Filter 02-ON 1
Kit 64552K Filter Kit Plastic Filter Kit does not contain External Filter 09-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 59570K Moulded Piston Kit Contains Input Clutch, High-Low Reverse & Direct Clutch Balance Pistons 02-ON 1
Kit 59570KA Moulded Piston Kit, Aftermarket 02-ON 1
60B 59572 Input Clutch Moulded Balance Piston 02-ON 1
60B 59572A Input Clutch Moulded Balance Piston 02-ON 1
NI 59576 Hi/Low Reverse Brake Moulded Balance Piston 02-ON 1
NI 59580 Direct Clutch Moulded Balance Piston 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
77H 64730 Input Speed Sensor (Turbine Speed Sensor No 1) 02-ON 1
78H 64730 Output Speed Sensor (Rear Vehicle Speed Sensor) 02-ON 1
79H 64736 Transfer Speed Sensor (Front Vehicle Speed Sensor) 02-ON 1
NI 64734 Input & Output Speed Sensors and Wiring Harness 05-ON 1
NI 64735 Input & Output Speed Sensors and Wiring Harness 05-ON 1
NI 64738 Turbine Speed Sensor No 2 Located on Valve Body 02-ON 1

Solenoids only available as part of Valve Body
Vehicle Details Required

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 117784K Oversized Pressure Regulator & Boost Valve Kit 02-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 64810K Reprogramming Kit 02-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
908B 64908 Rear Planet Assembly 02-ON 1

Vehicle Details Required when enquiring about a Valve Body

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
99H 64944 Valve Body 02-ON 1
99H 64946 Valve Body 02-ON 1
99H 64948 Valve Body 02-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
