TH400, 3L80

Fits '71–later units.

Warning:

If OE valve has through balance hole, Sonnax valve cannot be used.

Symptoms:

• High & uncontrollable line pressure
• Delayed converter charge
• Poor Reverse engagement

Cause:
Worn pressure regulator valve bore.

Correction:
Sonnax drop-in pressure regulator valve kit includes a solid PTFE seal ring to separate the balance line circuit from the pump suction and an O-ringed endplug to ensure proper back pressure to the pressure regulator valve.

High-mileage vehicles with GM TH400 and TH425 units often experience poor line pressure control due to a worn pressure regulator bore. This will result in high cooler pressure and converter, crankshaft and/or friction element failure. This bore wear can be verified by testing line pressure and testing the pump. This hardened steel valve continuously oscillates within the cast-iron pump bore, resulting in wear. Balance line pressure is then allowed to leak past the valve and exhaust to the sump. This prevents the pressure regulator valve from moving completely to the lower line pressure position. This Sonnax pressure regulator valve kit eliminates these problems.

• Pressure regulator valve has been modified to incorporate a solid PTFE seal ring that properly separates the balance line circuit from the pump suction, preventing cross-leakage
• Includes an O-ringed end plug to ensure proper back pressure to the pressure regulator valve
• Eliminates the need to replace the pump casting to ensure pressure control
• Drop-in Zip Valve™ parts install quickly and easily

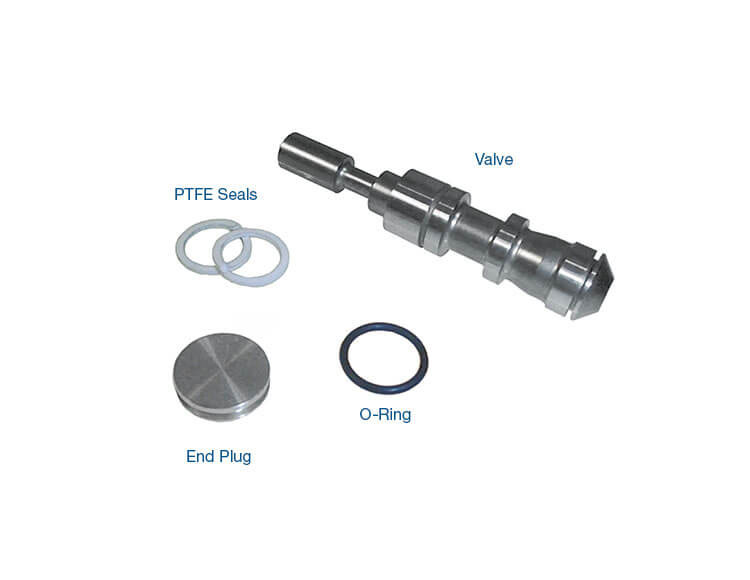

Contains:

• Valve
• Seals (2) PTFE, 1 Extra
• End Plug
• O-Ring

36798K Instruction Sheet
