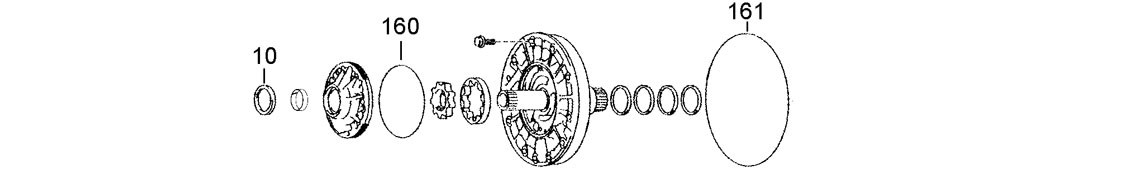

A
Pump
10
160
161

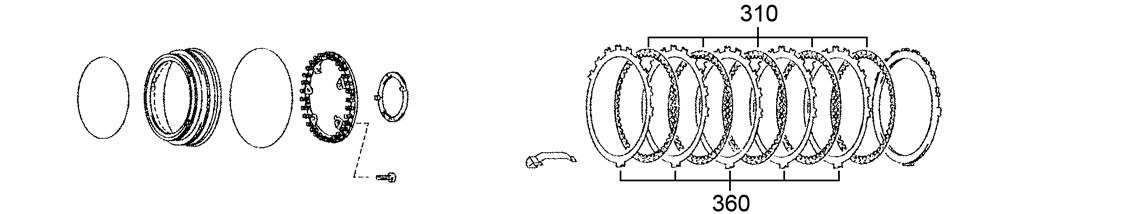

B
B1 Brake (2nd & 7th)
310
360

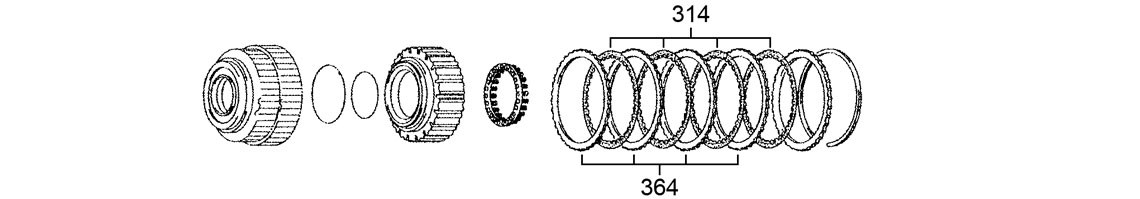

C
C3 Clutch (3rd & 7th)
364
314

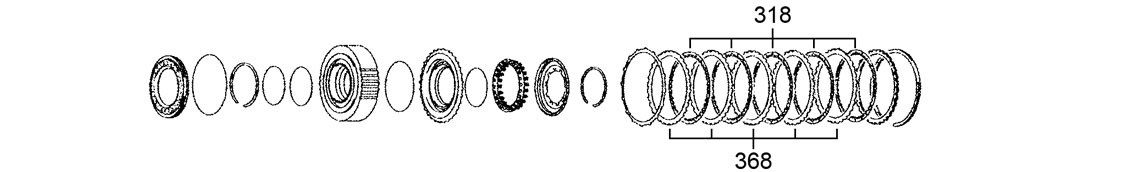

D
C4 Clutch (Reverse, 4th & 6th)
368
318
E
Front Planet

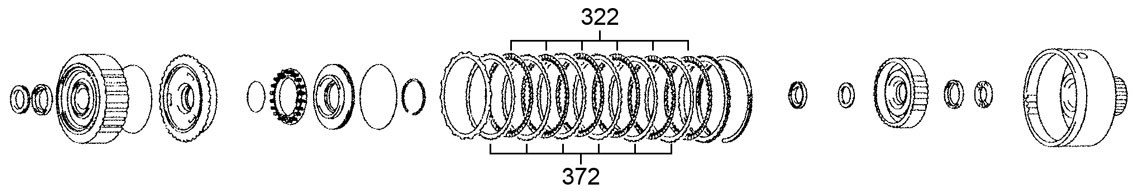

F
C1 Clutch (1 St, 2nd, 3rd, 4th & 5th)
372
322

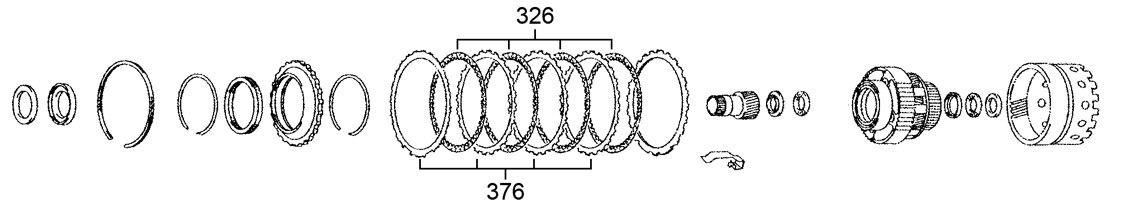

G
F1 One Way Clutch, B2 Brake (Reverse) & Rear Planet
326
376

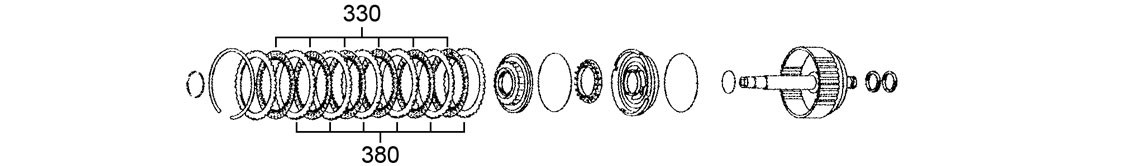

H
C2 Clutch (5th, 6th, 7th & 8th)
330
380

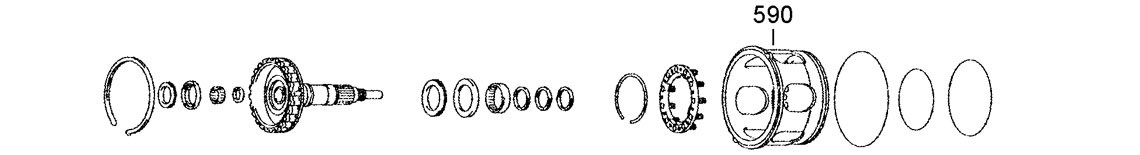

J
Output Shaft & B2 Piston
590

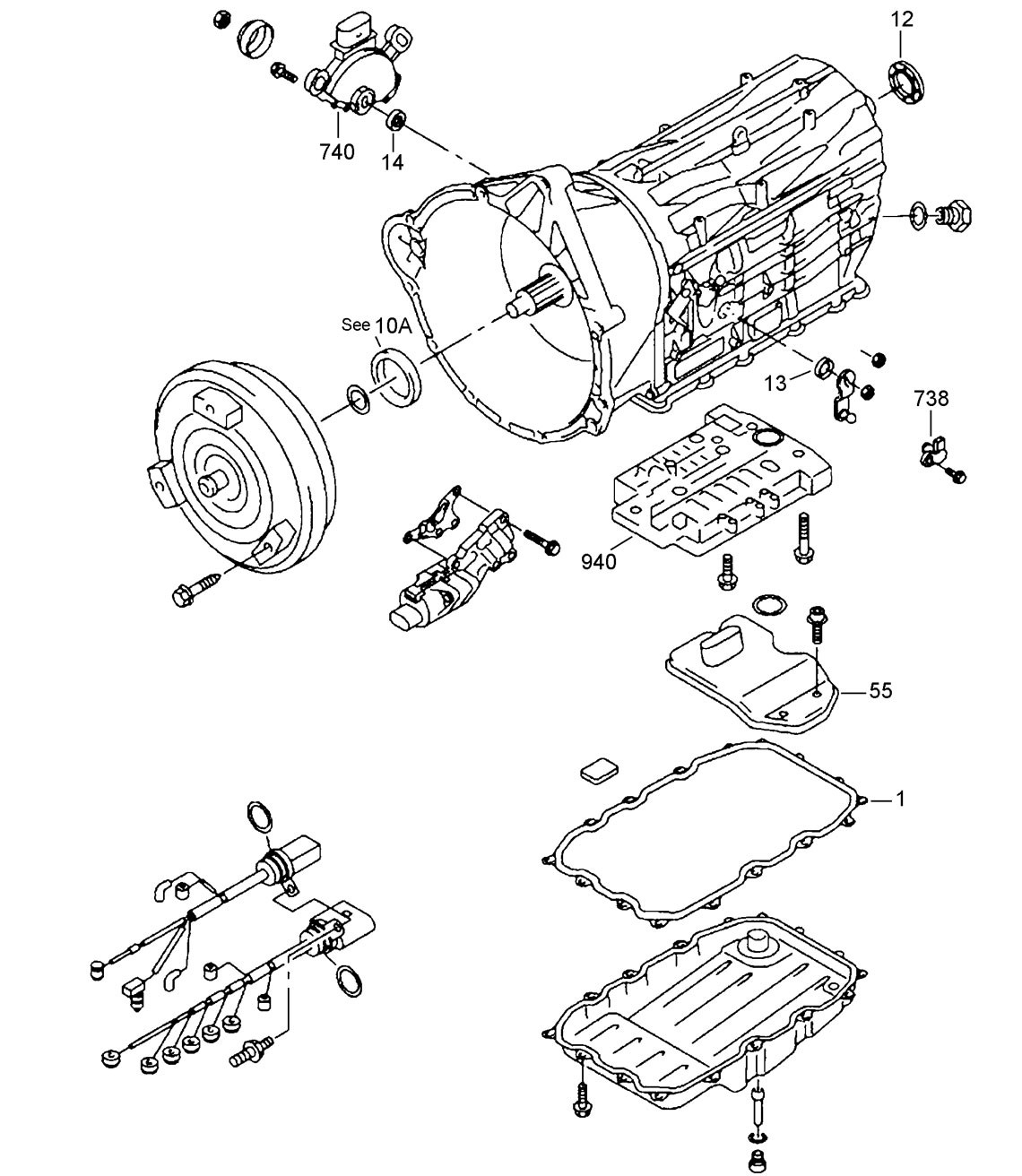

K
Case, Valve Body, Pan & Filter
13
1
14
12
55
940
738
740
overhaul kits
We provides cost effective sourcing for OE parts.
To obtain a quote Please provide Registration or VIN No.
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 118000K | Overhaul Kit With Pistons | Transtec | 11-ON | 1 |
| Kit | 118002K | Overhaul Kit Without Pistons | Transtec | 11-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 160A | 72160 | Pump Body to Cover O Ring | 11-ON | 1 | |
| 161A | 102160 | Pump O Ring | 11-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | 118200 | Converter to Pump Seal | 42 ID x 66 OD x 8.00mm | 11-ON | 1 |
| 12K | 102220 | Rear Output Seal | 42 ID x 72.5 OD x 11.00mm | 11-ON | 1 |
| 13K | 75205 | Selector Shaft Seal Lefthand | 12 ID x 22 OD x 7.00mm | 11-ON | 1 |
| 14K | 75205 | Selector Shaft Seal Righthand | 12 ID x 22 OD x 7.00mm | 11-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 118300KA | Friction Kit 0C8 (TR80SC) | 11-ON | 1 | |
| 310B | 118310 | B1 Brake (2nd & 7th) Friction | 196 OD x 1.40mm x 24T | 11-ON | 5 |
| 314C | 118314 | C3 Clutch (3rd & 7th) Friction | 177.52 OD x 1.50mm x 36T | 11-ON | 5 |
| 318D | 118318 | C4 Clutch (Reverse, 4th & 6th) Friction | 150 OD x 1.50mm x 36T | 11-ON | 5 |
| 322F | 118322 | C1 Clutch (1 St, 2nd, 3rd, 4th & 5th) Friction | 167 OD x 1.90mm x 48T | 11-ON | 6 |
| 326G | 118326 | B2 Brake (Reverse) Friction | 173 OD x 1.70mm x 50T | 11-ON | 5 |
| 330H | 118330 | C2 Clutch (5th, 6th, 7th & 8th) Friction | 136.8 OD x 2.08mm x 42T | 11-ON | 7 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 118350K | Steel Module | 11-ON | AR | |
| 360B | 118360 | B1 Brake (2nd & 7th) Steel | 178 ID x 2.00 mm x 9T | 11-ON | 5 |
| 364C | 118364 | C3 Clutch (3rd & 7th) Steel | 156 ID x 1.75mm x 36T | 11-ON | 6 |
| 368D | 118368 | C4 Clutch (Reverse, 4th & 6th) Steel | 134 ID x 2.00mm x 24T | 11-ON | 5 |
| 372F | 118372 | C1 Clutch (1 St, 2nd, 3rd, 4th & 5th) Steel | 150 ID x 1.77mm x 36T | 11-ON | 7 |
| 376G | 118376 | B2 Brake (Reverse) Steel | 160 ID x 1.75mm x 24T | 11-ON | 4 |
| 380H | 118380 | C2 Clutch (5th, 6th, 7th & 8th) Steel | 114 ID x 2.00mm x 35T | 11-ON | 7 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 118570K | Piston Kit | 11-ON | 1 | |
| 590J | 118590 | B2 Brake Piston Assembly | 11-ON | 1 |
electrical components
Vehicle Details required when ordering
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 738K | 118738 | Output Speed Sensor Porsche | 11-ON | 1 | |
| 740K | 118740 | Inhibitor Switch | 11-ON | 1 | |
| NI | 118745 | Transmission Harness | 11-ON | 1 | |
| NI | D145706 | Oil Cooling Solenoid N471 | 11-ON | 1 |
valve bodies
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 940K | 118940 | Valve Body | 11-ON | 1 | |
| 940K | 118940R | Valve Body, From New | 11-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR | ||
| NI | B14999-01 | Transfer Case Fluid | 11-ON | AR |
