A

Pump & Forward (C1) Clutch Drum

39
89
5
88
10

B

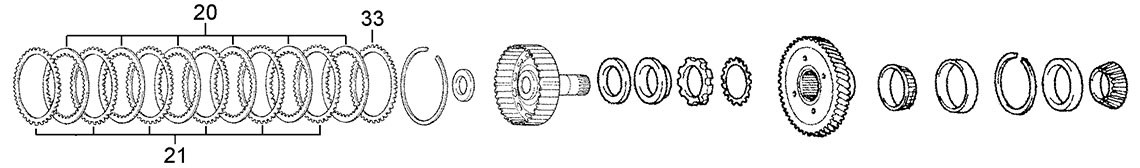

Forward (C1) Clutch & Counter Drive Gear

21
33
20

C

Low & Reverse (B2) Brake

23
22

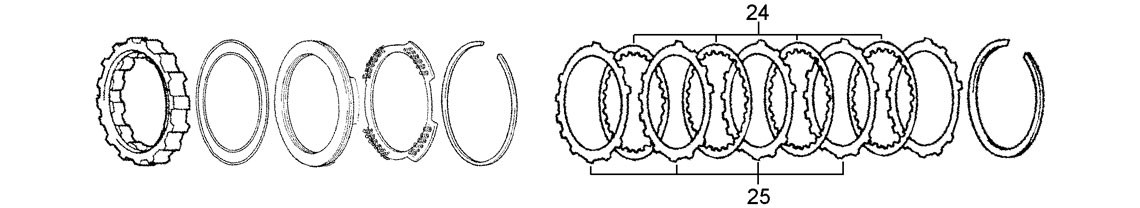

D

2nd (B1) Brake

25
24

E

Front & Rear Planets

41
43
91
42
94
92
40
93
90
64

F

No 1 One Way Clutch (F1) Assembly & Rear Sun Gear

46
45
47
44
95
96

G

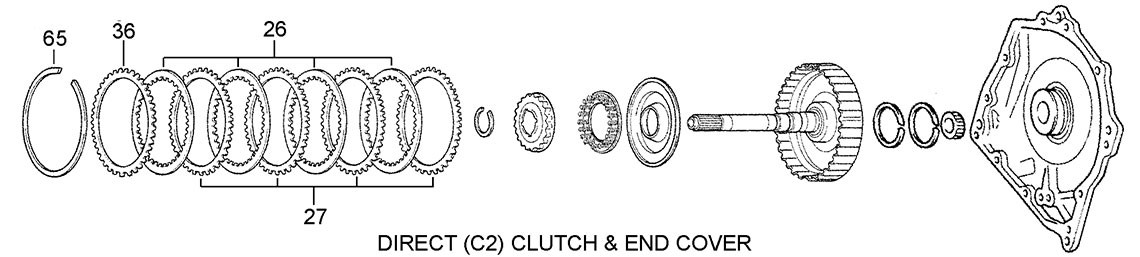

Direct (C2) Clutch & End Cover

27
26
36
65

H

Underdrive Planet


J

Underdrive (C3) Clutch

29
28

K

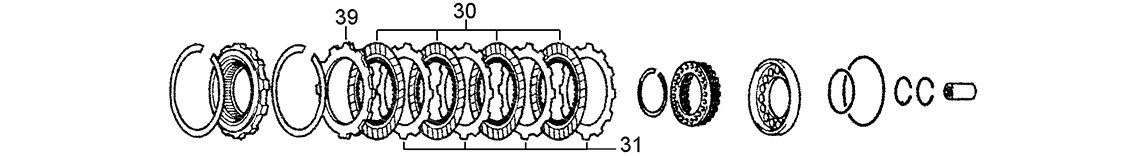

No 2 One Way Clutch (F2) & Underdrive (B3) Brake

31
39
30

L

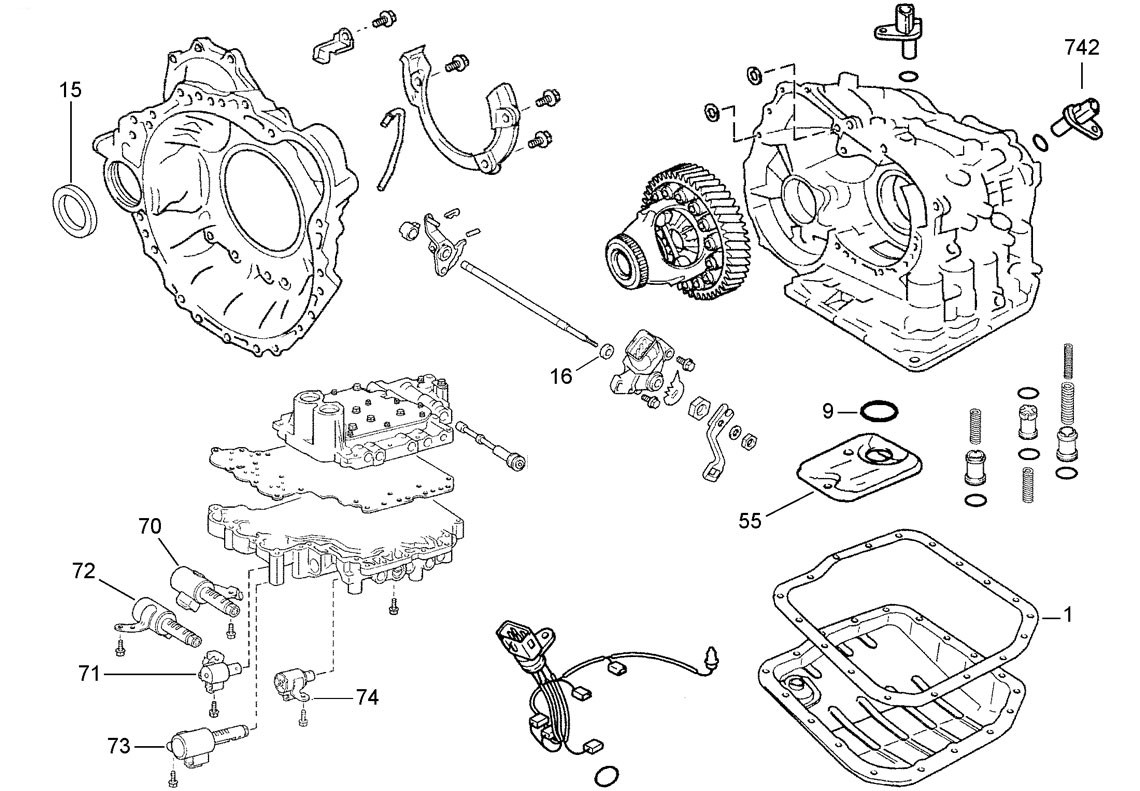

Case, Differential, Valve Body & Pan

73
70
72
74
71
55
9
16
1
15
742

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78002K Overhaul Kit U240E, U241E With Pistons Transtec 99-ON 1
Kit 78002KP Overhaul Kit U240E, U241E Precision 99-ON Alt
Kit 78004K Overhaul Kit U240E, U241E Without Pistons Transtec 99-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78002KM Master Kit with Pistons U240E, U241E 98-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1L 78100 Pan Gasket Cork 99-ON 1
1L 78101 Pan Gasket Duraprene 99-ON 1
NI 78120 Valve Body Gasket 99-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
5A 78160 Pump O Ring 99-ON 1
9L 78165 Filter O Ring 99-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 73200 Converter Seal 38 ID x 55 OD x 7.70mm 99-ON 1
15L 75210 Axle Seal Righthand U240E 35 ID x 55 OD x 8.00mm 99-ON 1
15L 78214 Axle Seal Righthand U241E 39 ID x 64.3 OD x 9mm 00-ON 1
15L 78220 Axle Seal Righthand 4WD 62 ID x 74 OD x 8.00mm 99-ON 1
15L 78222 Axle Seal Righthand 55 ID x 74 OD x 9.90mm 98-ON 1
16L 75205 Selector Shaft Seal 12 ID x 22 OD x 7.00mm 89-ON 1
NI 75210 Axle Seal Lefthand U240E 35 ID x 55 OD x 8.00mm 99-ON 1
NI 78212 Axle Seal Lefthand U241E 50 ID x 68.3 OD x 8.80mm 00-ON 1
NI 78230 Transfer Case Extension Housing Seal 38 ID x 58 OD x 11.00mm 98-ON 1
NI 78235 Differential to Transmission Seal 34 ID x 41.6 OD x 21.70mm 98-ON 1
NI 78240 Right Hand Transfer Case Seal 55 ID x 68 OD x 8.50mm 99-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
20B 78310 Forward (C1) Clutch 136 OD x 1.80mm x 40T 98-ON 6
20B 78311 Forward (C1) Clutch 136 OD x 1.80mm x 40T 98-ON 6
22C 78314 Low Reverse (B2) Brake 163 OD x 1.80mm x 40T 99-ON 7
24D 78318 2nd (B1) Brake 170 OD x 1.80mm x 40T 99-ON 4
26G 78322 Direct (C2) Clutch 157 OD x 1.80mm x 40T 99-ON 4
28J 78328 Underdrive (C3) Clutch 114 OD x 2.0mm x 40T 99-ON 3
30K 78332 Underdrive (B3) Brake 112.5 OD x 1.90mm x 28T 99-ON 3
NI 78302KA Friction Module 99-ON 1

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 78360 Forward (C1) Clutch 115 ID x 1.80mm x 40T 99-ON 6
23C 78364 Low Reverse (B2) Brake 143 ID x 1.80mm x 12T 99-ON 7
25D 78368 2nd (B1) Brake 143 ID x 2.00mm x 12T 99-ON 4
27G 78372 Direct (C2) Clutch 140 ID x 3.00mm x 40T 99-ON 4
29J 78378 Underdrive (C3) Clutch 91 ID x 2.0mm x 40T 99-ON 3
31K 78382 Underdrive (B3) Brake 93 ID x 1.85mm x 11T 99-ON 3
33B 78390B Forward Clutch Pressure Plate 115 ID x 3.30mm x 40T 99-ON 1
36G 78394B Direct Clutch Pressure Plate 140 ID x 3.20mm x 40T 99-ON 1
39K 78396 Underdrive (B3) Brake Pressure Plate 93 ID x 3.00mm x 40T 98-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78400K Bush Kit 99-ON 1
39A 73410 Pump Bush 38 ID x 41.2 OD 99-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40E 78480 Front Planet to Sungear Bearing 99-ON 1
41E 78482 Sungear to Rear Planet Front Race 99-ON 1
42E 78484 Sungear to Rear Planet Bearing 99-ON 1
43E 78486 Sungear to Rear Planet Rear Race 99-ON 1
44F 78488 Rear Planet to No 1 OWC Thrust 99-ON 1
45F 78490 No 1 OWC to Rear Sungear Thrust 99-ON 1
46F 78492 Rear Sungear to Direct Clutch Bearing 34 ID x 48 OD x 2.75mm 99-ON 1
47F 78494 Rear Sungear to Direct Clutch Race 30 ID x 46 OD x 2.50mm 99-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55L 78562 Filter 99-ON 1
55L 78564 Filter 02-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78562K Filter Kit 99-ON 1
Kit 78564K Filter Kit 02-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 72580K Accumulator Piston Kit 99-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
64E 78652 Rear Planet to Ringear Circlip 99-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
65G 78640 Direct Clutch Circlip 99-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78720K Solenoid Set 99-ON 1
70L 78700 SLT (EPC) Solenoid 1 Slot 99-ON 1
70L 78702 SLT (EPC) Solenoid 2 Slots 99-ON 1
70L 78703 Clutch Control No 2 Solenoid 3 Slots 06-ON 1
71L 78704 DSL (Lock Up) Solenoid 11.5mm Long snout 99-ON 1
71L 78705 DSL (Lock Up) Solenoid 15mm Long snout 99-ON 1
71L 78708 DSL (Lock Up) Solenoid 99-ON 1
72L 78710 SL1 (Shift 1) Solenoid 99-ON 1
72L 78711 SL1 (Shift 1) Solenoid 06-ON 1
73L 78703 Clutch Control No 2 Solenoid 06-ON 1
73L 78712 SL2 (Shift 2) Solenoid 99-ON 1
74L 78714 S4 (3 Way) Solenoid 12.5mm snout Bracket at 9 O’Clock to Plug 99-ON 1
74L 78715 S4 (3 Way) Solenoid 14.5mm snout Bracket at 5 O’Clock to Plug 02-ON 1
74L 78716 S4 (3 Way) Solenoid 14.5mm snout Bracket at 10 O’Clock to Plug 02-ON 1
74L 78718 S4 (3 Way) Solenoid 13mm snout & 20mm Diameter Body Bracket at 9 O’Clock to Plug 06-ON 1
742L 78742 Input & Output Speed Sensor 99-ON 1

Please provide VIN No when ordering solenoid to enable us to check these are correct for your application

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78790K Oversized Pressure Regulator & Boost Valve Kit 98-ON 1
Kit 78791K Primary Regulator Boost Valve Kit 99-ON 1
Kit 78792K Solenoid Modulator Valve Kit * * Reamer & V/Body Fix Tool Required 99-ON 1
Kit 78793K Clutch Apply Control Plunger Kit 99-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78800K Shift Kit 99-ON 1
Kit 78810K Sonnax ZIP Kit 99-ON 1
Kit 78820K Valve Body Upgrade Kit Superior 99-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 78962K Front Planet Kit 99-ON 1
Kit 78964K Gear Train OEM Contains Front & Rear Planets, Front & Rear Sungears & Bearings Illustration Nos 40, 41, 42, & 43 98-ON 1
88A 78900 Front Pump Body & Gears Contains Pump Seal and Bush Gears 10.7mm wide 1 dot on Gears 99-ON 1
88A 78902 Front Pump Body & Gears Contains Pump Seal and Bush Gears 11.7mm wide 2 dots on Gears 99-ON 1
89A 78904 Pump Stator Shaft Assembly 02-ON 1
90E 78930 Front Ringear 99-ON 1
91E 78932 Front Planetary Hub OEM 99-ON 1
92E 78934 Front Planet 4 Pinion 99-ON 1
93E 78936 Front Sungear 99-ON 1
94E 78938 Rear Planet 99-ON 1
95F 78959 Drive Shell 99-ON 1
96F 78940 Rear Planetary Sungear 99-ON 1

As these parts vary between and within models, Please provide VIN No when ordering to enable us to supply the correct parts

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
