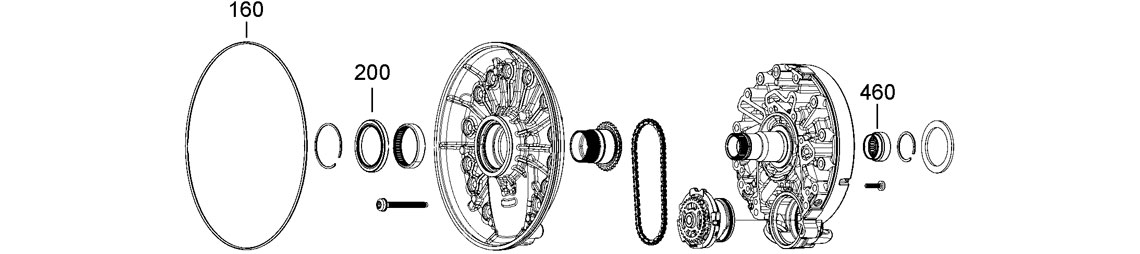

A
Pump
160
200
460

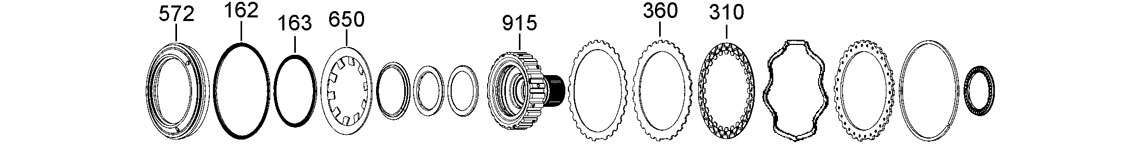

B
A Clutch
572
162
163
650
915
360
310

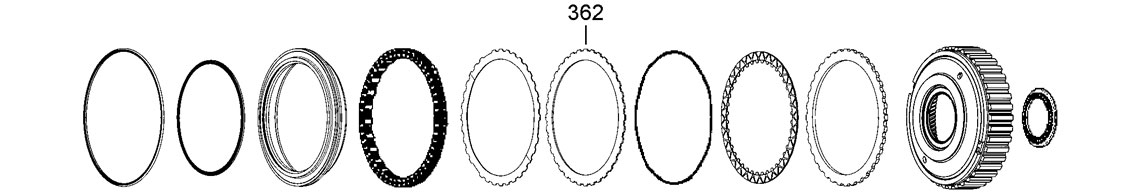

C
B Clutch
362

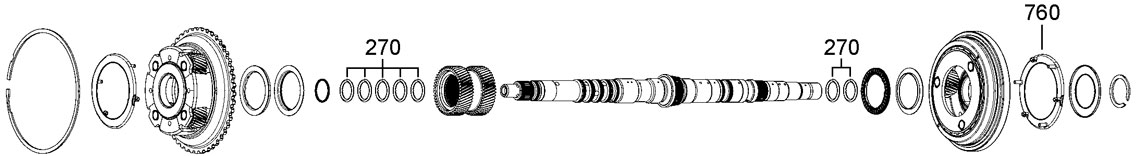

D
No 1 & No 2 Planetary Gear Sets
270
270
760

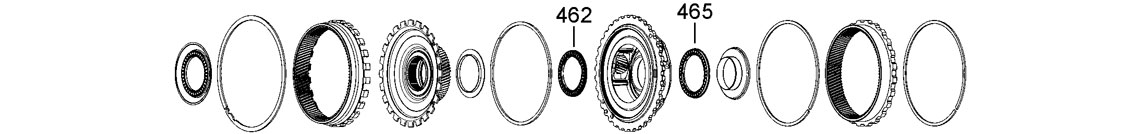

E
No 3 Planetary Gear Sets
462
465

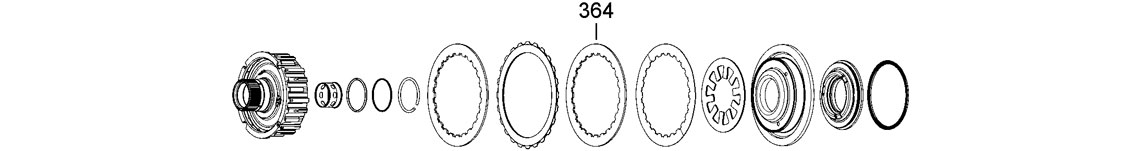

F
E Clutch
364

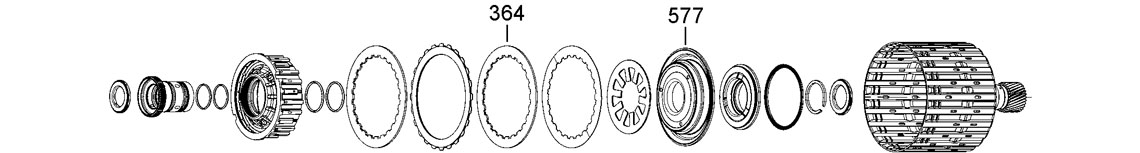

G
C Clutch
364
577

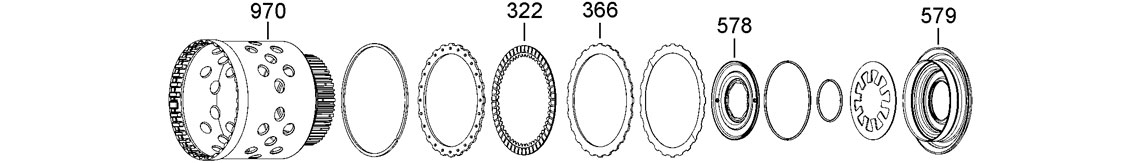

H
D Clutch
970
322
366
578
579
J
No 4 Planetary Gear Set

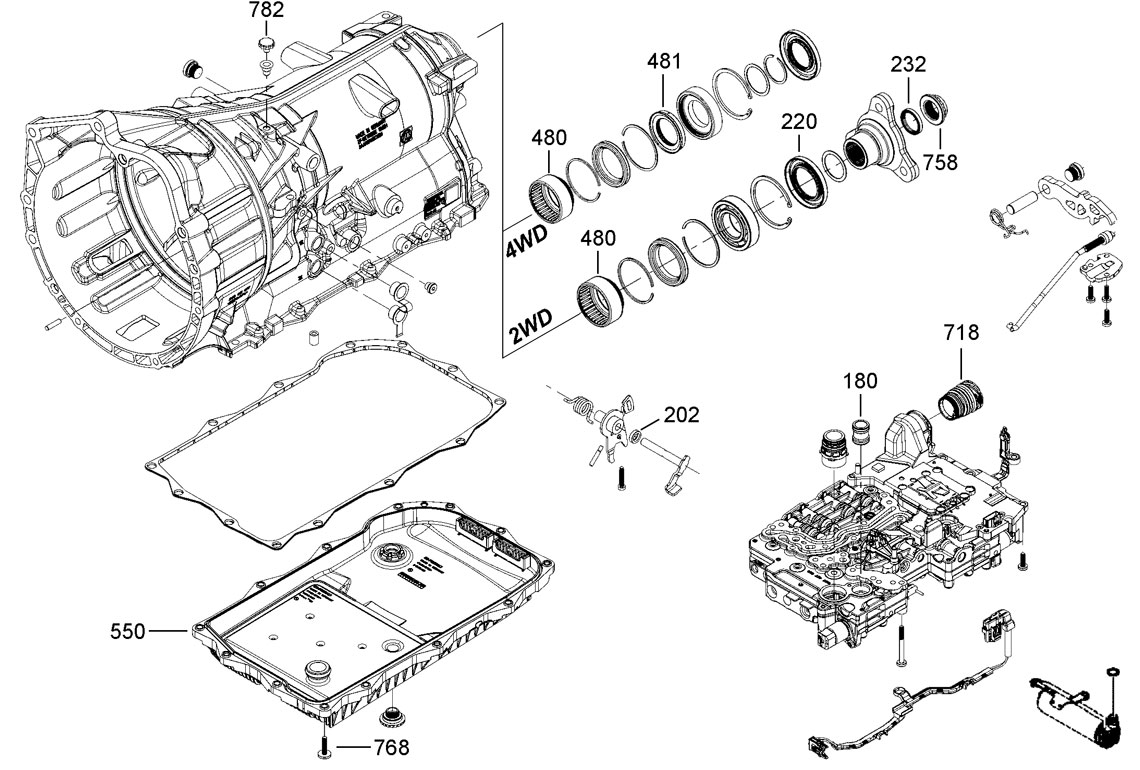

K
550
768
202
718
758
232
220
480
480
481
782
180
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 160A | 121160 | Front Cover to Case O Ring | 18-ON | 1 | |
| 180K | 121180 | Valve Body to Case Sealing Tube | 18-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 200A | 121200 | Converter Seal | 53 ID x 71 OD x 7.00mm | 18-ON | 1 |
| 202K | 93202 | Selector Shaft Seal | 10 ID x 18 OD x 5.00mm | 18-ON | 1 |
| 220K | 99220 | Extension Housing Seal, 2WD | 44 ID x 72 OD x 8.00mm | 18-ON | 1 |
| 232K | 121232 | Output Flange to Nut Seal | 26.2 ID x 36.5 OD x 4.80mm | 18-ON | 1 |
sealing rings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 162B | 121162 | A Clutch Piston Outer Lipped Seal | 18-ON | 1 | |
| 163B | 121163 | A Clutch Piston Inner Lipped Seal | 18-ON | 1 | |
| 270D | 121270 | Input Shaft Sealing Ring | 18-ON | 7 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 310B | 121310 | A Clutch Friction Plate | 130 OD x 1.56mm x 24T | 18-ON | 5 |
| 322H | 121322 | D Clutch Friction Plate | 148 OD x 2.00mm x 54T Waved | 18-ON | 4 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 360B | 121360 | A Clutch Steel Plate | 18-ON | 5 | |
| 362C | 121362 | B Clutch Steel Plate | 18-ON | 5 | |
| 364F | 121364 | E Clutch Steel Plate | 18-ON | 6 | |
| 364G | 121364 | C Clutch Steel Plate | 18-ON | 6 | |
| 366H | 121366 | D Clutch Steel Plate | 18-ON | 4 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 460A | 121460 | Front Cover Needle Bearing | 33 ID x 39 OD x 21.00mm | 18-ON | 1 |
| 462E | 121462 | P3 Needle Bearing | 50.8 ID x 67.5 OD x 4.00mm | 18-ON | 1 |
| 465E | 121465 | P3 Planet Needle Bearing | 46.3 ID x 63 OD x 4.00mm | 18-ON | 1 |
| 480K | 121480 | Output Shaft Needle Sleeve Bearing | 18-ON | 1 | |
| 481K | 121481 | Output Shaft Needle Bearing | 18-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 572B | 121572 | A Clutch Piston | 18-ON | 1 | |
| 577G | 121577 | C Clutch Moulded Piston | 18-ON | 1 | |
| 578H | 121578 | D Clutch Balance Piston | 18-ON | 1 | |
| 579H | 121579 | D Clutch Piston | 18-ON | 1 |
springs & one way clutches
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 650B | 121650 | A Clutch Diaphragm Spring | 18-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 758K | 99758 | Output Shaft Nut | 18-ON | 1 | |
| 760D | 121760 | P2 Oil Tray | 18-ON | 1 | |
| 768K | 99768 | Plastic Pan Torx Screw | M6 x 28.5mm | 18-ON | 13 |
| 782K | 96782 | Breather Cap | 18-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 915B | 121915 | A Clutch Hub & Sungear | 18-ON | 1 | |
| 970H | 121970 | D Clutch Drum | 18-ON | 1 | |
| 970H | 121970A | D Clutch Drum, Aftermarket | 18-ON | Alt |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 121999-01 | LIFEGUARD 8 ATF (1 LITRE) | 08-ON | AR | |
| NI | 121999-05 | LIFEGUARD 8 ATF (5 LITRE) | 08-ON | AR | |
| NI | 121999-20 | LIFEGUARD 8 ATF (20 LITRE) | 09-ON | AR |
