A

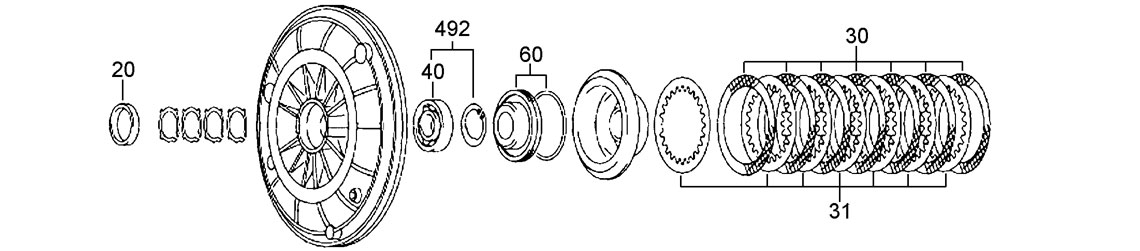

Front Cover & Forward Clutch

40
31
20
30
60
492

B

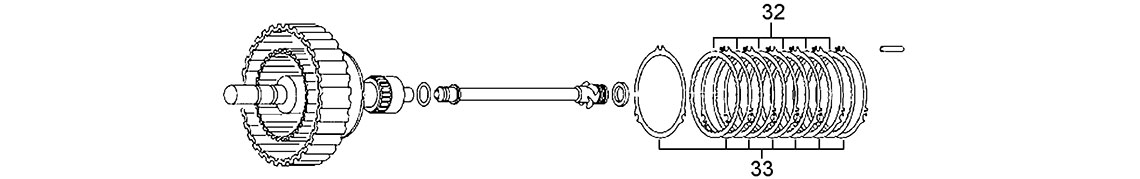

Forward Clutch Drum & Reverse Brake

32
33

C

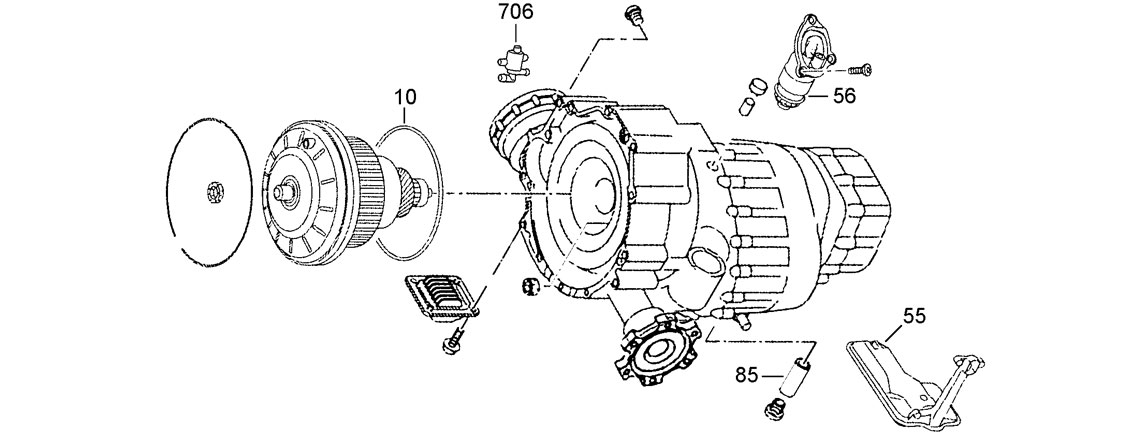

Case, Clutch Assembly & Filters

85
55
56
10
706

D

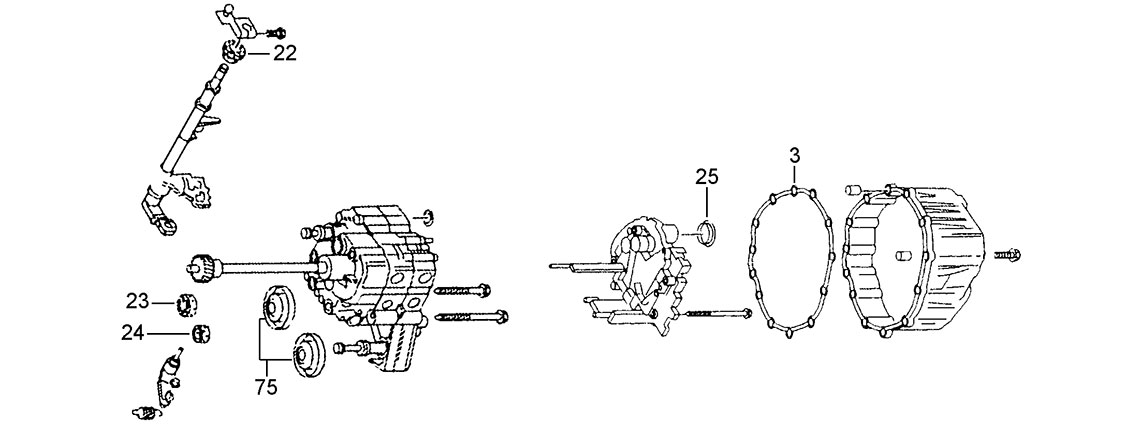

Selector, Oil Pump, Valve Body, Control Unit & End Cover

23
24
3
25
75
22

E

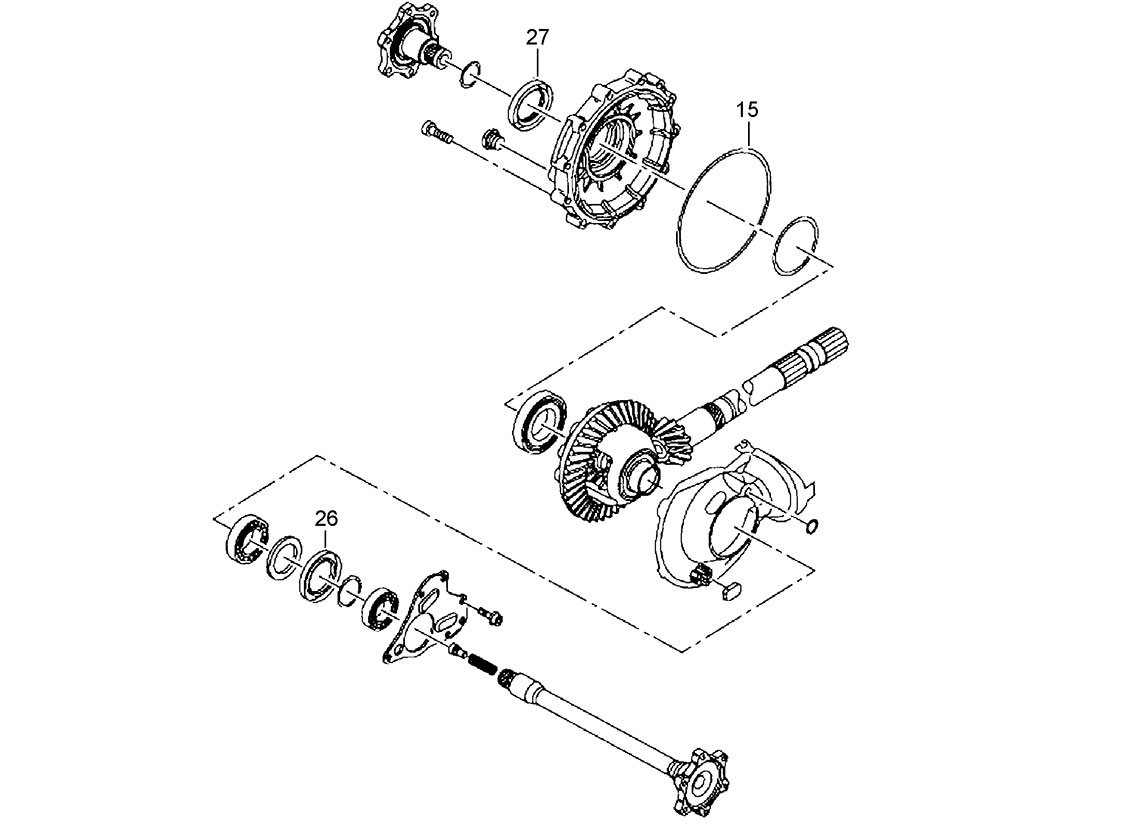

Differential Assembly

26
27
15

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C91000K Overhaul Kit 07-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
3D C91120 Rear Cover Gasket 07-ON 1
NI C91114 Case Gasket 07-ON 1
NI C91115 Case Gasket 07-ON 1
NI C91145 Filter to Case Gasket 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
10C 94160 Front Cover to Case O Ring 208 ID x 2.50mm thick 07-ON 1
15E C91170 Diff Cover O Ring 07-ON 1
25D C90228 Mechatronic to End Cover Seal Round 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
20A C91200 Input Seal 24.9 ID x 40 OD x 8.00mm 07-ON 1
22D 82206 Manual Shaft Seal 11.5 ID x 30/22 OD x 12.00mm 07-ON 1
23D C90214 Oil Feed Tube Seal 30.8mm OD 22.3 ID x 30.8 OD x 13.50mm 07-ON 1
24D C90216 Oil Feed Tube Seal 21mm OD 11.5 ID x 21 OD x 13.20mm 07-ON 5
26E C91210 Axle Seal Lefthand 33 ID x 47 OD x 8.00mm 07-ON 1
27E C91214 Axle Seal Righthand 40 ID x 55 OD x 7.00mm 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C90300K Forward Friction & Steel Module 07-ON 1
Kit C90304K Friction Module 07-ON 1
30A C90310 Forward Clutch External Teeth 110 ID x 2.80mm x 30T 07-ON 6-7
30A C90312 Forward Clutch External Teeth 110 ID x 2.00mm x 30T 07-ON 6-7
32B C90314 Reverse Clutch Internal Teeth 181.84 OD x 2.80mm x 40T 07-ON 6-7

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
31A C90360A Forward Clutch Selective Steels 137.8 OD x 1.85mm x 26T 07-ON 1
31A C90360B Forward Clutch Selective Steels 137.8 OD x 2.15mm x 26T 07-ON 1
31A C90360C Forward Clutch Selective Steels 137.8 OD x 2.60mm x 26T 07-ON 1
31A C90360D Forward Clutch Selective Steels 137.8 OD x 2.85mm x 26T 07-ON 1
31A C90360E Forward Clutch Selective Steels 137.8 OD x 3.10mm x 26T 07-ON 1
33B C90364A Reverse Brake Selective Steels 163 ID x 1.90mm x 9T 07-ON 1
33B C90364B Reverse Brake Selective Steels 163 ID x 2.15mm x 9T 07-ON 1
33B C90364C Reverse Brake Selective Steels 163 ID x 2.65mm x 9T 07-ON 1
33B C90364D Reverse Brake Selective Steels 163 ID x 2.90mm x 9T 07-ON 1
33B C90364E Reverse Brake Selective Steels 163 ID x 3.15mm x 9T 07-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40A C90490 Front Cover Bearing 24.8 ID x 58 OD x 16.00mm 07-ON 1
492A C90492 Front Cover Bearing with Circlips 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55C C91552 Internal Filter 19mm Pick Up 07-ON 1
56C C91560 External Filter Cartridge 07-ON 1

Transmission must be Disassembled to change Filter.

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
60A C90570 Forward Clutch Piston 01-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C91635K Front Cover Snap Ring Kit 07-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
75D C91710 Input & Output Sensor Ring 07-ON 2
706C D145706 Cooling Control Valve 07-ON 1
706C D145706A Cooling Control Valve, Aftermarket 07-ON 1
NI C91700 N88 Solenoid 07-ON 1
NI C91700 N215 Solenoid 07-ON 1
NI C91700 N216 Solenoid 07-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
85C C91780 Fluid Level Tube Codes JXS, KSS, KST, KSU 07-ON 1
85C C91782 Fluid Level Tube Codes AFR, LAQ, LAS, LAU, LAV, LKS, LKT, LKX LKY, LLA, LNC, MMU, MMV, MMW, MQR, MVB, MVC 07-ON 1
NI C91760 Forward Feed Pipe 07-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
NI C91940 DRIVE CHAIN (0AW) 07-ON 1
NI C91968 Entrainment Pump 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49998-01 Lubegard Universal CVT Fluid 946ml Bottle 07-ON AR
NI 49998-05 Lubegard Universal CVT Fluid 5 Litre Pack 07-ON AR
NI 49998-20 Lubegard Universal CVT Fluid 20 Litre Pack 07-ON AR
