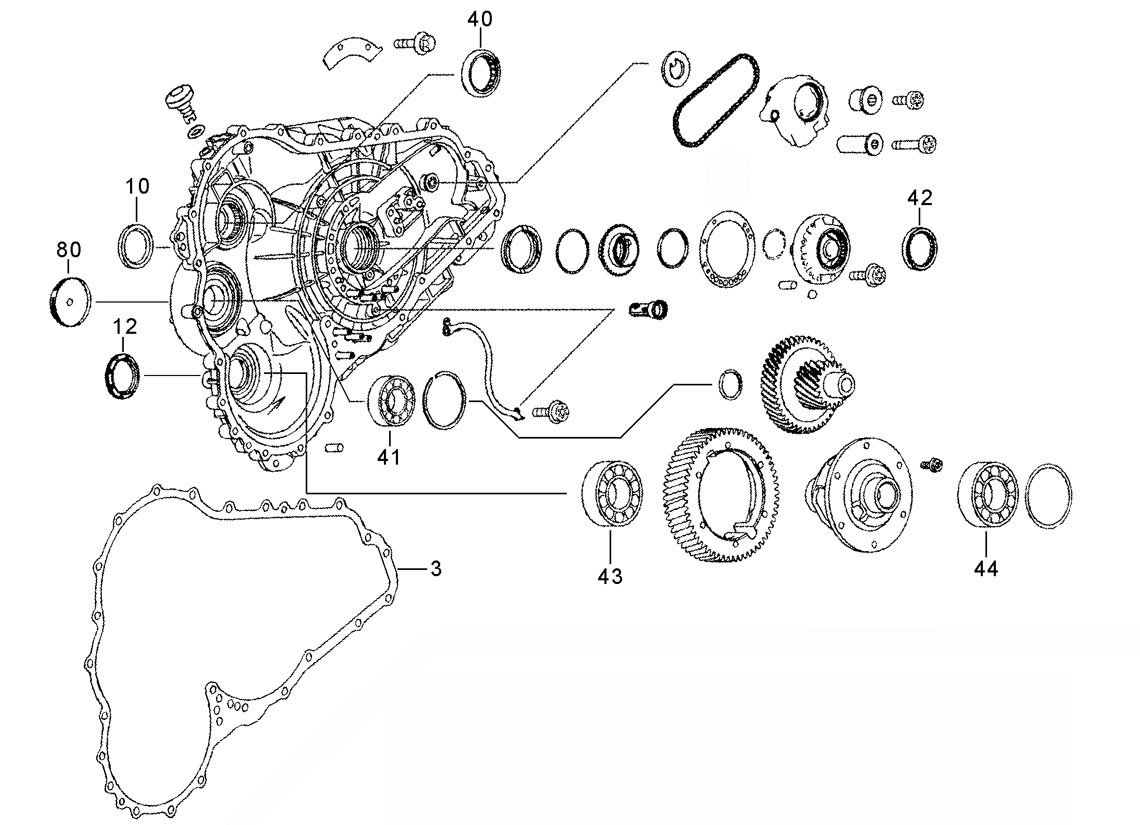

A

44
42
40
41
43
3
80
12
10

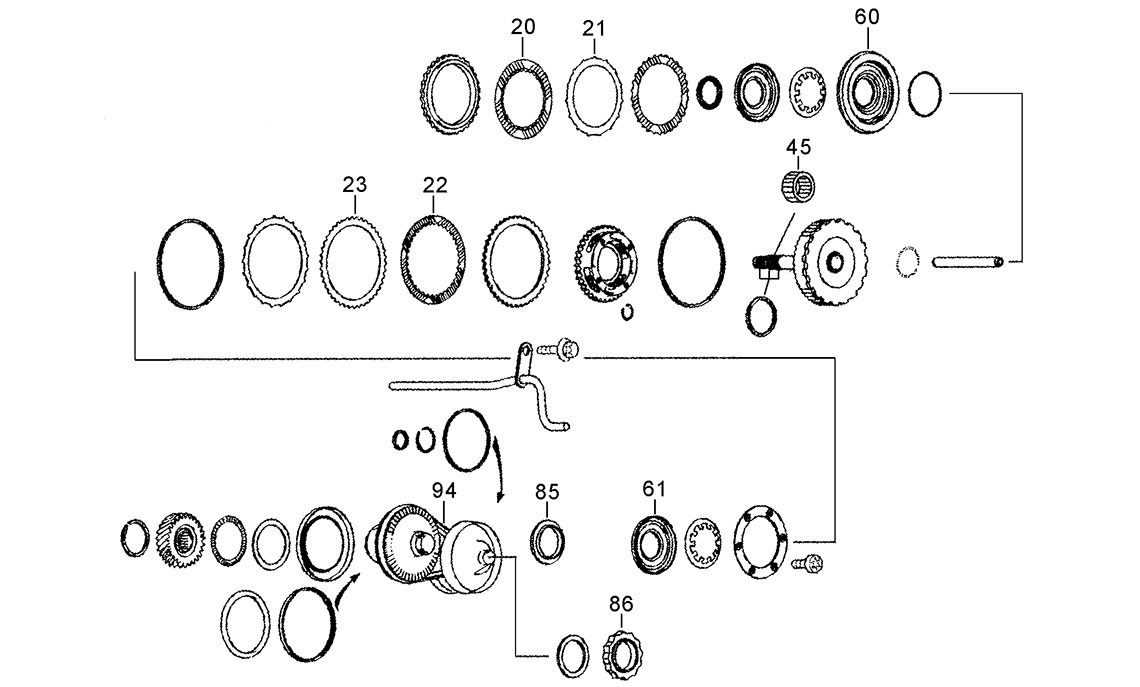

B

Forward Clutch, Reverse Brake & Pulleys

45
20
21
23
60
61
22
94
85
86

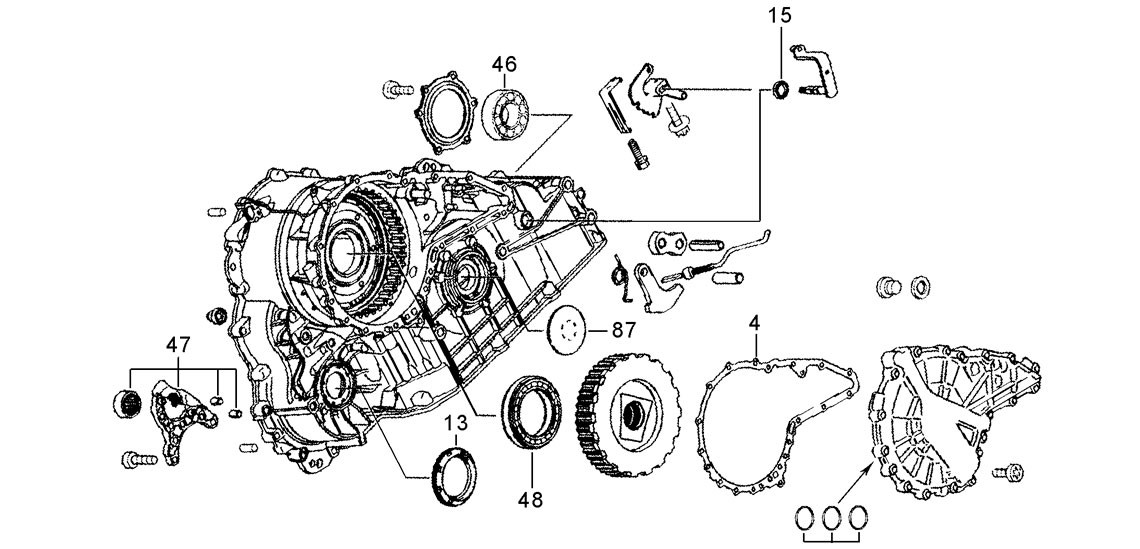

C

Main Case & End Cover

4
48
46
47
87
13
15

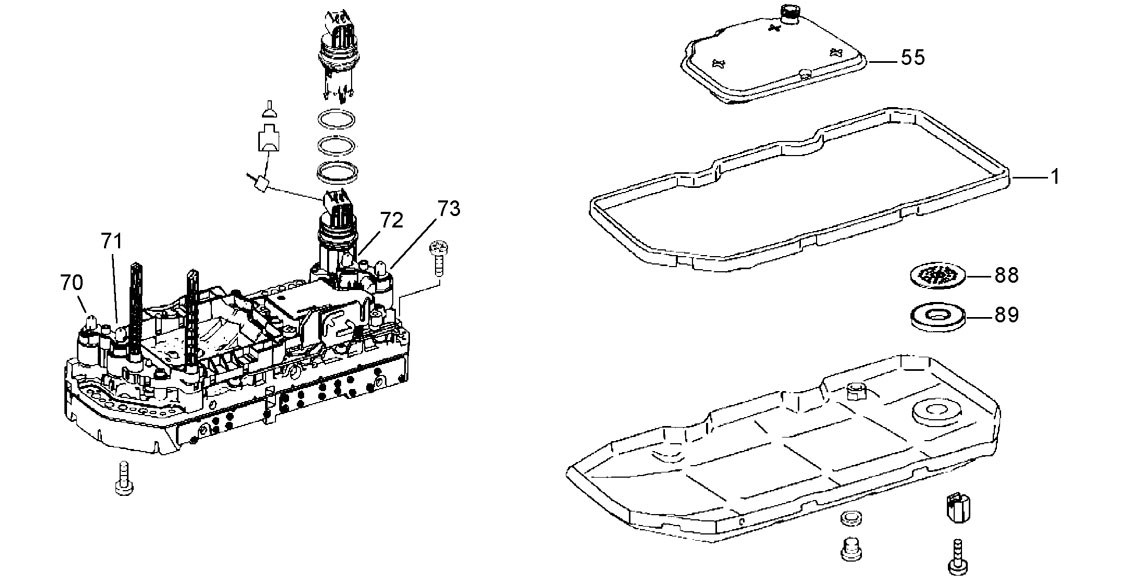

D

Pan, Filter & Mechatronic

72
70
55
73
88
89
1
71

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C80000K Overhaul Kit 722.8 05-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
1D C80100 Pan Gasket to Serial No 305061 All Rubber 05-05/07 1
1D C80102 Pan Gasket From Serial No 305062 Metal with Rubber Seal 05/07-ON 1
3A C80110 Main Case Gasket 05-ON 1
4C C80115 Rear Cover Gasket 05-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 89190K Solenoids O-Ring Kit 05-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 86200 Converter Seal 43 ID x 58 OD x 7.00mm 05-ON 1
12A C80210 Axle Seal Lefthand 38 ID x 56 OD x 8.00 x 12.00mm 05-ON 1
13C C80210 Axle Seal Righthand 38 ID x 56 OD x 8.00 x 12.00mm 05-ON 1
15C C80220 Manual Shaft Seal 05-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C80300KA Friction Module 15-ON Alt
20B C80310 Forward Clutch 180 OD x 1.78mm x 46T 05-ON 3
22B C80314 Reverse Brake 193.3 OD x 2.18mm x 36T 05-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B C80360 Forward Clutch 154 ID x 1.40mm x 48T 05-ON 3
23B C80364 Reverse Brake 145.8 ID x 1.20mm x 42T 05-ON 3

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
40A C80494 Secondary Bearing Front 05-ON 1
41A C80497 Idler Gear Bearing Front 35 ID x 76 OD x 17.95mm 05-ON 1
42A C80490 Primary Bearing Front 05-ON 1
43A C80930 Differential Bearing Lefthand 05-ON 1
43A C80930 Differential Bearing Lefthand 05-ON 1
44A C80930 Differential Bearing Righthand 05-ON 1
44A C80930 Differential Bearing Righthand 05-ON 1
45B C80499 Output Drum Support Bearing 05-ON 1
46C C80492 Primary Bearing Rear 72 x 35 x 14 05-ON 1
48C C80496 Secondary Rear Bearing 60 ID x 94.9 OD x 18.90mm 05-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55D C80550 Filter 05-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C80550K Filter Kit to Serial No 305061 Gasket All Rubber 05-05/07 1
Kit C80552K Filter Kit From Serial No 305062 Gasket Metal with Rubber Seal 05/07-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
60B C80580 Output Shaft Piston (Forward Clutch) 05-ON 1
61B C80582 Planet Carrier Piston (Reverse Brake) 05-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70D 89704 Primary Control Solenoid 05-ON 1
71D 89704 Clutch Control Solenoid 05-ON 1
72D C80702 Lock Up Solenoid 05-ON 1
73D 89704 Secondary Control Solenoid 05-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
80A C80760 Secondary Shaft End Cap Lefthand 05-ON 1
85B C80772 Secondary Shaft Locking Nut 05-ON 1
86B C80770 Primary Shaft Nut 05-ON 1
87C C80760 Secondary Shaft End Cap Righthand 05-ON 1
88D C80766 Cover Plate for Magnet* *Use with C80765 05-ON 1
89D C80765 Upgraded Pan Magnet* 05-ON 1
NI C13770 Steel Ball for Primary Sliding Shaft 5.88mm 05-ON Alt
NI C13772 Steel Ball for Primary Sliding Shaft 5.95mm 05-ON 9
NI C13772 Steel Ball for Secondary Sliding Shaft 5.95mm 05-ON 12

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit C80955 Variator Set 05-ON 1
47C C80950 Idler Gear Rear Bearing & Support Assembly 05-ON 1
47C C80950 Idler Gear Rear Bearing & Support Assembly 05-ON 1
94B CVTBELT11 Push Belt Assembly 30 x 240mm 05-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49998-01 Lubegard Universal CVT Fluid 946ml Bottle 05-ON AR
NI 49998-05 Lubegard Universal CVT Fluid 5 Litre Pack 05-ON AR
NI 49998-20 Lubegard Universal CVT Fluid 20 Litre Pack 05-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T880 Dipstick 05-ON 1
