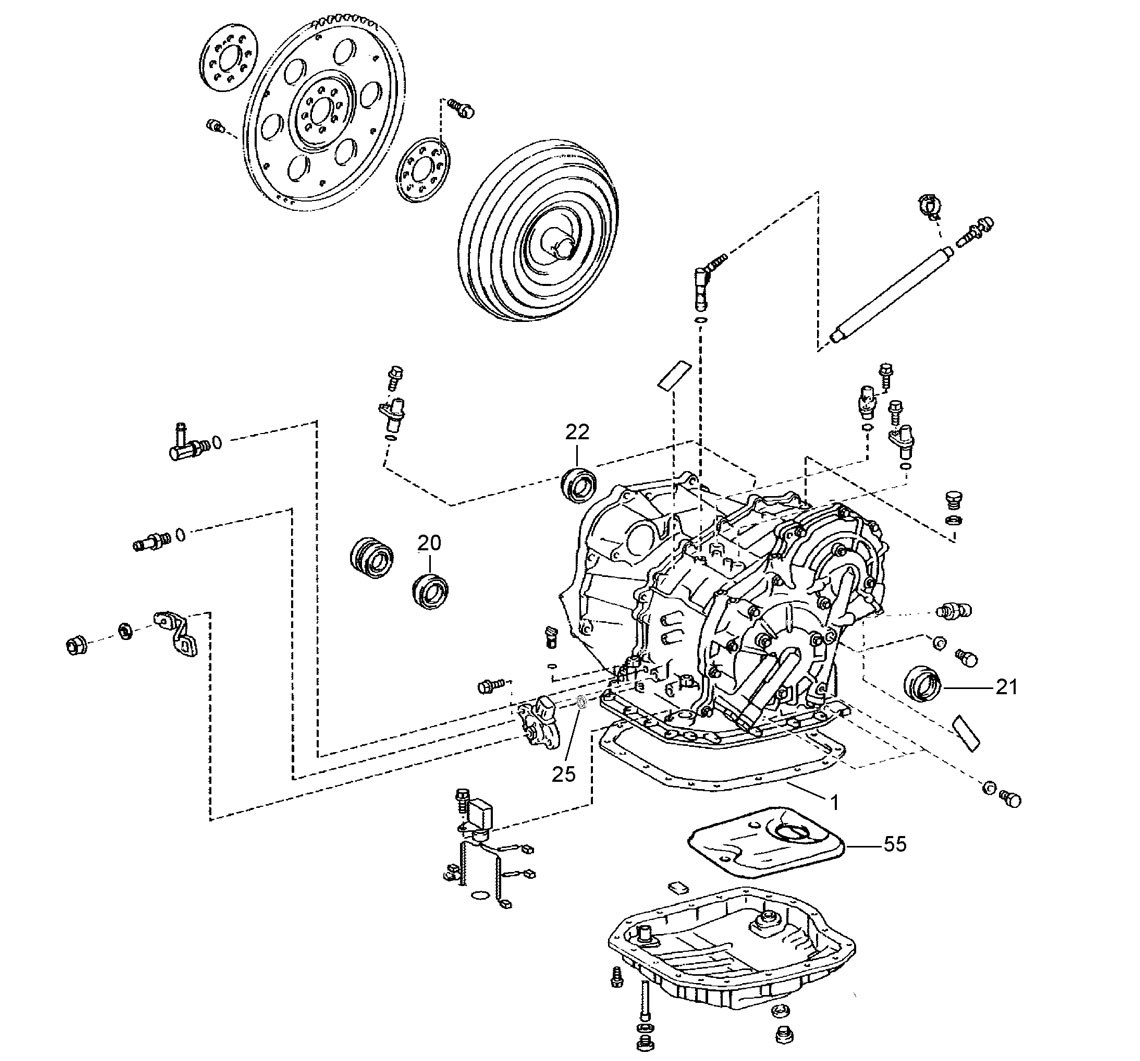

A
20
22
21
1
55
25
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | C72000K | Overhaul Kit K210 (XA-15LN) With Pistons | Transtec | 00-ON | 1 |
| Kit | C72002K | Overhaul Kit K210 (XA-15LN) Without Pistons | Transtec | 00-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 20A | C72200 | Oil Pump Seal | 45 ID x 61 OD x 6.00mm | 00-ON | 1 |
| 20A | C73200 | Oil Pump Seal | 43 ID x 56.20 OD x 6.00mm | 00-ON | 1 |
| 21A | 79212 | Axle Seal Lefthand | 33 ID x 56.4 OD x 8.80mm | 00-ON | 1 |
| 21A | C72210 | Axle Seal Lefthand | 34 ID x 63 OD x 9.00mm | 00-ON | 1 |
| 21A | C72216 | Axle Seal Lefthand | 37 ID x 54 OD x 9.10mm | 00-ON | 1 |
| 22A | C72216 | Seal Axle Righthand | 37 ID x 54 OD x 9.10mm | 00-ON | 1 |
| 22A | C72220 | Axle Seal Righthand | 34 ID x 54.5 OD x 9.00mm | 00-ON | 1 |
| 22A | C72224 | Righthand Axle Seal | 34 ID x 55 OD x 9.00mm | 00-ON | 1 |
| 25A | 75205 | Manual Shaft Seal | 12 ID x 22 OD x 7.00mm | 00-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C72310 | Forward Friction | 112 OD x 1.65mm x 40T | 00-ON | 4 |
| NI | C72314 | Reverse Friction | 137.8 OD x 1.65mm x 36T | 00-ON | 4 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C70366 | Reverse Steel | 137 ID x 1.60mm x 12T | 00-ON | AR |
| NI | C72360 | Forward Steel | 94.75 ID x 1.80mm x 40T | 00-ON | AR |
| NI | C73360 | Forward Steel | 95.4 ID x 1.80mm x 24T | 00-ON | AR |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C72492 | Primary Support Bearing Outer | 32.5 ID x 76 OD x 11.00mm | 00-ON | 1 |
| NI | C72496 | Secondary Support Bearing Outer | 43 ID x 80 OD x 17.00mm | 00-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C70730 | Speed Sensor Sienta Straight 60.34mm Long | 00-ON | 1 | |
| NI | C70730 | Speed Sensor Vitz Straight 60.34mm Long | 00-ON | 1 | |
| NI | C72730 | Speed Sensor Sienta Right Angle Connector opposite Bolt Hole No sensor on Bottom Green Stripe | 00-ON | 2 | |
| NI | C72732 | Speed Sensor Vitz Right Angle Connector opposite Bolt Hole with Metal Sensor on Bottom | 00-ON | 2 | |
| NI | C72740 | Speed Sensor | 00-ON | 1 | |
| NI | C72742 | Speed Sensor | 00-ON | 1 | |
| NI | C72744 | Speed Sensor | 00-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | C72940 | Belt Assembly | 00-ON | 1 | |
| NI | CVTBELT05 | Push Belt Assembly | 24 x 208.8mm | 00-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49500 | Revitalizant XADO EX120 | 8ml | 00-ON | AR |
| NI | 49500-4 | Revitalizant XADO EX120, pack of 4 | 8ml | 00-ON | AR |
| NI | 49998-01 | Lubegard Universal CVT Fluid 946ml Bottle | 00-ON | AR | |
| NI | 49998-05 | Lubegard Universal CVT Fluid 5 Litre Pack | 00-ON | AR | |
| NI | 49998-20 | Lubegard Universal CVT Fluid 20 Litre Pack | 00-ON | AR |
