A

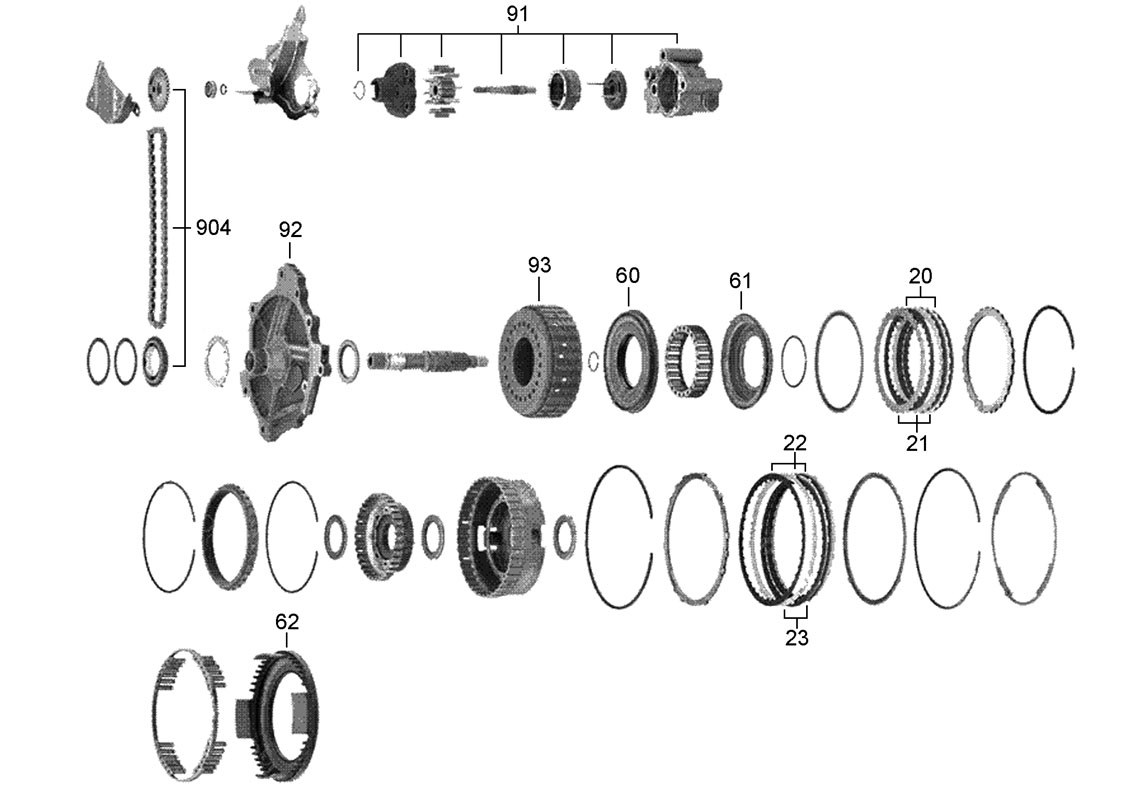

Pump, Forward Clutch, Planet & Reverse Brake
21
20
60
61
22
23
62
92
91
93
904
B

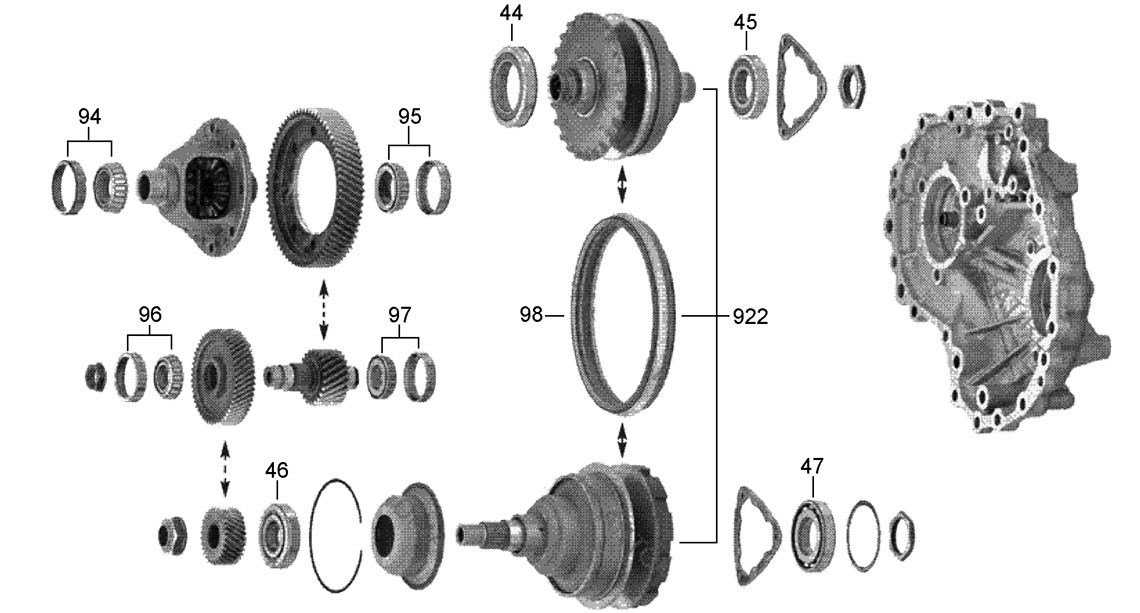

Reduction Gear, Differential Assembly, Primary & Secondary Drums & Drive Belt
45
44
47
46
94
98
96
95
97
922
C

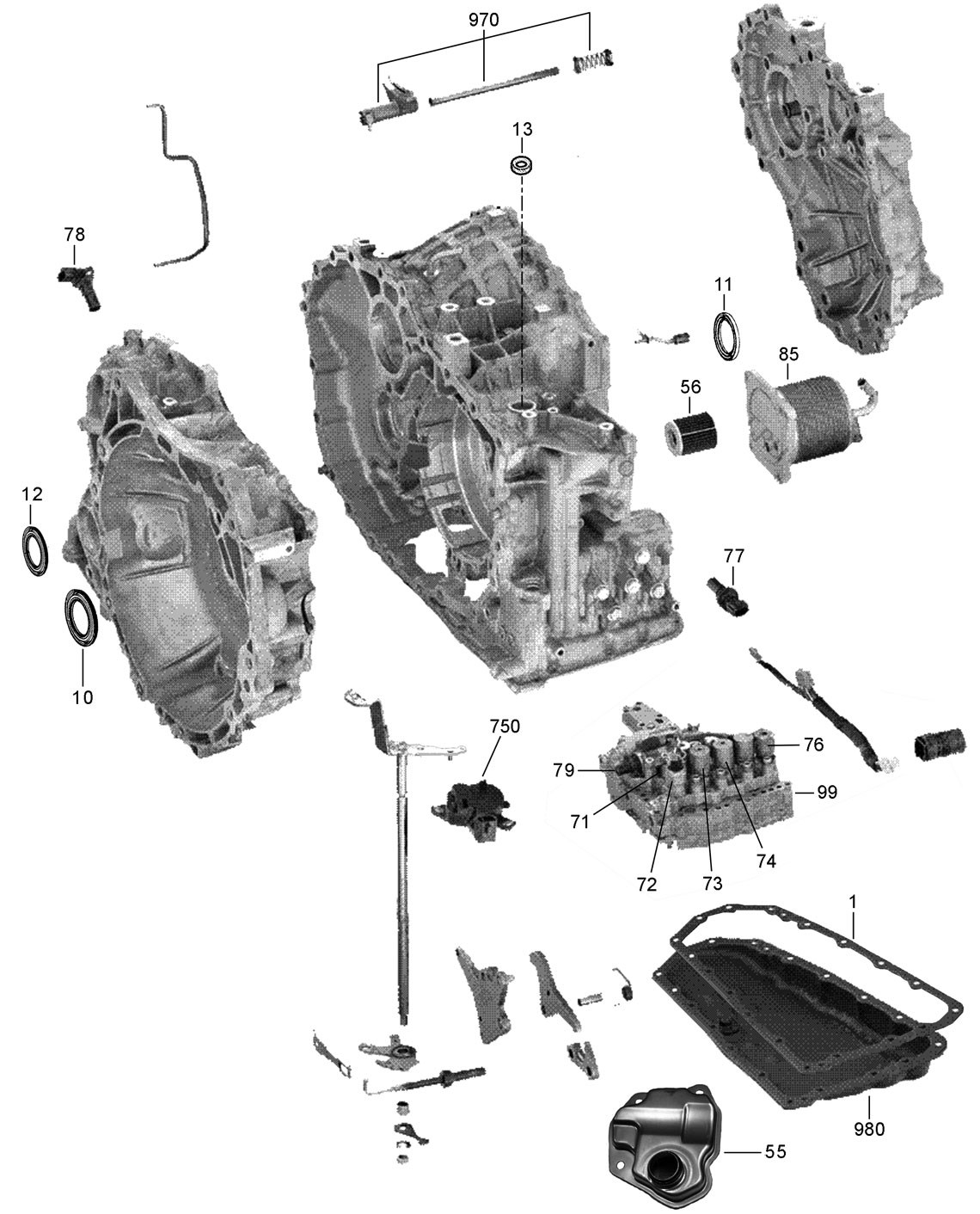

Case, Pan, Filter & Valve Body
55
78
77
85
970
99
79
56
12
11
10
13
1
980
750
71
72
73
74
76
overhaul kits
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16000K | Overhaul Kit with Pistons | Transtec | 02-ON | 1 |
Kit | C16000KA | Overhaul Kit With Pistons | Driveline | 02-ON | Alt |
Kit | C16002K | Overhaul Kit without Pistons | Transtec | 02-ON | 1 |
Kit | C16002KA | Overhaul Kit without Pistons | Precision | 02-ON | 1 |
Kit | C16003K | Overhaul Kit without Pistons & Rings | Transtec | 02-ON | 1 |
gaskets
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
1C | C16100 | Pan Gasket Nissan Cork - 18 Holes | 02-ON | 1 | |
1C | C16100H | Pan Gasket Nissan Duraprene - 18 Holes | 02-ON | 1 | |
1C | C16101F | Pan Gasket Nissan Farpark - 18 Holes | 02-ON | 1 | |
1C | C16102 | Pan Gasket Nissan Cork - 19 Holes | 02-ON | 1 | |
1C | C16102H | Pan Gasket Nissan Duraprene - 19 Holes | 02-ON | 1 | |
1C | C16103F | Pan Gasket Nissan Farpark - 19 Holes | 02-ON | 1 |
rubber components
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
NI | 56164 | Input Shaft to Converter O Ring | 20.8 ID x 25 OD x 1.60mm | 02-ON | 1 |
NI | C16165 | Filter O Ring | 02-ON | 1 | |
NI | C16168 | Cooler Return Filter Seal (RE0F10A) | 02-ON | 1 | |
NI | C16180 | O Ring Heat Exchanger (RE0F10A) | 02-ON | 1 |
seals
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
10C | C16200 | Converter Seal | 51 ID x 66 OD x 7.00mm | 02-ON | 1 |
11C | 57214 | Axle Seal Lefthand | 32 ID x 56 OD x 8.00mm | 02-ON | 1 |
12C | 57210 | Axle Seal Righthand | 40 ID x 56.3 OD x 7.90mm | 02-ON | 1 |
13C | 75205 | Manual Shaft Seal | 12 ID x 22 OD x 7.00mm | 02-ON | 1 |
NI | C14230 | Transfer Case to Right Axle Seal | 59 ID x 80 OD x 12.00mm | 02-ON | 1 |
NI | C16230 | Transfer Case to Right Axle Seal | 50 ID x 70 OD x 9.00mm | 02-ON | 1 |
NI | C16232 | Transfer Case to Driveshaft Seal | 43 ID x 58 OD x 7.00mm | 02-ON | 1 |
NI | C16234 | Transfer Case to Transmission Seal | 47 ID x 66 OD x 8.00mm | 02-ON | 1 |
NI | C16236 | Transfer Case to Transmission Seal | 56 ID x 70 OD x 9.00mm | 02-ON | 1 |
NI | C16240 | Transfer Case Input Seal | 56 ID x 70 OD x 7.50mm | 02-ON | 1 |
friction plates
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16300K | Friction Kit | 02-ON | 1 | |
20A | C16310 | Forward Clutch | 138 OD x 1.50mm x 36T | 02-ON | 3 |
22A | C14314 | Reverse Brake | 178.3 OD x 1.50mm x 40T | 02-ON | 3 |
steel & pressure plates
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16390KU | Pressure & Apply Plate Kit (RE0F10A) | 02-ON | 1 | |
21A | C16360 | Forward Clutch | 119.8 ID x 1.37mm x 30T | 02-ON | 3 |
23A | C14364 | Reverse Brake | 163.8 ID x 1.40mm x 12T | 02-ON | 3 |
23A | C16364 | Reverse Steel Plate | 163.9 ID x 1.40mm x 12T | 02-ON | AR |
thrust washers & bearings
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16490K-4 | Bearing Kit, 2 x Primary and 2 x Secondary | 02-ON | 1 | |
44B | C16491 | Primary Bearing Front | 60 ID x 101 OD x 17.15mm | 02-ON | 1 |
45B | C16492 | Primary Bearing Rear | 40 ID x 80 OD x 16.00mm | 02-ON | 1 |
46B | C16494 | Secondary Bearing Front | 36 ID x 80 OD x 17.96mm | 02-ON | 1 |
47B | C16496 | Secondary Bearing Rear | 45 ID x 90 OD x 16.95mm | 02-ON | 1 |
94B | C16930 | Inner Differential Bearing 2WD & AWD | 40 ID x 68 OD x 14.50mm | 02-ON | 1 |
95B | C16930 | Outer Differential Bearing 2WD | 40 ID x 68 OD x 14.50mm | 02-ON | 1 |
95B | C16932 | Outer Differential Bearing AWD | 60 ID x 85 OD x 20.00mm | 02-ON | 1 |
96B | C16936 | Inner Reduction Gear Bearing | 30 ID x 62 OD x 17.70mm | 02-ON | 1 |
97B | C16936 | Outer Reduction Gear Bearing | 30 ID x 62 OD x 17.70mm | 02-ON | 1 |
NI | C16931 | Bearing Differential (RE0F10A) | 44 ID x 76 OD | 02-ON | 1 |
NI | C16938 | Transfer Gear Bearing | 25 ID x 55 OD x16.50mm | 02-ON | 1 |
NI | C16939 | Transfer Gear Bearing | 29 ID x 58 OD x 16.5mm | 02-ON | 1 |
filters
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
55C | C16550 | Filter 14mm High Pick Up | 02-ON | 1 | |
55C | C16552 | Filter 23mm High Pick Up | 02-ON | 1 | |
55C | C16554 | Filter 42mm High Pick Up | 02-ON | 1 | |
55C | C16556 | Filter 11mm High Pick Up Forward | 02-ON | 1 | |
55C | C16558 | Filter Hybrid (RE0F10A) | 20mm pickup | 02-ON | 1 |
56C | C16560 | Cooler Return Filter | 02-ON | 1 | |
56C | C17560 | External Filter Hybrid (RE0F10A) | 02-ON | 1 |
filter kits
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16550K | Filter Kit 14mm High Pick Up | 02-ON | 1 | |
Kit | C16552K | Filter Kit 23mm High Pick Up | 02-ON | 1 | |
Kit | C16556K | Filter Kit, 11mm High Pick Up | 02-ON | 1 |
pistons
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16570K | Piston Kit | 02-ON | 1 | |
Kit | C16571K | Piston Kit Forward (RE0F10A) | 02-ON | 1 | |
60A | C16572 | Piston Forward Apply (RE0F10A) | 02-ON | 1 | |
61A | C16572 | Forward Balance Piston | 02-ON | 1 | |
61A | C16574 | Piston Forward Balance (RE0F10A) | 02-ON | 1 | |
62A | C16576 | Reverse Brake Piston | 02-ON | 1 |
electrical components
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16710K | Solenoid Set | 02-ON | 1 | |
71C | C14740 | Line Pressure Switch | 02-ON | 1 | |
72C | C14740 | Line Pressure Switch | 02-ON | AR | |
73C | C16700 | Line Pressure A Solenoid | 02-ON | 1 | |
74C | C16700 | Line Pressure B Solenoid | 02-ON | 1 | |
77C | C16732 | Primary Speed Sensor | 02-ON | 1 | |
77C | C16732U | Primary Speed Sensor (Used) | 02-ON | 1 | |
78C | C16730 | Secondary Speed Sensor | 02-ON | 1 | |
78C | C16730U | Secondary Speed Sensor (Used) | 02-ON | 1 | |
79C | C16720 | Stepper Motor (RE0F10A) OEM | 02-ON | 1 | |
750C | C16750U | Inhibitor Switch (Used) | 02-ON | 1 | |
750C | C16755 | Inhibitor Switch (RE0F10A) OEM | 02-ON | 1 | |
NI | 59714 | LSS (Lock Up Select) Solenoid | 02-ON | 1 |
sundry parts
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16774K | Oversized Torque Converter Pressure Regulator Valve Kit * Reamer Required | 02-ON | 1 | |
Kit | C16780K | Oversize Primary Pressure Regulator Valve Kit* Reamer Required | 02-ON | 1 | |
Kit | C16782K | Oversize Secondary Pressure Regulator Valve Kit * Reamer Required | 02-ON | 1 | |
Kit | C16784K | Oversize TCC Limit & Lube Valve Kit * Reamer Required | 02-ON | 1 | |
Kit | C16786K | Oversized Secondary Pulley Control Valve Kit * Reamer Required | 02-ON | 1 | |
Kit | C16788K | Oversized Lockup Control Valve Kit * Reamer Required | 02-ON | 1 | |
Kit | C16790K | Pulley Roller Pin Kit | 3 x 24mm & 3 x 12mm | 02-ON | 1 |
NI | C13770 | Steel Sliding Ball | 5.88mm | 02-ON | Alt |
NI | C13772 | Steel Sliding Ball | 5.95mm | 02-ON | 13 |
NI | C15775K | Converter Nut Kit | 02-ON | 1 |
solutions & fixes
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
NI | C16770 | Pump Flow Control Valve No Reamer Required | 07-ON | 1 | |
NI | C16772 | Oversize Pump Flow Control Valve * Reamer Required | 02-ON | 1 | |
NI | C16780 | Flow Control Valve Repair RE0F10A | 02-ON | 1 |
hard parts
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
Kit | C16910U | Forward Drum & Planet Assembly (RE0F10A) Used | 02-ON | 1 | |
91A | C16900FN | Pump | 02-ON | 1 | |
91A | C16900U | Pump (Used) | 02-ON | 1 | |
92A | C16902U | Stator | 02-ON | 1 | |
93A | C16910 | Forward Clutch Assembly (Complete) | 02-ON | 1 | |
98B | C16940 | Drive Belt | 02-ON | 1 | |
904A | C16904U | Pump Sprocket & Chain Set (RE0F10A) 2WD | 02-ON | 1 | |
904A | C16905U | Pump Sprocket & Chain Set (RE0F10A) AWD | 02-ON | 1 | |
922B | C16923FN | Pulley & Belt Assembly, 29T | 02-ON | 1 | |
970C | C16970U | Ratio Sensor Fork (RE0F10A) Used | 02-ON | 1 | |
980C | C16980U | Transmission Pan (18 Holes) Used | 02-ON | 1 | |
NI | C16780S | No~Stick CVT Pump Flow~Control Valve, Superior | 02-ON | 1 | |
NI | C16920U | Low & Reverse Assembly (RE0F10A) Used | 02-ON | 1 |
valve bodies
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
99C | C16960FN | Valve Body 1 Sensor | 02-ON | 1 | |
NI | C16964 | VALVE BODY NISSAN (RE0F10A) | 02-ON | 1 |
coolers
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
85C | C16764A | Oil Cooler 2 Pipes | 02-ON | 1 | |
85C | C16765 | Oil Cooler 2 Pipes | 02-ON | 1 | |
85C | C16766A | Oil Cooler 4 Pipes, Aftermarket | 02-ON | 1 | |
85C | C16767A | Oil Cooler 4 Pipes | 02-ON | 1 | |
NI | C16760 | Cooler Adapter | 02-ON | 1 | |
NI | C16760WC | Cooler with Adapter | 02-ON | 1 |
fluids
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
NI | 49500 | Revitalizant XADO EX120 | 8ml | 02-ON | AR |
NI | 49500-4 | Revitalizant XADO EX120, pack of 4 | 8ml | 02-ON | AR |
NI | 49998-01 | Lubegard Universal CVT Fluid 946ml Bottle | 02-ON | AR | |
NI | 49998-05 | Lubegard Universal CVT Fluid 5 Litre Pack | 02-ON | AR | |
NI | 49998-20 | Lubegard Universal CVT Fluid 20 Litre Pack | 02-ON | AR |
tools
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
NI | T870 | Dipstick Tool Required for measuring oil level | 02-ON | 1 | |
NI | T-F113741-TL17 | Secondary Pully Reamer (JF011E) | 02-ON | 1 | |
NI | T-F113741-TL22 | Oversized Lockup Control Reamer (JF011E) | 02-ON | 1 |
